9npd

;Crystal structure of the inactive conformation of a glycoside hydrolase (CapGH2b - E553Q Mutant) from the GH2 family in the space group P3121 at 3.05 A ;

Method: X-RAY DIFFRACTION D_max: 124.3 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9npd
沉积日期 deposition_date	2025-03-11
结构标题 title	;Crystal structure of the inactive conformation of a glycoside hydrolase (CapGH2b - E553Q Mutant) from the GH2 family in the space group P3121 at 3.05 A ;
关键词 keywords	Redox-regulation, glycosyl hydrolase, mannosidase, redox-switch, metagenome, disulfide bond, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.82 Å
回转半径 Rg (电子) rg_electron	42.40 Å
零角强度 I(0) i0	940762000.00
分子量 molecular_weight	253010.0 kDa
排除体积 excluded_volume	315810 Å³
包络体积 envelope_volume	408200 Å³
水化壳体积 shell_volume	76943 Å³
包络直径 envelope_diameter	127.2 Å
壳层 Rg shell_rg	50.52 Å
包络 Rg envelope_rg	41.65 Å
形状 Rg shape_rg	42.38 Å
总 Rg total_rg	42.83 Å
总原子数 total_atoms	17839
残基数 n_residues	2212
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

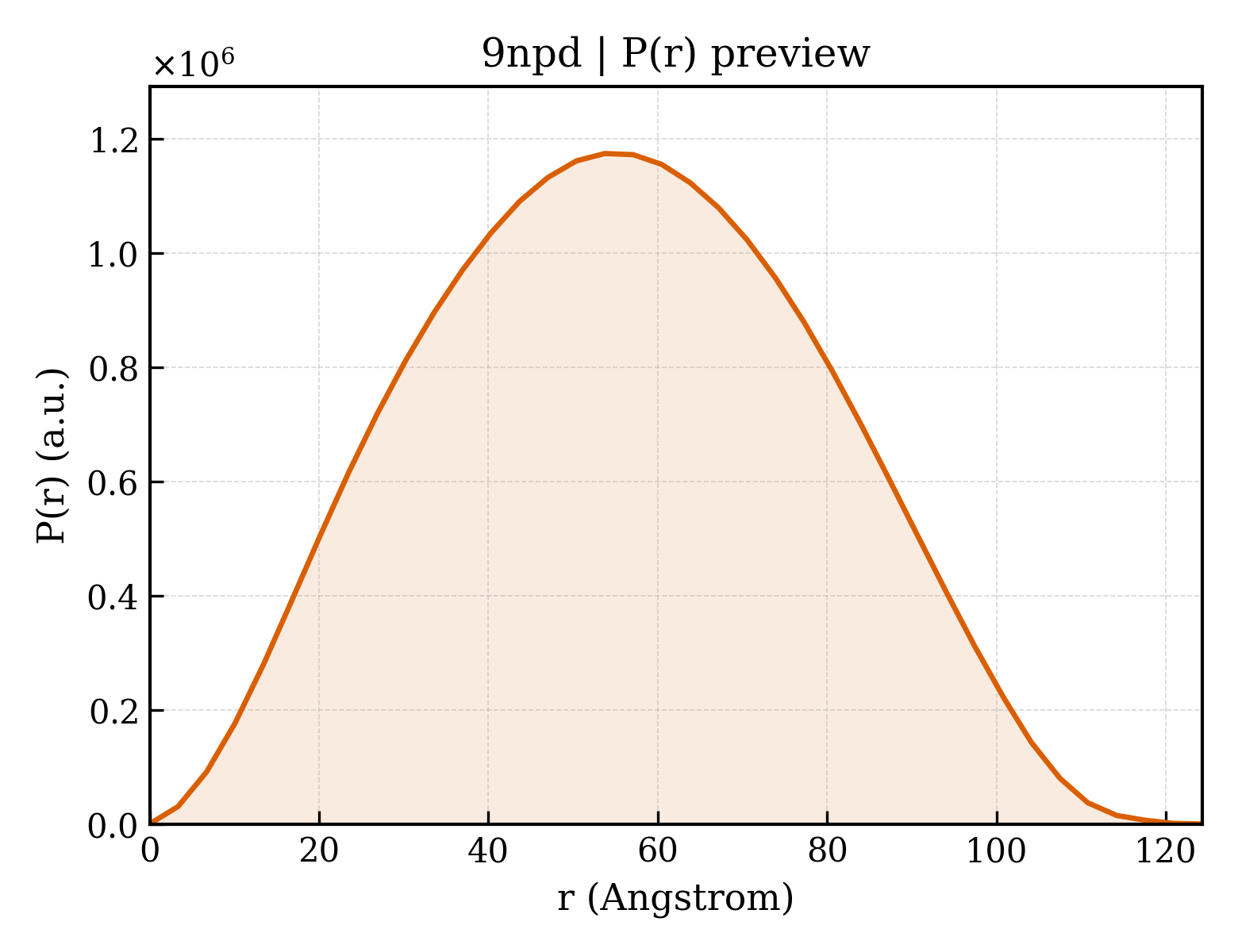

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	124.3 Å
Rg (实空间) rg_real	42.59 Å
Rg 误差 (实空间) rg_real_error	0.77 Å
I(0) (实空间) i0_real	9.4080e+08
I(0) 误差 (实空间) i0_real_error	1.6380e+07
Rg (倒空间) rg_reciprocal	42.82 Å
I(0) (倒空间) i0_reciprocal	941000000.0000
解质量估计 total_estimate	0.6457
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	53.7 Å
偏度 Skewness skewness	0.059
峰度 Kurtosis kurtosis	-0.677
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	100100000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.991; Stabil: 1.000; Sysdev: 0.016; Positv: 1.000; Valcen: 0.990; Smooth: 0.377

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Glycoside hydrolase family 2
分子量 formula_weight	90815.6 kDa
EC 编号 ec_number	3.2.1.25
突变 mutation	E553Q
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	17910

MGSSHHHHHHSSGLVPRGSHMFVSEQSLNGRWTLKFFPQPAVPVMTIEGAEAANGIVVDAVVPGNVEIDMEAAGLVEDPMVGNNIYKLRPYEGYQWYYSRTFAAPVVTEGQRLVLHFGGIDTFAEVYVNGIKVGSADNMLIEHDYDITSVVKEGENRLDVIIRSSVMEAQNHFLGTLSIGNFSNEESAPVRRAPSTYGWDIMPRLVSAGLWRDVTLRVENPVTIVDANWVTLSVNPKAREASESLYLQTRLPFEMHDKVKAVITISRDGRQILRKEALMRKFANLFTLNLSGVDAWWPRGYGEPALYTAEVSLVDVTSGKIYDTKTSKIGFRTVKLELDEVNLPGQPGQFQFIINGEPVFAKGTNWVPLDALHSRDASHVEEAVQLMVEMNCNIVRCWGGNVYEDTHFFELCDKYGIMVWQDFAMGCGNYSQRDNFAAALEKEAISVVVKLRNHPSLILWSGNNEDDQSLVFGRLAPFKANPNNDRVSRQVLSRVIYEFDPTRPYLPSSPYYGPKVCEVGVRDEVLPENHLWGPRGYYKDPFYTENPSQFVSQIGYHGCPNRETLERMFSPDSVNPWQNGVVGMWNDEWQTKANRIYDDKFQGGRNDLMTNQVRIIFGEVPADLDDFIFASQSVQAEAMKFFVELWRGRRPYRTGIIWWNIRDGWPLLSDAISDYWGGKKQAFYYMQNVHHDVCCLINPAANGYMLKVDNNTLKDFEGVVEVKDVASGKQVFKGKFVSKANQMSEIATLPMQKGQGMLVISYRIEGNEYFNHYLYGEPPYKLDQYRKWVKKCGIYELE

来源 Source

来源生物 organism	metagenome
NCBI 分类编号 ncbi_taxonomy_id	256318
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	10

Entity 3 non-polymer

描述 description	ACETATE ION
分子量 formula_weight	59.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	MALONATE ION
分子量 formula_weight	102.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	71

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	222.906 Å
晶胞边长 b length_b	222.906 Å
晶胞边长 c length_c	151.360 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	3.050 Å
最低分辨率 resolution_low	49.020 Å
R 因子 r_factor	0.2186
R_work r_work	0.2175
R_free r_free	0.2385
