SAXSdb — 9nqp

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nqp
沉积日期 deposition_date	2025-03-12
最后修订 last_revision	2025-11-19
结构标题 title	Composite structure of HSV1 helicase-primase in complex with a forked DNA and pritelivir
关键词 keywords	DNA replication, HSV-1 helicase-primase, VIRAL PROTEIN, VIRAL PROTEIN-DNA complex; VIRAL PROTEIN/DNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.64 Å
回转半径 Rg (电子) rg_electron	59.16 Å
零角强度 I(0) i0	2197180000.00
分子量 molecular_weight	257730.0 kDa
排除体积 excluded_volume	248320 Å³
包络体积 envelope_volume	578290 Å³
水化壳体积 shell_volume	86655 Å³
包络直径 envelope_diameter	219.4 Å
壳层 Rg shell_rg	55.86 Å
包络 Rg envelope_rg	57.49 Å
形状 Rg shape_rg	59.18 Å
总 Rg total_rg	59.06 Å
总原子数 total_atoms	19557
残基数 n_residues	2519
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	203.8 Å
Rg (实空间) rg_real	59.11 Å
Rg 误差 (实空间) rg_real_error	2.05 Å
I(0) (实空间) i0_real	2.1970e+09
I(0) 误差 (实空间) i0_real_error	4.5730e+07
Rg (倒空间) rg_reciprocal	58.21 Å
I(0) (倒空间) i0_reciprocal	2194000000.0000
解质量估计 total_estimate	0.8227
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	52.9 Å
偏度 Skewness skewness	0.488
峰度 Kurtosis kurtosis	-0.447
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0003
最高正则化参数 α highest_alpha	81270000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.750; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.871; Smooth: 0.570

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	DNA replication helicase
分子量 formula_weight	95760.8 kDa
EC 编号 ec_number	3.6.4.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	19558

GRAEAFLNFTSMHGVQPILKRIRELSQQQLDGAQVPHLQWFRDVAALESPAGLPLREFPFAVYLITGNAGSGKSTCVQTINEVLDCVVTGATRIAAQNMYAKLSGAFLSRPINTIFHEFGFRGNHVQAQLGQYPYTLTSNPASLEDLQRRDLTYYWEVILDLTKRALAASGGEELRNEFRALAALERTLGLAEGALTRLAPATHGALPAFTRSNVIVIDEAGLLGRHLLTAVVYCWWMINALYHTPQYAARLRPVLVCVGSPTQTASLESTFEHQKLRCSVRQSENVLTYLICNRTLREYARLSYSWAIFINNKRCVEHEFGNLMKVLEYGLPITEEHMQFVDRFVVPENYITNPANLPGWTRLFSSHKEVSAYMAKLHAYLKVTREGEFVVFTLPVLTFVSVKEFDEYRRLTHQPGLTIEKWLTANASRITNYSQSQDQDAGHMRCEVHSKQQLVVARNDVTYVLNSQIAVTARLRKLVFGFSGTFRAFEAVLRDDSFVKTQGETSVEFAYRFLSRLIFSGLISFYNFLQRPGLDATQRTLAYARMGELTAEILSLRPKSSGVPTQASVMADAGAPGERAFDFKQLGPRDGGPDDFPDDDLDVIFAGLDEQQLDVFYCHYTPGEPETTAAVHTQFALLKRAFLGRFRILQELFGEAFEVAPFSTYVDNVIFRGCEMLTGSPRGGLMSVALQTDNYTLMGYTYARVFAFADELRRRHATANVAELLEEAPLPYVVLRDQHGFMSVVNTNISEFVESIDSTELAMAINADYGISSKLAMTITRSQGLSLDKVAICFTPGNLRLNSAYVAMSRTTSSEFLRMNLNPLRERHERDDVISEHILSALRDPNVVIVY

来源 Source

来源生物 organism	Human alphaherpesvirus 1 strain 17
NCBI 分类编号 ncbi_taxonomy_id	10299
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	DNA primase
分子量 formula_weight	114558.6 kDa
EC 编号 ec_number	2.7.7.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MGQEDGNRGERRAAGTPVEVTALYATDGCVITSSIALLTNSLLGAEPVYIFSYDAYTHDGRADGPTEQDRFEESRALYQASGGLNGDSFRVTFCLLGTEVGGTHQARGRTRPMFVCRFERADDVAALQDALAHGTPLQPDHIAATLDAEATFALHANMILALTVAINNASPRTGRDAAAAQYDQGASLRSLVGRTSLGQRGLTTLYVHHEVRVLAAYRRAYYGSAQSPFWFLSKFGPDEKSLVLTTRYYLLQAQRLGGAGATYDLQAIKDICATYAIPHAPRPDTVSAASLTSFAAITRFCCTSQYARGAAAAGFPLYVERRIAADVRETSALEKFITHDRSCLRVSDREFITYIYLAHFECFSPPRLATHLRAVTTHDPNPAASTEQPSPLGREAVEQFFCHVRAQLNIGEYVKHNVTPRETVLDGDTAKAYLRARTYAPGALTPAPAYCGAVDSATKMMGRLADAEKLLVPRGWPAFAPASPGEDTAGGTPPPQTCGIVKRLLRLAATEQQGPTPPAIAALIRNAAVQTPLPVYRISMVPTGQAFAALAWDDWARITRDARLAEAVVSAEAAAHPDHGALGRRLTDRIRAQGPVMPPGGLDAGGQMYVNRNEIFNGALAITNIILDLDIALKEPVPFRRLHEALGHFRRGALAAVQLLFPAARVDPDAYPCYFFKSACRPGPASVGSGSGLGNDDDGDWFPCYDDAGDEEWAEDPGAMDTSHDPPDDEVAYFDLCHEVGPTAEPRETDSPVCSCTDKIGLRVCMPVPAPYVVHGSLTMRGVARVIQQAVLLDRDFVEAIGSYVKNFLLIDTGVYAHGHSLRLPYFAKIAPDGPACGRLLPVFVIPPACKDVPAFVAAHADPRRFHFHAPPTYLASPREIRVLHSLGGDYVSFFERKASRNALEHFGRRETLTEVLGRYNVQPDAGGTVEGFASELLGRIVACIETHFPEHAGEYQAVSVRRAVSKDDWVLLQLVPVRGTLQQSLSCLRFKHGRASRATARTFVALSVGANNRLCVSLCQQCFAAKCDSNRLHTLFTIDAGTPCSPSVPCSTSQPSS

来源 Source

来源生物 organism	Human alphaherpesvirus 1 strain 17
NCBI 分类编号 ncbi_taxonomy_id	10299
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

描述 description	DNA helicase/primase complex-associated protein
分子量 formula_weight	80005.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MDTADIVWVEESVSAITLYAVWLPPRAREYFHALVYFVCRNAAGEGRARFAEVSVTATELRDFYGSADVSVQAVVAAARAATTPAASPLEPLENPTLWRALYACVLAALERQTGPVALFAPLRIGSDPRTGLVVKVERASWGPPAAPRAALLVAEANIDIDPMALAARVAEHPDARLAWARLAAIRDTPQCASAASLTVNITTGTALFAREYQTLAFPPIKKEGAFGDLVEVCEVGLRPRGHPQRVTARVLLPRDYDYFVSAGEKFSAPALVALFRQWHTTVHAAPGALAPVFAFLGPEFEVRGGPVPYFAVLGFPGWPTFTVPATAESARDLVRGAAAAYAALLGAWPAVGARVVLPPRAWPGVASAAAGCLLPAVREAVARWHPATKIIQLLDPPAAVGPVWTARFCFPGLRAQLLAALADLGGSGLADPHGRTGLARLDALVVAAPSEPWAGAVLERLVPDTCNACPALRQLLGGVMAAVCLQIEETASSVKFAVCGGDGGAFWGVFNVDPQDADAASGVIEDARRAIETAVGAVLRANAVRLRHPLCLALEGVYTHAVAWSQAGVWFWNSRDNTDHLGGFPLRGPAYTTAAGVVRDTLRRVLGLTTACVPEEDALTARGLMEDACDRLILDAFNKRLDAEYWSVRVSPFEASDPLPPTAFRGGALLDAEHYWRRVVRVCPGGGESVGVPVDLYPRPLVLPPVDCAHHLREILREIELVFTGVLAGVWGEGGKFVYPFDDKMSFLFA

来源 Source

来源生物 organism	Human alphaherpesvirus 1 strain 17
NCBI 分类编号 ncbi_taxonomy_id	10299
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 polymer

描述 description	;DNA (5'-D(PAPTPCPTPGPTP*T)-3') ;
分子量 formula_weight	13114.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D

GCAGCCTGGACGTCTGCAGCTCGTCCTATCTGTTCACCTGTCA

Entity 5 non-polymer

描述 description	Pritelivir
分子量 formula_weight	402.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	409125

fit	/app/data/saxs_computation/nq/9nqp/9nqp.fit
pddf	/app/data/pr_computation/nq/9nqp/9nqp.pr.out
profile	/app/data/saxs_computation/nq/9nqp/9nqp.dat

Composite structure of HSV1 helicase-primase in complex with a forked DNA and pritelivir

SAXS 散射曲线 SAXS Profile

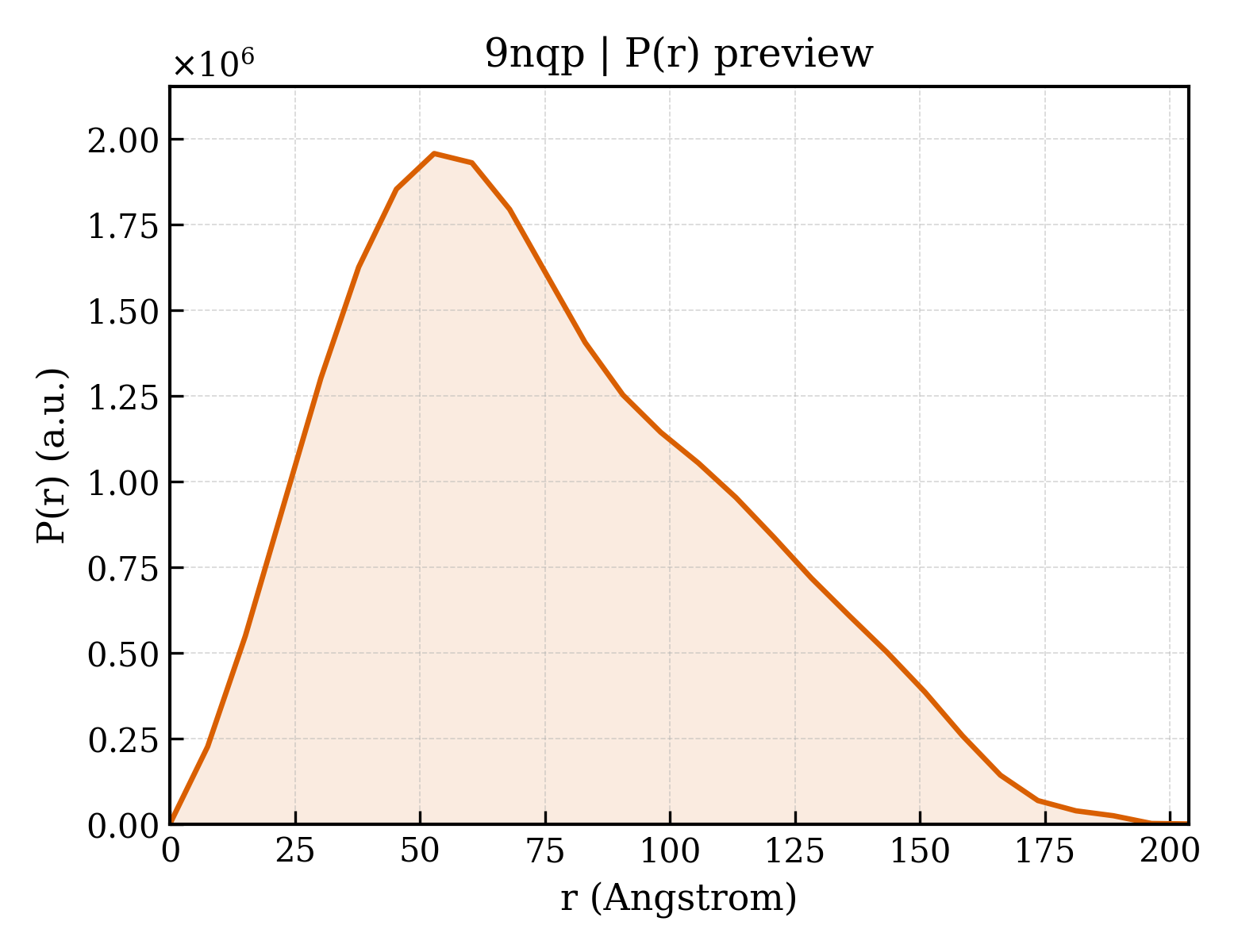

P(r) 距离分布 P(r) Distribution
