9nu8

Structure of MurJ in complex with single gene lysis protein from phage Changjiang3

Method: ELECTRON MICROSCOPY D_max: 75.8 Å Quality: EXCELLENT

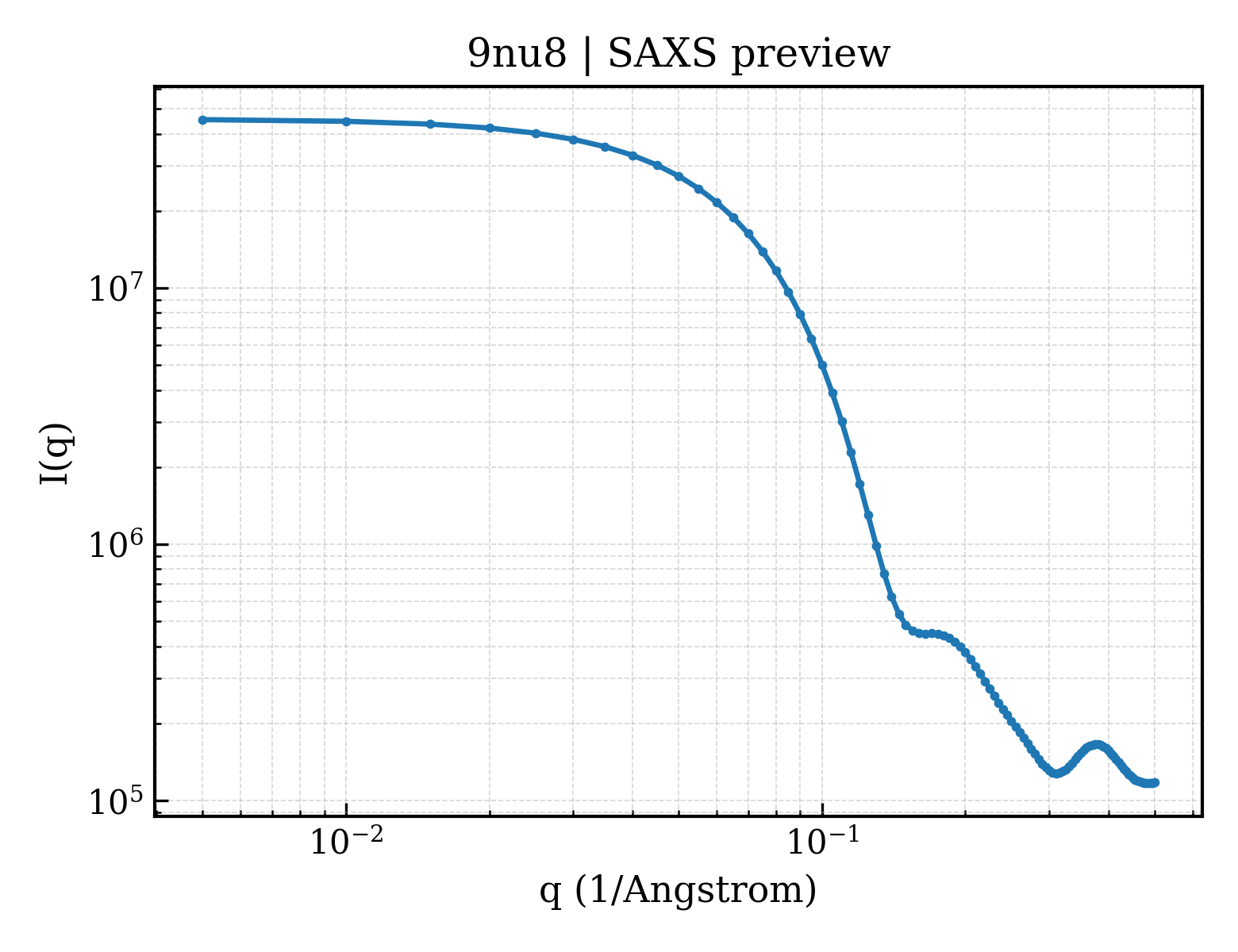

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9nu8
沉积日期 deposition_date	2025-03-19
结构标题 title	Structure of MurJ in complex with single gene lysis protein from phage Changjiang3
关键词 keywords	lipid II flippase, phage single gene lysis proteins, peptidoglycan biosynthesis, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	24.69 Å
回转半径 Rg (电子) rg_electron	23.60 Å
零角强度 I(0) i0	45632700.00
分子量 molecular_weight	59848.0 kDa
排除体积 excluded_volume	78227 Å³
包络体积 envelope_volume	91989 Å³
水化壳体积 shell_volume	31593 Å³
包络直径 envelope_diameter	78.8 Å
壳层 Rg shell_rg	31.59 Å
包络 Rg envelope_rg	23.58 Å
形状 Rg shape_rg	23.60 Å
总 Rg total_rg	24.65 Å
总原子数 total_atoms	4225
残基数 n_residues	550
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	75.8 Å
Rg (实空间) rg_real	24.50 Å
Rg 误差 (实空间) rg_real_error	0.48 Å
I(0) (实空间) i0_real	4.5630e+07
I(0) 误差 (实空间) i0_real_error	6.7420e+05
Rg (倒空间) rg_reciprocal	24.55 Å
I(0) (倒空间) i0_reciprocal	45630000.0000
解质量估计 total_estimate	0.9029
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	73.4 Å
偏度 Skewness skewness	0.118
峰度 Kurtosis kurtosis	-0.472
角度范围 angular_range	— – 0.3200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7980000.0000
实空间数据点数 n_real_points	64
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.918; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.992

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Lipid II flippase MurJ
分子量 formula_weight	66668.7 kDa
突变 mutation	K5F, S12I, M13A
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4225

MADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLLFSLAAVSIATMFSRVLGFARDAIVARIFGAGMATDAFFVAFKLPNLLRRIFAEGAFSQAFVPILAEYKSKQGEDATRVFVSYVSGLLTLALAVVTVAGMLAAPWVIMVTAPGFADTADKFALTSQLLKITFPYILLISLASLVGAILNTWNRFSIPAFAPTLLNISMIGFALFAAPYFNPPVLALAWAVTVGGVLQLVYQLPHLKKIGMLVLPRINFHDAGAMRVVKQMGPAILGVSVSQISLIINTIFASFLASGSVSWMYYADRLMEFPSGVLGVALGTILLPSLSKSFASGNHDEYNRLMDWGLRLCFLLALPSAVALGILSGPLTVSLFQYGKFTAFDALMTQRALIAYSVGLIGLIVVKVLAPGFYSRQDIKTPVKIAIVTLILTQLMNLAFIGPLKHAGLSLSIGLAACLNASLLYWQLRKQKIFTPQPGWMAFLLRLVVAVLVMSGVLLGMLHIMPEWSLGTMPWRLLRLMAVVLAGIAAYFAALAVLGSAWSHPQFEK

来源 Source

来源生物 organism	Escherichia coli K-12
NCBI 分类编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Lysis protein
分子量 formula_weight	7324.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MGHHHHHHGSGSGSGSGSGSGSGSGSGSGSKWILAYTAMILLYLLVTALLVRFYVNTHLFLLELIVNPLL

来源 Source

来源生物 organism	Changjiang levi-like virus 3
NCBI 分类编号 ncbi_taxonomy_id	1922775
宿主生物 host_organism	Escherichia coli BL21(DE3)

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.600 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	46233
