9o3d

Crystal structure of broadly neutralizing antibody HEPC108 in complex with Hepatitis C virus envelope glycoprotein E2 ectodomain

Method: X-RAY DIFFRACTION D_max: 189.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

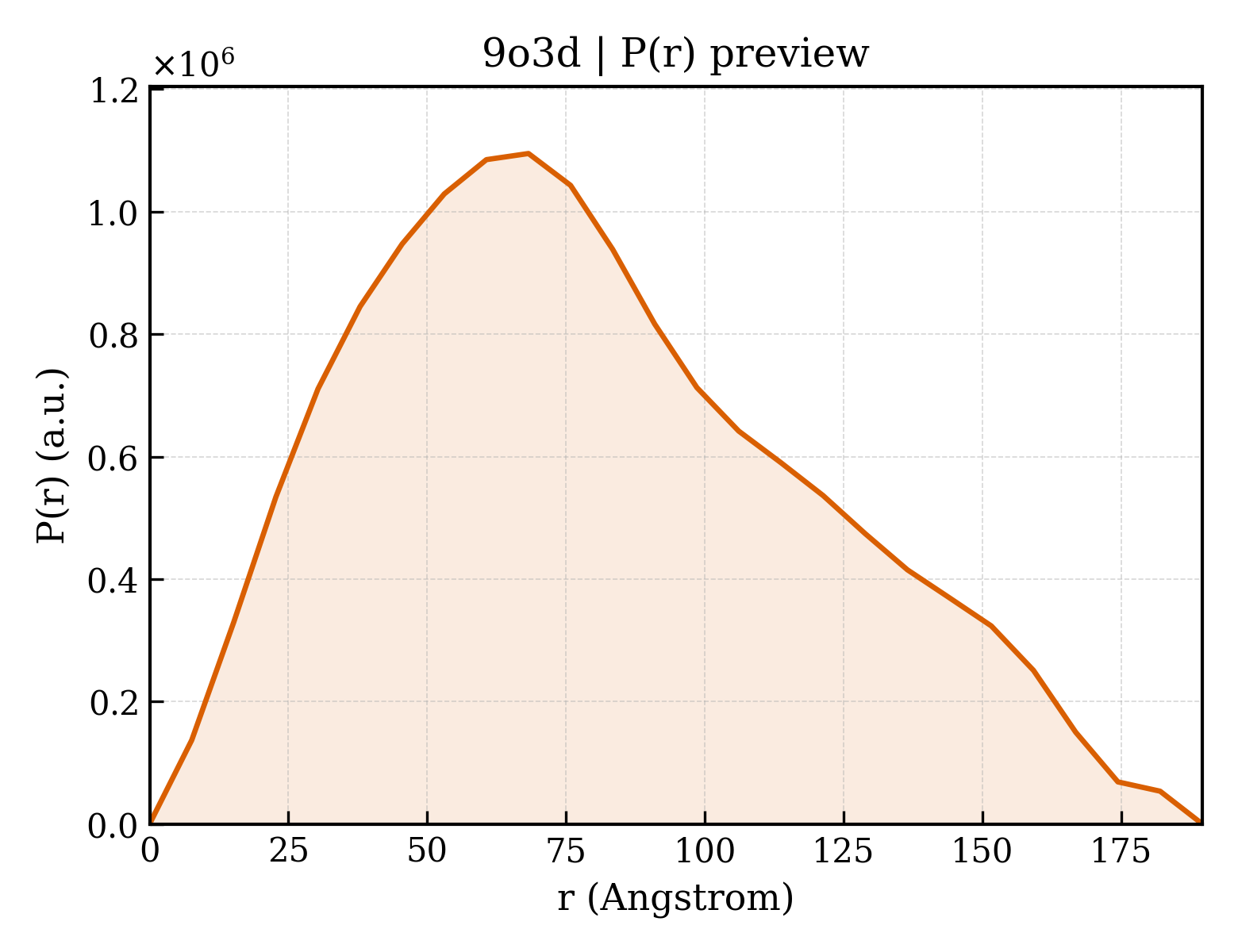

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9o3d
沉积日期 deposition_date	2025-04-07
结构标题 title	Crystal structure of broadly neutralizing antibody HEPC108 in complex with Hepatitis C virus envelope glycoprotein E2 ectodomain
关键词 keywords	HCV glycoprotein, broadly neutralizing antibodies, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	62.08 Å
回转半径 Rg (电子) rg_electron	62.57 Å
零角强度 I(0) i0	1343040000.00
分子量 molecular_weight	301260.0 kDa
排除体积 excluded_volume	374090 Å³
包络体积 envelope_volume	596680 Å³
水化壳体积 shell_volume	82958 Å³
包络直径 envelope_diameter	212.1 Å
壳层 Rg shell_rg	58.96 Å
包络 Rg envelope_rg	60.62 Å
形状 Rg shape_rg	62.55 Å
总 Rg total_rg	62.56 Å
总原子数 total_atoms	41287
残基数 n_residues	2615
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	189.6 Å
Rg (实空间) rg_real	62.53 Å
Rg 误差 (实空间) rg_real_error	1.60 Å
I(0) (实空间) i0_real	1.3430e+09
I(0) 误差 (实空间) i0_real_error	2.7850e+07
Rg (倒空间) rg_reciprocal	61.64 Å
I(0) (倒空间) i0_reciprocal	1341000000.0000
解质量估计 total_estimate	0.8364
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	68.2 Å
偏度 Skewness skewness	0.408
峰度 Kurtosis kurtosis	-0.570
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42290000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.964; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	HEPC108 Fab Heavy Chain
分子量 formula_weight	25248.4 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E,H,I
原子数 atom_count	41366

QVQLVQSGAEVKKPGSSVKVSCKASGDTFSSSAISWVRQAPGQGLEWMGGSIPIFGATKYAQKFQGRVTITTDKSTSTAYMELSSLRFEDTAVYYCARASIVNISGFVRFRFDSWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	HEPC108 Fab Light Chain
分子量 formula_weight	23725.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F,J,L

DIQMTQSPSSLSASVGDRVTITCQASQDISNYLNWYQQKPGKAPKLLIYDVSNLEIGVPSRFSGSGSGTEFTLTINSLQPEDLATYFCQHYDDVPPVYTFGQGTSLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Envelope Glycoprotein E2
分子量 formula_weight	28946.5 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D,G,K

STHVTGGTASHTTRHFASLFSSGASQRVQLINTNGSWHINRTALNCNDSLHTGFLAALFYTHKFNASGCPERMAHCRPIDEFAQGWGPITYAEGHGSDQRPYCWHYAPRQCGTIPASQVCGPVYCFTPSPVVVGTTDRFGAPTYTWGENETDVLILNNTRPPQGNWFGCTWMNSTGFTKTCGGPPCNIGGVGNNTLTCPTDCFRKHPEATYTKCGSGPWLTPRCLVDYPYRLWHYPCTVNFTIFKVRMYVGGVEHRLNAACN

来源 Source

来源生物 organism	Hepatitis C virus subtype 1b
NCBI 分类编号 ncbi_taxonomy_id	31647
宿主生物 host_organism	Homo sapiens

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	6

Entity 5 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 6 branched

描述 description	;alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 8 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	man
拷贝数 entity_count	5

Entity 10 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	16

Entity 11 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	39

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	233.640 Å
晶胞边长 b length_b	78.530 Å
晶胞边长 c length_c	227.781 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.94 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.680 Å
最低分辨率 resolution_low	52.320 Å
R 因子 r_factor	0.2170
R_work r_work	0.2142
R_free r_free	0.2691

fit	/app/data/saxs_computation/o3/9o3d/9o3d.fit
pddf	/app/data/pr_computation/o3/9o3d/9o3d.pr.out
profile	/app/data/saxs_computation/o3/9o3d/9o3d.dat
