Cryo-EM structure of Rubisco with hetero small subunit 1A3B form I

Method: ELECTRON MICROSCOPY D_max: 133.1 Å Quality: REASONABLE

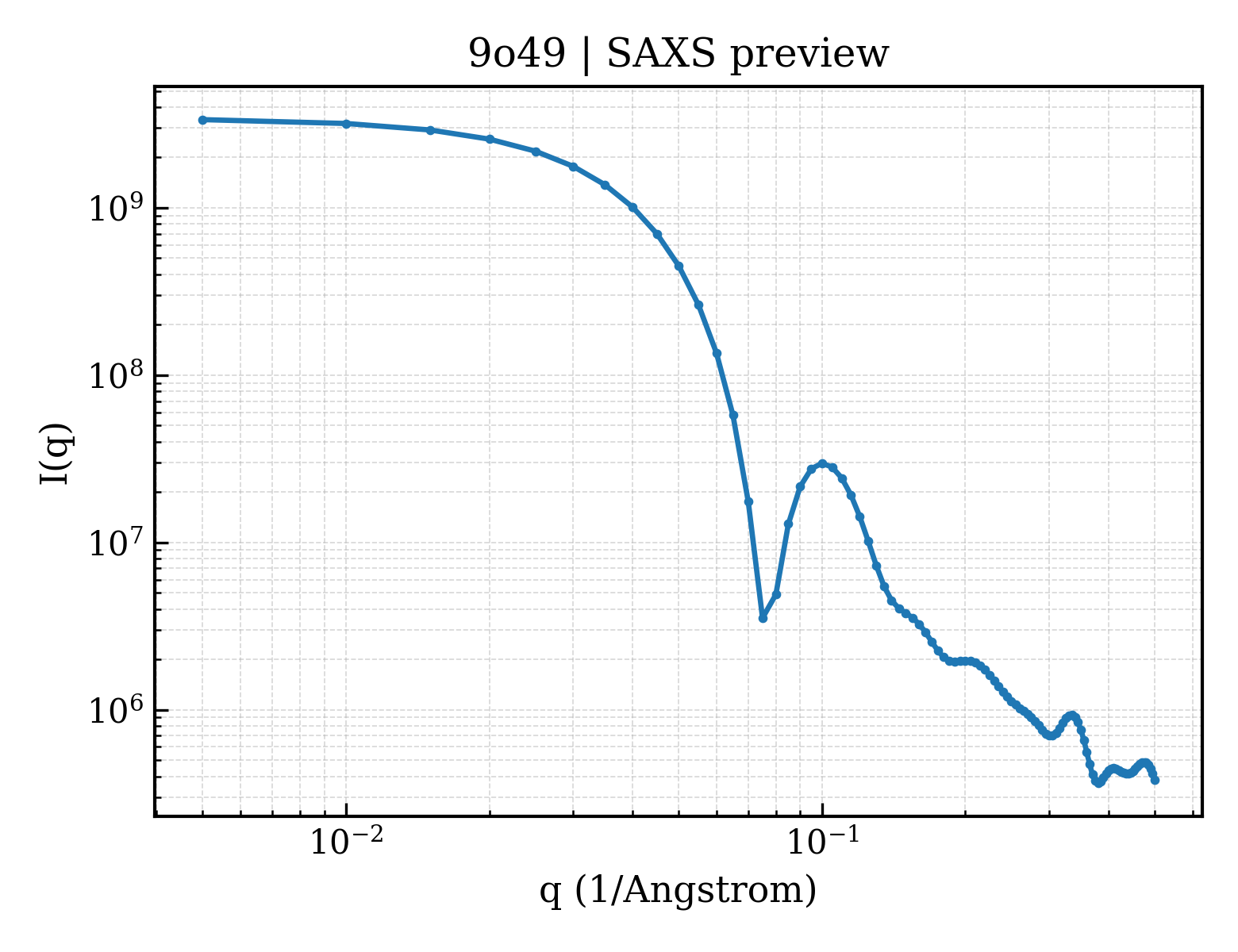

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9o49
沉积日期 deposition_date	2025-04-08
结构标题 title	Cryo-EM structure of Rubisco with hetero small subunit 1A3B form I
关键词 keywords	rubisco, Arabidopsis thaliana, hetero small subunit, PLANT PROTEIN; PLANT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.29 Å
回转半径 Rg (电子) rg_electron	45.66 Å
零角强度 I(0) i0	3425370000.00
分子量 molecular_weight	494740.0 kDa
排除体积 excluded_volume	619760 Å³
包络体积 envelope_volume	751670 Å³
水化壳体积 shell_volume	124010 Å³
包络直径 envelope_diameter	138.4 Å
壳层 Rg shell_rg	58.61 Å
包络 Rg envelope_rg	45.38 Å
形状 Rg shape_rg	45.65 Å
总 Rg total_rg	46.06 Å
总原子数 total_atoms	34914
残基数 n_residues	4424
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

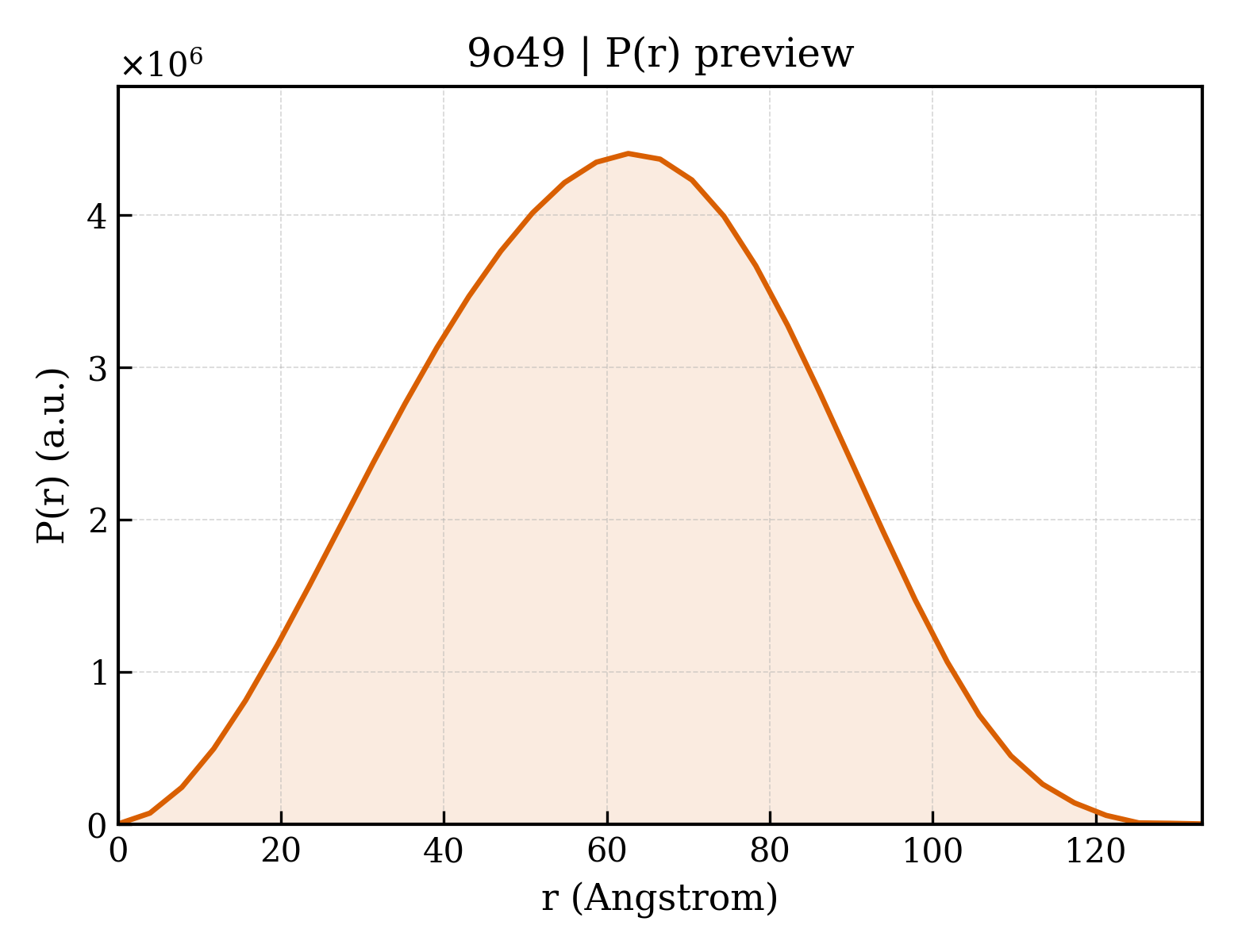

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	133.1 Å
Rg (实空间) rg_real	45.84 Å
Rg 误差 (实空间) rg_real_error	0.55 Å
I(0) (实空间) i0_real	3.4250e+09
I(0) 误差 (实空间) i0_real_error	5.0840e+07
Rg (倒空间) rg_reciprocal	46.28 Å
I(0) (倒空间) i0_reciprocal	3427000000.0000
解质量估计 total_estimate	0.6449
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	62.6 Å
偏度 Skewness skewness	-0.006
峰度 Kurtosis kurtosis	-0.562
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1582000000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.949; Stabil: 1.000; Sysdev: 0.021; Positv: 1.000; Valcen: 0.967; Smooth: 0.502

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Ribulose bisphosphate carboxylase large chain
分子量 formula_weight	53020.9 kDa
EC 编号 ec_number	4.1.1.39
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	34914

MSPQTETKASVGFKAGVKEYKLTYYTPEYETKDTDILAAFRVTPQPGVPPEEAGAAVAAESSTGTWTTVWTDGLTSLDRYKGRCYHIEPVPGEETQFIAYVAYPLDLFEEGSVTNMFTSIVGNVFGFKALAALRLEDLRIPPAYTKTFQGPPHGIQVERDKLNKYGRPLLGCTIKPKLGLSAKNYGRAVYECLRGGLDFTKDDENVNSQPFMRWRDRFLFCAEAIYKSQAETGEIKGHYLNATAGTCEEMIKRAVFARELGVPIVMHDYLTGGFTANTSLSHYCRDNGLLLHIHRAMHAVIDRQKNHGMHFRVLAKALRLSGGDHIHAGTVVGKLEGDRESTLGFVDLLRDDYVEKDRSRGIFFTQDWVSLPGVLPVASGGIHVWHMPALTEIFGDDSVLQFGGGTLGHPWGNAPGAVANRVALEACVQARNEGRDLAVEGNEIIREACKWSPELAAACEVWKEITFNFPTIDKLDGQE

Entity 2 polymer

描述 description	Ribulose bisphosphate carboxylase small subunit 3B, chloroplastic
分子量 formula_weight	20307.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,K,L,M,N,O

MASSMLSSAAVVTSPAQATMVAPFTGLKSSAAFPVTRKTNKDITSIASNGGRVSCMKVWPPIGKKKFETLSYLPDLSDVELAKEVDYLLRNKWIPCVEFELEHGFVYREHGNTPGYYDGRYWTMWKLPLFGCTDSAQVLKEVEECKKEYPGAFIRIIGFDNTRQVQCISFIAYKPPSFTEA

Entity 3 polymer

描述 description	Ribulose bisphosphate carboxylase small subunit 1A, chloroplastic
分子量 formula_weight	20237.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,P

MASSMLSSATMVASPAQATMVAPFNGLKSSAAFPATRKANNDITSITSNGGRVNCMQVWPPIGKKKFETLSYLPDLTDSELAKEVDYLIRNKWIPCVEFELEHGFVYREHGNSPGYYDGRYWTMWKLPLFGCTDSAQVLKEVEECKKEYPNAFIRIIGFDNTRQVQCISFIAYKPPSFTG

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.870 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	2.87 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	14328

fit	/app/data/saxs_computation/o4/9o49/9o49.fit
pddf	/app/data/pr_computation/o4/9o49/9o49.pr.out
profile	/app/data/saxs_computation/o4/9o49/9o49.dat
