9oa9

CryoEM structure of anti-MHC-I mAb B1.23.2 Fc domains

Method: ELECTRON MICROSCOPY D_max: 97.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

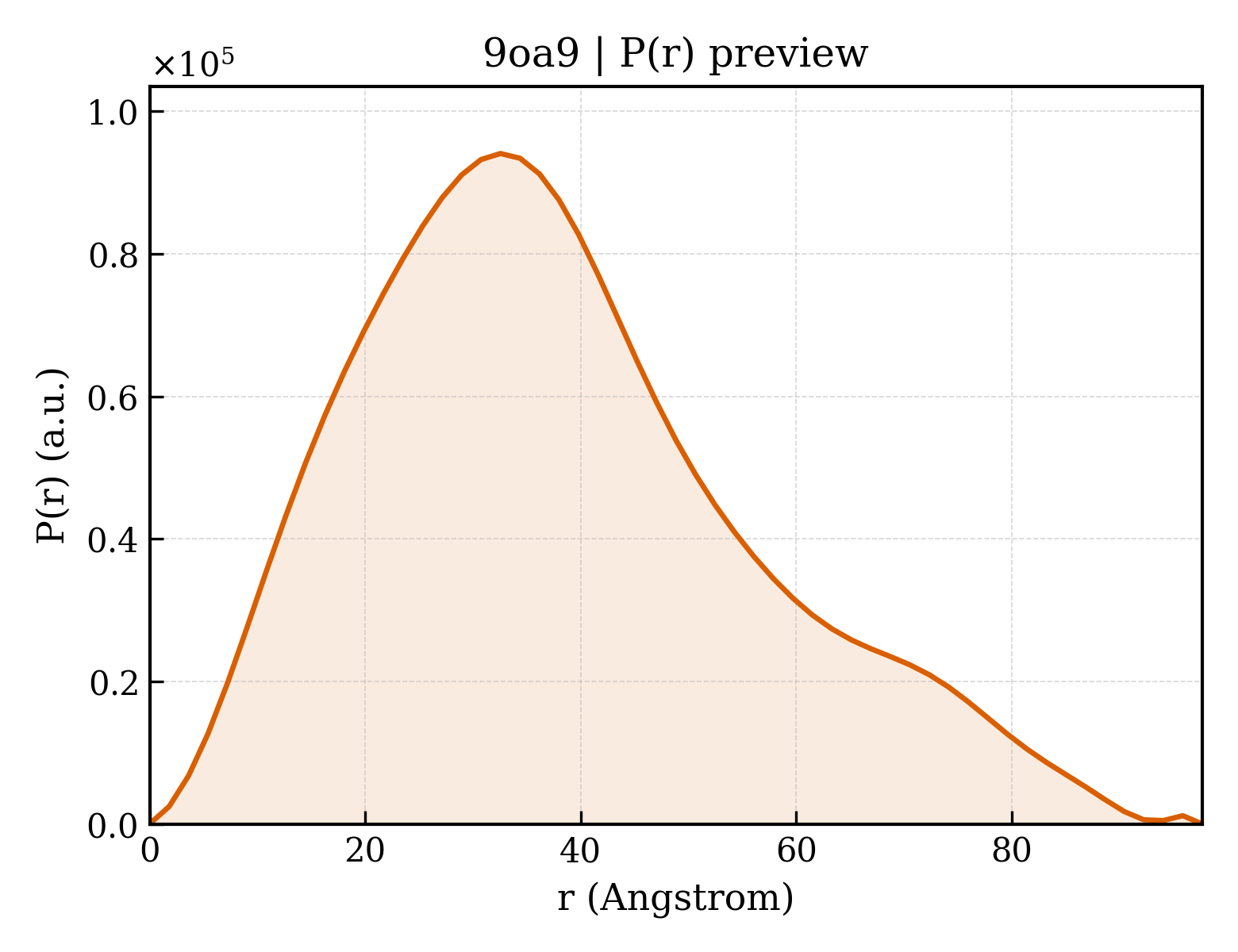

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9oa9
沉积日期 deposition_date	2025-04-20
结构标题 title	CryoEM structure of anti-MHC-I mAb B1.23.2 Fc domains
关键词 keywords	MHC-I, HLA, anti-human-mAb, H2-Dd, B1.23.2, anti-MHC-I antibody, anti-tumor, cancer immunotherapy, ANTITUMOR PROTEIN; ANTITUMOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.41 Å
回转半径 Rg (电子) rg_electron	29.17 Å
零角强度 I(0) i0	49756400.00
分子量 molecular_weight	52162.0 kDa
排除体积 excluded_volume	64075 Å³
包络体积 envelope_volume	93780 Å³
水化壳体积 shell_volume	29072 Å³
包络直径 envelope_diameter	103.8 Å
壳层 Rg shell_rg	34.03 Å
包络 Rg envelope_rg	29.01 Å
形状 Rg shape_rg	29.19 Å
总 Rg total_rg	29.62 Å
总原子数 total_atoms	3676
残基数 n_residues	550
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	97.7 Å
Rg (实空间) rg_real	29.62 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	4.9760e+07
I(0) 误差 (实空间) i0_real_error	7.8180e+05
Rg (倒空间) rg_reciprocal	29.53 Å
I(0) (倒空间) i0_reciprocal	49750000.0000
解质量估计 total_estimate	0.8435
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.6 Å
偏度 Skewness skewness	0.560
峰度 Kurtosis kurtosis	-0.168
角度范围 angular_range	— – 0.2700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	4217000.0000
实空间数据点数 n_real_points	55
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.789; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.941; Smooth: 0.655

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Anti-MHC-I mAb B1.23.2 Fc domains H-chain
分子量 formula_weight	48506.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J,K
原子数 atom_count	3676

QVQLQQSGTVLARPGSSVKMSCKASGYSFTSYWMHWVKQRPGQGLEWIGAIYPGNSDATYNQKFKGKAKLTAVTSANTAYMELSSLTNEDSAVYYCTNYFDQWGQGTTLTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHTCPPCPAPEAAGGPSVFLFPPKPKDTLMISRTPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAKTKPREEQYNSTYRVVSVLTVLHQDWLNGKEYKCKVSNKALGAPIEKTISKAKGQPREPQVYTLPPSREEMTKNQVSLTCLVKGFYPSDIAVEWESNGQPENNYKTTPPVLDSDGSFFLYSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLSPGK

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 branched

描述 description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1114.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	;beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-4)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1114.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.440 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	3.44 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	251084

fit	/app/data/saxs_computation/oa/9oa9/9oa9.fit
pddf	/app/data/pr_computation/oa/9oa9/9oa9.pr.out
profile	/app/data/saxs_computation/oa/9oa9/9oa9.dat
