1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9occ
沉积日期 deposition_date	2025-04-24
结构标题 title	Sf11 bacteriophage tail
关键词 keywords	Sf11, bacteriophage, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	58.32 Å
回转半径 Rg (电子) rg_electron	59.89 Å
零角强度 I(0) i0	665445000.00
分子量 molecular_weight	211480.0 kDa
排除体积 excluded_volume	263230 Å³
包络体积 envelope_volume	401270 Å³
水化壳体积 shell_volume	64445 Å³
包络直径 envelope_diameter	220.3 Å
壳层 Rg shell_rg	50.22 Å
包络 Rg envelope_rg	60.29 Å
形状 Rg shape_rg	59.92 Å
总 Rg total_rg	59.45 Å
总原子数 total_atoms	14930
残基数 n_residues	1889
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	202.2 Å
Rg (实空间) rg_real	59.48 Å
Rg 误差 (实空间) rg_real_error	2.11 Å
I(0) (实空间) i0_real	6.6530e+08
I(0) 误差 (实空间) i0_real_error	1.3600e+07
Rg (倒空间) rg_reciprocal	57.34 Å
I(0) (倒空间) i0_reciprocal	663200000.0000
解质量估计 total_estimate	0.7734
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	52.4 Å
偏度 Skewness skewness	0.780
峰度 Kurtosis kurtosis	0.111
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	24830000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.688; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.665; Smooth: 0.322

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Putative neck whiskers protein gp24
分子量 formula_weight	25037.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	14930

MAICANDKGVLVGRMTRLFLAEGCGDAVPDAGDWKYLGSTTSKGVDYSPQTTTSEADTAGGFVSTLVTSSDMTISAEVEIRKNDPSDEFGFHRLVEIYATELKARRQPSLWVRQVTGATIVTAYCNITSISYEGGTNDIVTGSLEFKVYDSDSVTVESLEPLAFTTDLQSTGSTGTPLTVAVEGGVAPYTYVWRKDGVVVGSESGATLASPTAGVYTVTVTDSSTDPEVIISTACTVS

Entity 2 polymer

描述 description	Tail fiber protein gp17
分子量 formula_weight	50176.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MAIIKYPDWIPLAQRASKNLTQQTPFRSDQPAVGAPIFQKLTTDIVATWSLTWVFTLAEERAFIQWLRSSRYLNKCNNWFTMMIDLGGSGLQEQTLHFTDYPVQTSIDGGVVTWTGNVIAKKLNNTMDEFDDVLVELDYRWYGWLDEVVNRELPQVYMTPILHMPINMLSSTLDSRIVYDGPQVYYINRNGNLVQSAANEWPLTFIDGVAVGRVPPENTSKNVILYNTNLTNVVWARTRMSITPSPQTGMLVNGCFKLTPTTDSNTHLVAQLPVFEILEGEVCTFSVIAKADGYRNVRIRIANNAVFVADVTVNLLSGVIIGGSANSSIENLGGGWFRFSEIVTPTEGGYSAIAMQIWVHDDSNSATFAGDGVSGILVCAPQSDSTGASMSPIATEASPVTRPTASAKVVMNGATSIDITYSDSSTINVPAVDNYAVIPQADSAWGSKYITTIKFNV

Entity 3 polymer

描述 description	Putative tail protein gp14
分子量 formula_weight	92301.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MPVIHVQKMPGTPKETGIVPAGTNLWKWLNKSNLPASISITVNGRVLGEDDELSFCLRDGDVVNVYCQPSGAIGDLIGAILKPVTKIFSFLTPKVSTPKTDTSSKTSPNTSLKAQTNIARNGEARPDNFGQIRAFPDLLQESLFEYINNIKYVTEFMNFGLGKYDVSSVRYSESNLGSLAGASYTIYQPGEVIPVVYEPYAFDDVDGQELYGPNELDTDPPPVVIETATTTTVTETEFAGGQIAVKIPKDPAFNYFVDLTMPHDVVFKLNITYAQGGGASVTENVTLSGRLVSATETDDGGLPPANYWYTFIINSINYSGAPISSLSGVTINNTYFNLTDNQPIVSGPYFSPIDGDQLWVHLQHQTNDGNDFSVLIEWWKIDDDNVQIPGTYQSMNYYRDVDRNDTFYYTIKLTPSAGTGRYAIQMRRTNNSSDTSILQLEEIHSIVTRTNVSYSDDTVVKVVVRATENATGSRDRKYNALITRHTIGYNRDAGTVRYTLAPSRSFADAVLHNWLITAGNPENTIDIVRLYEIADSLPDERLGYFDYTFDDEDKSIGERLQTICDAARVTAFWDDGVMSFSRDEKRDYPATVFNTRNTQSDGYKLSYDISLPGTYDGVNVEYRDPTTNKQANVYYRITDSGIVEGEPTKAKKFDMLYVRNRYQAVDRAILECRRLIYSRRSMEIKALADGEWVNVGDMIQVVDMYDDVQQTGVIEARNGNTFTTSEQLTADDNLYVVITSSDGSVSGRLPATVTGLHTFTCNLPSDFQLNIWDGTSVQSESRYVLSTEKELDTTLWVVSQKNPGSDGTTTLTMSEYSDEMYEYVISSS

Entity 4 polymer

描述 description	gp16
分子量 formula_weight	17654.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MPSLRDYKAKRPNWALFDTITFYHSSFGYVRLVANVLDEMVLGGETYSPVRMDITQSQQSNTPAINATVKFARLANDFKQYLKLWTGSGRIEPISALYQRFEETDTNTPLKPYRLYVSDVAMDGSDVTVALSIKNPIKGNVAKLYDIAQFPGLRNV

Entity 5 polymer

描述 description	Putative tail protein gp13
分子量 formula_weight	61979.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I,J,K,L

MATVPTNNPIPSEDPRDLKFNAGKIDEVVNSDAHYYTDRFGKQRWTMAGFQKTTQDAIRSYGYITMDGFEDGATLTLPNQVLRYEATGEYYRWDGDFPKTVSSGSTPETAGGVGSGAWLSVGDGSLRADLSSTDDGRGCSLIGTSDGSNVQEALDDINNTIYQDPLTKWPLGGTLKIKQGVYDVSSALTLDYGNYDATFIGSPGVRAHYVGENMAETIFNCQVADFNLKMLGDTVGATQRVHAYDYLGNITLKGSATSYGLLVTKKAYTKLENIVSYGHTNGEGLRTDSVLTAELDNVYLQSNRIGWRVLNTGDESELNAITVNRLTASQNTQWGILGDRWGAGTTINSLTCEGNGTQGDSGTGGMQIAVNGLNGSCALVLNNPYFEANAGGSDLAIDNTGTRPVTVIINGGNFHRVSSTAYTVNNLSITSSGGGKVTVILNGTTFQSVGSYVPSSARPYWVTGANCEVIDIGCTFMEQTSKATSVSSGSIPRSGRINSNGSIDVAPGVSSVNMVTTGVYDVTFSQQLSTSANGYVVQITPISAPDSVSCDVIYSSTTSFRVTLRNTVSGAGIASAFAFSVTRLV

Entity 6 polymer

描述 description	Tail tape measure protein gp18
分子量 formula_weight	82248.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MAEEVGGIVYEVGMDVKGLKAGATTANKTLDDLESSLNKTTGEFNKLDKGARNAGSGMKNAGGAASGLKTSMSMLAGAISVSLIIEWGKRFLEVADNMTQLQARIARLSTDAKTANETFSSLANIASTTGASLSDTTKLWETLTSSLKEAGATNAQVLNLTDTLQKIGRIGGSSTEEMANALRQFGQSIASGTIRAEEFNSILEQMPELARQIAAGLGISMGELRARMLDGKLTAEDALNAIQDRTSVVNAEFEKLPRTMDQAVGSLEVSFSKLVVAVNDATGASKTAVEIIDQLAKYIDFLGDKSTSTSDKILSLATVISKLNPGAWAQMGVDALFGDDDIEKQKQYNDQVERFVKASAEGYEQTKKQAEATKHLKIAQAPTKDKKGKGKGKSAEERQAESVAEKLEKLRQQTMLNATSTGELSREQAILNAQQSLGKAATQEQIKLAGEYAAKIWDQKNALKEQAAAEKERIDAVKGYSALKSKASPMFAVETSYQKDMADLDAYAKAYPQKMAEIQQTRATIEEQYRQQRMDAMWQEWSQQNAATQAAAAAFDAFGQTAGNALTGILTGSMSVSEALRSIGSNILSSVINAFVQMGIQWAQSVIMGQAGMAAASAATIAQAAAISAAMAPAAAMTSLATAGTNSAPAMAGMSATVGLAKTLSIAGALKNGGPAQEGSMYRVGENNLPEIFQASNGHQYMIPGDSGRVISNKDLTGGGGGVVVYNNVINNSSAQVSSSARDNGDGSVTIETIISDIENNGPIGQSISRNYSANRRATE

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	35748

fit	/app/data/saxs_computation/oc/9occ/9occ.fit
pddf	/app/data/pr_computation/oc/9occ/9occ.pr.out
profile	/app/data/saxs_computation/oc/9occ/9occ.dat

Sf11 bacteriophage tail

SAXS 散射曲线 SAXS Profile

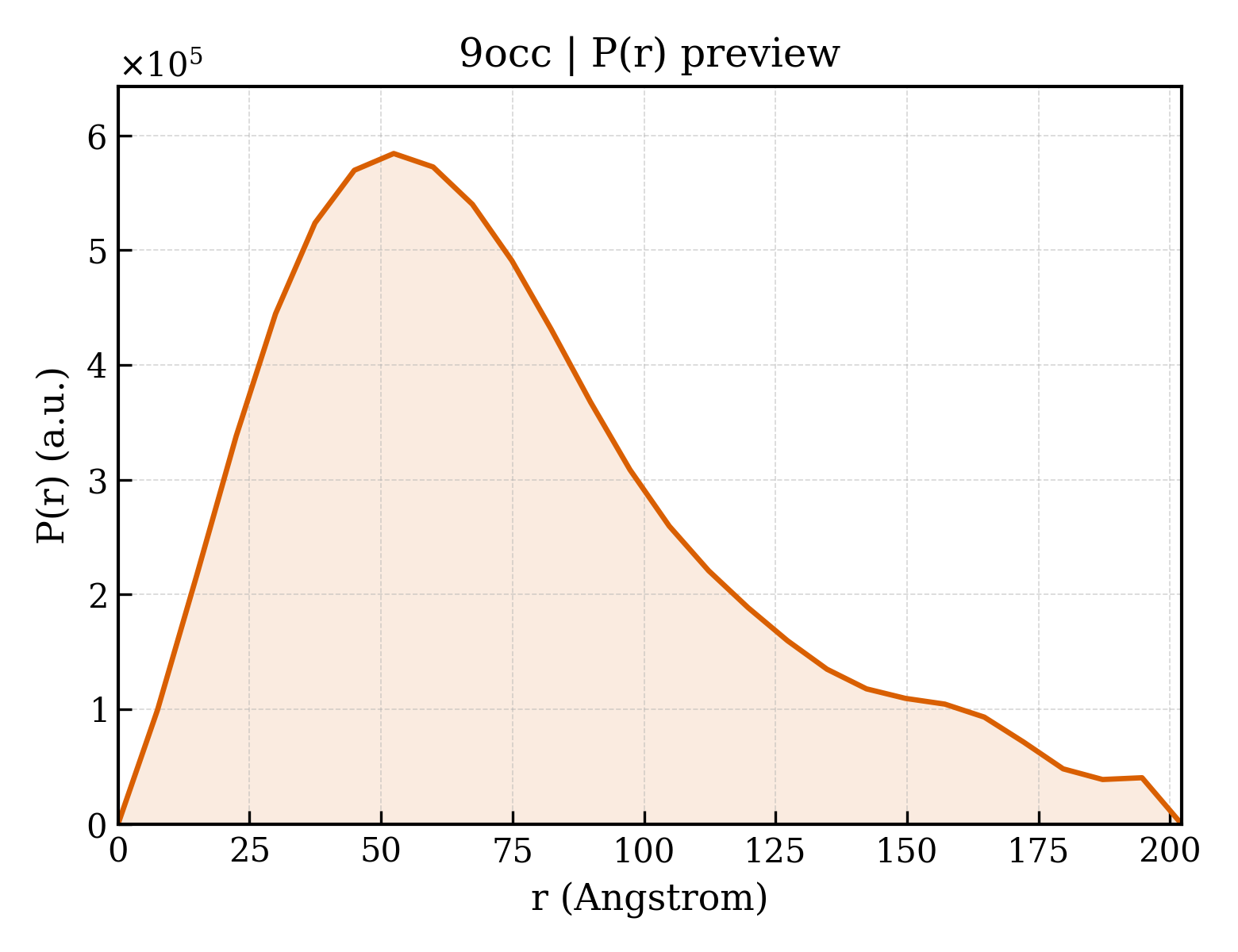

P(r) 距离分布 P(r) Distribution
