SAXSdb — 9oce

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9oce
沉积日期 deposition_date	2025-04-24
结构标题 title	2.48A cryo-EM structure of the Measles Virus L-P-C in complex with ERdRp-0519
关键词 keywords	;Measles virus, L protein, phosphoprotein, RNA-dependent RNA polymerase, PRNTase, GDP polyribonucleotidyl transferase, RNA capping, MTase, viral replication, VIRAL PROTEIN, TRANSFERASE, C protein, ERdRp-0519 ;; VIRAL PROTEIN, TRANSFERASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.99 Å
回转半径 Rg (电子) rg_electron	47.81 Å
零角强度 I(0) i0	2365130000.00
分子量 molecular_weight	269160.0 kDa
排除体积 excluded_volume	260990 Å³
包络体积 envelope_volume	523930 Å³
水化壳体积 shell_volume	91800 Å³
包络直径 envelope_diameter	172.9 Å
壳层 Rg shell_rg	52.31 Å
包络 Rg envelope_rg	46.78 Å
形状 Rg shape_rg	47.84 Å
总 Rg total_rg	47.90 Å
总原子数 total_atoms	20393
残基数 n_residues	2558
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	163.1 Å
Rg (实空间) rg_real	48.01 Å
Rg 误差 (实空间) rg_real_error	1.42 Å
I(0) (实空间) i0_real	2.3650e+09
I(0) 误差 (实空间) i0_real_error	5.0200e+07
Rg (倒空间) rg_reciprocal	47.99 Å
I(0) (倒空间) i0_reciprocal	2365000000.0000
解质量估计 total_estimate	0.8611
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	54.4 Å
偏度 Skewness skewness	0.411
峰度 Kurtosis kurtosis	-0.127
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	98450000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.797; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.804

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	RNA-directed RNA polymerase L
分子量 formula_weight	247910.6 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.-
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	20404

MDSLSVNQILYPEVHLDSPIVTNKIVAILEYARVPHAYSLEDPTLCQNIKHRLKNGFSNQMIINNVEVGNVIKSKLRSYPAHSHIPYPNCNQDLFNIEDKESTRKIRELLKKGNSLYSKVSDKVFQCLRDTNSRLGLGSELREDIKEKVINLGVYMHSSQWFEPFLFWFTVKTEMRSVIKSQTHTCHRRRHTPVFFTGSSVELLISRDLVAIISKESQHVYYLTFELVLMYCDVIEGRLMTETAMTIDARYTELLGRVRYMWKLIDGFFPALGNPTYQIVAMLEPLSLAYLQLRDITVELRGAFLNHCFTEIHDVLDQNGFSDEGTYHELIEALDYIFITDDIHLTGEIFSFFRSFGHPRLEAVTAAENVRKYMNQPKVIVYETLMKGHAIFCGIIINGYRDRHGGSWPPLTLPLHAADTIRNAQASGDGLTHEQCVDNWKSFAGVKFGCFMPLSLDSDLTMYLKDKALAALQREWDSVYPKEFLRYDPPKGTGSRRLVDVFLNDSSFDPYDVIMYVVSGAYLHDPEFNLSYSLKEKEIKETGRLFAKMTYKMRACQVIAENLISNGIGKYFKDNGMAKDEHDLTKALHTLAVSGVPKDLKESHRGGPVLKTYSRSPVHTSTRNVRAAKGFIGFPQVIRQDQDTDHPENMEAYETVSAFITTDLKKYCLNWRYETISLFAQRLNEIYGLPSFFQWLHKRLETSVLYVSDPHCPPDLDAHIPLYKVPNDQIFIKYPMGGIEGYCQKLWTISTIPYLYLAAYESGVRIASLVQGDNQTIAVTKRVPSTWPYNLKKREAARVTRDYFVILRQRLHDIGHHLKANETIVSSHFFVYSKGIYYDGLLVSQSLKSIARCVFWSETIVDETRAACSNIATTMAKSIERGYDRYLAYSLNVLKVIQQILISLGFTINSTMTRDVVIPLLTNNDLLIRMALLPAPIGGMNYLNMSRLFVRNIGDPVTSSIADLKRMILASLMPEETLHQVMTQQPGDSSFLDWASDPYSANLVCVQSITRLLKNITARFVLIHSPNPMLKGLFHDDSKEEDEGLAAFLMDRHIIVPRAAHEILDHSVTGARESIAGMLDTTKGLIRASMRKGGLTSRVITRLSNYDYEQFRAGMVLLTGRKRNVLIDKESCSVQLARALRSHMWARLARGRPIYGLEVPDVLESMRGHLIRRHETCVICECGSVNYGWFFVPSGCQLDDIDKETSSLRVPYIGSTTDERTDMKLAFVRAPSRSLRSAVRIATVYSWAYGDDDSSWNEAWLLARQRANVSLEELRVITPISTSTNLAHRLRDRSTQVKYSGTSLVRVARYTTISNDNLSFVISDKKVDTNFIYQQGMLLGLGVLETLFRLEKDTGSSNTVLHLHVETDCCVIPMIDHPRIPSSRKLELRAELCTNPLIYDNAPLIDRDATRLYTQSHRRHLVEFVTWSTPQLYHILAKSTALSMIDLVTKFEKDHMNEISALIGDDDINSFITEFLLIEPRLFTIYLGQCAAINWAFDVHYHRPSGKYQMGELLSSFLSRMSKGVFKVLVNALSHPKIYKKFWHCGIIEPIHGPSLDAQNLHTTVCNMVYTCYMTYLDLLLNEELEEFTFLLCESDEDVVPDRFDNIQAKHLCVLADLYCQPGTCPPIQGLRPVEKCAVLTDHIKAEAMLSPAGSSWNINPIIVDHYSCSLTYLRRGSIKQIRLRVDPGFIFDALAEVNVSQPKIGSNNISNMSIKAFRPPHDDVAKLLKDINTSKHNLPISGGNLANYEIHAFRRIGLNSSACYKAVEISTLIRRCLEPGEDGLFLGEGSGSMLITYKEILKLSKCFYNSGVSANSRSGQRELAPYPSEVGLVEHRMGVGNIVKVLFNGRPEVTWVGSVDCFNFIVSNIPTSSVGFIHSDIETLPDKDTIEKLEELAAILSMALLLGKIGSILVIKLMPFSGDFVQGFISYVGSHYREVNLVYPRYSNFISTESYLVMTDLKANRLMNPEKIKQQIIESSVRTSPGLIGHILSIKQLSCIQAIVGDAVSRGDINPTLKKLTPIEQVLINCGLAINGPKLCKELIHHDVASGQDGLLNSILILYRELARFKDNQRSQQGMFHAYPVLVSSRQRELISRITRKFWGHILLYSGNRKLINKFIQNLKSGYLILDLHQNIFVKNLSKSEKQIIMTGGLKREWVFKVTVKETKEWYKLVGYSALIKD

来源 Source

来源生物 organism	Measles virus strain Edmonston-B
NCBI 分类编号 ncbi_taxonomy_id	70146
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	Phosphoprotein
分子量 formula_weight	54088.3 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,D,E

MAEEQARHVKNGLECIRALKAEPIGSLAIEEAMAAWSEISDNPGQERATCREEKAGSSGLSKPCLSAIGSTEGGAPRIRGQGPGESDDDAETLGIPPRNLQASSTGLQCHYVYDHSGEAVKGIQDADSIMVQSGLDGDSTLSGGDNESENSDVDIGEPDTEGYAITDRGSAPISMGFRASDVETAEGGEIHELLRLQSRGNNFPKLGKTLNVPPPPDPGRASTSGTPIKKGTDARLASFGTEIASSLTGGATQCARKSPSEPSGPGAPAGNVPECVSNAALIQEWTPESGTTISPRSQNNEEGGDHYDDELFSDVQDIKTALAKIHEDNQKIISKLESLLLLKGEVESIKKQINRQNISISTLEGHLSSIMIAIPGLGKDPNDPTADVEINPDLKPIIGRDSGRALAEVLKKPVASRQLQGMTNGRTSSRGQLLKEFQLKPIGKKMSSAVGFVPDTGPASRSVIRSIIKSSRLEEDRKRYLMTLLDDIKGANDLAKFHQMLMKIIMKSG

来源 Source

来源生物 organism	Measles virus strain Edmonston-B
NCBI 分类编号 ncbi_taxonomy_id	70146
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	Protein C
分子量 formula_weight	21066.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,G

MSKTDWNASGLSRPSPSAHWPSRKLWQHGQKYQTTQDRSEPPAGKRRQAVRVSANHASQQLDQLKAVHLASAVRDLERAMTTLKLWESPQEISRHQALGYSVIMFMITAVKRLRESKMLTLSWFNQALMVIAPSQEETMNLKTAMWILANLIPRDMLSLTGDLLPSLWGSGLLMLKLQKEGRSTSS

来源 Source

来源生物 organism	Measles virus strain Edmonston-B
NCBI 分类编号 ncbi_taxonomy_id	70146
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 non-polymer

描述 description	2-methyl-~{N}-[4-[(2~{S})-2-(2-morpholin-4-ylethyl)piperidin-1-yl]sulfonylphenyl]-5-(trifluoromethyl)pyrazole-3-carboxamide
分子量 formula_weight	529.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.48 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	524675

fit	/app/data/saxs_computation/oc/9oce/9oce.fit
pddf	/app/data/pr_computation/oc/9oce/9oce.pr.out
profile	/app/data/saxs_computation/oc/9oce/9oce.dat

2.48A cryo-EM structure of the Measles Virus L-P-C in complex with ERdRp-0519

SAXS 散射曲线 SAXS Profile

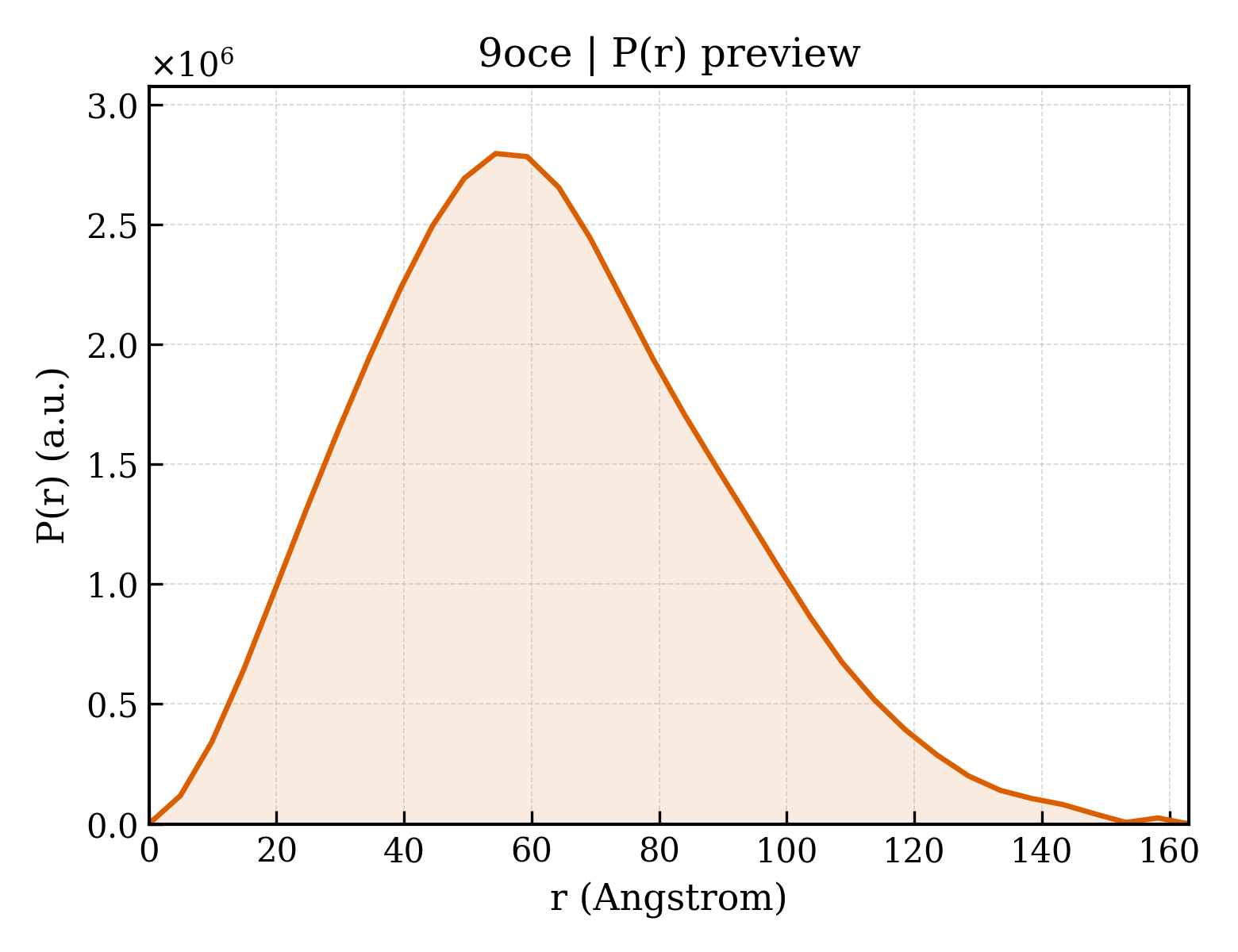

P(r) 距离分布 P(r) Distribution
