1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ol6
沉积日期 deposition_date	2025-05-12
结构标题 title	Rabbit Ryanodine Receptor 1: DMSO Control Closed Conformation
关键词 keywords	Ion channel, Calcium Channel, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	108.10 Å
零角强度 I(0) i0	48150200000.00
分子量 molecular_weight	1895300.0 kDa
排除体积 excluded_volume	2377400 Å³
包络体积 envelope_volume	4810100 Å³
水化壳体积 shell_volume	367860 Å³
包络直径 envelope_diameter	378.2 Å
壳层 Rg shell_rg	106.00 Å
包络 Rg envelope_rg	103.80 Å
形状 Rg shape_rg	108.10 Å
总 Rg total_rg	107.90 Å
总原子数 total_atoms	133368
残基数 n_residues	17168
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	320.8 Å
Rg (实空间) rg_real	108.30 Å
Rg 误差 (实空间) rg_real_error	1.25 Å
I(0) (实空间) i0_real	4.6740e+10
I(0) 误差 (实空间) i0_real_error	9.8160e+08
Rg (倒空间) rg_reciprocal	108.40 Å
I(0) (倒空间) i0_reciprocal	48140000000.0000
解质量估计 total_estimate	0.9013
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	137.5 Å
偏度 Skewness skewness	0.225
峰度 Kurtosis kurtosis	-0.519
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	1.9740
最高正则化参数 α highest_alpha	5299000000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.994; Stabil: 0.918; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Ryanodine receptor 1
分子量 formula_weight	565908.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,G,M,S
原子数 atom_count	133368

MGDGGEGEDEVQFLRTDDEVVLQCSATVLKEQLKLCLAAEGFGNRLCFLEPTSNAQNVPPDLAICCFTLEQSLSVRALQEMLANTVEAGVESSQGGGHRTLLYGHAILLRHAHSRMYLSCLTTSRSMTDKLAFDVGLQEDATGEACWWTMHPASKQRSEGEKVRVGDDLILVSVSSERYLHLSTASGELQVDASFMQTLWNMNPICSCCEEGYVTGGHVLRLFHGHMDECLTISAADSDDQRRLVYYEGGAVCTHARSLWRLEPLRISWSGSHLRWGQPLRIRHVTTGRYLALTEDQGLVVVDACKAHTKATSFCFRVSKEKLDTAPKRDVEGMGPPEIKYGESLCFVQHVASGLWLTYAAPDPKALRLGVLKKKAILHQEGHMDDALFLTRCQQEESQAARMIHSTAGLYNQFIKGLDSFSGKPRGSGPPAGPALPIEAVILSLQDLIGYFEPPSEELQHEEKQSKLRSLRNRQSLFQEEGMLSLVLNCIDRLNVYTTAAHFAEYAGEEAAESWKEIVNLLYELLASLIRGNRANCALFSTNLDWVVSKLDRLEASSGILEVLYCVLIESPEVLNIIQENHIKSIISLLDKHGRNHKVLDVLCSLCVCNGVAVRSNQDLITENLLPGRELLLQTNLINYVTSIRPNIFVGRAEGSTQYGKWYFEVMVDEVVPFLTAQATHLRVGWALTEGYSPYPGGGEGWGGNGVGDDLYSYGFDGLHLWTGHVARPVTSPGQHLLAPEDVVSCCLDLSVPSISFRINGCPVQGVFEAFNLDGLFFPVVSFSAGVKVRFLLGGRHGEFKFLPPPGYAPCHEAVLPRERLRLEPIKEYRREGPRGPHLVGPSRCLSHTDFVPCPVDTVQIVLPPHLERIREKLAENIHELWALTRIEQGWTYGPVRDDNKRLHPCLVNFHSLPEPERNYNLQMSGETLKTLLALGCHVGMADEKAEDNLKKTKLPKTYMMSNGYKPAPLDLSHVRLTPAQTTLVDRLAENGHNVWARDRVAQGWSYSAVQDIPARRNPRLVPYRLLDEATKRSNRDSLCQAVRTLLGYGYNIEPPDQEPSQVENQSRWDRVRIFRAEKSYTVQSGRWYFEFEAVTTGEMRVGWARPELRPDVELGADELAYVFNGHRGQRWHLGSEPFGRPWQSGDVVGCMIDLTENTIIFTLNGEVLMSDSGSETAFREIEIGDGFLPVCSLGPGQVGHLNLGQDVSSLRFFAICGLQEGFEPFAINMQRPVTTWFSKSLPQFEPVPPEHPHYEVARMDGTVDTPPCLRLAHRTWGSQNSLVEMLFLRLSLPVQFHQHFRCTAGATPLAPPGLQPPAEDEARAAEPDPDYENLRRSAGGWGEAEGGKEGTAKEGTPGGTPQPGVEAQPVRAENEKDATTEKNKKRGFLFKAKKAAMMTQPPATPALPRLPHDVVPADNRDDPEIILNTTTYYYSVRVFAGQEPSCVWVGWVTPDYHQHDMNFDLSKVRAVTVTMGDEQGNVHSSLKCSNCYMVWGGDFVSPGQQGRISHTDLVIGCLVDLATGLMTFTANGKESNTFFQVEPNTKLFPAVFVLPTHQNVIQFELGKQKNIMPLSAAMFLSERKNPAPQCPPRLEVQMLMPVSWSRMPNHFLQVETRRAGERLGWAVQCQDPLTMMALHIPEENRCMDILELSERLDLQRFHSHTLRLYRAVCALGNNRVAHALCSHVDQAQLLHALEDAHLPGPLRAGYYDLLISIHLESACRSRRSMLSEYIVPLTPETRAITLFPPGRKGGNARRHGLPGVGVTTSLRPPHHFSPPCFVAALPAAGVAEAPARLSPAIPLEALRDKALRMLGEAVRDGGQHARDPVGGSVEFQFVPVLKLVSTLLVMGIFGDEDVKQILKMIEPEVFTEEEEEEEEEEEEEEEEEEDEEEKEEDEEEEEKEDAEKEEEEAPEGEKEDLEEGLLQMKLPESVKLQMCNLLEYFCDQELQHRVESLAAFAERYVDKLQANQRSRYALLMRAFTMSAAETARRTREFRSPPQEQINMLLHFKDEADEEDCPLPEDIRQDLQDFHQDLLAHCGIQLEGEEEEPEEETSLSSRLRSLLETVRLVKKKEEKPEEELPAEEKKPQSLQELVSHMVVRWAQEDYVQSPELVRAMFSLLHRQYDGLGELLRALPRAYTISPSSVEDTMSLLECLGQIRSLLIVQMGPQEENLMIQSIGNIMNNKVFYQHPNLMRALGMHETVMEVMVNVLGGGETKEIRFPKMVTSCCRFLCYFCRISRQNQRSMFDHLSYLLENSGIGLGMQGSTPLDVAAASVIDNNELALALQEQDLEKVVSYLAGCGLQSCPMLLAKGYPDIGWNPCGGERYLDFLRFAVFVNGESVEENANVVVRLLIRKPECFGPALRGEGGSGLLAAIEEAIRISEDPARDGPGVRRDRRREHFGEEPPEENRVHLGHAIMSFYAALIDLLGRCAPEMHLIQAGKGEALRIRAILRSLVPLDDLVGIISLPLQIPTLGKDGALVQPKMSASFVPDHKASMVLFLDRVYGIENQDFLLHVLDVGFLPDMRAAASLDTATFSTTEMALALNRYLCLAVLPLITKCAPLFAGTEHRAIMVDSMLHTVYRLSRGRSLTKAQRDVIEDCLMALCRYIRPSMLQHLLRRLVFDVPILNEFAKMPLKLLTNHYERCWKYYCLPTGWANFGVTSEEELHLTRKLFWGIFDSLAHKKYDQELYRMAMPCLCAIAGALPPDYVDASYSSKAEKKATVDAEGNFDPRPVETLNVIIPEKLDSFINKFAEYTHEKWAFDKIQNNWSYGENVDEELKTHPMLRPYKTFSEKDKEIYRWPIKESLKAMIAWEWTIEKAREGEEERTEKKKTRKISQTAQTYDPREGYNPQPPDLSGVTLSRELQAMAEQLAENYHNTWGRKKKQELEAKGGGTHPLLVPYDTLTAKEKARDREKAQELLKFLQMNGYAVTRGLKDMELDTSSIEKRFAFGFLQQLLRWMDISQEFIAHLEAVVSSGRVEKSPHEQEIKFFAKILLPLINQYFTNHCLYFLSTPAKVLGSGGHASNKEKEMITSLFCKLAALVRHRVSLFGTDAPAVVNCLHILARSLDARTVMKSGPEIVKAGLRSFFESASEDIEKMVENLRLGKVSQARTQVKGVGQNLTYTTVALLPVLTTLFQHIAQHQFGDDVILDDVQVSCYRTLCSIYSLGTTKNTYVEKLRPALGECLARLAAAMPVAFLEPQLNEYNACSVYTTKSPRERAILGLPNSVEEMCPDIPVLDRLMADIGGLAESGARYTEMPHVIEITLPMLCSYLPRWWERGPEAPPPALPAGAPPPCTAVTSDHLNSLLGNILRIIVNNLGIDEATWMKRLAVFAQPIVSRARPELLHSHFIPTIGRLRKRAGKVVAEEEQLRLEAKAEAEEGELLVRDEFSVLCRDLYALYPLLIRYVDNNRAHWLTEPNANAEELFRMVGEIFIYWSKSHNFKREEQNFVVQNEINNMSFLTADSKSKMAKAGDAQSGGSDQERTKKKRRGDRYSVQTSLIVATLKKMLPIGLNMCAPTDQDLIMLAKTRYALKDTDEEVREFLQNNLHLQGKVEGSPSLRWQMALYRGLPGREEDADDPEKIVRRVQEVSAVLYHLEQTEHPYKSKKAVWHKLLSKQRRRAVVACFRMTPLYNLPTHRACNMFLESYKAAWILTEDHSFEDRMIDDLSKAGEQEEEEEEVEEKKPDPLHQLVLHFSRTALTEKSKLDEDYLYMAYADIMAKSCHLEEGGENGEAEEEEVEVSFEEKEMEKQRLLYQQSRLHTRGAAEMVLQMISACKGETGAMVSSTLKLGISILNGGNAEVQQKMLDYLKDKKEVGFFQSIQALMQTCSVLDLNAFERQNKAEGLGMVNEDGTVINRQNGEKVMADDEFTQDLFRFLQLLCEGHNNDFQNYLRTQTGNTTTINIIICTVDYLLRLQESISDFYWYYSGKDVIEEQGKRNFSKAMSVAKQVFNSLTEYIQGPCTGNQQSLAHSRLWDAVVGFLHVFAHMMMKLAQDSSQIELLKELLDLQKDMVVMLLSLLEGNVVNGMIARQMVDMLVESSSNVEMILKFFDMFLKLKDIVGSEAFQDYVTDPRGLISKKDFQKAMDSQKQFTGPEIQFLLSCSEADENEMINFEEFANRFQEPARDIGFNVAVLLTNLSEHVPHDPRLRNFLELAESILEYFRPYLGRIEIMGASRRIERIYFEISETNRAQWEMPQVKESKRQFIFDVVNEGGEAEKMELFVSFCEDTIFEMQIAAQISEPEGEPEADEDEGMGEAAAEGAEEGAAGAEGAAGTVAAGATARLAAAAARALRGLSYRSLRRRVRRLRRLTAREAATALAALLWAVVARAGAAGAGAAAGALRLLWGSLFGGGLVEGAKKVTVTELLAGMPDPTSDEVHGEQPAGPGGDADGAGEGEGEGDAAEGDGDEEVAGHEAGPGGAEGVVAVADGGPFRPEGAGGLGDMGDTTPAEPPTPEGSPILKRKLGVDGEEEELVPEPEPEPEPEPEKADEENGEKEEVPEAPPEPPKKAPPSPPAKKEEAGGAGMEFWGELEVQRVKFLNYLSRNFYTLRFLALFLAFAINFILLFYKVSDSPPGEDDMEGSAAGDLAGAGSGGGSGWGSGAGEEAEGDEDENMVYYFLEESTGYMEPALWCLSLLHTLVAFLCIIGYNCLKVPLVIFKREKELARKLEFDGLYITEQPGDDDVKGQWDRLVLNTPSFPSNYWDKFVKRKVLDKHGDIFGRERIAELLGMDLASLEITAHNERKPDPPPGLLTWLMSIDVKYQIWKFGVIFTDNSFLYLGWYMVMSLLGHYNNFFFAAHLLDIAMGVKTLRTILSSVTHNGKQLVMTVGLLAVVVYLYTVVAFNFFRKFYNKSEDEDEPDMKCDDMMTCYLFHMYVGVRAGGGIGDEIEDPAGDEYELYRVVFDITFFFFVIVILLAIIQGLIIDAFGELRDQQEQVKEDMETKCFICGIGSDYFDTTPHGFETHTLEEHNLANYMFFLMYLINKDETEHTGQESYVWKMYQERCWDFFPAGDCFRKQYEDQLS

Entity 2 polymer

描述 description	Peptidyl-prolyl cis-trans isomerase FKBP1B
分子量 formula_weight	12070.8 kDa
EC 编号 ec_number	5.2.1.8
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,H,N,T

SNAMGVEIETISPGDGRTFPKKGQTCVVHYTGMLQNGKKFDSSRDRNKPFKFRIGKQEVIKGFEEGAAQMSLGQRAKLTCTPDVAYGATGHPGVIPPNATLIFDVELLNLE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.11 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	126217

fit	/app/data/saxs_computation/ol/9ol6/9ol6.fit
pddf	/app/data/pr_computation/ol/9ol6/9ol6.pr.out
profile	/app/data/saxs_computation/ol/9ol6/9ol6.dat

Rabbit Ryanodine Receptor 1: DMSO Control Closed Conformation

SAXS 散射曲线 SAXS Profile

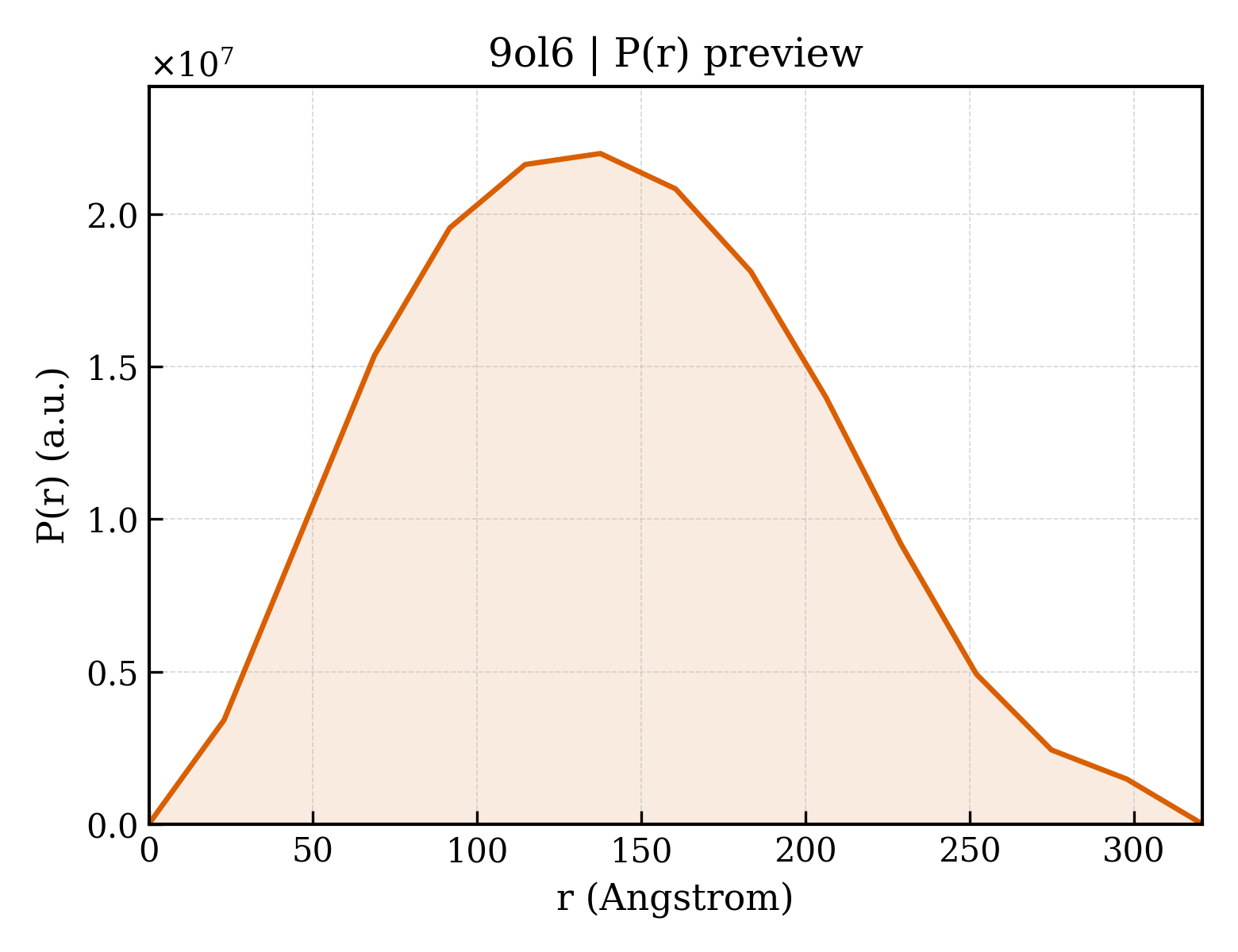

P(r) 距离分布 P(r) Distribution
