9onh

Structure of ancestral-reconstructed cytochrome P450 11A1 (CYP11A1) in complex with desmosterol

Method: X-RAY DIFFRACTION D_max: 78.8 Å Quality: REASONABLE

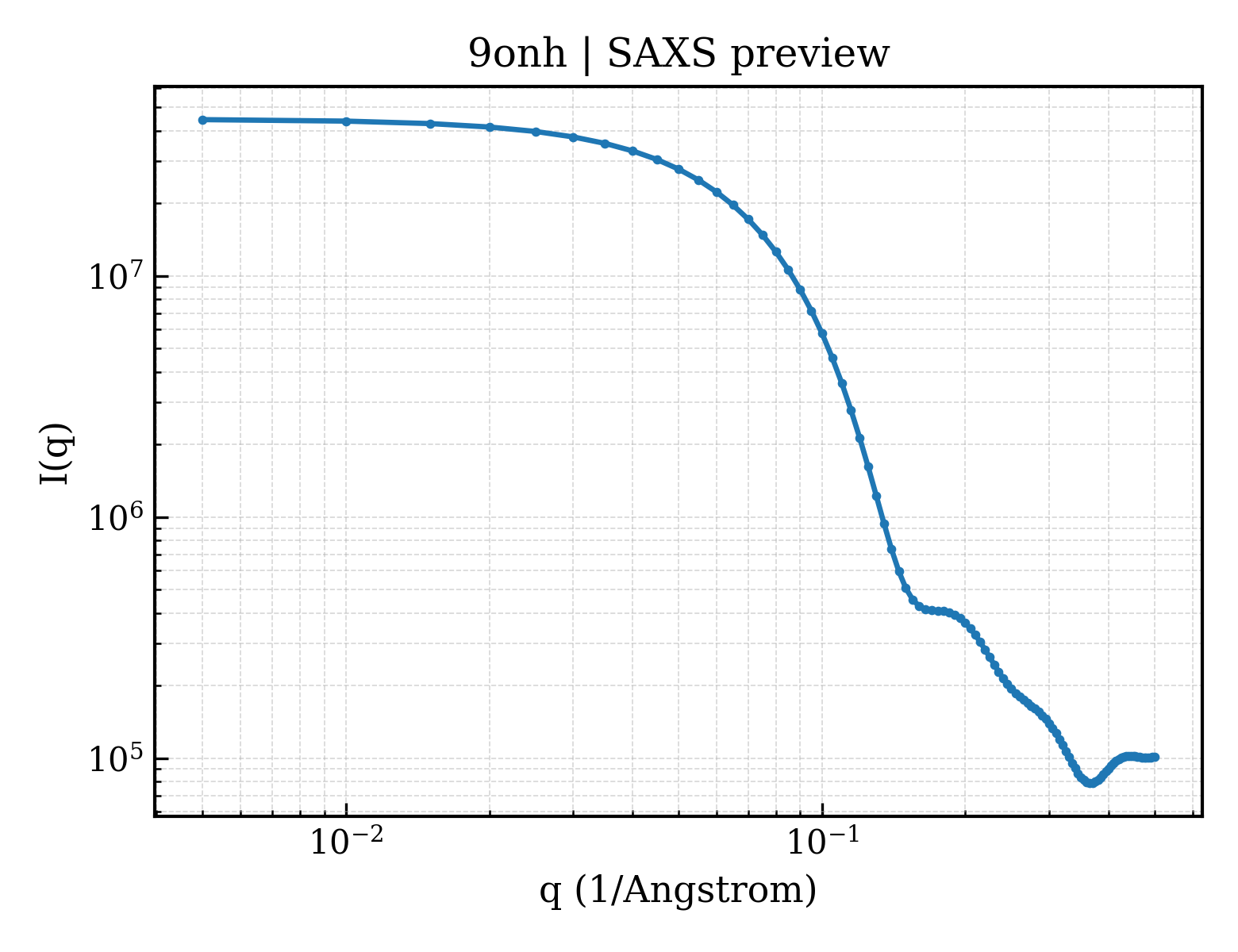

SAXS 散射曲线 SAXS Profile

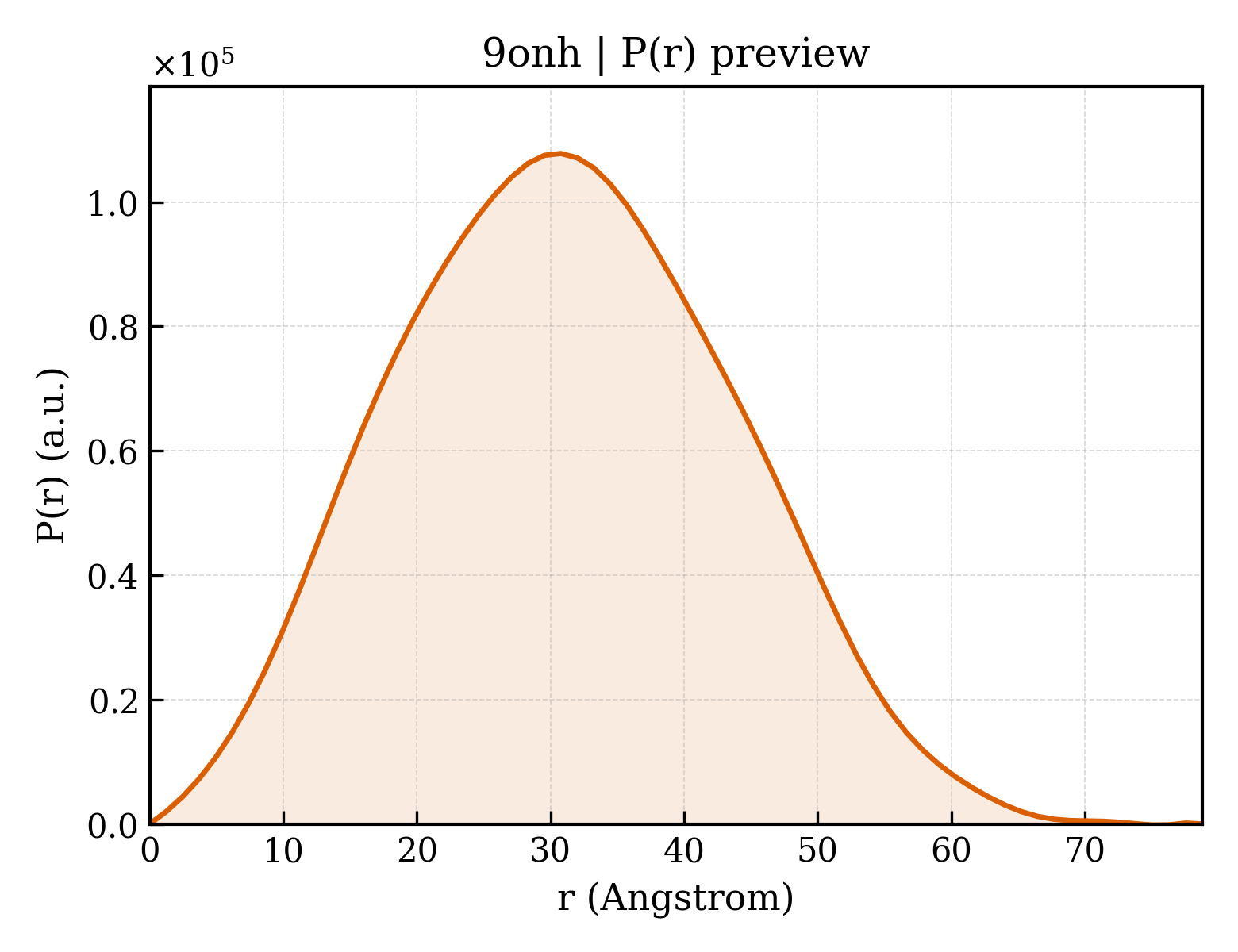

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9onh
沉积日期 deposition_date	2025-05-15
最后修订 last_revision	2025-10-22
结构标题 title	Structure of ancestral-reconstructed cytochrome P450 11A1 (CYP11A1) in complex with desmosterol
关键词 keywords	Cytochrome P450, steroidogenesis, evolution, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	23.85 Å
回转半径 Rg (电子) rg_electron	22.38 Å
零角强度 I(0) i0	44627100.00
分子量 molecular_weight	54367.0 kDa
排除体积 excluded_volume	69184 Å³
包络体积 envelope_volume	79778 Å³
水化壳体积 shell_volume	28824 Å³
包络直径 envelope_diameter	75.4 Å
壳层 Rg shell_rg	30.21 Å
包络 Rg envelope_rg	22.60 Å
形状 Rg shape_rg	22.38 Å
总 Rg total_rg	23.30 Å
总原子数 total_atoms	3885
残基数 n_residues	458
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	78.8 Å
Rg (实空间) rg_real	23.69 Å
Rg 误差 (实空间) rg_real_error	0.48 Å
I(0) (实空间) i0_real	4.4630e+07
I(0) 误差 (实空间) i0_real_error	5.2920e+05
Rg (倒空间) rg_reciprocal	23.73 Å
I(0) (倒空间) i0_reciprocal	44630000.0000
解质量估计 total_estimate	0.6401
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.8 Å
偏度 Skewness skewness	0.135
峰度 Kurtosis kurtosis	-0.454
角度范围 angular_range	— – 0.3350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9416000.0000
实空间数据点数 n_real_points	65
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.821; Stabil: 0.999; Sysdev: 0.286; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Ancestral Cytochrome P450 11A1 (CYP11A1)
分子量 formula_weight	56350.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3885

MASGSAVRPFDEIPGNWRNGWLNLYRFWRSNGFRNLHHIMVKNFNKFGPIYREKIGYYESVNIINPEDAATLFKAEGLFPRRLRVEPWVAYRDYRNQKYGVLLKNGEDWRSNRLILNKEVISPNVIQKFVPLLNEVAQDFVSMVHKQIERSGRGKWTVDLSNDLFRFALESVCYVLYGERLGLLQDNPNPESQRFIDSVTLMFKTTSPMLYIPPGLLRRINSKIWRDHVEAWDVIFNHADKCIQKIYRQFRLGQKNENEYPGVLANLLLQGKLPIEDIKASITELMAGGVDTTSMTLLWTLYELARNPHVQEELRAEILAARQQAQGDLSKMLKSVPLLKAAIKETLRLYPVAVSLQRYITEDIVLQNYHIPAGTLVQVGLYAMGRNPEIFPNPEQYNPERWLKREDNHFKSLGFGFGPRQCIGRRIAETEMQLFLIHMLQNFKIETNSMAEVKTTFDLILVPEKPILLTLRPINSSPHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI 分类编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	desmosterol
分子量 formula_weight	384.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	156.034 Å
晶胞边长 b length_b	156.034 Å
晶胞边长 c length_c	156.034 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	I 21 3
空间群编号 int_tables_number	199
晶系 crystal_system	cubic

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	39.010 Å
R 因子 r_factor	0.2096
R_work r_work	0.2070
R_free r_free	0.2613
