Crystal Structure of SH3-like_bac-type domain (79-145) of Conserved domain protein GBAA_2967 from Bacillus anthracis Ames ancestor

条目编号 entry_id	9ovi
沉积日期 deposition_date	2025-05-30
最后修订 last_revision	2025-06-11
结构标题 title	Crystal Structure of SH3-like_bac-type domain (79-145) of Conserved domain protein GBAA_2967 from Bacillus anthracis Ames ancestor
关键词 keywords	;SH3b domain, cell wall binding protein with conserved domain, Structural Genomics, Center for Structural Biology of Infectious Diseases, CSBID, UNKNOWN FUNCTION ;; UNKNOWN FUNCTION
实验方法 method	X-RAY DIFFRACTION

回转半径 Rg (Guinier) rg_guinier	17.23 Å
回转半径 Rg (电子) rg_electron	16.24 Å
零角强度 I(0) i0	4714570.00
分子量 molecular_weight	15546.0 kDa
排除体积 excluded_volume	19482 ų
包络体积 envelope_volume	22958 ų
水化壳体积 shell_volume	12531 ų
包络直径 envelope_diameter	64.3 Å
壳层 Rg shell_rg	21.36 Å
包络 Rg envelope_rg	16.87 Å
形状 Rg shape_rg	16.20 Å
总 Rg total_rg	17.35 Å
总原子数 total_atoms	1096
残基数 n_residues	134
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å−1
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/ų
壳层衬度 contrast_shell	0.0300 e/ų
CRYSOL 版本 crysol_version	4.1.3

最大尺寸 Dmax dmax	65.2 Å
Rg (实空间) rg_real	17.31 Å
Rg 误差 (实空间) rg_real_error	0.54 Å
I(0) (实空间) i0_real	4.7150e+06
I(0) 误差 (实空间) i0_real_error	5.5100e+04
Rg (倒空间) rg_reciprocal	17.30 Å
I(0) (倒空间) i0_reciprocal	4715000.0000
解质量估计 total_estimate	0.7989
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	18.9 Å
偏度 Skewness skewness	0.526
峰度 Kurtosis kurtosis	0.048
角度范围 angular_range	— – 0.4600 Å−1
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1065000.0000
实空间数据点数 n_real_points	77
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.550; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.734; Smooth: 0.998

晶胞参数 Unit Cell

晶胞边长 a length_a	36.281 Å
晶胞边长 b length_b	50.276 Å
晶胞边长 c length_c	84.602 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

对称性 Symmetry

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

精修参数 Refinement

分辨率 resolution	1.500 Å
最低分辨率 resolution_low	29.420 Å
R 因子 r_factor	0.1655
R_work r_work	0.1645
R_free r_free	0.1839

衍射实验 Diffraction

实验温度 temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/ov/9ovi/pr_distribution.json
• pr_output /app/data/pr_computation/ov/9ovi/9ovi.pr.out

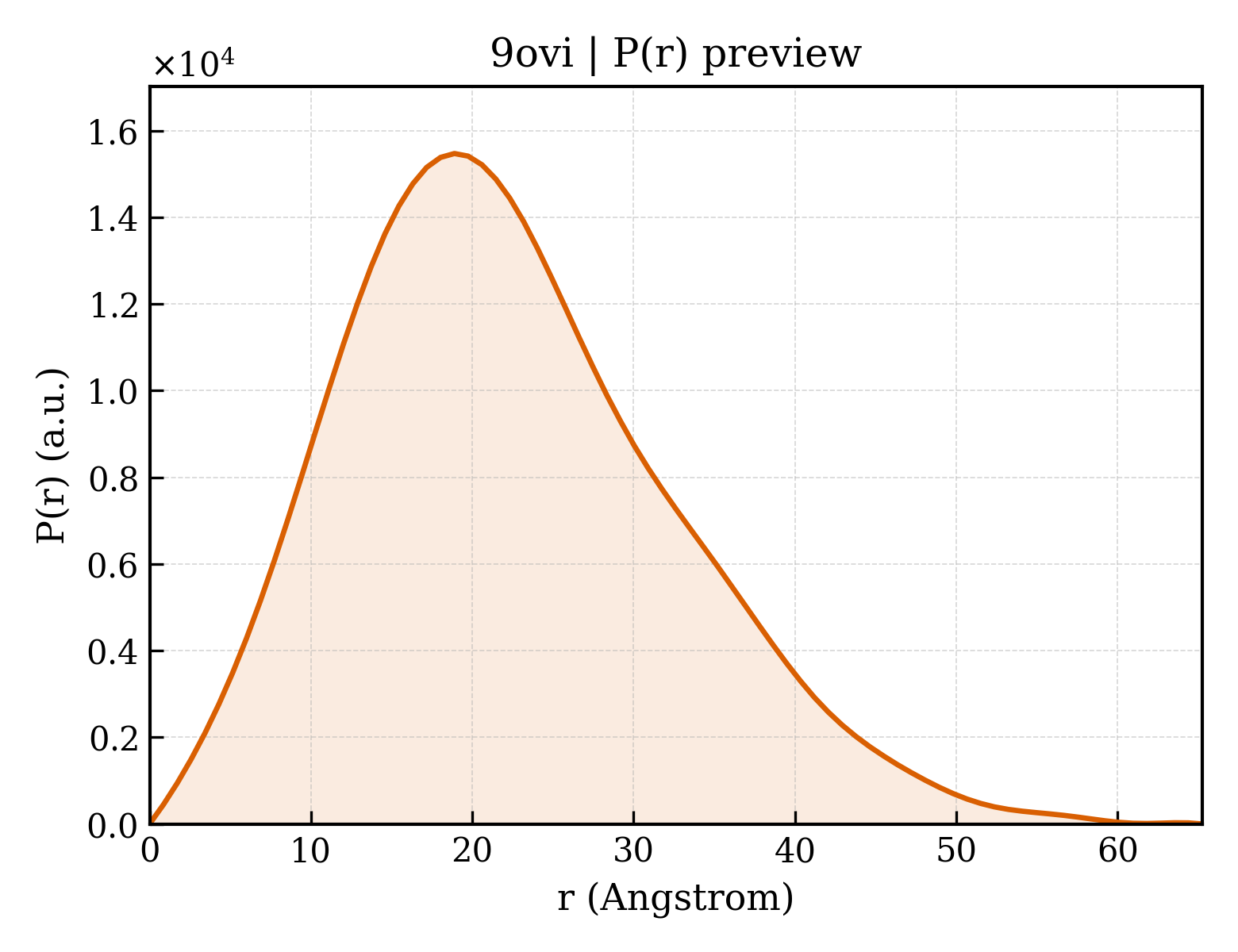

• pr_plot /app/data/visualization/pr_computation/ov/9ovi/9ovi_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/ov/9ovi/9ovi.dat
• saxs_fit /app/data/saxs_computation/ov/9ovi/9ovi.fit
• saxs_log /app/data/saxs_computation/ov/9ovi/9ovi.log
• saxs_plot /app/data/visualization/saxs_computation/ov/9ovi/9ovi_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/ov/9ovi/9ovi.fit
pddf	/app/data/pr_computation/ov/9ovi/9ovi.pr.out
profile	/app/data/saxs_computation/ov/9ovi/9ovi.dat
