9ovl

Cryo-EM structure of HCoV-OC43-Lab Spike glycoprotein in complex with 9O-acetyl GD3 sialoglycan

Method: ELECTRON MICROSCOPY D_max: 154.1 Å Quality: GOOD

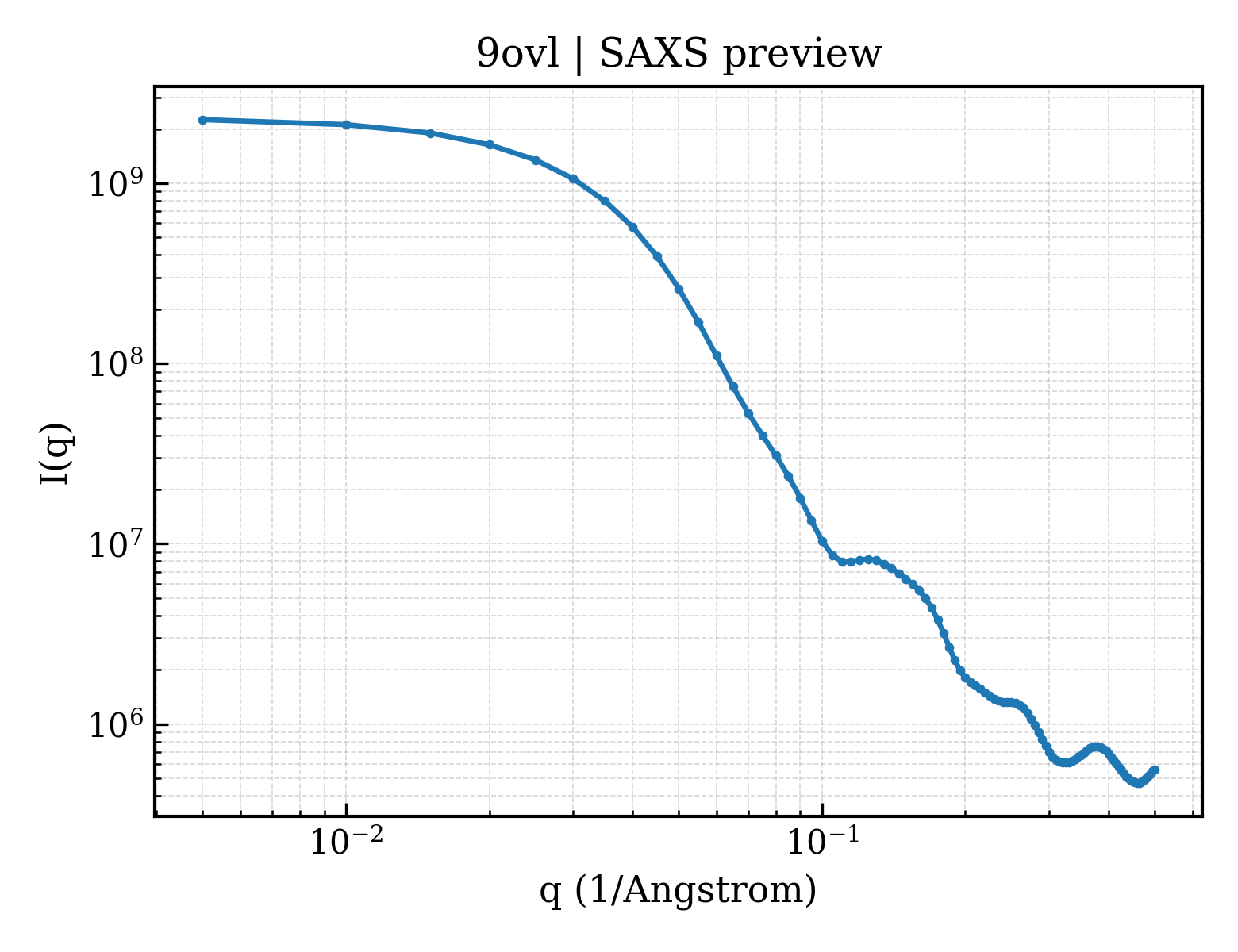

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9ovl
沉积日期 deposition_date	2025-05-30
结构标题 title	Cryo-EM structure of HCoV-OC43-Lab Spike glycoprotein in complex with 9O-acetyl GD3 sialoglycan
关键词 keywords	spike glycoprotein ectodomain, proline stablized, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	50.47 Å
回转半径 Rg (电子) rg_electron	50.06 Å
零角强度 I(0) i0	2300230000.00
分子量 molecular_weight	403590.0 kDa
排除体积 excluded_volume	505120 Å³
包络体积 envelope_volume	692850 Å³
水化壳体积 shell_volume	111530 Å³
包络直径 envelope_diameter	160.4 Å
壳层 Rg shell_rg	56.31 Å
包络 Rg envelope_rg	49.57 Å
形状 Rg shape_rg	50.06 Å
总 Rg total_rg	50.28 Å
总原子数 total_atoms	55839
残基数 n_residues	3525
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	154.1 Å
Rg (实空间) rg_real	50.33 Å
Rg 误差 (实空间) rg_real_error	0.97 Å
I(0) (实空间) i0_real	2.3000e+09
I(0) 误差 (实空间) i0_real_error	3.9050e+07
Rg (倒空间) rg_reciprocal	50.57 Å
I(0) (倒空间) i0_reciprocal	2301000000.0000
解质量估计 total_estimate	0.8559
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	59.6 Å
偏度 Skewness skewness	0.214
峰度 Kurtosis kurtosis	-0.528
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	329700000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.957; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.272

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Spike glycoprotein
分子量 formula_weight	149102.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	55839

VIGDLKCTSDNINDKDTGPPPISTDTVDVTNGLGTYYVLDRVYLNTTLFLNGYYPTSGSTYRNMALKGSVLLSRLWFKPPFLSDFINGIFAKVKNTKVIKDRVMYSEFPAITIGSTFVNTSYSVVVQPRTINSTQDGDNKLQGLLEVSVCQYNMCEYPQTICHPNLGNHRKELWHLDTGVVSCLYKRNFTYDVNADYLYFHFYQEGGTFYAYFTDTGVVTKFLFNVYLGMALSHYYVMPLTCNSKLTLEYWVTPLTSRQYLLAFNQDGIIFNAVDCMSDFMSEIKCKTQSIAPPTGVYELNGYTVQPIADVYRRKPNLPNCNIEAWLNDKSVPSPLNWERKTFSNCNFNMSSLMSFIQADSFTCNNIDAAKIYGMCFSSITIDKFAIPNGRKVDLQLGNLGYLQSFNYRIDTTATSCQLYYNLPAANVSVSRFNPSTWNKRFGFIEDSVFKPRPAGVLTNHDVVYAQHCFKAPKNFCPCKLNGSCVGSGPGKNNGIGTCPAGTNYLTCDNLCTPDPITFTGTYKCPQTKSLVGIGEHCSGLAVKSDYCGGNSCTCRPQAFLGWSADSCLQGDKCNIFANFILHDVNSGLTCSTDLQKANTDIILGVCVNYDLYGILGQGIFVEVNATYYNSWQNLLYDSNGNLYGFRDYITNRTFMIRSCYSGRVSAAFHANSSEPALLFRNIKCNYVFNNSLTRQLQPINYFDSYLGCVVNAYNSTAISVQTCDLTVGSGYCVDYSKNRRSRGAITTGYRFTNFEPFTVNSVNDSLEPVGGLYEIQIPSEFTIGNMVEFIQTSSPKVTIDCAAFVCGDYAACKSQLVEYGSFCDNINAILTEVNELLDTTQLQVANSLMNGVTLSTKLKDGVNFNVDDINFSPVLGCLGSECSKASSRSAIEDLLFDKVKLSDVGFVEAYNNCTGGAEIRDLICVQSYKGIKVLPPLLSENQISGYTLAATSASLFPPWTAAAGVPFYLNVQYRINGLGVTMDVLSQNQKLIANAFNNALYAIQEGFDAPNSALVKIQAVVNANAEALNNLLQQLSNRFGAISASLQEILSRLDPPEAEAQIDRLINGRLTALNAYVSQQLSDSTLVKFSAAQAMEKVNECVKSQSSRINFCGNGNHIISLVQNAPYGLYFIHFSYVPTKYVTARVSPGLCIAGDRGIAPKSGYFVNVNNTWMYTGSGYYYPEPITENNVVVMSTCAVNYTKAPYVMLNTSIPNLPDFKEELDQWFKNQTSVAPDLSLDYINVTFLDLQVEMNRLQEAIKVLNQSYINLKDIGTYEYYVKSGGYIPEAPRDGQAYVRKDGEWVLLSTFLNSGRAHHHHHHGAGGLNDIFEAQKIEWHEDTAAA

来源 Source

来源生物 organism	Human coronavirus OC43
NCBI 分类编号 ncbi_taxonomy_id	31631
宿主生物 host_organism	Homo sapiens

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	12

Entity 3 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	33

Entity 4 non-polymer

描述 description	;5-acetamido-8-O-(5-acetamido-9-O-acetyl-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranonosyl)-3,5-dideoxy-D-glycero-alpha-D-galacto-non-2-ulopyranosonic acid ;
分子量 formula_weight	642.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.680 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	1.68 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1398480

fit	/app/data/saxs_computation/ov/9ovl/9ovl.fit
pddf	/app/data/pr_computation/ov/9ovl/9ovl.pr.out
profile	/app/data/saxs_computation/ov/9ovl/9ovl.dat
