9owq

;Structure of Geobacillus stearothermophilus RNase P ribozyme in complex with precursor tRNA with loop-back 5' leader ;

Method: ELECTRON MICROSCOPY D_max: 161.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9owq
沉积日期 deposition_date	2025-06-02
结构标题 title	;Structure of Geobacillus stearothermophilus RNase P ribozyme in complex with precursor tRNA with loop-back 5' leader ;
关键词 keywords	ribozyme, RNA, RNase P.; RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.30 Å
回转半径 Rg (电子) rg_electron	44.39 Å
零角强度 I(0) i0	1327480000.00
分子量 molecular_weight	172180.0 kDa
排除体积 excluded_volume	160720 Å³
包络体积 envelope_volume	280800 Å³
水化壳体积 shell_volume	56197 Å³
包络直径 envelope_diameter	167.7 Å
壳层 Rg shell_rg	45.45 Å
包络 Rg envelope_rg	43.69 Å
形状 Rg shape_rg	44.39 Å
总 Rg total_rg	44.42 Å
总原子数 total_atoms	11309
残基数 n_residues	526
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

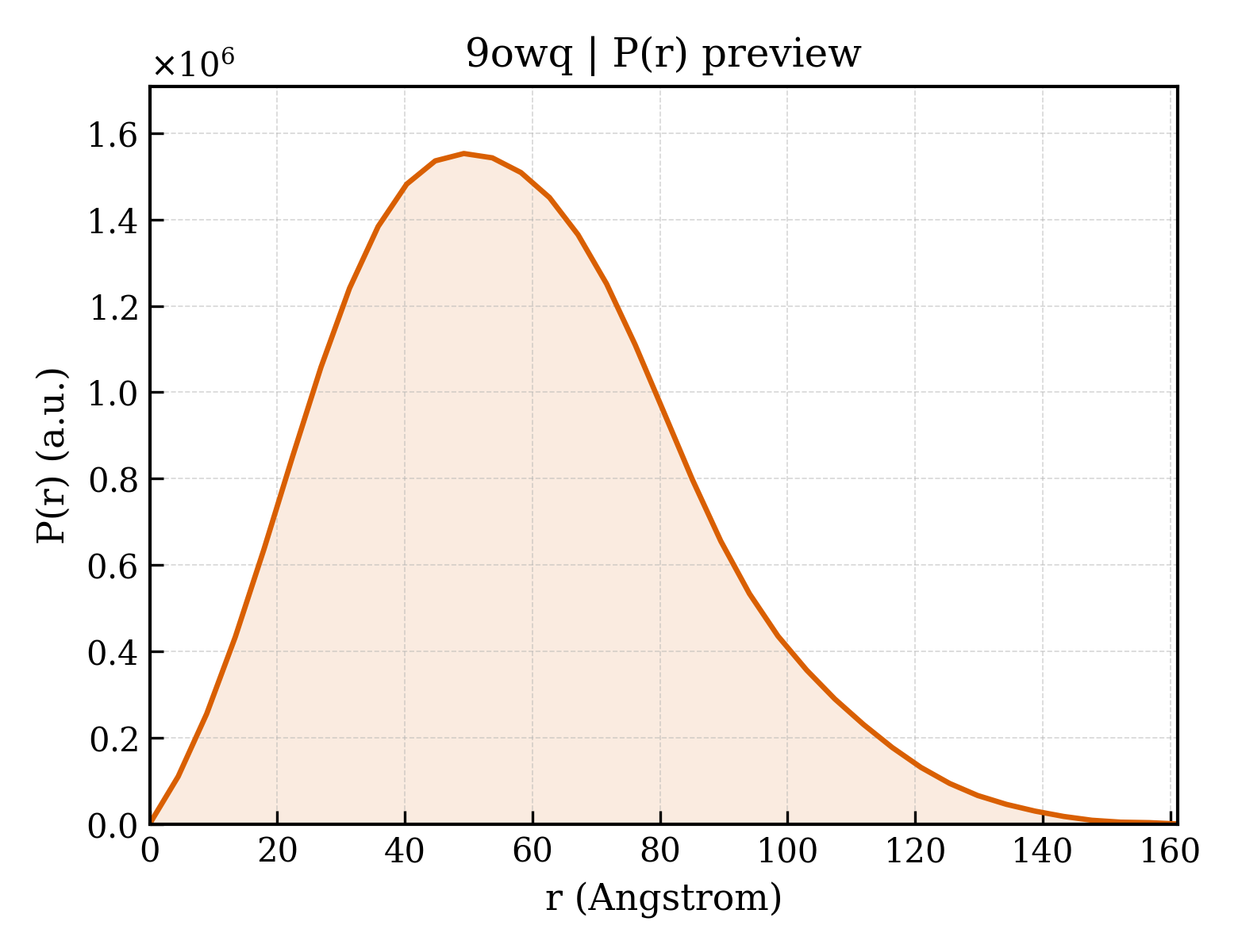

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	161.2 Å
Rg (实空间) rg_real	44.44 Å
Rg 误差 (实空间) rg_real_error	1.77 Å
I(0) (实空间) i0_real	1.3270e+09
I(0) 误差 (实空间) i0_real_error	2.6430e+07
Rg (倒空间) rg_reciprocal	44.30 Å
I(0) (倒空间) i0_reciprocal	1327000000.0000
解质量估计 total_estimate	0.8542
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.2 Å
偏度 Skewness skewness	0.447
峰度 Kurtosis kurtosis	-0.099
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	39230000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.739; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.946; Smooth: 0.936

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	RNase P RNA (417-MER)
分子量 formula_weight	135304.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	11309

GUUAAUCAUGCUCGGGUAAUCGCUGCGGCCGGUUUCGGCCGUAGAGGAAAGUCCAUGCUCGCACGGUGCUGAGAUGCCCGUAGUGUUCGUGCCUAGCGAAUCCAUAAGCUAGGGCAGCCUGGCUUCGGCUGGGCUGACGGCGGGGAAAGAACCUACGUCCGGCUGGGAUAUGGUUCGAUUACCCUGAAAGUGCCACAGUGACGGAGCUCUAAGGGAAACCUUAGAGGUGGAACGCGGUAAACCCCACGAGCGAGAAACCCAAAUGAUGGUAGGGGCACCUUCCCGAAGGAAAUGAACGGAGGGAAGGACAGGCGGCGCAUGCAGCCUGUAGAUAGAUGAUUACCGCCGGAGUACGAGGCGCAAAGCCGCUUGCAGUACGAAGGUACAGAACAUGGCUUAUAGAGCAUGAUUAACGUC

来源 Source

来源生物 organism	Geobacillus stearothermophilus
NCBI 分类编号 ncbi_taxonomy_id	1422
宿主生物 host_organism	in vitro transcription vector pT7-TP(deltai)

Entity 2 polymer

描述 description	precursor tRNA (109-MER)
分子量 formula_weight	35980.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C

GGGAUCCGGAUCCUUUUGGAUCCGGAUCCCUUUCGCGGAAGUAGUUCAGUGGUAGAACACCACCUUGCCAAGGUGGGGGUCGCGGGUUCGAGUCCCGUCUUCCGCUCCAAUA

来源 Source

来源生物 organism	Geobacillus stearothermophilus
NCBI 分类编号 ncbi_taxonomy_id	1422
宿主生物 host_organism	in vitro transcription vector pT7-TP(deltai)

Entity 3 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	31

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.78 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	248927

fit	/app/data/saxs_computation/ow/9owq/9owq.fit
pddf	/app/data/pr_computation/ow/9owq/9owq.pr.out
profile	/app/data/saxs_computation/ow/9owq/9owq.dat

;Structure of Geobacillus stearothermophilus RNase P ribozyme in complex with precursor tRNA with loop-back 5' leader ;

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (3)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 non-polymer

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
