9prp

N-terminal domain of E. coli MutL bound to NP660

Method: X-RAY DIFFRACTION Dmax: 89.5 Å Quality: EXCELLENT

SAXS Profile

SAXS profile for 9prp

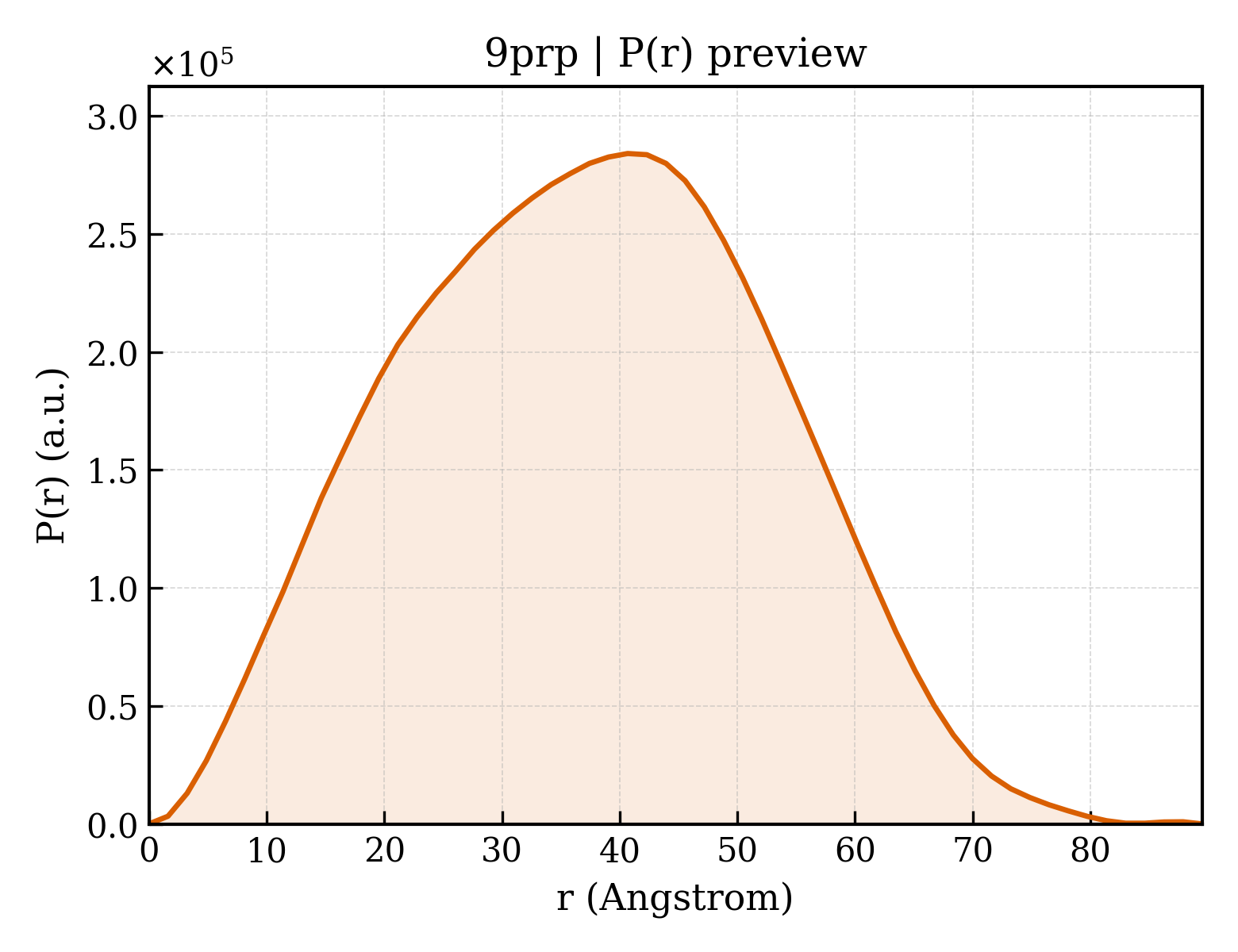

P(r) Distribution

P(r) distribution for 9prp
▼

1. Structure Basics

entry_id9prp
deposition_date2025-07-24
last_revision2026-05-06
titleN-terminal domain of E. coli MutL bound to NP660
keywordsDNA repair, GHKL ATPase, Mismatch repair protein, MutL, DNA BINDING PROTEIN; DNA BINDING PROTEIN
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier28.64 Å
rg_electron27.79 Å
i0151169000.00
molecular_weight63796.0 kDa
excluded_volume61168 ų
envelope_volume112970 ų
shell_volume33548 ų
envelope_diameter94.9 Å
shell_rg35.36 Å
envelope_rg26.99 Å
shape_rg27.75 Å
total_rg28.43 Å
total_atoms4865
n_residues622
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax89.5 Å
rg_real28.49 Å
rg_real_error0.71 Å
i0_real1.5120e+08
i0_real_error2.5900e+06
rg_reciprocal28.55 Å
i0_reciprocal151200000.0000
total_estimate0.9049
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary40.7 Å
skewness0.054
kurtosis-0.601
angular_range— – 0.2750 Å−1
current_alpha0.0000
highest_alpha17810000.0000
n_real_points56
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.924; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.991
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

▶

6. Citations (1)

▶

7. Files & Curves (10)
