9q0j
;Structure of dsRNA 16mer containing 4'-C-methyluridine ;
SAXS Profile

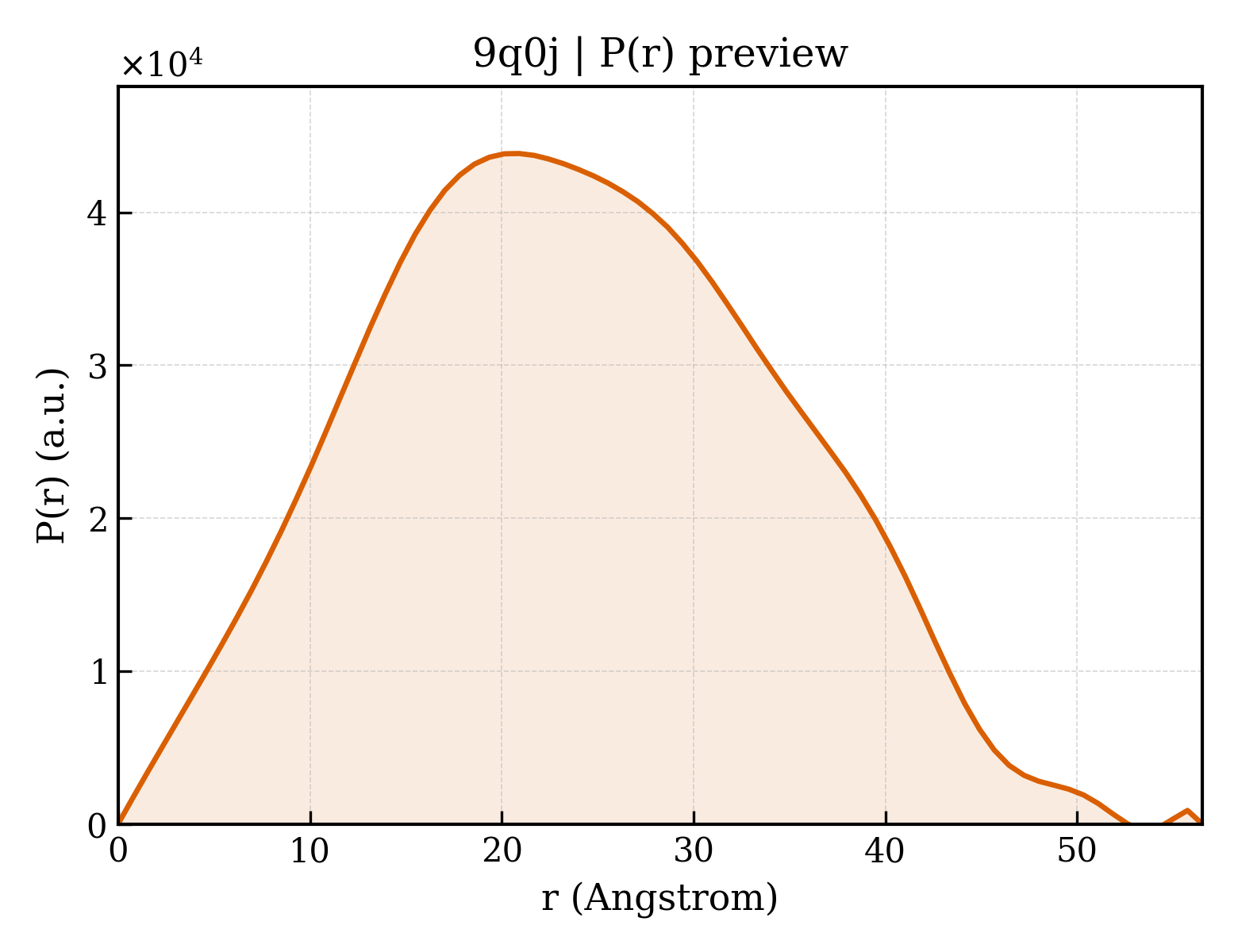

P(r) Distribution
1. Structure Basics
| entry_id | 9q0j |
| deposition_date | 2025-08-12 |
| last_revision | 2026-04-29 |
| title | ;Structure of dsRNA 16mer containing 4'-C-methyluridine ; |
| keywords | ;dsRNA, oligonucleotide, 4'-C-methyluridine, 5-bromouridine, RNA ;; RNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.46 Å |
| rg_electron | 18.07 Å |
| i0 | 15719800.00 |
| molecular_weight | 14947.0 kDa |
| excluded_volume | 11405 ų |
| envelope_volume | 23332 ų |
| shell_volume | 11943 ų |
| envelope_diameter | 58.9 Å |
| shell_rg | 22.21 Å |
| envelope_rg | 17.48 Å |
| shape_rg | 18.07 Å |
| total_rg | 18.47 Å |
| total_atoms | 1017 |
| n_residues | 42 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.5 Å |
| rg_real | 18.40 Å |
| rg_real_error | 0.38 Å |
| i0_real | 1.5720e+07 |
| i0_real_error | 1.8320e+05 |
| rg_reciprocal | 18.41 Å |
| i0_reciprocal | 15720000.0000 |
| total_estimate | 0.8396 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 20.9 Å |
| skewness | 0.134 |
| kurtosis | -0.597 |
| angular_range | — – 0.4300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 374500.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.970; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
