9q6a
Crystal structure of octameric COMMD-like protein MBK5214510 from Flavobacteriaceae bacterium
SAXS Profile

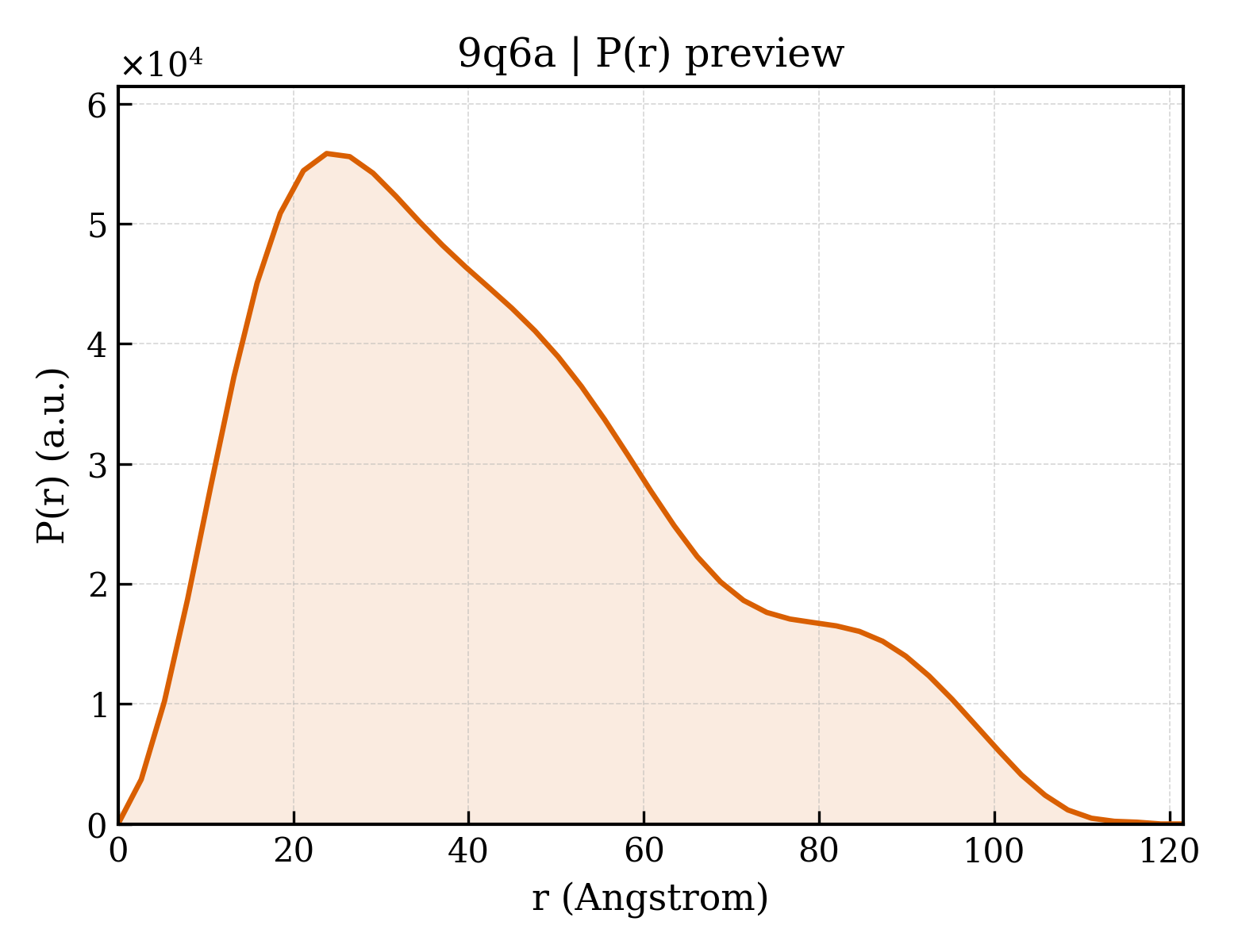

P(r) Distribution
1. Structure Basics
| entry_id | 9q6a |
| deposition_date | 2025-08-21 |
| title | Crystal structure of octameric COMMD-like protein MBK5214510 from Flavobacteriaceae bacterium |
| keywords | COMMD, homooligomer, UNKNOWN FUNCTION; UNKNOWN FUNCTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.23 Å |
| rg_electron | 34.40 Å |
| i0 | 38278700.00 |
| molecular_weight | 49389.0 kDa |
| excluded_volume | 62275 ų |
| envelope_volume | 86206 ų |
| shell_volume | 24523 ų |
| envelope_diameter | 123.4 Å |
| shell_rg | 34.86 Å |
| envelope_rg | 34.25 Å |
| shape_rg | 34.41 Å |
| total_rg | 34.42 Å |
| total_atoms | 6999 |
| n_residues | 427 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 121.6 Å |
| rg_real | 34.75 Å |
| rg_real_error | 1.55 Å |
| i0_real | 3.8280e+07 |
| i0_real_error | 6.1000e+05 |
| rg_reciprocal | 34.43 Å |
| i0_reciprocal | 38270000.0000 |
| total_estimate | 0.6839 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 23.8 Å |
| skewness | 0.611 |
| kurtosis | -0.408 |
| angular_range | — – 0.2300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4377000.0000 |
| n_real_points | 47 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.516; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.340; Smooth: 0.000 |
