9qai

Yeast 20S proteasome mutant: beta5_T3M in complex with MG132

Method: X-RAY DIFFRACTION D_max: 174.7 Å Quality: GOOD

SAXS Profile

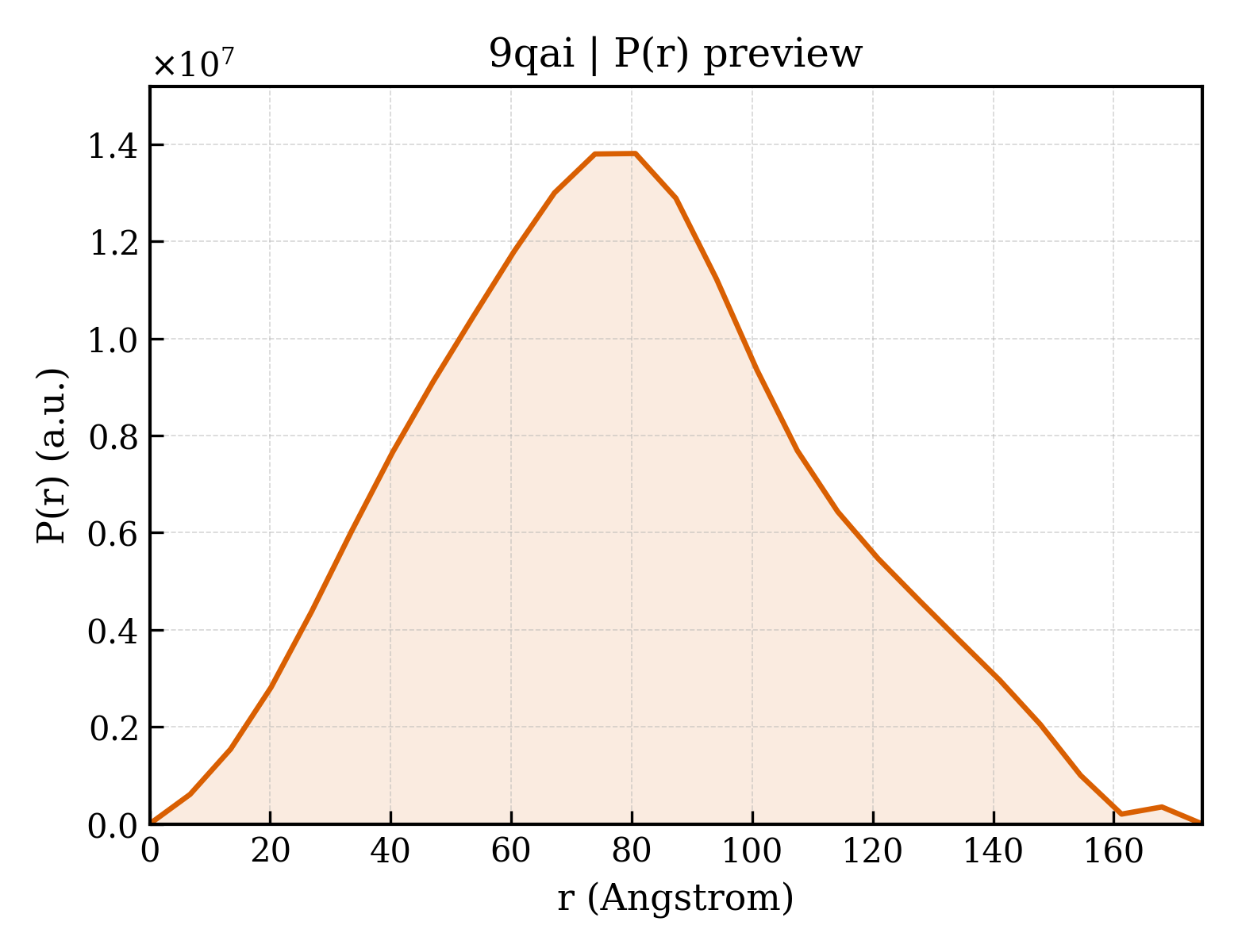

P(r) Distribution

▼

1. Structure Basics

entry_id	9qai
deposition_date	2025-02-28
title	Yeast 20S proteasome mutant: beta5_T3M in complex with MG132
keywords	Proteasome, Proteasome Associated Autoinflammatory Syndromes, Mutation, Assembly, Maturation, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	60.26 Å
rg_electron	59.77 Å
i0	13762900000.00
molecular_weight	653970.0 kDa
excluded_volume	631330 Å³
envelope_volume	1267800 Å³
shell_volume	169670 Å³
envelope_diameter	194.8 Å
shell_rg	68.07 Å
envelope_rg	57.79 Å
shape_rg	59.77 Å
total_rg	59.89 Å
total_atoms	49569
n_residues	6348
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	174.7 Å
rg_real	59.97 Å
rg_real_error	1.07 Å
i0_real	1.3760e+10
i0_real_error	2.3500e+08
rg_reciprocal	60.49 Å
i0_reciprocal	13770000000.0000
total_estimate	0.8320
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	80.6 Å
skewness	0.205
kurtosis	-0.414
angular_range	— – 0.1300 Å⁻¹
current_alpha	0.0000
highest_alpha	945500000.0000
n_real_points	27
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.007

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (18)

Entity 1 polymer

description	Proteasome subunit alpha type-2
formula_weight	27191.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,O
atom_count	49851

MTDRYSFSLTTFSPSGKLGQIDYALTAVKQGVTSLGIKATNGVVIATEKKSSSPLAMSETLSKVSLLTPDIGAVYSGMGPDYRVLVDKSRKVAHTSYKRIYGEYPPTKLLVSEVAKIMQEATQSGGVRPFGVSLLIAGHDEFNGFSLYQVDPSGSYFPWKATAIGKGSVAAKTFLEKRWNDELELEDAIHIALLTLKESVEGEFNGDTIELAIIGDENPDLLGYTGIPTDKGPRFRKLTSQEINDRLEAL

Entity 2 polymer

description	Proteasome subunit alpha type-3
formula_weight	28748.2 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,P

MGSRRYDSRTTIFSPEGRLYQVEYALESISHAGTAIGIMASDGIVLAAERKVTSTLLEQDTSTEKLYKLNDKIAVAVAGLTADAEILINTARIHAQNYLKTYNEDIPVEILVRRLSDIKQGYTQHGGLRPFGVSFIYAGYDDRYGYQLYTSNPSGNYTGWKAISVGANTSAAQTLLQMDYKDDMKVDDAIELALKTLSKTTDSSALTYDRLEFATIRKGANDGEVYQKIFKPQEIKDILVKTGITKKDEDEEADEDMK

Entity 3 polymer

description	Proteasome subunit alpha type-4
formula_weight	28478.1 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,Q

MSGYDRALSIFSPDGHIFQVEYALEAVKRGTCAVGVKGKNCVVLGCERRSTLKLQDTRITPSKVSKIDSHVVLSFSGLNADSRILIEKARVEAQSHRLTLEDPVTVEYLTRYVAGVQQRYTQSGGVRPFGVSTLIAGFDPRDDEPKLYQTEPSGIYSSWSAQTIGRNSKTVREFLEKNYDRKEPPATVEECVKLTVRSLLEVVQTGAKNIEITVVKPDSDIVALSSEEINQYVTQIEQEKQEQQEQDKKKKSNH

Entity 4 polymer

description	Proteasome subunit alpha type-5
formula_weight	28649.1 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,R

MFLTRSEYDRGVSTFSPEGRLFQVEYSLEAIKLGSTAIGIATKEGVVLGVEKRATSPLLESDSIEKIVEIDRHIGCAMSGLTADARSMIEHARTAAVTHNLYYDEDINVESLTQSVCDLALRFGEGASGEERLMSRPFGVALLIAGHDADDGYQLFHAEPSGTFYRYNAKAIGSGSEGAQAELLNEWHSSLTLKEAELLVLKILKQVMEEKLDENNAQLSCITKQDGFKIYDNEKTAELIKELKEKEAAESPEEADVEMS

Entity 5 polymer

description	Proteasome subunit alpha type-6
formula_weight	25634.0 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,S

MFRNNYDGDTVTFSPTGRLFQVEYALEAIKQGSVTVGLRSNTHAVLVALKRNADELSSYQKKIIKCDEHMGLSLAGLAPDARVLSNYLRQQCNYSSLVFNRKLAVERAGHLLCDKAQKNTQSYGGRPYGVGLLIIGYDKSGAHLLEFQPSGNVTELYGTAIGARSQGAKTYLERTLDTFIKIDGNPDELIKAGVEAISQSLRDESLTVDNLSIAIVGKDTPFTIYDGEAVAKYI

Entity 6 polymer

description	Probable proteasome subunit alpha type-7
formula_weight	31575.1 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	F,T

MTSIGTGYDLSNSVFSPDGRNFQVEYAVKAVENGTTSIGIKCNDGVVFAVEKLITSKLLVPQKNVKIQVVDRHIGCVYSGLIPDGRHLVNRGREEAASFKKLYKTPIPIPAFADRLGQYVQAHTLYNSVRPFGVSTIFGGVDKNGAHLYMLEPSGSYWGYKGAATGKGRQSAKAELEKLVDHHPEGLSAREAVKQAAKIIYLAHEDNKEKDFELEISWCSLSETNGLHKFVKGDLLQEAIDFAQKEINGDDDEDEDDSDNVMSSDDENAPVATNANATTDQEGDIHLE

Entity 7 polymer

description	Proteasome subunit alpha type-1
formula_weight	28033.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	G,U

MSGAAAASAAGYDRHITIFSPEGRLYQVEYAFKATNQTNINSLAVRGKDCTVVISQKKVPDKLLDPTTVSYIFCISRTIGMVVNGPIPDARNAALRAKAEAAEFRYKYGYDMPCDVLAKRMANLSQIYTQRAYMRPLGVILTFVSVDEELGPSIYKTDPAGYYVGYKATATGPKQQEITTNLENHFKKSKIDHINEESWEKVVEFAITHMIDALGTEFSKNDLEVGVATKDKFFTLSAENIEERLVAIAEQD

Entity 8 polymer

description	Proteasome subunit beta type-2
formula_weight	25013.4 kDa
ec_number	3.4.25.1
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	H,V

TIVGVKFNNGVVIAADTRSTQGPIVADKNCAKLHRISPKIWCAGAGTAADTEAVTQLIGSNIELHSLYTSREPRVVSALQMLKQHLFKYQGHIGAYLIVAGVDPTGSHLFSIHAHGSTDVGYYLSLGSGSLAAMAVLESHWKQDLTKEEAIKLASDAIQAGIWNDLGSGSNVDVCVMEIGKDAEYLRNYLTPNVREEKQKSYKFPRGTTAVLKESIVNICDIQEEQVDITA

Entity 9 polymer

description	Proteasome subunit beta type-3
formula_weight	22627.8 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	I,W

MSDPSSINGGIVVAMTGKDCVAIACDLRLGSQSLGVSNKFEKIFHYGHVFLGITGLATDVTTLNEMFRYKTNLYKLKEERAIEPETFTQLVSSSLYERRFGPYFVGPVVAGINSKSGKPFIAGFDLIGCIDEAKDFIVSGTASDQLFGMCESLYEPNLEPEDLFETISQALLNAADRDALSGWGAVVYIIKKDEVVKRYLKMRQD

Entity 10 polymer

description	Proteasome subunit beta type-4
formula_weight	22545.7 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	J,X

MDIILGIRVQDSVILASSKAVTRGISVLKDSDDKTRQLSPHTLMSFAGEAGDTVQFAEYIQANIQLYSIREDYELSPQAVSSFVRQELAKSIRSRRPYQVNVLIGGYDKKKNKPELYQIDYLGTKVELPYGAHGYSGFYTFSLLDHHYRPDMTTEEGLDLLKLCVQELEKRMPMDFKGVIVKIVDKDGIRQVDDFQAQ

Entity 11 polymer

description	Proteasome subunit beta type-5
formula_weight	23254.2 kDa
ec_number	3.4.25.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	K,Y

TMLAFRFQGGIIVAVDSRATAGNWVASQTVKKVIEINPFLLGTMAGGAADCQFWETWLGSQCRLHELREKERISVAAASKILSNLVYQYKGAGLSMGTMICGYTRKEGPTIYYVDSDGTRLKGDIFCVGSGQTFAYGVLDSNYKWDLSVEDALYLGKRSILAAAHRDAYSGGSVNLYHVTEDGWIYHGNHDVGELFWKVKEEEGSFNNVIG

Source

organism	Saccharomyces cerevisiae
common_name	;brewer's yeast ;
ncbi_taxonomy_id	4932
host_organism	Saccharomyces cerevisiae

Entity 12 polymer

description	Proteasome subunit beta type-6
formula_weight	24883.9 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	L,Z

QFNPYGDNGGTILGIAGEDFAVLAGDTRNITDYSINSRYEPKVFDCGDNIVMSANGFAADGDALVKRFKNSVKWYHFDHNDKKLSINSAARNIQHLLYGKRFFPYYVHTIIAGLDEDGKGAVYSFDPVGSYEREQCRAGGAAASLIMPFLDNQVNFKNQYEPGTNGKVKKPLKYLSVEEVIKLVRDSFTSATERHIQVGDGLEILIVTKDGVRKEFYELKRD

Entity 13 polymer

description	Proteasome subunit beta type-7
formula_weight	27200.9 kDa
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	M,a

TQIANAGASPMVNTQQPIVTGTSVISMKYDNGVIIAADNLGSYGSLLRFNGVERLIPVGDNTVVGISGDISDMQHIERLLKDLVTENAYDNPLADAEEALEPSYIFEYLATVMYQRRSKMNPLWNAIIVAGVQSNGDQFLRYVNLLGVTYSSPTLATGFGAHMANPLLRKVVDRESDIPKTTVQVAEEAIVNAMRVLYYRDARSSRNFSLAIIDKNTGLTFKKNLQVENMKWDFAKDIKGYGTQKI

Entity 14 polymer

description	Proteasome subunit beta type-1
formula_weight	21416.1 kDa
ec_number	3.4.25.1
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	N,b

SIMAVTFKDGVILGADSRTTTGAYIANRVTDKLTRVHDKIWCCRSGSAADTQAIADIVQYHLELYTSQYGTPSTETAASVFKELCYENKDNLTAGIIVAGYDDKNKGEVYTIPLGGSVHKLPYAIAGSGSTFIYGYCDKNFRENMSKEETVDFIKHSLSQAIKWDGSSGGVIRMVVLTAAGVERLIFYPDEYEQL

Entity 15 polymer

description	3-PYRIDIN-4-YL-2,4-DIHYDRO-INDENO[1,2-.C.]PYRAZOLE
formula_weight	594.7 kDa
src_method	syn
entity_count	6

Polymer

type	polypeptide(L)
strand_id	e,f,g,h,i,j

XLLX

Entity 16 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	11

Entity 17 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	4

Entity 18 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	282

▶

6. Citations (1)

▶

length_a	136.130 Å
length_b	300.280 Å
length_c	145.700 Å
angle_alpha	90.00 °
angle_beta	113.08 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.800 Å
resolution_low	15.000 Å
r_factor	0.1877
r_work	0.1867
r_free	0.2055

fit	/app/data/saxs_computation/qa/9qai/9qai.fit
pddf	/app/data/pr_computation/qa/9qai/9qai.pr.out
profile	/app/data/saxs_computation/qa/9qai/9qai.dat
