9qjc

Yeast pre-60S Domain II intermediate

Method: ELECTRON MICROSCOPY D_max: 191.4 Å Quality: GOOD

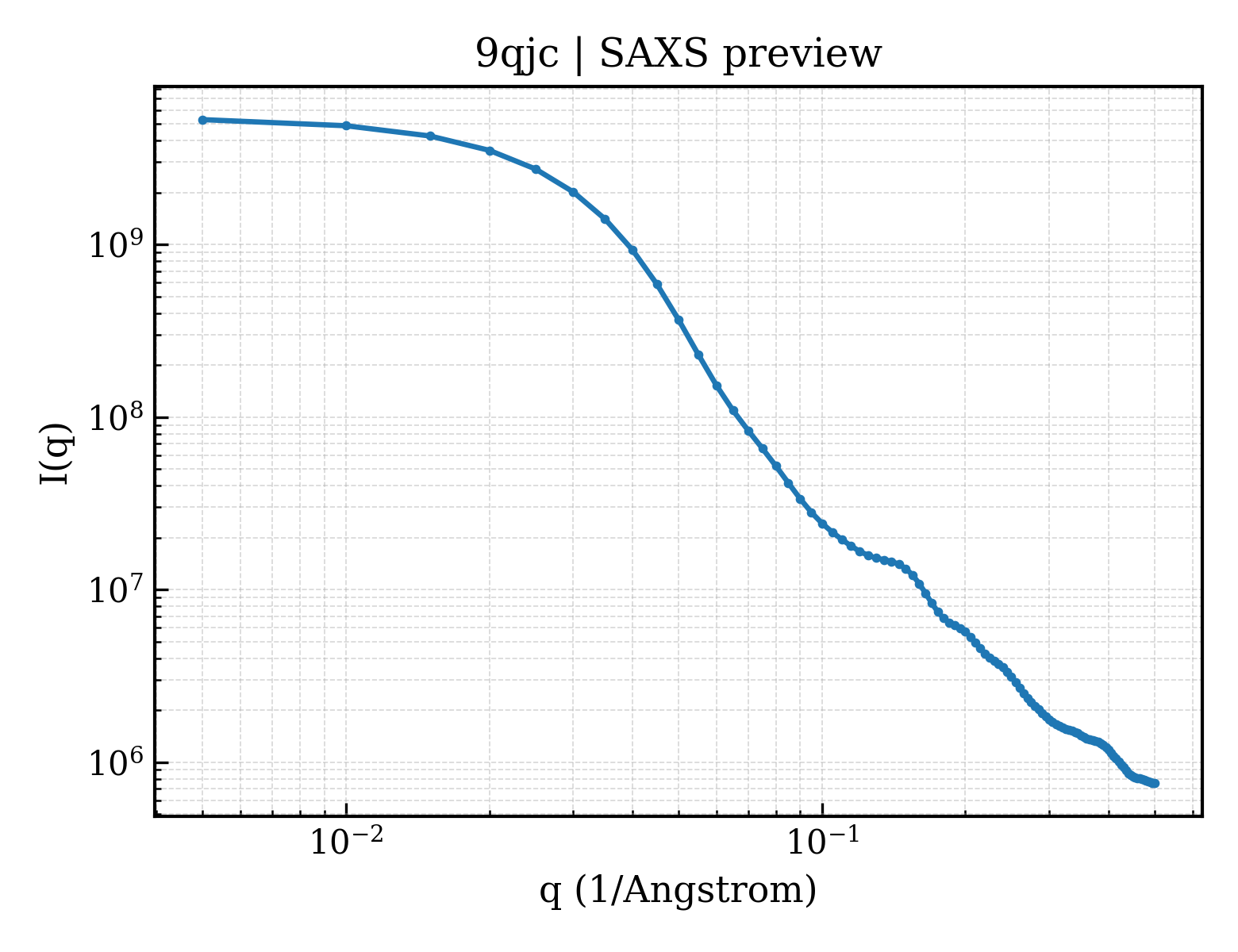

SAXS 散射曲线 SAXS Profile

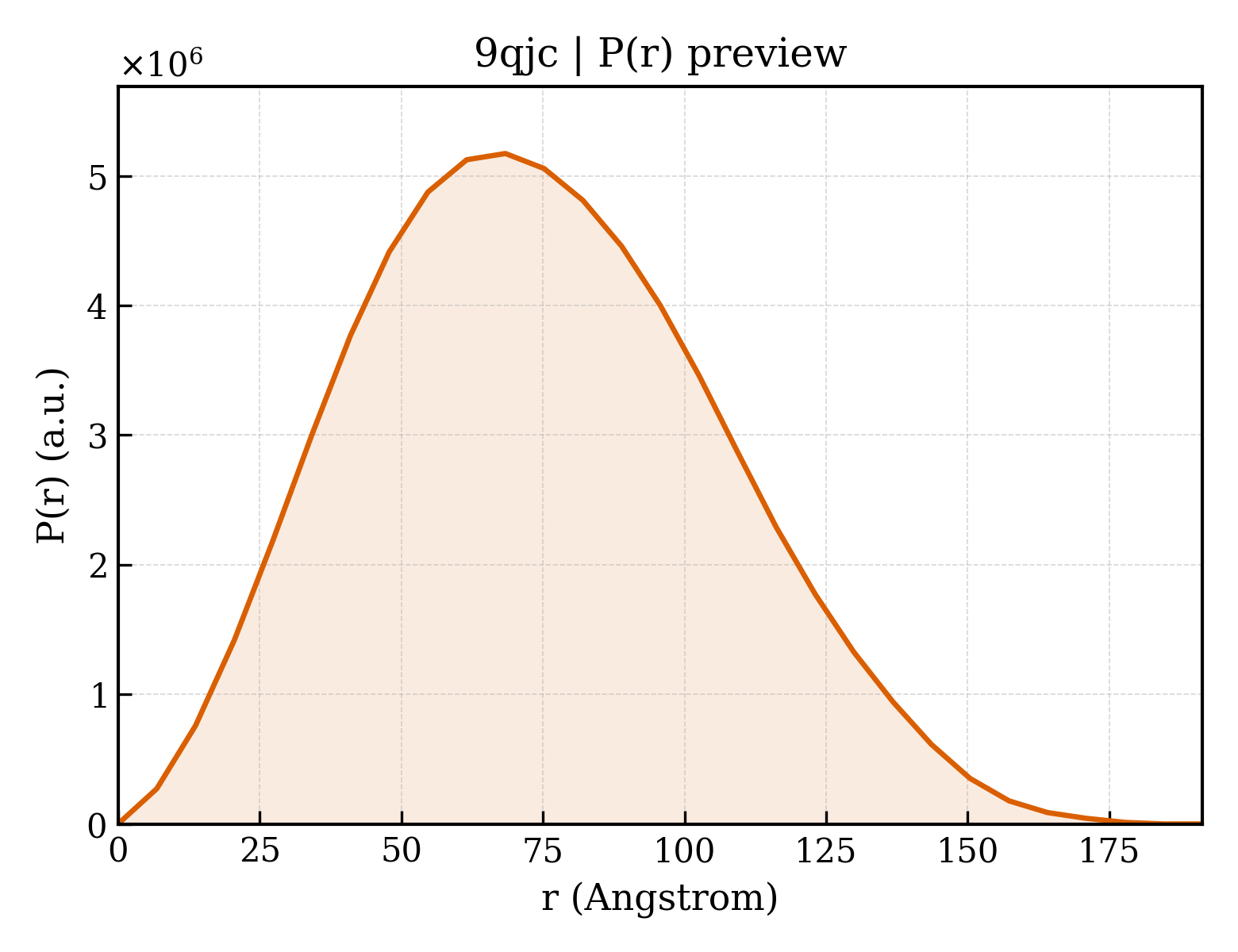

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9qjc
沉积日期 deposition_date	2025-03-19
结构标题 title	Yeast pre-60S Domain II intermediate
关键词 keywords	preLSU, preribosome, complex, Noc2-TAP particle, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	57.13 Å
回转半径 Rg (电子) rg_electron	57.91 Å
零角强度 I(0) i0	5433950000.00
分子量 molecular_weight	504200.0 kDa
排除体积 excluded_volume	583000 Å³
包络体积 envelope_volume	961860 Å³
水化壳体积 shell_volume	134960 Å³
包络直径 envelope_diameter	198.7 Å
壳层 Rg shell_rg	63.05 Å
包络 Rg envelope_rg	56.66 Å
形状 Rg shape_rg	57.97 Å
总 Rg total_rg	57.85 Å
总原子数 total_atoms	64675
残基数 n_residues	3496
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	191.4 Å
Rg (实空间) rg_real	56.98 Å
Rg 误差 (实空间) rg_real_error	1.55 Å
I(0) (实空间) i0_real	5.4340e+09
I(0) 误差 (实空间) i0_real_error	1.0950e+08
Rg (倒空间) rg_reciprocal	57.23 Å
I(0) (倒空间) i0_reciprocal	5436000000.0000
解质量估计 total_estimate	0.8773
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	68.4 Å
偏度 Skewness skewness	0.258
峰度 Kurtosis kurtosis	-0.420
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	533700000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.852; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.860

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (16)

Entity 1 polymer

描述 description	Ribosome biogenesis protein MAK21
分子量 formula_weight	116832.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5
原子数 atom_count	64675

MSENNGNPLDLSSLRNKISSKLRDNNSKKAKKTHKGKDVKASSNSKKVNEDIRREALALGASEEDLKLIQGLSDDDDAKSEQEFDAVADEDADDKGFKNDLQNFMKNVGFDQHKLEDVDDDDIEEESTSSKESKIPAQEKEHAQSNIASSTIEKTSQESIDNGSEQEENTVEEANLSSDQEPESESAEKEKKEEKDGGLITQTTIISSDKLIIPYDKPWYEIPLDPQVGQNDDVEELSKEQIEKLFERGKQTLEADNQTYYEEFTKDSSQAKFMSQILSDGTLNDKISAVTLLIQDSPLHNTKSLETLVSYCGKKSRNSALQSLNALKDLFLNGLLPNRKLRYFKNQPGLSMMLNKKTLAIFYFEDYLKKLFFRVLEVLEVLSHDPIIHVRLQILNHVFDLLTNQPEQEFNLLRLGVNKIGDIDSKVSSKASYLLLKLEQAHPNMKSIVIDAIVDIALRPNADYHTTYYSVITLNQTILKRSEDSVANKLVKTYFTLFEKFLINTDKDNTNGVVKSNSKSYEEKRKKNFKKGKHGGKSVKIEKTENEVLDEKNSKLFSALLTGINRAFPFAQIPASVYEVHMETLFKITHSSNFNTSIQALVLINQVTVKAKLNSDRYYRTLYESLFDPRLVNSSKQGIYLNLLYKSLKQDALNVERVEAFVKRILQVCSHWLNVGTITGFFFLLIQLAKTVPQIKNLLTNTPVDYEYESDAEEEQGDKDIKRKEYDGRKRDPKFANAEKSSLWEINNFINHFHPTVKTYANAYVTGETEQIAKPDLGLFTLSHFLDRFVYRSAKQTNTARGTSIMQPLFSGSRVNDSVLVKASDIMHDQGPVNTEDWLTKKVEDIKPEDKFFYQYFTTKKTADGKGKKSNKASNFDSDDEMDENEIWSALVKSRPDVEDDSDDSELDFAEDDFSDSTSDDEPKLDAIDDEDAKSEGSQESDQEEGLDEDIFYSFDGEQDNSDKKRSFAESSEEDESSEEEKEEEENKEVSAKRAKKKQRKNMLKSLPVFASADDYAQYLDQDSD

Entity 2 polymer

描述 description	Nucleolar complex protein 2
分子量 formula_weight	81719.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MGKVSKSTKKFQSKHLKHTLDQRRKEKIQKKRIQGRRGNKTDQEKADAAGTREQQQLKKSAKEEVFKDMSVETFFEKGIEIPKENKKLKKKTTKEQSDEDSSSSEEEEDMGQSMAKLAEKDPEFYKYLEENDKDLLDFAGTNPLDGIDSQDEGEDAERNSNIEEKSEQMELEKEKIELSLKLVRKWKKQLHDSPSLKLLRNIISAFKVAVNLNKEENIEDYKYAITDEKAFHELMFMVLKDVPQAIQKMAPYKIVKGARTLPNGGNVSRVSSIVKSHAGSLLILLNDITNTETAALVLHSVNELMPYLLSYRRILKELIKSIVGVWSTTRELETQIASFAFLINTTKEFKKSMLETTLKTTYSTFIKSCRKTNMRSMPLINFQKNSAAELFGIDEVLGYQVGFEYIRQLAIHLRNTMNATTKKSSKINSAEAYKIVYNWQFCHSLDFWSRVLSFACQPEKENGSESPLRQLIYPLVQVTLGVIRLIPTPQFFPLRFYLIKSLIRLSQNSGVFIPIYPLLSEILTSTAFTKAPKKSPNLAAFDFEHNIKCTQAYLNTKIYQEGLSEQFVDLLGDYFALYCKNIAFPELVTPVIISLRRYIKTSTNVKLNKRLSTVVEKLNQNSTFIQEKRSDVEFGPTNKSEVSRFLNDVAWNKTPLGSYVAVQREVKEEKARLMRESMEEQDKERETEEAKLLNSLESDDDNEDVEMSDA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 3 polymer

描述 description	60S ribosomal protein L4-A
分子量 formula_weight	39159.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSRPQVTVHSLTGEATANALPLPAVFSAPIRPDIVHTVFTSVNKNKRQAYAVSEKAGHQTSAESWGTGRAVARIPRVGGGGTGRSGQGAFGNMCRGGRMFAPTKTWRKWNVKVNHNEKRYATASAIAATAVASLVLARGHRVEKIPEIPLVVSTDLESIQKTKEAVAALKAVGAHSDLLKVLKSKKLRAGKGKYRNRRWTQRRGPLVVYAEDNGIVKALRNVPGVETANVASLNLLQLAPGAHLGRFVIWTEAAFTKLDQVWGSETVASSKVGYTLPSHIISTSDVTRIINSSEIQSAIRPAGQATQKRTHVLKKNPLKNKQVLLRLNPYAKVFAAEKLGSKKAEKTGTKPAAVFTETLKHD

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 4 polymer

描述 description	Protein MAK16
分子量 formula_weight	35754.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MSDEIVWQVINQSFCSHRIKAPNGQNFCRNEYNVTGLCTRQSCPLANSKYATVKCDNGKLYLYMKTPERAHTPAKLWERIKLSKNYTKALQQIDEHLLHWSKFFRHKCKQRFTKLTQVMITERRLALREEERHYVGVAPKVKRREQNRERKALVAAKIEKAIEKELMDRLKSGAYGDKPLNVDEKVWKKIMGQMEEENSQDEEEDWDEEEESDDGEVEYVADDGEGEYVDVDDLEKWLADSDREASSASESESDSESESDSDSDEENKNSAKRRKKGTSAKTKRPKVEIEYEEEHEVQNAEQEVAQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 5 polymer

描述 description	60S ribosomal protein L6-A
分子量 formula_weight	20000.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSAQKAPKWYPSEDVAALKKTRKAARPQKLRASLVPGTVLILLAGRFRGKRVVYLKHLEDNTLLISGPFKVNGVPLRRVNARYVIATSTKVSVEGVNVEKFNVEYFAKEKLTKKEKKEANLFPEQQNKEIKAERVEDQKVVDKALIAEIKKTPLLKQYLSASFSLKNGDKPHMLKF

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 6 polymer

描述 description	60S ribosomal protein L7-A
分子量 formula_weight	27686.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAAEKILTPESQLKKSKAQQKTAEQVAAERAARKAANKEKRAIILERNAAYQKEYETAERNIIQAKRDAKAAGSYYVEAQHKLVFVVRIKGINKIPPKPRKVLQLLRLTRINSGTFVKVTKATLELLKLIEPYVAYGYPSYSTIRQLVYKRGFGKINKQRVPLSDNAIIEANLGKYGILSIDDLIHEIITVGPHFKQANNFLWPFKLSNPSGGWGVPRKFKHFIQGGSFGNREEFINKLVKSMN

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 7 polymer

描述 description	60S ribosomal protein L14-A
分子量 formula_weight	15195.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MSTDSIVKASNWRLVEVGRVVLIKKGQSAGKLAAIVEIIDQKKVLIDGPKAGVPRQAINLGQVVLTPLTFALPRGARTATVSKKWAAAAVCEKWAASSWAKKIAQRERRAALTDFERFQVMVLRKQKRYTVKKALAKA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 8 polymer

描述 description	60S ribosomal protein L16-A
分子量 formula_weight	22247.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSVEPVVVIDGKGHLVGRLASVVAKQLLNGQKIVVVRAEELNISGEFFRNKLKYHDFLRKATAFNKTRGPFHFRAPSRIFYKALRGMVSHKTARGKAALERLKVFEGIPPPYDKKKRVVVPQALRVLRLKPGRKYTTLGKLSTSVGWKYEDVVAKLEAKRKVSSAEYYAKKRAFTKKVASANATAAESDVAKQLAALGY

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 9 polymer

描述 description	60S ribosomal protein L18-A
分子量 formula_weight	20609.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MGIDHTSKQHKRSGHRTAPKSDNVYLKLLVKLYTFLARRTDAPFNKVVLKALFLSKINRPPVSVSRIARALKQEGAANKTVVVVGTVTDDARIFEFPKTTVAALRFTAGARAKIVKAGGECITLDQLAVRAPKGQNTLILRGPRNSREAVRHFGMGPHKGKAPRILSTGRKFERARGRRRSKGFKV

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 10 polymer

描述 description	60S ribosomal protein L20-A
分子量 formula_weight	20478.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MAHFKEYQVIGRRLPTESVPEPKLFRMRIFASNEVIAKSRYWYFLQKLHKVKKASGEIVSINQINEAHPTKVKNFGVWVRYDSRSGTHNMYKEIRDVSRVAAVETLYQDMAARHRARFRSIHILKVAEIEKTADVKRQYVKQFLTKDLKFPLPHRVQKSTKTFSYKRPSTFY

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 11 polymer

描述 description	60S ribosomal protein L32
分子量 formula_weight	14809.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MASLPHPKIVKKHTKKFKRHHSDRYHRVAENWRKQKGIDSVVRRRFRGNISQPKIGYGSNKKTKFLSPSGHKTFLVANVKDLETLTMHTKTYAAEIAHNISAKNRVVILARAKALGIKVTNPKGRLALEA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 12 polymer

描述 description	60S ribosomal protein L33-A
分子量 formula_weight	12177.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MAESHRLYVKGKHLSYQRSKRVNNPNVSLIKIEGVATPQDAQFYLGKRIAYVYRASKEVRGSKIRVMWGKVTRTHGNSGVVRATFRNNLPAKTFGASVRIFLYPSNI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 13 polymer

描述 description	Ribosomal RNA-processing protein 1
分子量 formula_weight	33250.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	z

METSNFVKQLSSNNRKTRVNALEALKKYLTAKQFKENKQIEFNKLWKGLYYAMWFSDRPRPQQRLANELGELHGLYFDPKDNSTADELTTNDKAFIKFSRGFWKVMCFEWFNIDRYRLDKYLLLIRRVLFSQLKYLQSRNWDKKLVDEYIKKVLRWLPLSGSPKVYTGIPIHIVDILLDEWERLLKDGDEDDEDEENKEEEMRKIAESAKKTPLADVIAIFQDIVADYNNSKVLREKIKEDLFSDTRLVSWDILEGETQHNDSSNESEEEEEEEWKGF

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 14 polymer

描述 description	25S ribosomal RNA
分子量 formula_weight	1097493.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	1

GUUUGACCUCAAAUCAGGUAGGAGUACCCGCUGAACUUAAGCAUAUCAAUAAGCGGAGGAAAAGAAACCAACCGGGAUUGCCUUAGUAACGGCGAGUGAAGCGGCAAAAGCUCAAAUUUGAAAUCUGGUACCUUCGGUGCCCGAGUUGUAAUUUGGAGAGGGCAACUUUGGGGCCGUUCCUUGUCUAUGUUCCUUGGAACAGGACGUCAUAGAGGGUGAGAAUCCCGUGUGGCGAGGAGUGCGGUUCUUUGUAAAGUGCCUUCGAAGAGUCGAGUUGUUUGGGAAUGCAGCUCUAAGUGGGUGGUAAAUUCCAUCUAAAGCUAAAUAUUGGCGAGAGACCGAUAGCGAACAAGUACAGUGAUGGAAAGAUGAAAAGAACUUUGAAAAGAGAGUGAAAAAGUACGUGAAAUUGUUGAAAGGGAAGGGCAUUUGAUCAGACAUGGUGUUUUGUGCCCUCUGCUCCUUGUGGGUAGGGGAAUCUCGCAUUUCACUGGGCCAGCAUCAGUUUUGGUGGCAGGAUAAAUCCAUAGGAAUGUAGCUUGCCUCGGUAAGUAUUAUAGCCUGUGGGAAUACUGCCAGCUGGGACUGAGGACUGCGACGUAAGUCAAGGAUGCUGGCAUAAUGGUUAUAUGCCGCCCGUCUUGAAACACGGACCAAGGAGUCUAACGUCUAUGCGAGUGUUUGGGUGUAAAACCCAUACGCGUAAUGAAAGUGAACGUAGGUUGGGGCCUCGCAAGAGGUGCACAAUCGACCGAUCCUGAUGUCUUCGGAUGGAUUUGAGUAAGAGCAUAGCUGUUGGGACCCGAAAGAUGGUGAACUAUGCCUGAAUAGGGUGAAGCCAGAGGAAACUCUGGUGGAGGCUCGUAGCGGUUCUGACGUGCAAAUCGAUCGUCGAAUUUGGGUAUAGGGGCGAAAGACUAAUCGAACCAUCUAGUAGCUGGUUCCUGCCGAAGUUUCCCUCAGGAUAGCAGAAGCUCGUAUCAGUUUUAUGAGGUAAAGCGAAUGAUUAGAGGUUCCGGGGUCGAAAUGACCUUGACCUAUUCUCAAACUUUAAAUAUGUAAGAAGUCCUUGUUACUUAAUUGAACGUGGACAUUUGAAUGAAGAGCUUUUAGUGGGCCAUUUUUGGUAAGCAGAACUGGCGAUGCGGGAUGAACCGAACGUAGAGUUAAGGUGCCGGAAUACACGCUCAUCAGACACCACAAAAGGUGUUAGUUCAUCUAGACAGCCGGACGGUGGCCAUGGAAGUCGGAAUCCGCUAAGGAGUGUGUAACAACUCACCGGCCGAAUGAACUAGCCCUGAAAAUGGAUGGCGCUCAAGCGUGUUACCUAUACUCUACCGUCAGGGUUGAUAUGAUGCCCUGACGAGUAGGCAGGCGUGGAGGUCAGUGACGAAGCCUAGACCGUAAGGUCGGGUCGAACGGCCUCUAGUGCAGAUCUUGGUGGUAGUAGCAAAUAUUCAAAUGAGAACUUUGAAGACUGAAGUGGGGAAAGGUUCCACGUCAACAGCAGUUGGACGUGGGUUAGUCGAUCCUAAGAGAUGGGGAAGCUCCGUUUCAAAGGCCUGAUUUUAUGCAGGCCACCAUCGAAAGGGAAUCCGGUUAAGAUUCCGGAACCUGGAUAUGGAUUCUUCACGGUAACGUAACUGAAUGUGGAGACGUCGGCGCGAGCCCUGGGAGGAGUUAUCUUUUCUUCUUAACAGCUUAUCACCCCGGAAUUGGUUUAUCCGGAGAUGGGGUCUUAUGGCUGGAAGAGGCCAGCACCUUUGCUGGCUCCGGUGCGCUUGUGACGGCCCGUGAAAAUCCACAGGAAGGAAUAGUUUUCAUGCCAGGUCGUACUGAUAACCGCAGCAGGUCUCCAAGGUGAACAGCCUCUAGUUGAUAGAAUAAUGUAGAUAAGGGAAGUCGGCAAAAUAGAUCCGUAACUUCGGGAUAAGGAUUGGCUCUAAGGGUCGGGUAGUGAGGGCCUUGGUCAGACGCAGCGGGCGUGCUUGUGGACUGCUUGGUGGGGCUUGCUCUGCUAGGCGGACUACUUGCGUGCCUUGUUGUAGACGGCCUUGGUAGGUCUCUUGUAGACCGUCGCUUGCUACAAUUAACGAUCAACUUAGAACUGGUACGGACAAGGGGAAUCUGACUGUCUAAUUAAAACAUAGCAUUGCGAUGGUCAGAAAGUGAUGUUGACGCAAUGUGAUUUCUGCCCAGUGCUCUGAAUGUCAAAGUGAAGAAAUUCAACCAAGCGCGGGUAAACGGCGGGAGUAACUAUGACUCUCUUAAGGUAGCCAAAUGCCUCGUCAUCUAAUUAGUGACGCGCAUGAAUGGAUUAACGAGAUUCCCACUGUCCCUAUCUACUAUCUAGCGAAACCACAGCCAAGGGAACGGGCUUGGCAGAAUCAGCGGGGAAAGAAGACCCUGUUGAGCUUGACUCUAGUUUGACAUUGUGAAGAGACAUAGAGGGUGUAGAAUAAGUGGGAGCUUCGGCGCCAGUGAAAUACCACUACCUUUAUAGUUUCUUUACUUAUUCAAUGAAGCGGAGCUGGAAUUCAUUUUCCACGUUCUAGCAUUCAAGGUCCCAUUCGGGGCUGAUCCGGGUUGAAGACAUUGUCAGGUGGGGAGUUUGGCUGGGGCGGCACAUCUGUUAAACGAUAACGCAGAUGUCCUAAGGGGGGCUCAUGGAGAACAGAAAUCUCCAGUAGAACAAAAGGGUAAAAGCCCCCUUGAUUUUGAUUUUCAGUGUGAAUACAAACCAUGAAAGUGUGGCCUAUCGAUCCUUUAGUCCCUCGGAAUUUGAGGCUAGAGGUGCCAGAAAAGUUACCACAGGGAUAACUGGCUUGUGGCAGUCAAGCGUUCAUAGCGACAUUGCUUUUUGAUUCUUCGAUGUCGGCUCUUCCUAUCAUACCGAAGCAGAAUUCGGUAAGCGUUGGAUUGUUCACCCACUAAUAGGGAACGUGAGCUGGGUUUAGACCGUCGUGAGACAGGUUAGUUUUACCCUACUGAUGAAUGUUACCGCAAUAGUAAUUGAACUUAGUACGAGAGGAACAGUUCAUUCGGAUAAUUGGUUUUUGCGGCUGUCUGAUCAGGCAUUGCCGCGAAGCUACCAUCCGCUGGAUUAUGGCUGAACGCCUCUAAGUCAGAAUCCAUGCUAGAACGCGGUGAUUUCUUUGCUCCACACAAUAUAGAUGGAUACGAAUAAGGCGUCCUUGUGGCGUCGCUGAACCAUAGCAGGCUAGCAACGGUGCACUUGGCGGAAAGGCCUUGGGUGCUUGCUGGCGAAUUGCAAUGUCAUUUUGCGUGGGGAUAAAUCAUUUGUAUACGACUUAGAUGUACAACGGGGUAUUGUAAGCAGUAGAGUAGCCUUGUUGUUACGAUCUGCUGAGAUUAAGCCUUUGUUGUCUGAUUUGU

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 15 polymer

描述 description	5.8S ribosomal RNA
分子量 formula_weight	51012.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	2

AAAACUUUCAACAACGGAUCUCUUGGUUCUCGCAUCGAUGAAGAACGCAGCGAAAUGCGAUACGUAAUGUGAAUUGCAGAAUUCCGUGAAUCAUCGAAUCUUUGAACGCACAUUGCGCCCCUUGGUAUUCCAGGGGGCAUGCCUGUUUGAGCGUCAUUU

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 16 polymer

描述 description	Nucleolar protein 4
分子量 formula_weight	77972.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MEETIENVEVPSSNVSKQNDDGLDMKTLFVRSIPQDVTDEQLADFFSNFAPIKHAVVVKDTNKRSRGFGFVSFAVEDDTKEALAKARKTKFNGHILRVDIAKRRDRSKKTSEVVEKSTPESSEKITGQNNEDEDDADGEDSMLKGKPKLIIRNMPWSCRDPVKLKKIFGRYGTVVEATIPRKRDGKLCGFAFVTMKKISNCRIALENTKDLKIDGRKVAVDFAVQKNRWEDYKKAQPEMNDKDDNESGNEDAEENHDDEEDENEEEDRQVDQASKNKESKRKAQNKREDFSVFVRNVPYDATEESLAPHFSKFGSVKYALPVIDKSTGLAKGTAFVAFKDQYTYNECIKNAPAAGSTSLLIGDDVMPEYVYEGRVLSITPTLVREDAGRMAEKNAAKRKEALGKAPGEKDRRNLYLLNEGRVVEGSKMADLLTNTDMEIREKSYKLRVEQLKKNPSLHLSMTRLAIRNLPRAMNDKALKALARKAVVEFATEVKNKERHPLSKEEIIRSTKEKYKFMGPDEIEAQKKKDKKSGVVKQAKVIMEVKGSTAGRSRGYGFVEFRDHKNALMGLRWLNCHAVTSDEILEGLNDDEKKQVDNDLGKGRRLCVEFAIENSNVVKRRREQLKQARTKRTRPDNEDTGDVGESENKKPKKEEATTPTNPDDKKMGDDIKRIIGFKRKRKHAKK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.20 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	54106

fit	/app/data/saxs_computation/qj/9qjc/9qjc.fit
pddf	/app/data/pr_computation/qj/9qjc/9qjc.pr.out
profile	/app/data/saxs_computation/qj/9qjc/9qjc.dat
