9ql1

Cryo-EM structure of the CDK11B-cyclin L2-SAP30BP bound to OTS964 (conformation 2)

Method: ELECTRON MICROSCOPY D_max: 91.5 Å Quality: EXCELLENT

SAXS Profile

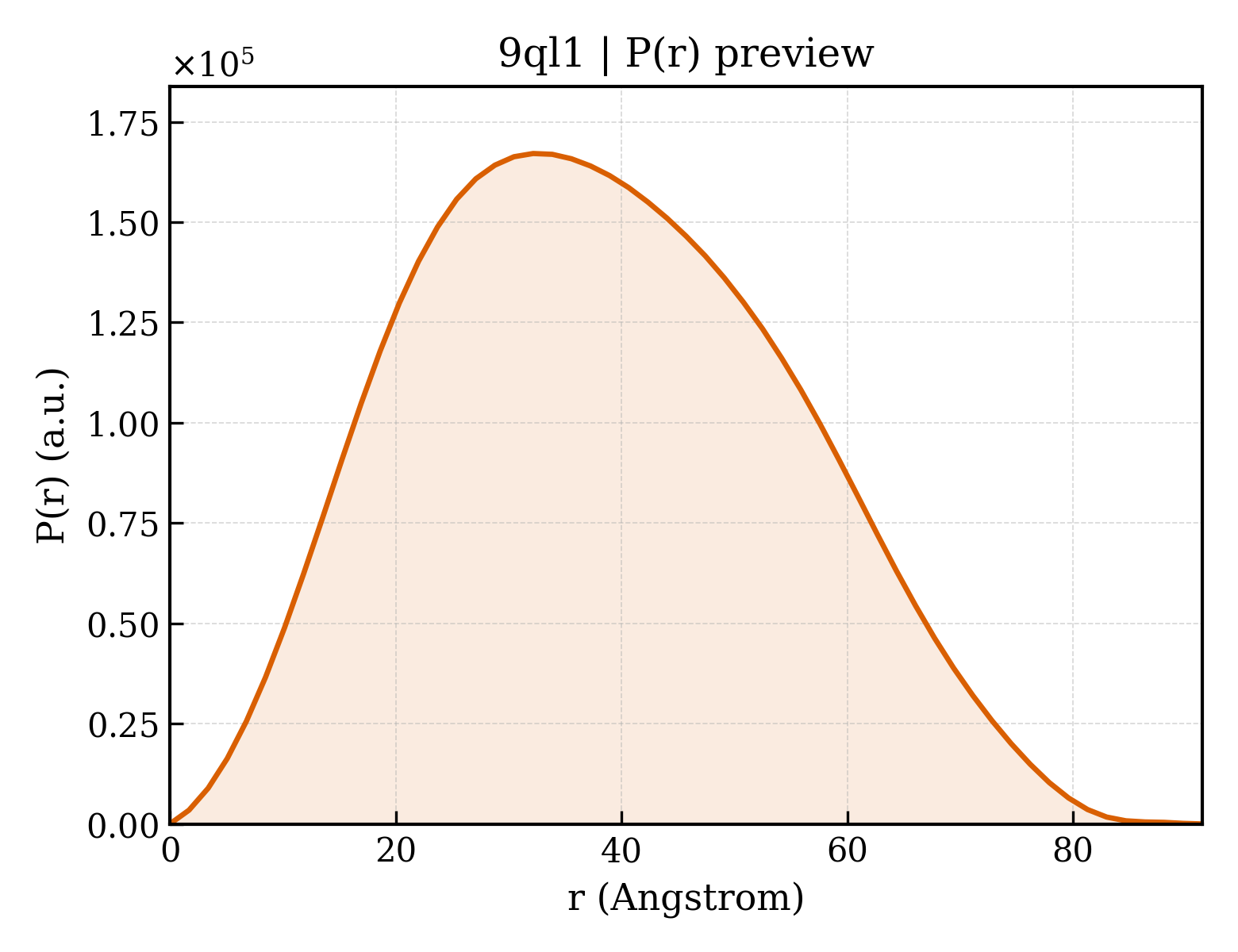

P(r) Distribution

▼

1. Structure Basics

entry_id	9ql1
deposition_date	2025-03-20
title	Cryo-EM structure of the CDK11B-cyclin L2-SAP30BP bound to OTS964 (conformation 2)
keywords	kinase, cyclin-dependent kinase, inhibitor, transcription, molecular complex, SPLICING; SPLICING
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.49 Å
rg_electron	28.57 Å
i0	96047700.00
molecular_weight	79198.0 kDa
excluded_volume	100160 Å³
envelope_volume	123490 Å³
shell_volume	35617 Å³
envelope_diameter	93.8 Å
shell_rg	36.18 Å
envelope_rg	28.64 Å
shape_rg	28.56 Å
total_rg	29.36 Å
total_atoms	5569
n_residues	679
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	91.5 Å
rg_real	29.41 Å
rg_real_error	0.52 Å
i0_real	9.6050e+07
i0_real_error	1.1990e+06
rg_reciprocal	29.45 Å
i0_reciprocal	96050000.0000
total_estimate	0.9110
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	32.2 Å
skewness	0.201
kurtosis	-0.625
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	36270000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.965

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	SAP30-binding protein
formula_weight	34186.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5649

SNAMAGKKNVLSSLAVYAEDSEPESDGEAGIEAVGSAAEEKGGLVSDAYGEDDFSRLGGDEDGYEEEEDENSRQSEDDDSETEKPEADDPKDNTEAEKRDPQELVASFSERVRNMSPDEIKIPPEPPGRCSNHLQDKIQKLYERKIKEGMDMNYIIQRKKEFRNPSIYEKLIQFCAIDELGTNYPKDMFDPHGWSEDSYYEALAKAQKIEMDKLEKAKKERTKIEFVTGTKKGTTTNATSTTTTTASTAVADAQKRKSKWDSAIPVTTIAQPTILTTTATLPAVVTVTTSASGSKTTVISAVGTIVKKAKQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 polymer

description	Cyclin-L2
formula_weight	35690.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

SNAMAAAAAAAGAAGSAAPAAAAGAPGSGGAPSGSQGVLIGDRLYSGVLITLENCLLPDDKLRFTPSMSSGLDTDTETDLRVVGCELIQAAGILLRLPQVAMATGQVLFQRFFYTKSFVKHSMEHVSMACVHLASKIEEAPRRIRDVINVFHRLRQLRDKKKPVPLLLDQDYVNLKNQIIKAERRVLKELGFCVHVKHPHKIIVMYLQVLECERNQHLVQTSWNYMNDSLRTDVFVRFQPESIACACIYLAARTLEIPLPNRPHWFLLFGATEEEIQEICLKILQLYARKKVDLTHLEGEVEKRKHAIEEAKAQARGLLPGG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 3 polymer

description	Cyclin-dependent kinase 11B
formula_weight	50050.6 kDa
ec_number	2.7.11.22
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

SNAMSEDEERENENHLLVVPESRFDRDSGESEEAEEEVGEGTPQSSALTEGDYVPDSPALSPIELKQELPKYLPALQGCRSVEEFQCLNRIEEGTYGVVYRAKDKKTDEIVALKRLKMEKEKEGFPITSLREINTILKAQHPNIVTVREIVVGSNMDKIYIVMNYVEHDLKSLMETMKQPFLPGEVKTLMIQLLRGVKHLHDNWILHRDLKTSNLLLSHAGILKVGDFGLAREYGSPLKAYTPVVVTLWYRAPELLLGAKEYSTAVDMWSVGCIFGELLTQKPLFPGKSEIDQINKVFKDLGTPSEKIWPGYSELPAVKKMTFSEHPYNNLRKRFGALLSDQGFDLMNKFLTYFPGRRISAEDGLKHEYFRETPLPIDPSMFPTWPAKSEQQRVKRGTSPRPPEGGLGYSQLGDDDLKETGFHLTTTNQGASAAGPGFSLKF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 4 non-polymer

description	OTS964
formula_weight	392.5 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	80

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.400 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.40 Å
resolution_method	—
num_particles	286108

fit	/app/data/saxs_computation/ql/9ql1/9ql1.fit
pddf	/app/data/pr_computation/ql/9ql1/9ql1.pr.out
profile	/app/data/saxs_computation/ql/9ql1/9ql1.dat
