9qlt
Crystal Structure of Dimeric Apo-D154A-FNR of A. Fischeri
SAXS Profile

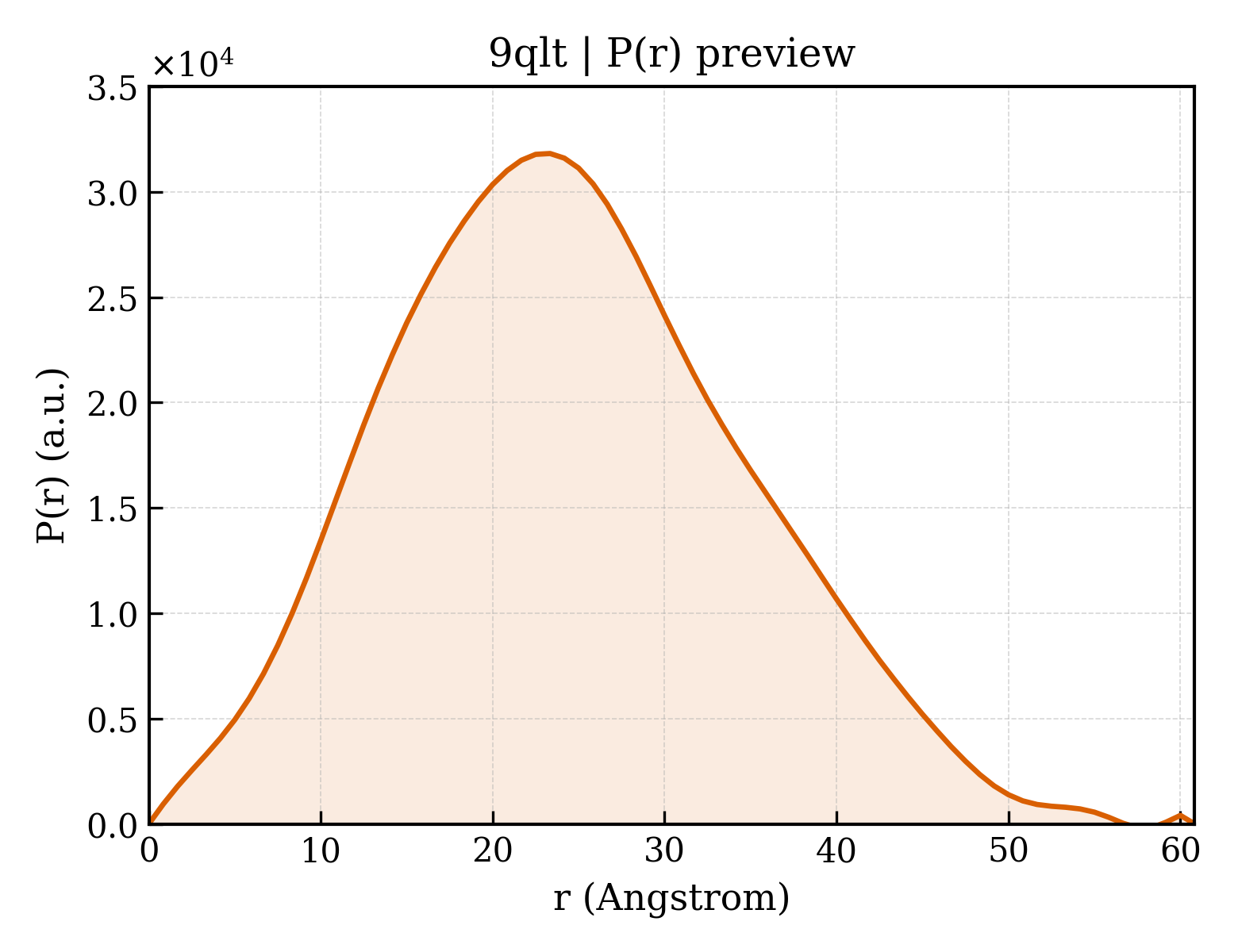

P(r) Distribution
1. Structure Basics
| entry_id | 9qlt |
| deposition_date | 2025-03-21 |
| last_revision | 2026-04-08 |
| title | Crystal Structure of Dimeric Apo-D154A-FNR of A. Fischeri |
| keywords | gene regulation, iron-sulfur cluster, oxygen sensor, TRANSCRIPTION; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.72 Å |
| rg_electron | 17.68 Å |
| i0 | 10232200.00 |
| molecular_weight | 23942.0 kDa |
| excluded_volume | 30146 ų |
| envelope_volume | 35560 ų |
| shell_volume | 17029 ų |
| envelope_diameter | 65.0 Å |
| shell_rg | 23.48 Å |
| envelope_rg | 17.99 Å |
| shape_rg | 17.64 Å |
| total_rg | 18.74 Å |
| total_atoms | 1660 |
| n_residues | 199 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.8 Å |
| rg_real | 18.65 Å |
| rg_real_error | 0.40 Å |
| i0_real | 1.0230e+07 |
| i0_real_error | 1.2530e+05 |
| rg_reciprocal | 18.67 Å |
| i0_reciprocal | 10230000.0000 |
| total_estimate | 0.6226 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 23.3 Å |
| skewness | 0.260 |
| kurtosis | -0.308 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1579000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.834; Stabil: 0.999; Sysdev: 0.197; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
