9qq8

Crystal structure of the catalytic N-terminal domain of the relaxase of plasmid pLS20 in complex with the core region

Method: X-RAY DIFFRACTION D_max: 70.7 Å Quality: REASONABLE

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9qq8
deposition_date	2025-03-31
title	Crystal structure of the catalytic N-terminal domain of the relaxase of plasmid pLS20 in complex with the core region
keywords	Bacterial Conjugation, DNA binding, Antibiotic resistance, Firmicutes, DNA BINDING PROTEIN; DNA BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

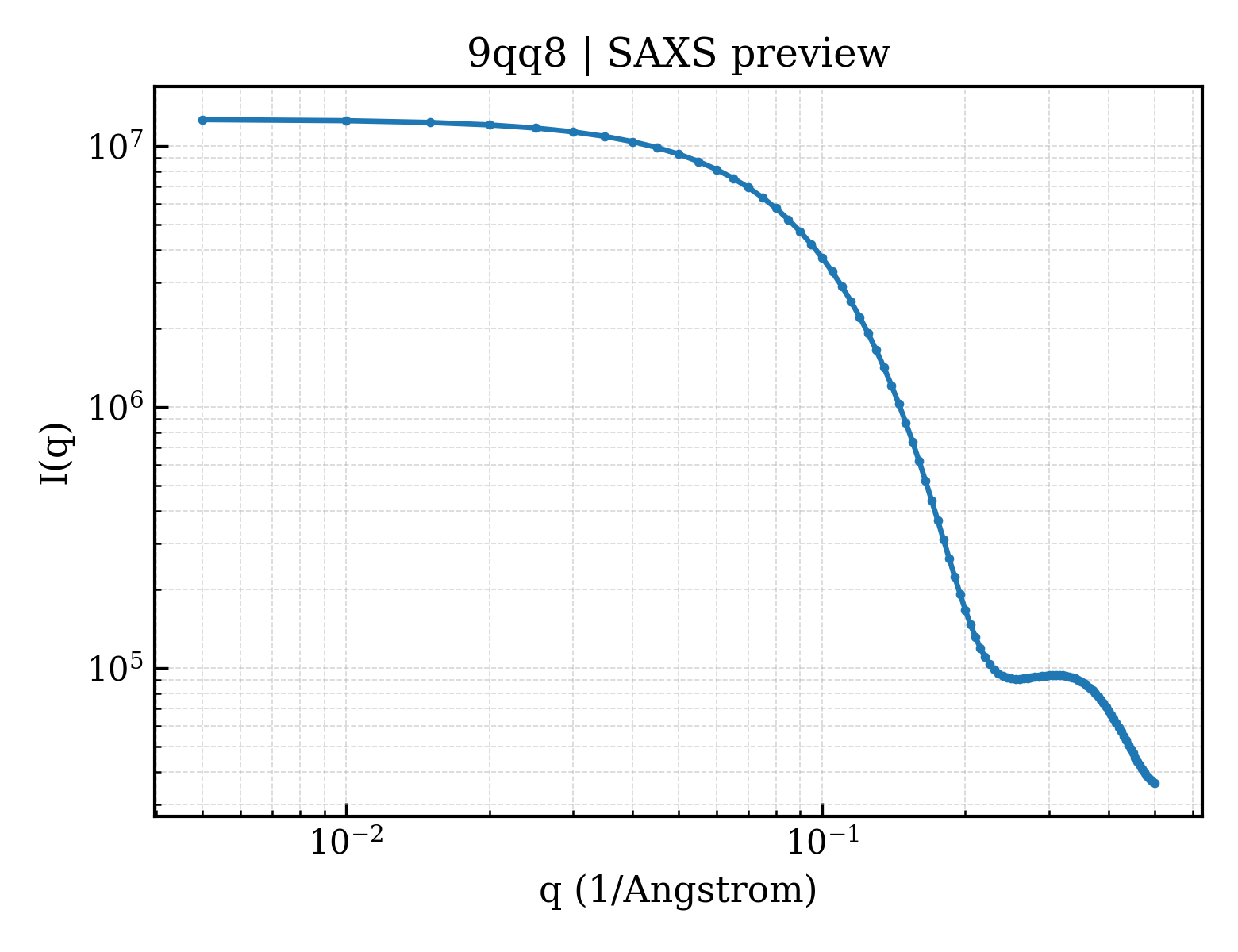

2. SAXS Parameters (CRYSOL)

rg_guinier	19.21 Å
rg_electron	18.34 Å
i0	12642300.00
molecular_weight	24342.0 kDa
excluded_volume	29556 Å³
envelope_volume	36257 Å³
shell_volume	17004 Å³
envelope_diameter	73.9 Å
shell_rg	24.30 Å
envelope_rg	18.87 Å
shape_rg	18.33 Å
total_rg	19.23 Å
total_atoms	1698
n_residues	191
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

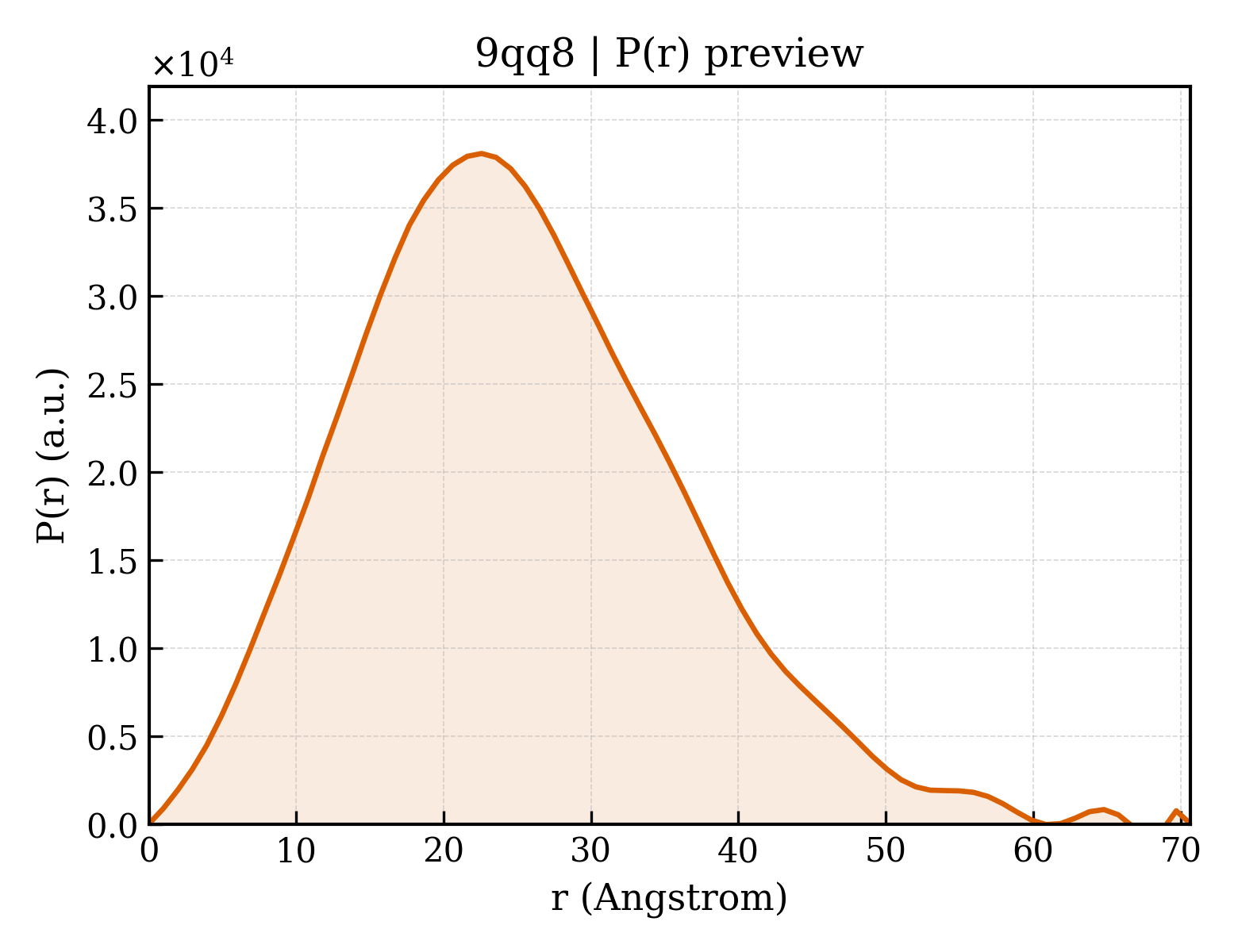

3. P(r) Analysis (GNOM)

dmax	70.7 Å
rg_real	19.23 Å
rg_real_error	0.57 Å
i0_real	1.2640e+07
i0_real_error	1.7440e+05
rg_reciprocal	19.23 Å
i0_reciprocal	12640000.0000
total_estimate	0.7372
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	22.6 Å
skewness	0.462
kurtosis	0.091
angular_range	— – 0.4150 Å⁻¹
current_alpha	0.0000
highest_alpha	1918000.0000
n_real_points	73
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.566; Stabil: 0.989; Sysdev: 1.000; Positv: 1.000; Valcen: 0.914; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Relaxase
formula_weight	26963.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1711

GPMDSPGVVLVSKYVSGKSTKFSKYVNYINRDEAVRTEKFQTYNVNKLDGYNQYMGNPEKSSGIFTQHKDSLSPVEKNQLKEIFRQAQKNDSVMWQDVISFDNKWLEERGIYNSQTGWVNEGAIQNSIRKGMEVLLREEQLEQSGVWSAAIHYNTDNIHVHIALVEPNPTKEYGVFTNKKTGEVYQARRGNRKLKTLDKMKSKVANTLMDRDKELSKISQLIHDRIAPKGLKFQ

Source

organism	Bacillus subtilis subsp. natto
ncbi_taxonomy_id	86029
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 polymer

description	;DNA (5'-D(APGPTPTPTPCPCPCPCPTPTPAPTPGPCPTPCPTPT)-3') ;
formula_weight	5712.7 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

AGTTTCCCCTTATGCTCTT

Entity 3 non-polymer

description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
formula_weight	122.1 kDa
src_method	nat
entity_count	3

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	13

▶

6. Citations (1)

▶

length_a	78.680 Å
length_b	78.680 Å
length_c	158.560 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 63 2 2
int_tables_number	182
crystal_system	hexagonal

resolution	2.290 Å
resolution_low	41.760 Å
r_factor	0.2131
r_work	0.2117
r_free	0.2394

fit	/app/data/saxs_computation/qq/9qq8/9qq8.fit
pddf	/app/data/pr_computation/qq/9qq8/9qq8.pr.out
profile	/app/data/saxs_computation/qq/9qq8/9qq8.dat
