9qt0
DNA-binding bacterial histone HLp from Leptospira perolatii
SAXS Profile

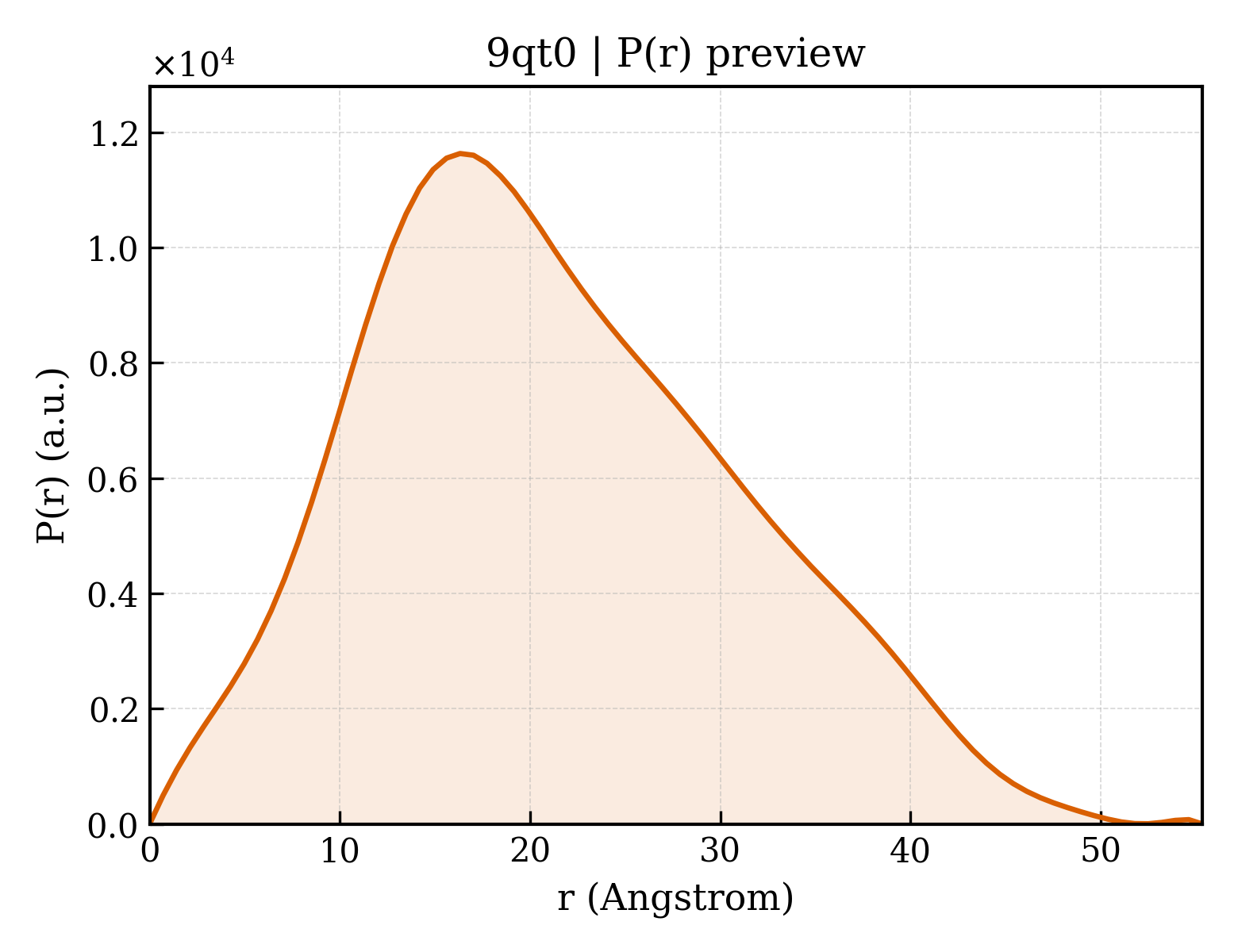

P(r) Distribution
1. Structure Basics
| entry_id | 9qt0 |
| deposition_date | 2025-04-07 |
| last_revision | 2025-12-24 |
| title | DNA-binding bacterial histone HLp from Leptospira perolatii |
| keywords | Bacterial histone, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.47 Å |
| rg_electron | 15.06 Å |
| i0 | 3443010.00 |
| molecular_weight | 12647.0 kDa |
| excluded_volume | 15638 ų |
| envelope_volume | 17909 ų |
| shell_volume | 10860 ų |
| envelope_diameter | 56.0 Å |
| shell_rg | 19.70 Å |
| envelope_rg | 15.33 Å |
| shape_rg | 14.95 Å |
| total_rg | 16.26 Å |
| total_atoms | 880 |
| n_residues | 112 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.3 Å |
| rg_real | 16.53 Å |
| rg_real_error | 0.32 Å |
| i0_real | 3.4430e+06 |
| i0_real_error | 3.6110e+04 |
| rg_reciprocal | 16.52 Å |
| i0_reciprocal | 3443000.0000 |
| total_estimate | 0.8623 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.3 Å |
| skewness | 0.382 |
| kurtosis | -0.410 |
| angular_range | — – 0.4850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 606500.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.777; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.926 |
