9quq

cryo-EM structure of TolQR conformation2 in SMA nanodiscs

Method: ELECTRON MICROSCOPY D_max: 113.1 Å Quality: EXCELLENT

SAXS Profile

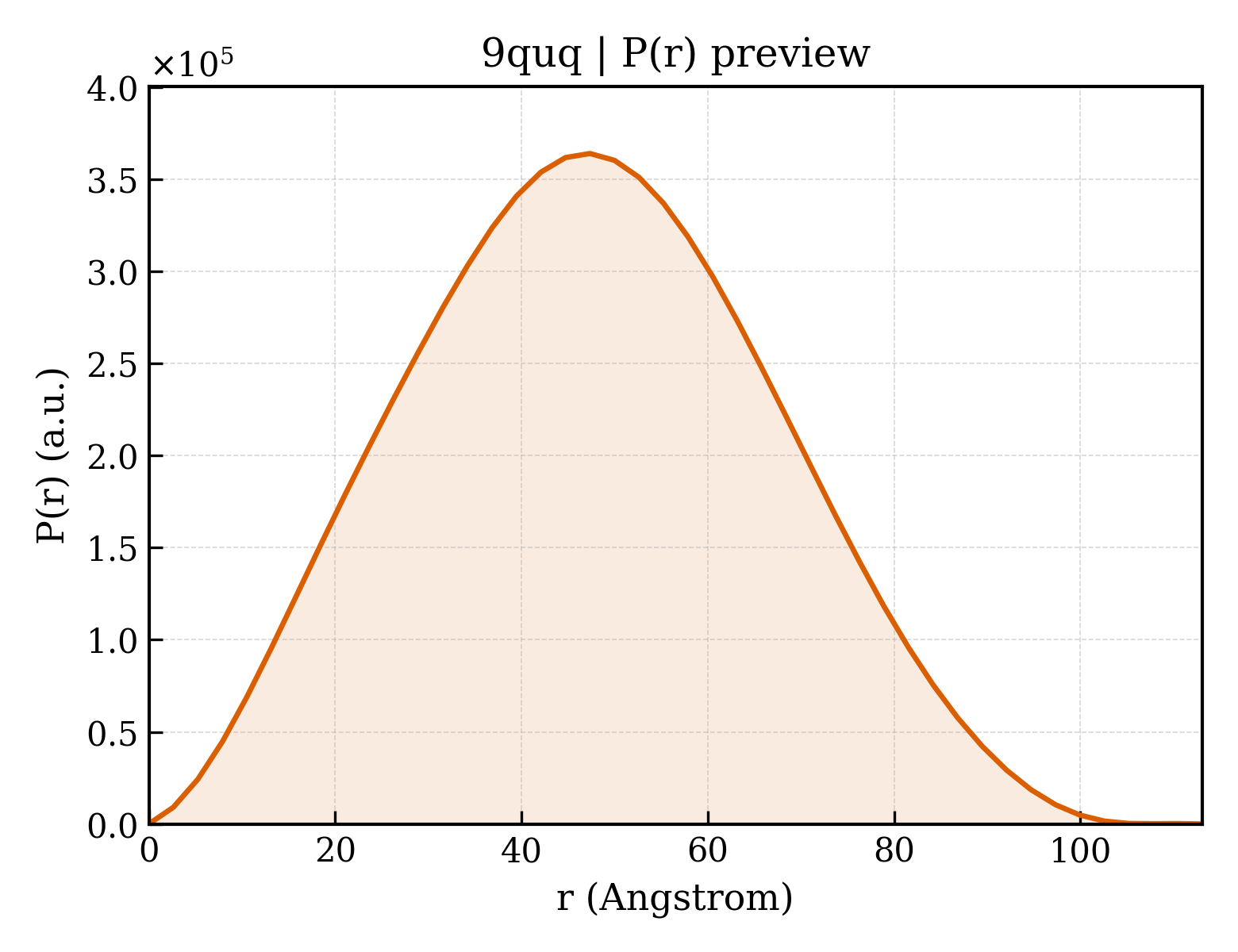

P(r) Distribution

▼

1. Structure Basics

entry_id	9quq
deposition_date	2025-04-11
title	cryo-EM structure of TolQR conformation2 in SMA nanodiscs
keywords	Molecular motor Multi-pass membrane protein Accumulates at cell constriction sites., MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	36.55 Å
rg_electron	35.73 Å
i0	234243000.00
molecular_weight	130050.0 kDa
excluded_volume	166020 Å³
envelope_volume	242140 Å³
shell_volume	55897 Å³
envelope_diameter	112.8 Å
shell_rg	43.08 Å
envelope_rg	34.66 Å
shape_rg	35.73 Å
total_rg	36.30 Å
total_atoms	9178
n_residues	1170
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	113.1 Å
rg_real	36.33 Å
rg_real_error	0.71 Å
i0_real	2.3420e+08
i0_real_error	3.4500e+06
rg_reciprocal	36.47 Å
i0_reciprocal	234300000.0000
total_estimate	0.9040
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	47.4 Å
skewness	0.101
kurtosis	-0.525
angular_range	— – 0.2150 Å⁻¹
current_alpha	0.0000
highest_alpha	26620000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.958

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Tol-Pal system protein TolA
formula_weight	43232.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H
atom_count	9178

MSKATEQNDKLKRAIIISAVLHVILFAALIWSSFDENIEASAGGGGGSSIDAVMVDSGAVVEQYKRMQSQESSAKRSDEQRKMKEQQAAEELREKQAAEQERLKQLEKERLAAQEQKKQAEEAAKQAELKQKQAEEAAAKAAADAKAKAEADAKAAEEAAKKAAADAKKKAEAEAAKAAAEAQKKAEAAAAALKKKAEAAEAAAAEARKKAATEAAEKAKAEAEKKAAAEKAAADKKAAAEKAAADKKAAEKAAAEKAAADKKAAAEKAAADKKAAAAKAAAEKAAAAKAAAEADDIFGELSSGKNAPKTGGGAKGNNASPAGSGNTKNNGASGADINNYAGQIKSAIESKFYDASSYAGKTCTLRIKLAPDGMLLDIKPEGGDPALCQAALAAAKLAKIPKPPSQAVYEVFKNAPLDFKP

Source

organism	Escherichia coli str. K-12 substr. MG1655
ncbi_taxonomy_id	511145
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	Tol-Pal system protein TolQ
formula_weight	25623.7 kDa
src_method	man
entity_count	5

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E

MTDMNILDLFLKASLLVKLIMLILIGFSIASWAIIIQRTRILNAAAREAEAFEDKFWSGIELSRLYQESQGKRDNLTGSEQIFYSGFKEFVRLHRANSHAPEAVVEGASRAMRISMNRELENLETHIPFLGTVGSISPYIGLFGTVWGIMHAFIALGAVKQATLQMVAPGIAEALIATAIGLFAAIPAVMAYNRLNQRVNKLELNYDNFMEEFTAILHRQAFTVSESNKG

Source

organism	Escherichia coli str. K-12 substr. MG1655
ncbi_taxonomy_id	511145
host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

description	Tol-Pal system protein TolR
formula_weight	15398.9 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	F,G

MARARGRGRRDLKSEINIVPLLDVLLVLLLIFMATAPIITQSVEVDLPDATESQAVSSNDNPPVIVEVSGIGQYTVVVEKDRLERLPPEQVVAEVSSRFKANPKTVFLIGGAKDVPYDEIIKALNLLHSAGVKSVGLMTQPI

Source

organism	Escherichia coli str. K-12 substr. MG1655
ncbi_taxonomy_id	511145
host_organism	Escherichia coli BL21(DE3)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.280 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.28 Å
resolution_method	—
num_particles	228227

fit	/app/data/saxs_computation/qu/9quq/9quq.fit
pddf	/app/data/pr_computation/qu/9quq/9quq.pr.out
profile	/app/data/saxs_computation/qu/9quq/9quq.dat
