9qwr
MIC60 helical bundle dimer

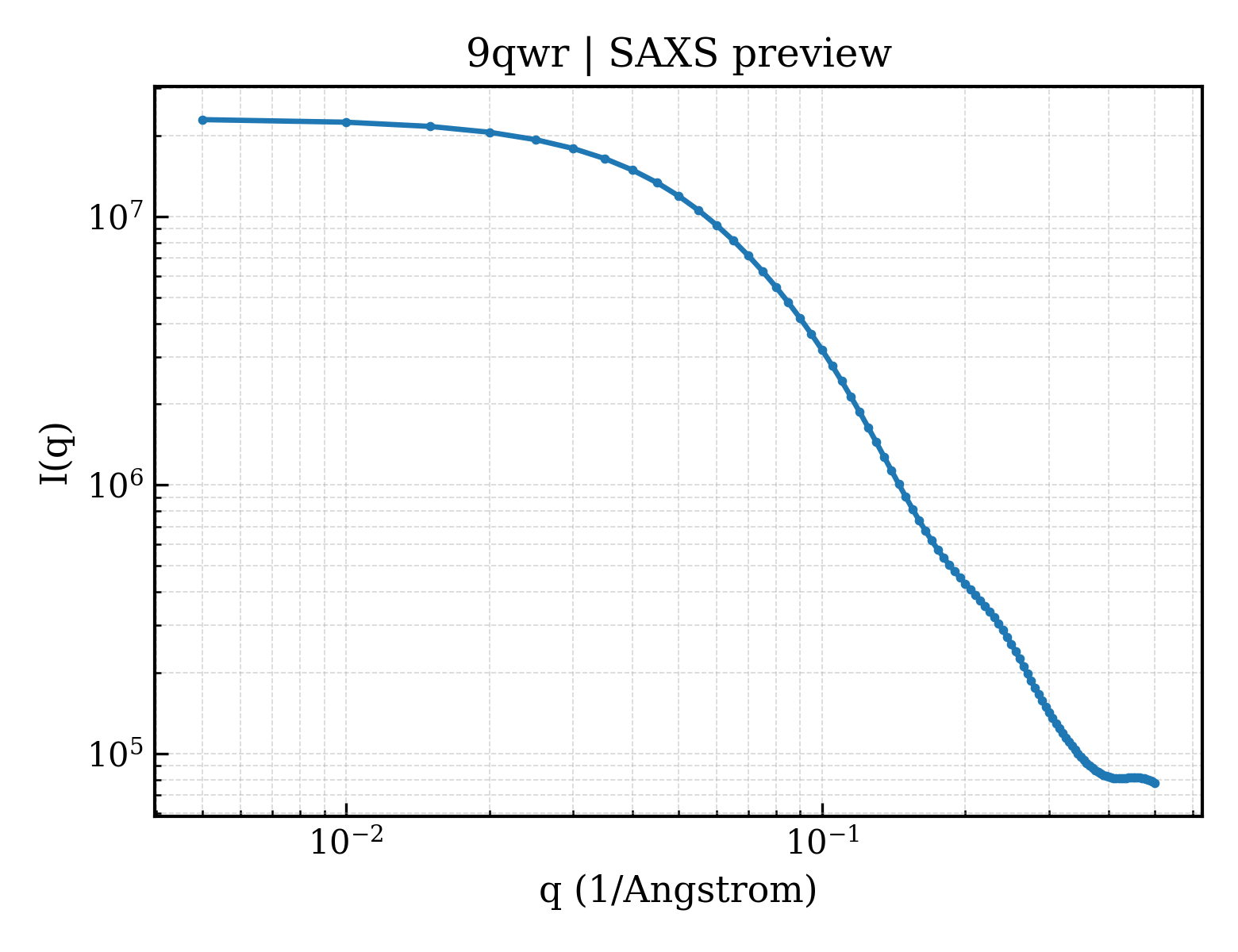

SAXS Profile

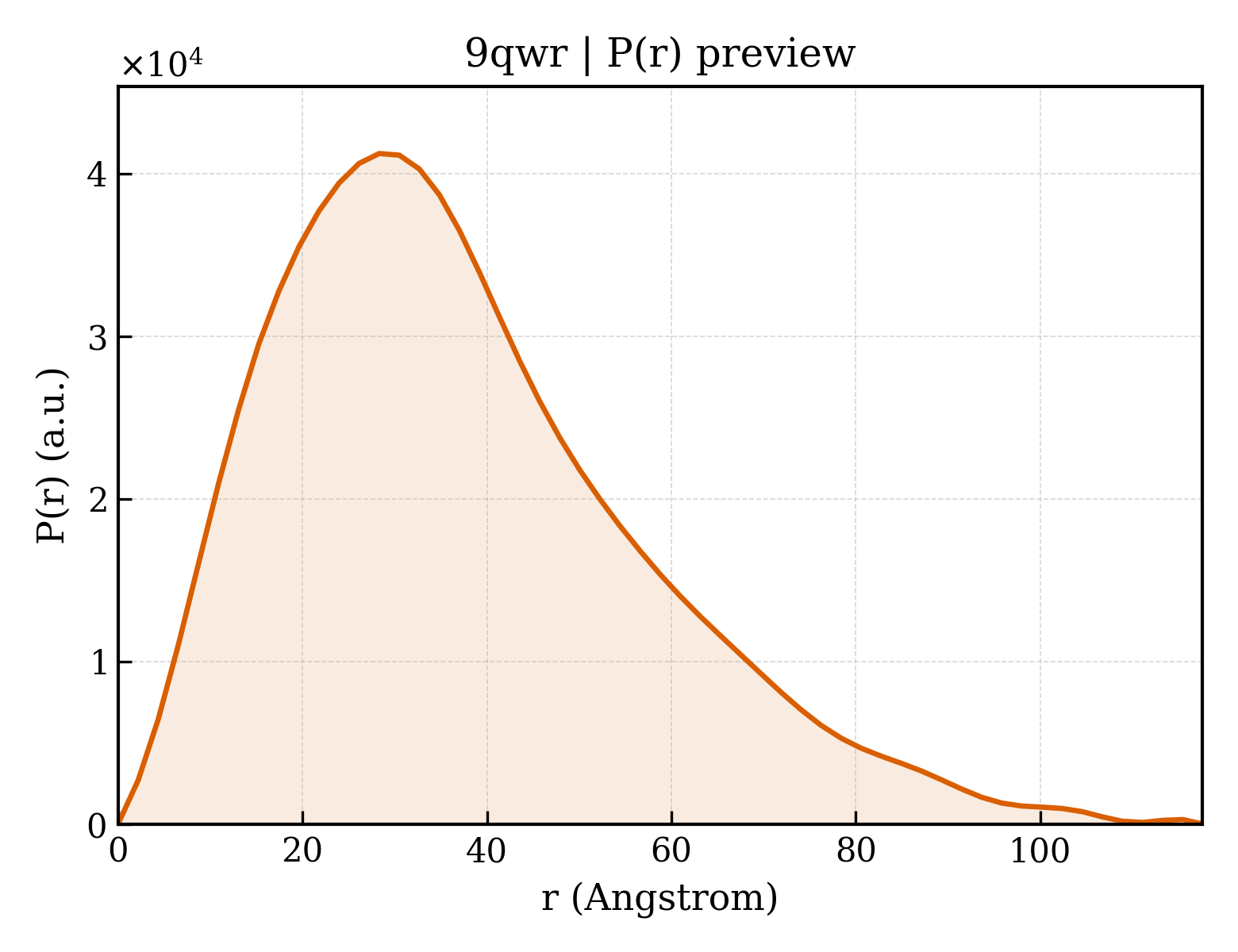

P(r) Distribution
1. Structure Basics
| entry_id | 9qwr |
| deposition_date | 2025-04-15 |
| last_revision | 2026-02-25 |
| title | MIC60 helical bundle dimer |
| keywords | mitochondria, cristae junction, MIC60, MICOS, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.12 Å |
| rg_electron | 29.64 Å |
| i0 | 23111500.00 |
| molecular_weight | 36213.0 kDa |
| excluded_volume | 45217 ų |
| envelope_volume | 62118 ų |
| shell_volume | 20527 ų |
| envelope_diameter | 124.2 Å |
| shell_rg | 31.26 Å |
| envelope_rg | 30.60 Å |
| shape_rg | 29.65 Å |
| total_rg | 29.80 Å |
| total_atoms | 2541 |
| n_residues | 331 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 117.6 Å |
| rg_real | 29.61 Å |
| rg_real_error | 2.03 Å |
| i0_real | 2.3110e+07 |
| i0_real_error | 4.2400e+05 |
| rg_reciprocal | 29.40 Å |
| i0_reciprocal | 23110000.0000 |
| total_estimate | 0.7338 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 28.3 Å |
| skewness | 0.775 |
| kurtosis | 0.370 |
| angular_range | — – 0.2700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1597000.0000 |
| n_real_points | 55 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.414; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.329; Smooth: 0.963 |
