9qwy

Crystal structure of an NtA622L variant in complex with NADPH and Trigonelline

Method: X-RAY DIFFRACTION D_max: 130.2 Å Quality: GOOD

SAXS Profile

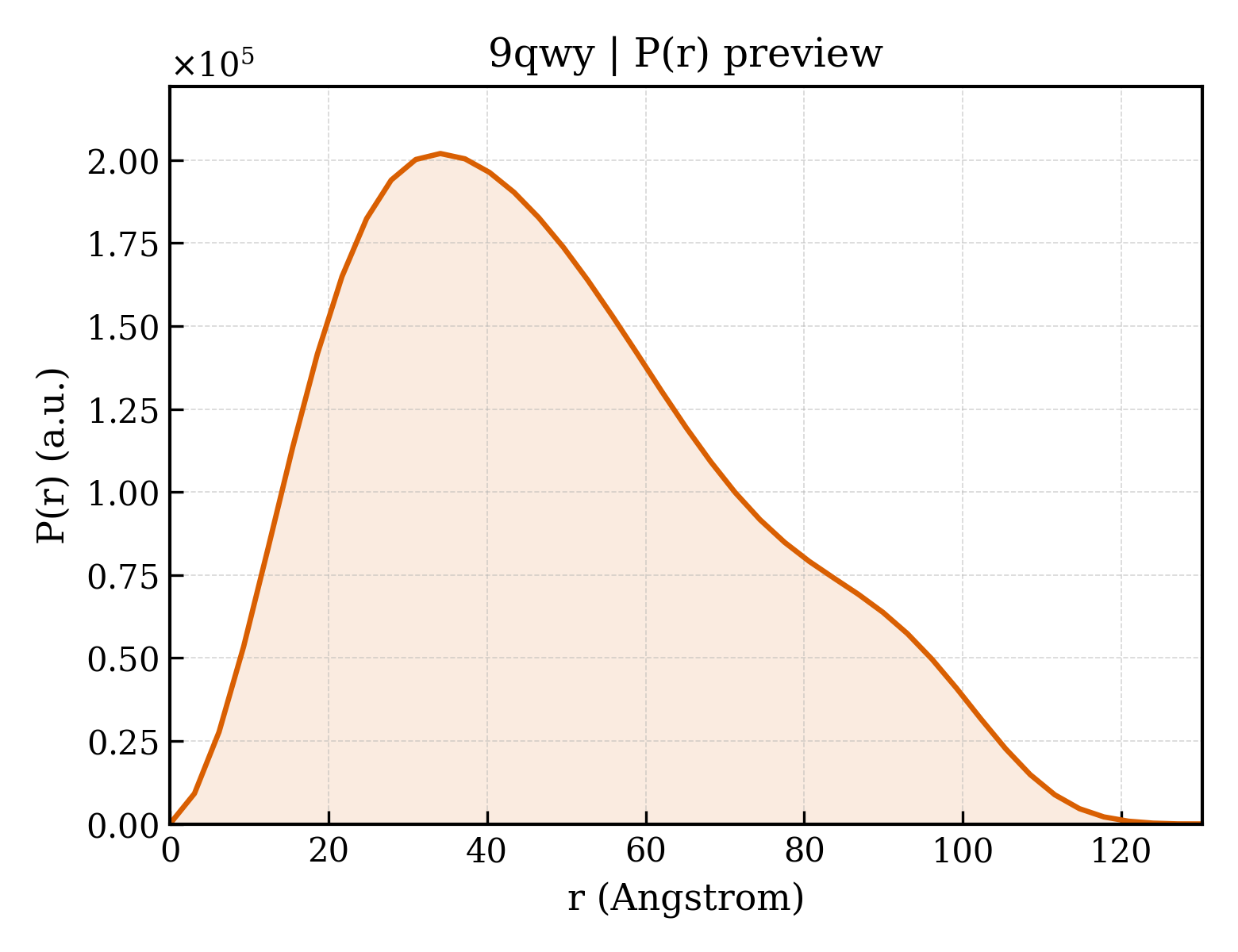

P(r) Distribution

▼

1. Structure Basics

entry_id	9qwy
deposition_date	2025-04-15
last_revision	2026-04-29
title	Crystal structure of an NtA622L variant in complex with NADPH and Trigonelline
keywords	Oxidoreductase, Nicotine, Niacin, NADPH, Rossmann-fold, IFR-like, PIP-reductase, PLANT PROTEIN; PLANT PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	37.90 Å
rg_electron	38.23 Å
i0	153102000.00
molecular_weight	105190.0 kDa
excluded_volume	133680 Å³
envelope_volume	173530 Å³
shell_volume	40697 Å³
envelope_diameter	130.3 Å
shell_rg	40.96 Å
envelope_rg	37.72 Å
shape_rg	38.30 Å
total_rg	38.13 Å
total_atoms	14892
n_residues	918
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	130.2 Å
rg_real	38.26 Å
rg_real_error	1.06 Å
i0_real	1.5310e+08
i0_real_error	2.3310e+06
rg_reciprocal	38.04 Å
i0_reciprocal	153100000.0000
total_estimate	0.8431
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	34.1 Å
skewness	0.487
kurtosis	-0.493
angular_range	— – 0.2100 Å⁻¹
current_alpha	0.0001
highest_alpha	31190000.0000
n_real_points	43
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.760; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.811; Smooth: 0.864

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Isoflavone reductase homolog A622-like
formula_weight	34640.7 kDa
ec_number	1.3.1.-
mutation	K99N M201I M259L
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	14997

MVVSEKSKILIIGGTGYIGKYLVETSAKSGHPTFVLIRESTLVNPEKSKLIDTFKSYGVTLLFGDISNQESLLKAIKQVDVVISTVGGQQFADQVNIINAIKEAGNIKRFLPSEFGFDVDHAHAIEPAASLFALKVKIRRMIEAEGIPYTYVICNWFADFFLPNLGQLEAKTPPRDKVVIFGDGNPKAIYVKEEDIATYTIKAVDDPRTLNKTLHMRPPANILSFNEIVSLWEEKIGKTLEKLYLSEEDILHIVQEGPLPLRVNLAICHSVFVNGDSANFEIQPSTGVEATELYPKVKYTTVDEYYNKFV

Source

organism	Nicotiana tabacum
common_name	common tobacco
ncbi_taxonomy_id	4097
host_organism	Escherichia coli

Entity 2 non-polymer

description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
formula_weight	745.4 kDa
src_method	syn
entity_count	3

Entity 3 non-polymer

description	Trigonelline
formula_weight	138.1 kDa
src_method	syn
entity_count	3

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	105

▶

6. Citations (1)

▶

length_a	66.227 Å
length_b	64.917 Å
length_c	115.352 Å
angle_alpha	90.00 °
angle_beta	101.51 °
angle_gamma	90.00 °
z_pdb	6

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.600 Å
resolution_low	56.293 Å
r_factor	—
r_work	0.2062
r_free	0.2678
