9r1m
X-ray crystal structure of a de novo designed lumiflavin binder, sc-apCC-4-LMF-1

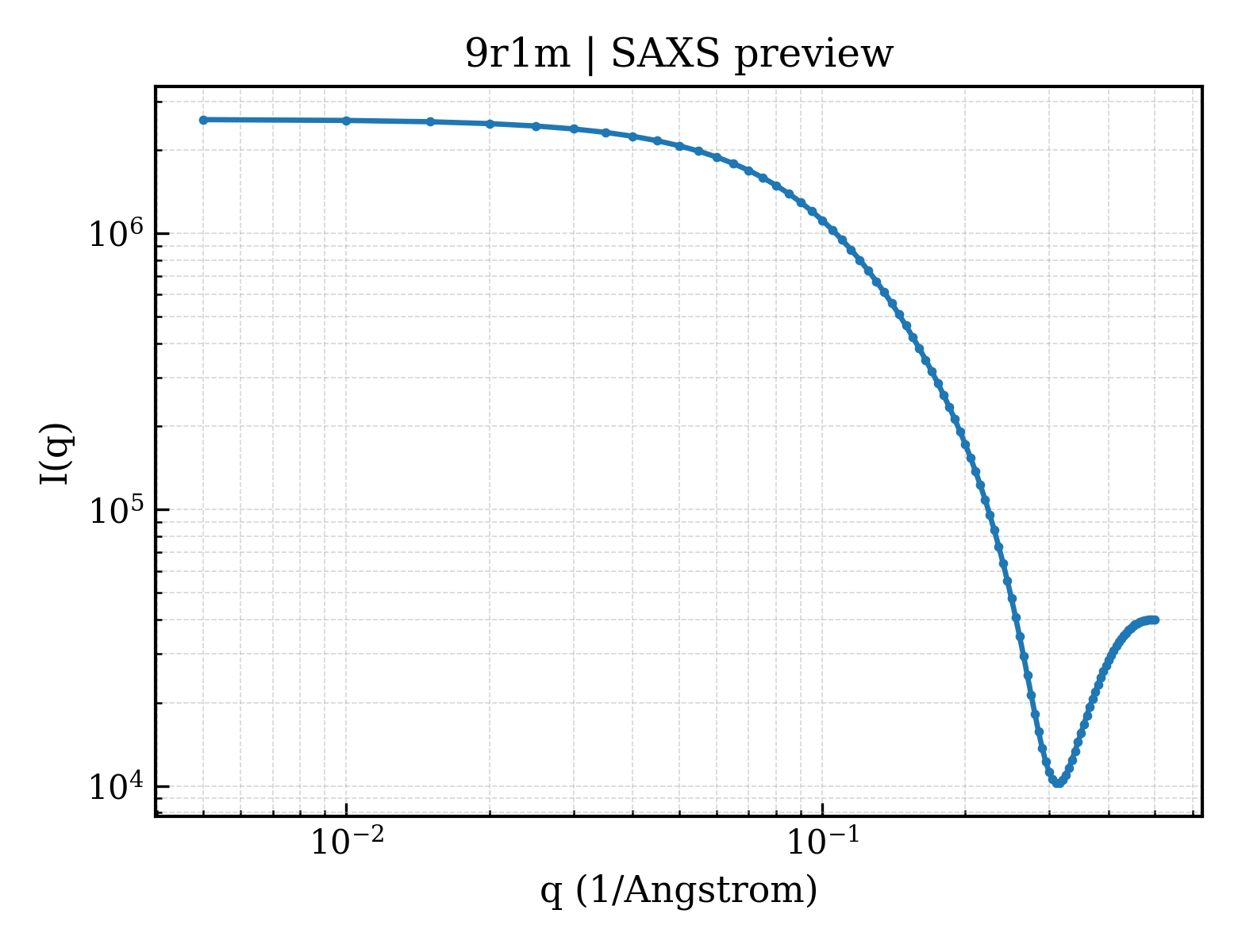

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9r1m |
| deposition_date | 2025-04-27 |
| last_revision | 2026-05-06 |
| title | X-ray crystal structure of a de novo designed lumiflavin binder, sc-apCC-4-LMF-1 |
| keywords | de novo, coiled-coil, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.17 Å |
| rg_electron | 15.47 Å |
| i0 | 2581880.00 |
| molecular_weight | 11579.0 kDa |
| excluded_volume | 14698 ų |
| envelope_volume | 17020 ų |
| shell_volume | 10342 ų |
| envelope_diameter | 55.4 Å |
| shell_rg | 19.56 Å |
| envelope_rg | 15.64 Å |
| shape_rg | 15.49 Å |
| total_rg | 16.27 Å |
| total_atoms | 821 |
| n_residues | 129 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.8 Å |
| rg_real | 16.31 Å |
| rg_real_error | 0.38 Å |
| i0_real | 2.5820e+06 |
| i0_real_error | 3.1880e+04 |
| rg_reciprocal | 16.29 Å |
| i0_reciprocal | 2582000.0000 |
| total_estimate | 0.6316 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 16.0 Å |
| skewness | 0.559 |
| kurtosis | -0.091 |
| angular_range | — – 0.4900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1142000.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.420; Stabil: 1.000; Sysdev: 0.353; Positv: 1.000; Valcen: 0.895; Smooth: 0.995 |
