9r6i

Crystal structure of PPARgamma in complex with the bisphenol derivative BPS4BE

Method: X-RAY DIFFRACTION D_max: 71.1 Å Quality: GOOD

SAXS Profile

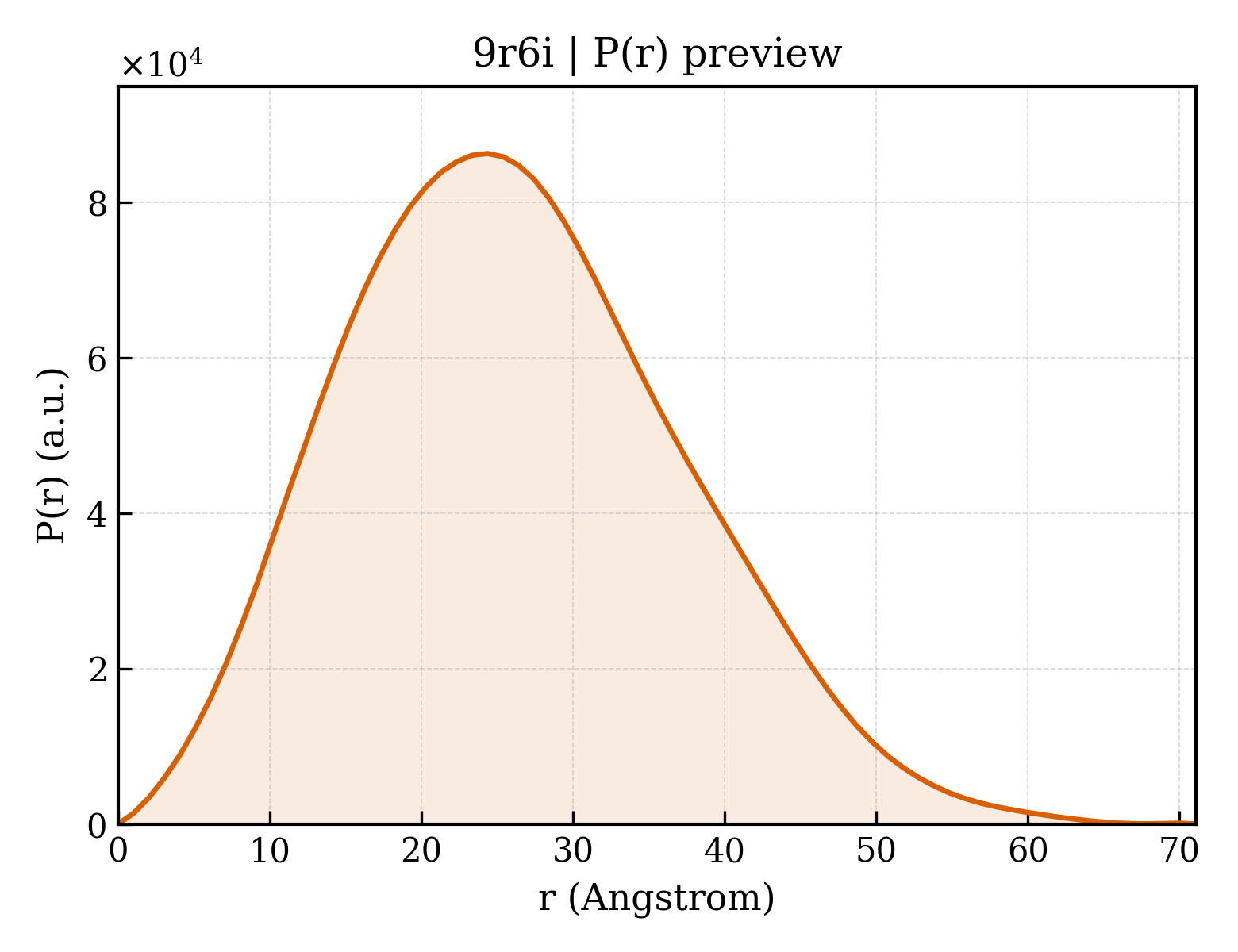

P(r) Distribution

▼

1. Structure Basics

entry_id	9r6i
deposition_date	2025-05-12
title	Crystal structure of PPARgamma in complex with the bisphenol derivative BPS4BE
keywords	Nuclear receptor, Peroxisome proliferator-activated receptor gamma, TRANSCRIPTION; TRANSCRIPTION
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.10 Å
rg_electron	19.22 Å
i0	30594200.00
molecular_weight	28970.0 kDa
excluded_volume	28333 Å³
envelope_volume	45618 Å³
shell_volume	20009 Å³
envelope_diameter	71.8 Å
shell_rg	25.44 Å
envelope_rg	19.47 Å
shape_rg	19.18 Å
total_rg	19.96 Å
total_atoms	2195
n_residues	275
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	71.1 Å
rg_real	20.05 Å
rg_real_error	0.57 Å
i0_real	3.0590e+07
i0_real_error	4.6100e+05
rg_reciprocal	20.06 Å
i0_reciprocal	30590000.0000
total_estimate	0.8534
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	24.4 Å
skewness	0.342
kurtosis	-0.206
angular_range	— – 0.3950 Å⁻¹
current_alpha	0.0000
highest_alpha	7040000.0000
n_real_points	71
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.702; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.998

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Peroxisome proliferator-activated receptor gamma
formula_weight	31863.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2400

GSHMQLNPESADLRALAKHLYDSYIKSFPLTKAKARAILTGKTTDKSPFVIYDMNSLMMGEDKIKFKHITPLQEQSKEVAIRIFQGCQFRSVEAVQEITEYAKSIPGFVNLDLNDQVTLLKYGVHEIIYTMLASLMNKDGVLISEGQGFMTREFLKSLRKPFGDFMEPKFEFAVKFNALELDDSDLAIFIAVIILSGDRPGLLNVKPIEDIQDNLLQALELQLKLNHPESSQLFAKLLQKMTDLRQIVTEHVQLLQVIKKTETDMSLHPLLQEIYKDLY

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	4-(4-phenylmethoxyphenyl)sulfonylphenol
formula_weight	340.4 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	196

▶

6. Citations (1)

▶

length_a	65.666 Å
length_b	65.666 Å
length_c	157.354 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 43 21 2
int_tables_number	96
crystal_system	tetragonal

resolution	1.700 Å
resolution_low	46.430 Å
r_factor	0.1983
r_work	0.1967
r_free	0.2288
