SAXSdb — 9s4q

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kinetochore-associated protein NNF1

Saccharomyces cerevisiae S288C

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain Nn； UniProt 1–201	Not recorded	Kinetochore-associated protein MTW1 × 1 （P39731） Outer kinetochore KNL1 complex subunit KRE28 × 1 （Q04431） Outer kinetochore KNL1 complex subunit SPC105 × 1 （P53148） Kinetochore-associated protein DSN1 × 1 （P40568） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） Kinetochore-associated protein NSL1 × 1 （Q12143）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9S4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9S53 Cryo-EM structure of the base of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain Nn 1–201（201 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain Nn 1–201（201 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NNF1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain Nn； PDBConstruct 1–201； UniProt 1–201

Kinetochore-associated protein MTW1

Saccharomyces cerevisiae S288C

UniProt P39731

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain Mt； UniProt 1–289	Not recorded	Kinetochore-associated protein NNF1 × 1 （P47149） Outer kinetochore KNL1 complex subunit KRE28 × 1 （Q04431） Outer kinetochore KNL1 complex subunit SPC105 × 1 （P53148） Kinetochore-associated protein DSN1 × 1 （P40568） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） Kinetochore-associated protein NSL1 × 1 （Q12143）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9S4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9S53 Cryo-EM structure of the base of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain Mt 1–289（289 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain Mt 1–289（289 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MTW1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain Mt； PDBConstruct 1–289； UniProt 1–289

Outer kinetochore KNL1 complex subunit KRE28

Saccharomyces cerevisiae S288C

UniProt Q04431

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain Zw； UniProt 1–385	Not recorded	Kinetochore-associated protein NNF1 × 1 （P47149） Kinetochore-associated protein MTW1 × 1 （P39731） Outer kinetochore KNL1 complex subunit SPC105 × 1 （P53148） Kinetochore-associated protein DSN1 × 1 （P40568） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） Kinetochore-associated protein NSL1 × 1 （Q12143）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9S4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain Zw 1–385（385 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ZWINT_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain Zw； PDBConstruct 1–385； UniProt 1–385

Outer kinetochore KNL1 complex subunit SPC105

Saccharomyces cerevisiae S288C

UniProt P53148

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain Kl； UniProt 445–917	Not recorded	Kinetochore-associated protein NNF1 × 1 （P47149） Kinetochore-associated protein MTW1 × 1 （P39731） Outer kinetochore KNL1 complex subunit KRE28 × 1 （Q04431） Kinetochore-associated protein DSN1 × 1 （P40568） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） Kinetochore-associated protein NSL1 × 1 （Q12143）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9S4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4BL0 Crystal structure of yeast Bub3-Bub1 bound to phospho-Spc105 Deposited 2013-04-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 165–183（19 aa） Fragment：MELT172, RESIDUES 165-183	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.2M K/ NA TARTRATE, 0.1M BIS TRIS PROPANE PH 7.5, 20% PEG 3350	Resolution 1.95 Å R-free 0.192
4BL0 Crystal structure of yeast Bub3-Bub1 bound to phospho-Spc105 Deposited 2013-04-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 165–183（19 aa） Fragment：MELT172, RESIDUES 165-183	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；0.2M K/ NA TARTRATE, 0.1M BIS TRIS PROPANE PH 7.5, 20% PEG 3350	Resolution 1.95 Å R-free 0.192
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain Kl 445–917（473 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KNL1_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain Kl； PDBConstruct 2–474； UniProt 445–917

Kinetochore-associated protein DSN1

Saccharomyces cerevisiae S288C

UniProt P40568

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain Ds； UniProt 1–576	Not recorded	Kinetochore-associated protein NNF1 × 1 （P47149） Kinetochore-associated protein MTW1 × 1 （P39731） Outer kinetochore KNL1 complex subunit KRE28 × 1 （Q04431） Outer kinetochore KNL1 complex subunit SPC105 × 1 （P53148） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014） Kinetochore-associated protein NSL1 × 1 （Q12143）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9S4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5T6J Structure of the MIND Complex Shows a Regulatory Focus of Yeast Kinetochore Assembly Deposited 2016-09-01	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 560–572（13 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M HEPES, pH 7.0-7.5, 1.0 M potassium sodium tartrate, 0.2 M lithium sulfate	Resolution 1.75 Å R-free 0.242
9S53 Cryo-EM structure of the base of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain Ds 1–576（576 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain Ds 1–576（576 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DSN1_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain Ds； PDBConstruct 1–576； UniProt 1–576

Kinetochore protein SPC24

Saccharomyces cerevisiae S288C

UniProt Q04477

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain 24； UniProt 1–213	Not recorded	Kinetochore-associated protein NNF1 × 1 （P47149） Kinetochore-associated protein MTW1 × 1 （P39731） Outer kinetochore KNL1 complex subunit KRE28 × 1 （Q04431） Outer kinetochore KNL1 complex subunit SPC105 × 1 （P53148） Kinetochore-associated protein DSN1 × 1 （P40568） Kinetochore protein SPC25 × 1 （P40014） Kinetochore-associated protein NSL1 × 1 （Q12143）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9S4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FTX Crystal structure of the yeast kinetochore Spc24/Spc25 globular domain Deposited 2006-01-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 154–213（60 aa） Fragment：Spc24p globular domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 10.5；293 K；0.1 M CAPS, pH 10.5, 1.2 M NaH2PO4/0.8 M K2HPO4, 0.2 M Li2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 10.50	Resolution 1.90 Å R-free 0.226
2FV4 NMR solution structure of the yeast kinetochore Spc24/Spc25 globular domain Deposited 2006-01-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 138–213（76 aa） Fragment：SPC24P GLOBULAR DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 50 mM sodium phosphate buffer；Pressure ambient NMR sample composition 1.5 mM spc25G U-15N,13C,85%-2H, 1.5 mM spc24G natural abundance isotopes, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C,85%-2H, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G U-15N,13C, 1.5 mM spc24G natural abundance isotopes, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G U-15N,13C, 85%-2H, 1.5 mM spc24G natural abundance isotopes, 50 mg/mL Pf1 phage, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C, 50 mg/mL Pf1 phage, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O.	Resolution not provided
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 155–213（59 aa） Fragment：Spc24p C-terminal domain, residues 155-213	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 155–213（59 aa） Fragment：Spc24p C-terminal domain, residues 155-213	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
5T6J Structure of the MIND Complex Shows a Regulatory Focus of Yeast Kinetochore Assembly Deposited 2016-09-01	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 155–213（59 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M HEPES, pH 7.0-7.5, 1.0 M potassium sodium tartrate, 0.2 M lithium sulfate	Resolution 1.75 Å R-free 0.242
5TCS Crystal structure of a Dwarf Ndc80 Tetramer Deposited 2016-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–48（48 aa） Chain C 162–213（52 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；1.2 magnesium sulfate, 0.1 M ME pH 6.0	Resolution 2.83 Å R-free 0.266
5TD8 Crystal structure of an Extended Dwarf Ndc80 Complex Deposited 2016-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–62（62 aa） Chain C 162–213（52 aa）	Not recorded	HG MERCURY (II) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG 4,000, 0.1 M CHES, pH 9.0	Resolution 7.53 Å R-free 0.328
8V10 Structure of a Saccharomyces cerevisiae Mps1 peptide bound to dwarf Ndc80 Complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–48（48 aa） Chain C 162–213（52 aa）	Not recorded	NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；291 K；13% polyethylene glycol 8000, 1M sodium chloride 100 mM PIPES pH 6.1	Resolution 3.02 Å R-free 0.271
8V11 Structure of a Saccharomyces cerevisiae Ipl1 peptide Bound to dwarf Ndc80 complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–48（48 aa） Chain C 162–212（51 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；15% polyethylene glycol 2000 monomethyl ether,500 mM sodium chloride,50 mM Tris pH 7.5	Resolution 3.95 Å R-free 0.327
8V11 Structure of a Saccharomyces cerevisiae Ipl1 peptide Bound to dwarf Ndc80 complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 1–48（48 aa） Chain G 162–212（51 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；15% polyethylene glycol 2000 monomethyl ether,500 mM sodium chloride,50 mM Tris pH 7.5	Resolution 3.95 Å R-free 0.327
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain 24 1–213（213 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPC24_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain 24； PDBConstruct 1–213； UniProt 1–213

Kinetochore protein SPC25

Saccharomyces cerevisiae S288C

UniProt P40014

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain 25； UniProt 1–221	Not recorded	Kinetochore-associated protein NNF1 × 1 （P47149） Kinetochore-associated protein MTW1 × 1 （P39731） Outer kinetochore KNL1 complex subunit KRE28 × 1 （Q04431） Outer kinetochore KNL1 complex subunit SPC105 × 1 （P53148） Kinetochore-associated protein DSN1 × 1 （P40568） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore-associated protein NSL1 × 1 （Q12143）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9S4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FTX Crystal structure of the yeast kinetochore Spc24/Spc25 globular domain Deposited 2006-01-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 133–221（89 aa） Fragment：Spc25p globular domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 10.5；293 K；0.1 M CAPS, pH 10.5, 1.2 M NaH2PO4/0.8 M K2HPO4, 0.2 M Li2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 10.50	Resolution 1.90 Å R-free 0.226
2FV4 NMR solution structure of the yeast kinetochore Spc24/Spc25 globular domain Deposited 2006-01-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 128–221（94 aa） Fragment：SPC25P GLOBULAR DOMAIN	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 50 mM sodium phosphate buffer；Pressure ambient NMR sample composition 1.5 mM spc25G U-15N,13C,85%-2H, 1.5 mM spc24G natural abundance isotopes, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C,85%-2H, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G U-15N,13C, 1.5 mM spc24G natural abundance isotopes, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G U-15N,13C, 85%-2H, 1.5 mM spc24G natural abundance isotopes, 50 mg/mL Pf1 phage, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O. NMR sample composition 1.5 mM spc25G natural abundance isotopes, 1.5 mM spc24G U-15N,13C, 50 mg/mL Pf1 phage, 95% H2O, 5% D2O \| 50 mM Phosphate buffer Na, pH 7.0, 1 mM azide, 95% H2O, 5% D2O.	Resolution not provided
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 133–221（89 aa） Fragment：Spc25p C-terminal domain, residues 133-221	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
4GEQ Crystal structure of the Spc24-Spc25/Cnn1 binding interface Deposited 2012-08-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 133–221（89 aa） Fragment：Spc25p C-terminal domain, residues 133-221	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；293.15 K；15% PEG6000, 5% glycerol; Drop volume: 0.2ul; Protein proportion: 50%; Protein concentration: 6 mg/ml, pH 7.6, VAPOR DIFFUSION, SITTING DROP, temperature 293.15K	Resolution 2.01 Å R-free 0.258
5T6J Structure of the MIND Complex Shows a Regulatory Focus of Yeast Kinetochore Assembly Deposited 2016-09-01	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 133–221（89 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；0.1 M HEPES, pH 7.0-7.5, 1.0 M potassium sodium tartrate, 0.2 M lithium sulfate	Resolution 1.75 Å R-free 0.242
5TCS Crystal structure of a Dwarf Ndc80 Tetramer Deposited 2016-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–31（31 aa） Chain D 138–221（84 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；1.2 magnesium sulfate, 0.1 M ME pH 6.0	Resolution 2.83 Å R-free 0.266
5TD8 Crystal structure of an Extended Dwarf Ndc80 Complex Deposited 2016-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–45（45 aa） Chain D 138–221（84 aa）	Not recorded	HG MERCURY (II) ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG 4,000, 0.1 M CHES, pH 9.0	Resolution 7.53 Å R-free 0.328
8V10 Structure of a Saccharomyces cerevisiae Mps1 peptide bound to dwarf Ndc80 Complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–31（31 aa） Chain D 138–221（84 aa）	Not recorded	NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.1；291 K；13% polyethylene glycol 8000, 1M sodium chloride 100 mM PIPES pH 6.1	Resolution 3.02 Å R-free 0.271
8V11 Structure of a Saccharomyces cerevisiae Ipl1 peptide Bound to dwarf Ndc80 complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–31（31 aa） Chain D 138–220（83 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；15% polyethylene glycol 2000 monomethyl ether,500 mM sodium chloride,50 mM Tris pH 7.5	Resolution 3.95 Å R-free 0.327
8V11 Structure of a Saccharomyces cerevisiae Ipl1 peptide Bound to dwarf Ndc80 complex Deposited 2023-11-19	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–31（31 aa） Chain H 138–220（83 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291.15 K；15% polyethylene glycol 2000 monomethyl ether,500 mM sodium chloride,50 mM Tris pH 7.5	Resolution 3.95 Å R-free 0.327
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain 25 1–221（221 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SPC25_YEAST
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain 25； PDBConstruct 1–221； UniProt 1–221

Kinetochore-associated protein NSL1

Saccharomyces cerevisiae S288C

UniProt Q12143

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain Ns； UniProt 1–216	Not recorded	Kinetochore-associated protein NNF1 × 1 （P47149） Kinetochore-associated protein MTW1 × 1 （P39731） Outer kinetochore KNL1 complex subunit KRE28 × 1 （Q04431） Outer kinetochore KNL1 complex subunit SPC105 × 1 （P53148） Kinetochore-associated protein DSN1 × 1 （P40568） Kinetochore protein SPC24 × 1 （Q04477） Kinetochore protein SPC25 × 1 （P40014）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9S4Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9S53 Cryo-EM structure of the base of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain Ns 1–216（216 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.50 Å
9S5N Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex containing the Mis12c(Mtw1c) head 2 domain Deposited 2025-07-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain Ns 1–216（216 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.20 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NSL1_YEAST
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain Ns； PDBConstruct 1–216； UniProt 1–216

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9s4q
Deposition date deposition_date	2025-07-28
Structure title title	Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex lacking the Mis12c(Mtw1c) head 2 domain
Keywords keywords	Kinetochore, chromosome segregation, mitosis, cell cycle; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	65.40 Å
Radius of gyration Rg (electron density) rg_electron	67.88 Å
Forward intensity I(0) i0	270280000.00
Molecular weight molecular_weight	137790.0 kDa
Excluded volume excluded_volume	173170 Å³
Envelope volume envelope_volume	290790 Å³
Hydration-shell volume shell_volume	42703 Å³
Envelope diameter envelope_diameter	230.9 Å
Shell Rg shell_rg	50.58 Å
Envelope Rg envelope_rg	66.54 Å
Shape Rg shape_rg	67.85 Å
Total Rg total_rg	67.46 Å
Total atoms total_atoms	19471
Residues n_residues	1193
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

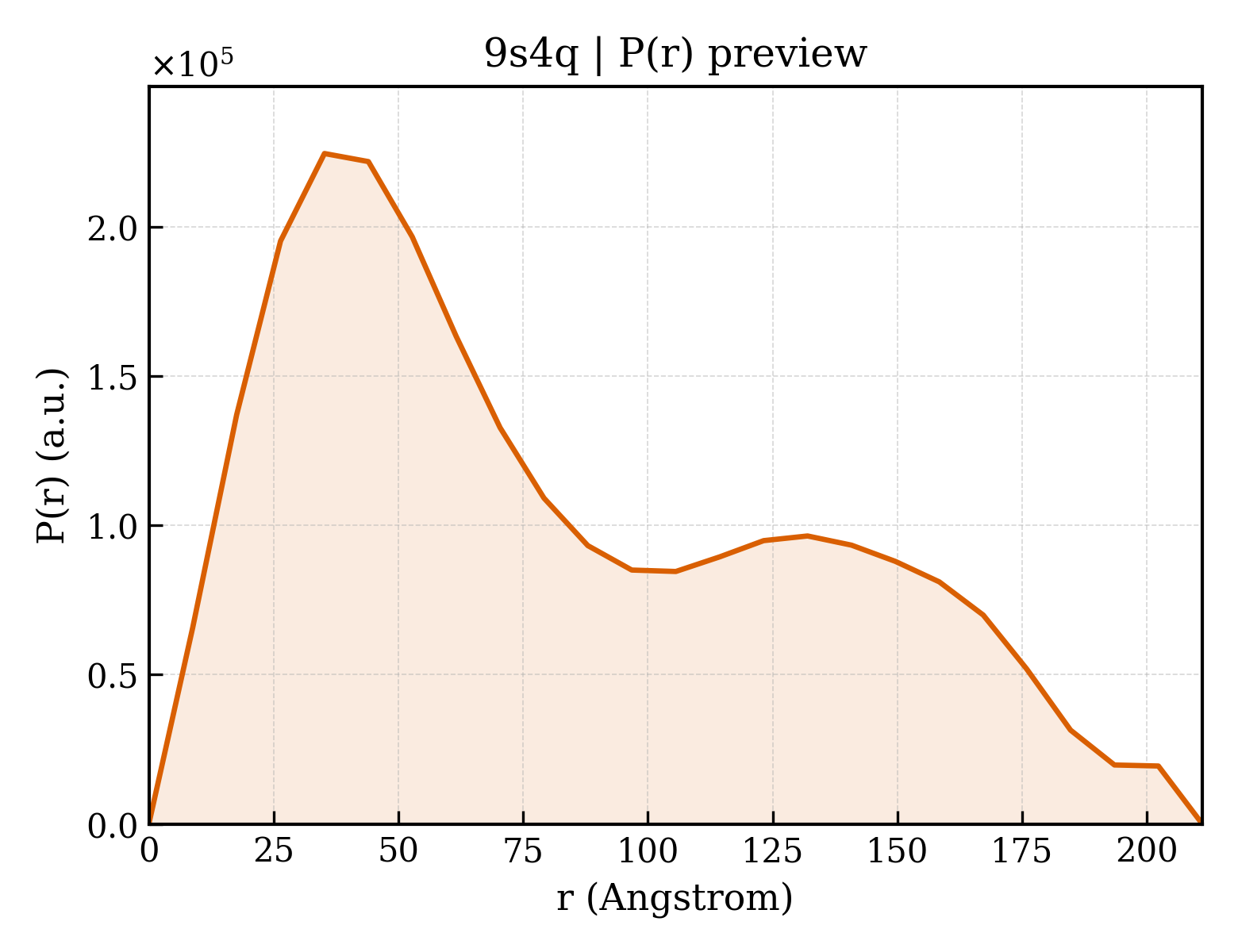

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	211.1 Å
Rg (real space) rg_real	67.33 Å
Rg uncertainty (real space) rg_real_error	2.33 Å
I(0) (real space) i0_real	2.7020e+08
I(0) uncertainty (real space) i0_real_error	5.3600e+06
Rg (reciprocal space) rg_reciprocal	63.58 Å
I(0) (reciprocal space) i0_reciprocal	268500000.0000
Solution quality estimate total_estimate	0.3827
Solution quality rating solution_quality	SUSPICIOUS a SUSPICIOUS solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	35.2 Å
Skewness Skewness skewness	0.547
Kurtosis Kurtosis kurtosis	-0.846
Angular range angular_range	— – 0.1200 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	10330000.0000
Real-space data points n_real_points	25
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.256; Stabil: 0.999; Sysdev: 0.013; Positv: 1.000; Valcen: 0.164; Smooth: 0.004

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Kinetochore-associated protein NNF1
Molecular weight formula_weight	23668.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Nn
Atom count atom_count	19471

MVNSHGIRYIRLKQVFNRALDQSISKLQSWDKVSSCFPQYVNSKQGAINVANCQRQLTEFWTELCQREFKEIMEERNVEQKLNELDELILEAKERYTDRDQDEVNKGPAIDELSSKELVECHLYSQRMHAIHEIDERLAKVNEMNDQLAQELKDLETQVEVEKNEIGKMYDEYLGSHTDQPANVLLVQSLNDMVLELKENY

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Kinetochore-associated protein MTW1
Molecular weight formula_weight	33291.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Mt

MSAPTMRSTSILTEHLGYPPISLVDDIINAVNEIMYKCTAAMEKYLLSKSKIGEEDYGEEIKSGVAKLESLLENSVDKNFDKLELYVLRNVLRIPEEYLDANVFRLENQKDLVIVDENELKKSEEKLREKVNDVELAFKKNEMLLKRVTKVKRLLFTIRGFKQKLNELLKCKDDVQLQKILESLKPIDDTMTLLTDSLRKLYVDSESTSSTEEVEALLQRLKTNGKQNNKDFRTRYIDIRTNNVLRKLGLLGDKEDEKQSAKPDARTQAGDIVSIDIEEPQLDLLDDVL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Outer kinetochore KNL1 complex subunit KRE28
Molecular weight formula_weight	48468.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Zw

MDTGSASIKDYETVLTDIEDSIAVSSEEVLNNQELRLKNTLHEITSSILAINEENKFVNPLRNDESLDVEGKEVFVNPKILSAKIKEFNKLMELLKLTYLEQETLDYFFRFTLSSTKPLQLDSEKDPQFVKLNERVNDLKEEISNVQESKIEQIKAEIQETGHNFAERQDLINELYLEATGDIENCWDSLNELKNLTNKEDKNMMGEKDTILNSSDSDDFVEETYTNWQKLLFLQKQNQRLTKELKEMHEVKNQIIRKGEQSKKEDSGHLMANESELCQSINLLTKFWEKHFLLKGSKTTILNFEIFTQLGKVQFEIKDMQYIIAISLSDLKRPMIKDITILQKAGGNIVTDIEASSKFNNKYRNNTKVQIFEVMDDIISELTNEENLYFQSWSHPQFEKGGGSGGGSGGGSWSHPQFEK

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Outer kinetochore KNL1 complex subunit SPC105
Molecular weight formula_weight	55581.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Kl

MSGIALPTQDYTLREFINEVGVGFLDTKLIDDLDKKVNFPLNSFNFVENQRIDNVFSAFYIDIPILEVEAFRCKELWRSINESKDKFKDFEAQIDKSHPPLLLQEYFSSDEKMKQLMRDQLQLVKGYSKLEAAMEWYEWRKKQLNGLELILAENLNTLKREYEKLNEEVEKVNSIRGKIRKLNEAIKEEIRSLKNLPSDSYKPTLMNRIKIEAFKQELMEHSISLSSSNDFTQEMRSLKLAIAKKSNDILTLRSEVASIDKKIEKRKLFTRFDLPKLRDTLKILESLTGVRFLKFSKATLSIAFLQLDDLRVDINLANFKNNPLSSMKVMNDSNNDDMSYHLFTMLLKNVEAEHQDSMLSNLFFAMKKWRPLLKYIKLLKLLFPVKITQTEEEEALLQFKDYDRRNKTAFFYVISLVSFAQGVFSENGQIPMKVHISTQQDYSPSREVLSDRITHKISGVLPSFTKSRIHLEFT

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	Kinetochore-associated protein DSN1
Molecular weight formula_weight	65777.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Ds

MSLEPTQTVSGTPPMLHQRTHKQVYPLRMETIPILESDSKATLQSNEPTQKDEEETEYFENKQSVSNLSPDLKFKRHKNKHIQGFPTLGERLDNLQDIKKAKRVENFNSSAPIADDNHSGDATANATANATANATANVNASAMPAPYMPYYYYYHPMNAPTPAMIPYPGSPMHSIMPNSSLQPFYSQPTAAGGPDMTTPQNISSSQQLLPAPQLFPYGSFHQQQLQQPHYIQRTRERKKSIGSQRGRRLSMLASQANGGSTIISPHKDIPEEDFYTVVGNASFGKNLQIRQLFNWCLMRSLHKLELKAKNQEEEGELEHLTKKSKLESTKAETDYVDPKRLAMVIIKEFVDDLKKDHIAIDWEDEEKYEDEDEEKILDNTENYDDTELRQLFQENDDDDDDDDEVDYSEIQRSRRKFSERRKALPKEPKKLLPNSKNVENTKNLSILTSKVNAIKNEVKEWAVTLDTSRPDLEWQELTSFSSQPLEPLSDTEEPDLAIADVETKLETKVDELRYQSHILNSHSLALNEITNSKVNKLNIETMRKISSETDDDHSQVINPQQLLKGLSLSFSKKLDL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	Kinetochore protein SPC24
Molecular weight formula_weight	24639.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	24

MSQKDNLLDNPVEFLKEVRESFDIQQDVDAMKRIRHDLDVIKEESEARISKEHSKVSESNKKLNAERINVAKLEGDLEYTNEESNEFGSKDELVKLLKDLDGLERNIVSLRSELDEKMKLYLKDSEIISTPNGSKIKAKVIEPELEEQSAVTPEANENILKLKLYRSLGVILDLENDQVLINRKNDGNIDILPLDNNLSDFYKTKYIWERLGK

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Trichoplusia ni

Entity 7 Entity 7 polymer

Description description	Kinetochore protein SPC25
Molecular weight formula_weight	25280.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	25

MASIDAFSDLERRMDGFQKDVAQVLARQQNHARQQLQQFQAEMRQLHNQHQHLIDELQRLATQRTALQQQIHAAQQATNTTREQWRSYHERESELSRRQSTLAAQSRELDSLLQQRGKECVQLRARWAAQSGNDAAEVALYERLLQLRVLPGASDVHDVRFVFGDDSRCWIEVAMHGDHVIGNSHPALDPKSRATLEHVLTVQGDLAAFLVVARDMLLASL

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Trichoplusia ni

Entity 8 Entity 8 polymer

Description description	Kinetochore-associated protein NSL1
Molecular weight formula_weight	25448.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Ns

MSQGQSKKLDVTVEQLRSIYHQFHDILEEKTDLHLPKKEYDDDAVRREVQIQLQEFLLSAMTMASKSLEVVNADTVGKTVKQLIMESQEKYMEPFDLDLNEQVRKMYQEWEDETVKVAQLRQTGPAKINEVYNNSKDEYLAQLDGRIGVLQARMMQQQSADHDDSTDDADDHINWEHIKQDYVASLNELYQTQQDLPKVRYNVEKVKRLMDFLEED

来源 Source

来源生物 organism	Saccharomyces cerevisiae S288C
NCBI Class编号 ncbi_taxonomy_id	559292
宿主生物 host_organism	Trichoplusia ni

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	113688

fit	/app/data/saxs_computation/s4/9s4q/9s4q.fit
pddf	/app/data/pr_computation/s4/9s4q/9s4q.pr.out
profile	/app/data/saxs_computation/s4/9s4q/9s4q.dat

Cryo-EM structure of the Saccharomyces cerevisiae KMN junction complex lacking the Mis12c(Mtw1c) head 2 domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kinetochore-associated protein NNF1

State in the Current Structure

Other States of the Same Protein in the Database

Kinetochore-associated protein MTW1

State in the Current Structure

Other States of the Same Protein in the Database

Outer kinetochore KNL1 complex subunit KRE28

State in the Current Structure

Other States of the Same Protein in the Database

Outer kinetochore KNL1 complex subunit SPC105

State in the Current Structure

Other States of the Same Protein in the Database

Kinetochore-associated protein DSN1

State in the Current Structure

Other States of the Same Protein in the Database

Kinetochore protein SPC24

State in the Current Structure

Other States of the Same Protein in the Database

Kinetochore protein SPC25

State in the Current Structure

Other States of the Same Protein in the Database

Kinetochore-associated protein NSL1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 polymer

Polymer Polymer

来源 Source

Entity 7 Entity 7 polymer

Polymer Polymer

来源 Source

Entity 8 Entity 8 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
