9sv1
Acylphosphatase from E. coli

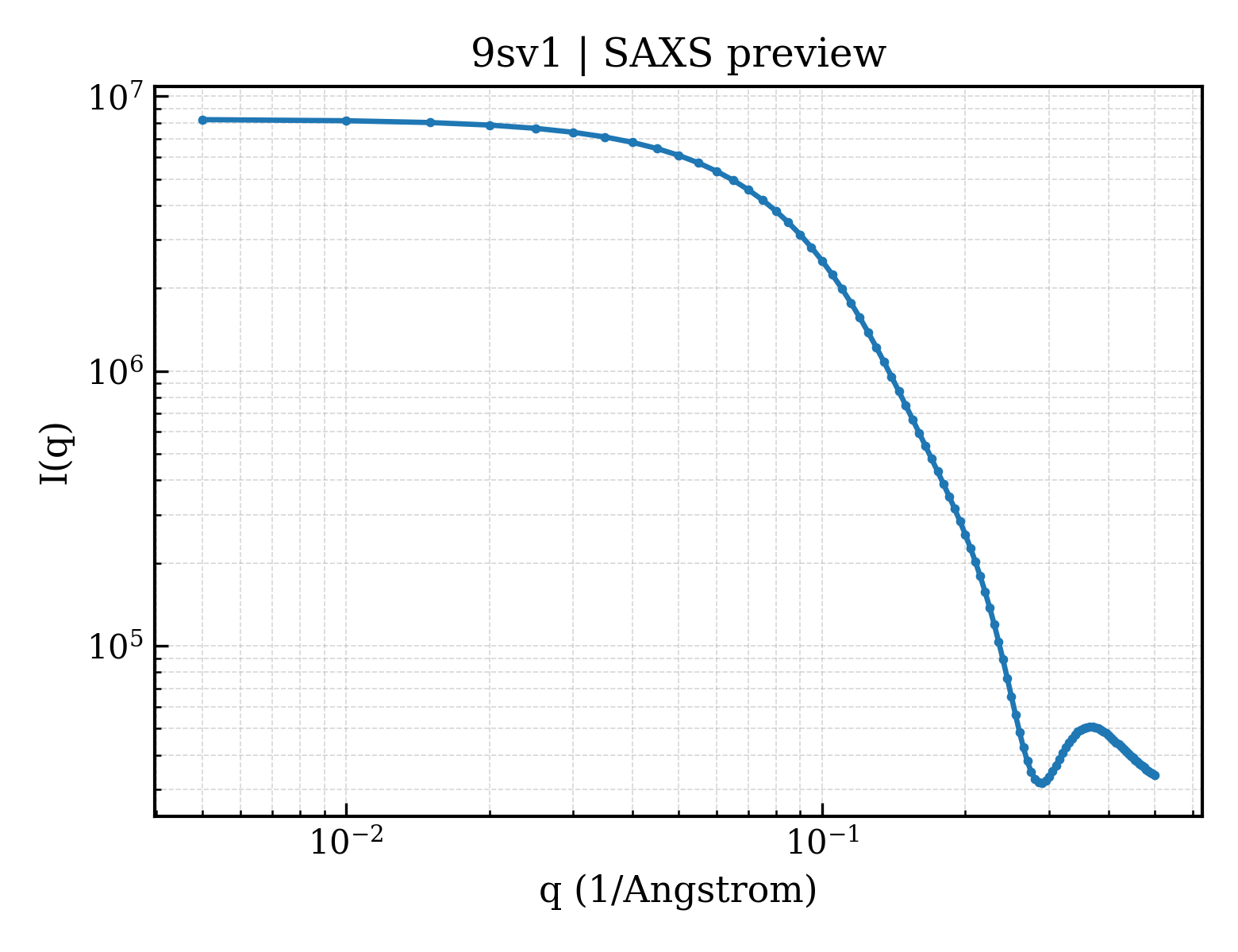

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9sv1 |
| deposition_date | 2025-09-30 |
| title | Acylphosphatase from E. coli |
| keywords | ALPHA AND BETA PROTEINS, HYDROLASE, AMYLOID, PHOSPHATASE, INTERTWINED-DIMER; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.05 Å |
| rg_electron | 18.06 Å |
| i0 | 8243070.00 |
| molecular_weight | 20520.0 kDa |
| excluded_volume | 25427 ų |
| envelope_volume | 30367 ų |
| shell_volume | 14718 ų |
| envelope_diameter | 61.4 Å |
| shell_rg | 23.18 Å |
| envelope_rg | 18.22 Å |
| shape_rg | 18.04 Å |
| total_rg | 18.92 Å |
| total_atoms | 2857 |
| n_residues | 182 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.8 Å |
| rg_real | 19.06 Å |
| rg_real_error | 0.34 Å |
| i0_real | 8.2430e+06 |
| i0_real_error | 1.0180e+05 |
| rg_reciprocal | 19.06 Å |
| i0_reciprocal | 8243000.0000 |
| total_estimate | 0.7167 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 19.5 Å |
| skewness | 0.338 |
| kurtosis | -0.470 |
| angular_range | — – 0.4150 Å−1 |
| current_alpha | 0.0001 |
| highest_alpha | 2516000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.830; Stabil: 1.000; Sysdev: 0.295; Positv: 1.000; Valcen: 0.942; Smooth: 0.995 |
