9tp8

Crystal structure of the C-terminal Ser/Thr phosphatase D510N H707K mutant of the Kelch phosphatase BSU1 from Arabidopsis thaliana

Method: X-RAY DIFFRACTION D_max: 75.9 Å Quality: GOOD

SAXS Profile

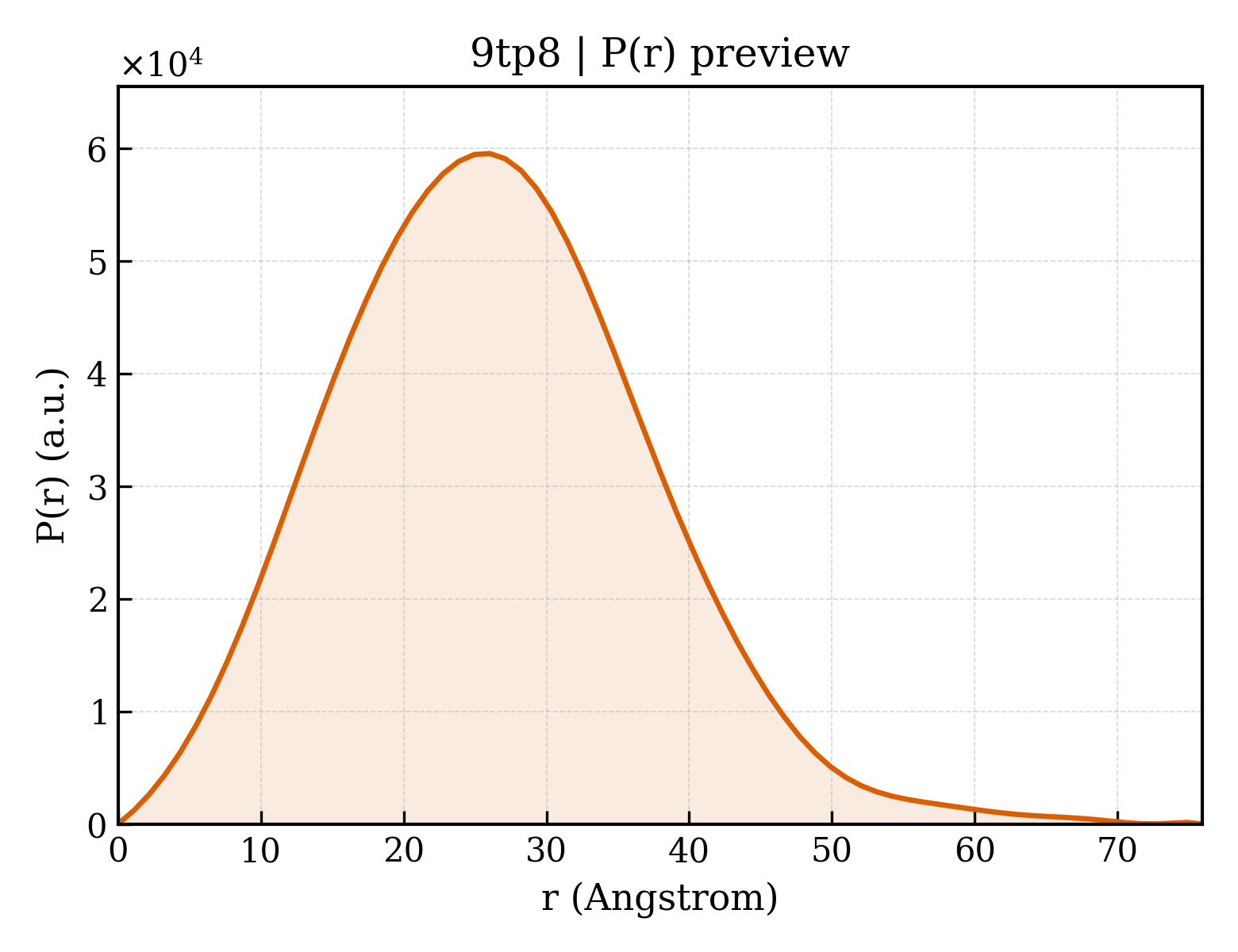

P(r) Distribution

▼

1. Structure Basics

entry_id	9tp8
deposition_date	2025-12-17
last_revision	2026-06-03
title	Crystal structure of the C-terminal Ser/Thr phosphatase D510N H707K mutant of the Kelch phosphatase BSU1 from Arabidopsis thaliana
keywords	protein phosphatase, ser/thr phosphatase, cell signaling, CELL CYCLE; CELL CYCLE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.17 Å
rg_electron	19.03 Å
i0	20404500.00
molecular_weight	35727.0 kDa
excluded_volume	45279 Å³
envelope_volume	50840 Å³
shell_volume	21739 Å³
envelope_diameter	77.2 Å
shell_rg	26.01 Å
envelope_rg	20.09 Å
shape_rg	19.01 Å
total_rg	20.06 Å
total_atoms	5044
n_residues	311
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	75.9 Å
rg_real	20.12 Å
rg_real_error	0.52 Å
i0_real	2.0400e+07
i0_real_error	2.6990e+05
rg_reciprocal	20.13 Å
i0_reciprocal	20400000.0000
total_estimate	0.8056
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	26.0 Å
skewness	0.381
kurtosis	0.228
angular_range	— – 0.3950 Å⁻¹
current_alpha	0.0000
highest_alpha	5105000.0000
n_real_points	71
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.504; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.977; Smooth: 0.981

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Serine/threonine-protein phosphatase BSU1
formula_weight	43644.8 kDa
ec_number	3.1.3.16
mutation	D510N,H707K
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5243

MEGYVPLQHGAETVGNRGGLVRTASLDQSTQDLHKKVISTLLRPKTWTPPANRDFFLSYLEVKHLCDEVEKIFMNEPTLLQLKVPIKVFGNIHGQYGDLMRLFHEYGHPSVEGDITHIDYLFLGDYVDRGQHSLEIIMLLFALKIEYPKNIHLIRGNHESLAMNRIYGFLTECEERMGESYGFEAWLKINQVFDYLPLAALLEKKVLCVHGGIGRAVTIEEIENIERPAFPDTGSMVLKDILWSDPTMNDTVLGIVDNARGEGVVSFGPDIVKAFLERNGLEMILRAKECVIDGFERFADGRLITVFSATNYCGTAQNAGAILVIGRDMVIYPKLIHPHPPPISSSEEDYTDKAWMQELNIEMPPTPARGESSEAAAENLYFQLNIE

Source

organism	Arabidopsis thaliana
common_name	thale cress
ncbi_taxonomy_id	3702
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	5

Entity 3 non-polymer

description	ACETATE ION
formula_weight	59.0 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	139

▶

6. Citations (2)

▶

length_a	139.757 Å
length_b	44.047 Å
length_c	79.241 Å
angle_alpha	90.00 °
angle_beta	121.07 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	monoclinic

resolution	1.600 Å
resolution_low	41.340 Å
r_factor	0.1617
r_work	0.1606
r_free	0.1824
