9ukr

Crystal structure of glycogen phosphorylase from E. coli in complex with AMP

Method: X-RAY DIFFRACTION D_max: 205.4 Å Quality: REASONABLE

SAXS Profile

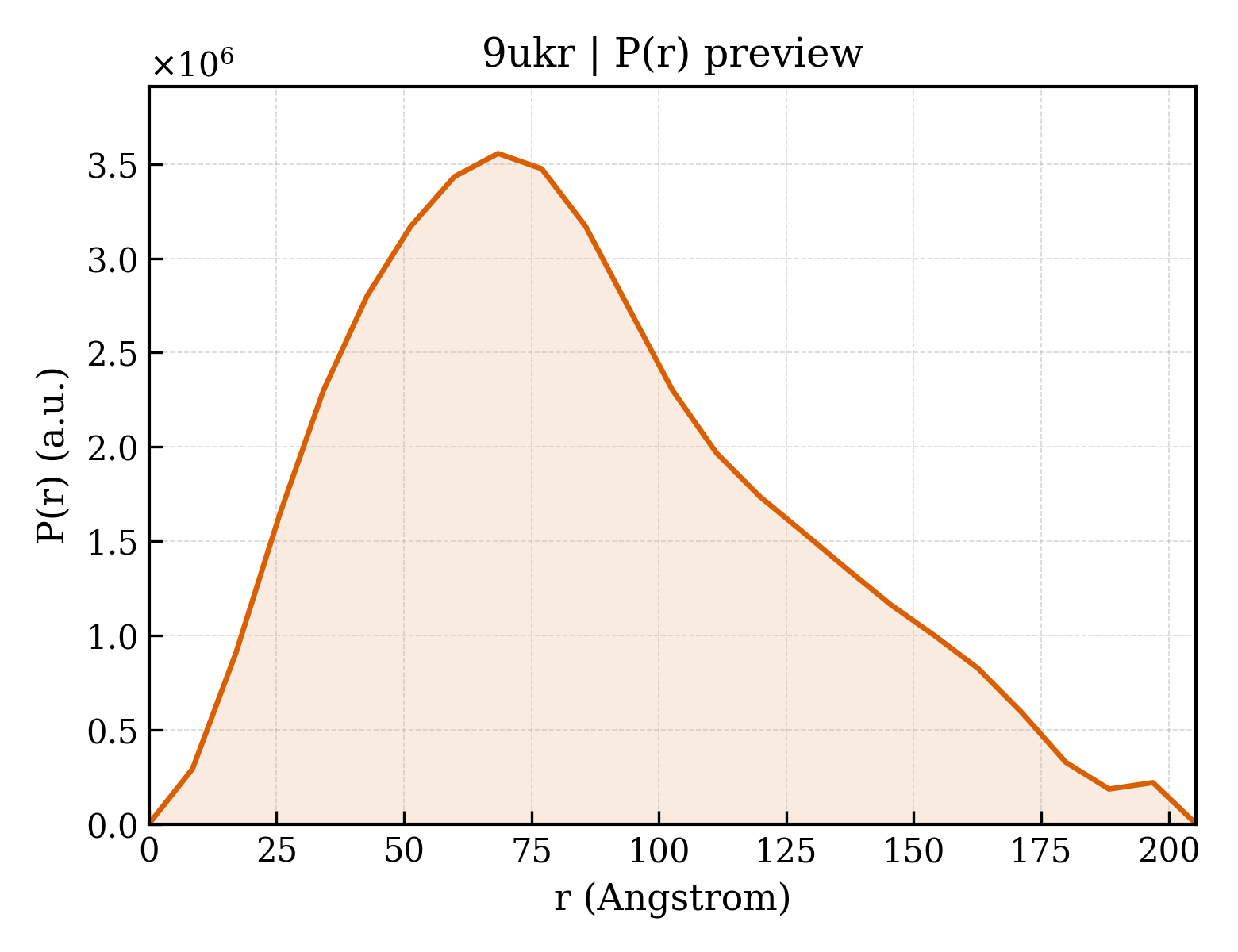

P(r) Distribution

▼

1. Structure Basics

entry_id	9ukr
deposition_date	2025-04-18
title	Crystal structure of glycogen phosphorylase from E. coli in complex with AMP
keywords	glycogen phosphorylase, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	65.24 Å
rg_electron	65.80 Å
i0	4378770000.00
molecular_weight	555420.0 kDa
excluded_volume	693250 Å³
envelope_volume	975410 Å³
shell_volume	126870 Å³
envelope_diameter	232.0 Å
shell_rg	62.82 Å
envelope_rg	64.98 Å
shape_rg	65.80 Å
total_rg	65.76 Å
total_atoms	39190
n_residues	4818
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	205.4 Å
rg_real	65.77 Å
rg_real_error	1.57 Å
i0_real	4.3780e+09
i0_real_error	9.1980e+07
rg_reciprocal	64.70 Å
i0_reciprocal	4370000000.0000
total_estimate	0.5973
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	68.5 Å
skewness	0.507
kurtosis	-0.355
angular_range	— – 0.1200 Å⁻¹
current_alpha	0.0005
highest_alpha	218300000.0000
n_real_points	25
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.897; Stabil: 0.999; Sysdev: 0.013; Positv: 1.000; Valcen: 0.997; Smooth: 0.037

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Glycogen phosphorylase
formula_weight	93697.7 kDa
ec_number	2.4.1.1
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	39190

MGMNAPFTYSSPTLSVEALKHSIAYKLMFTIGKDPVVANKHEWLNATLFAVRDRLVERWLRSNRAQLSQETRQVYYLSMEFLIGRTLSNAMLSLGIYEDVQGALEAMGLNLEELIDEENDPGLGNGGLGRLAACFLDSLATLGLPGRGYGIRYDYGMFKQNIVNGSQKESPDYWLEYGNPWEFKRHNTRYKVRFGGRIQQEGKKTRWIETEEILGVAYDQIIPGYDTDATNTLRLWSAQASSEINLGKFNQGDYFAAVEDKNHSENVSRVLYPDDSTYSGRELRLRQEYFLVSSTIQDILSRHYQLHKTYDNLADKIAIHLNDTHPVLSIPEMMRLLIDEHQFSWDDAFEVCCQVFSYTNHTLMSEALETWPVDMLGKILPRHLQIIFEINDYFLKTLQEQYPNDTDLLGRASIIDESNGRRVRMAWLAVVVSHKVNGVSELHSNLMVQSLFADFAKIFPGRFTNVTNGVTPRRWLAVANPSLSAVLDEHLGRNWRTDLSLLNELQQHCDFPMVNHAVHQAKLENKKRLAEYIAQQLNVVVNPKALFDVQIKRIHEYKRQLMNVLHVITRYNRIKADPDAKWVPRVNIFGGKAASAYYMAKHIIHLINDVAKVINNDPQIGDKLKVVFIPNYSVSLAQLIIPAADLSEQISLAGTEASGTSNMKFALNGALTIGTLDGANVEMLDHVGADNIFIFGNTAEEVEELRRQGYKPREYYEKDEELHQVLTQIGSGVFSPEDPGRYRDLVDSLINFGDHYQVLADYRSYVDCQDKVDELYELQEEWTAKAMLNIANMGYFSSDRTIKEYADHIWHIDPVRL

Source

organism	Escherichia coli K12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli

Entity 2 non-polymer

description	ADENOSINE MONOPHOSPHATE
formula_weight	347.2 kDa
src_method	syn
entity_count	8

▶

6. Citations (1)

▶

length_a	134.915 Å
length_b	204.539 Å
length_c	263.337 Å
angle_alpha	90.00 °
angle_beta	104.57 °
angle_gamma	90.00 °
z_pdb	24

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	3.550 Å
resolution_low	42.790 Å
r_factor	0.2260
r_work	0.2235
r_free	0.2722

fit	/app/data/saxs_computation/uk/9ukr/9ukr.fit
pddf	/app/data/pr_computation/uk/9ukr/9ukr.pr.out
profile	/app/data/saxs_computation/uk/9ukr/9ukr.dat
