9uug
;The structure of Egalitarian in complex with the K10 mRNA localization signal reveals a modular binding surface required for function ;

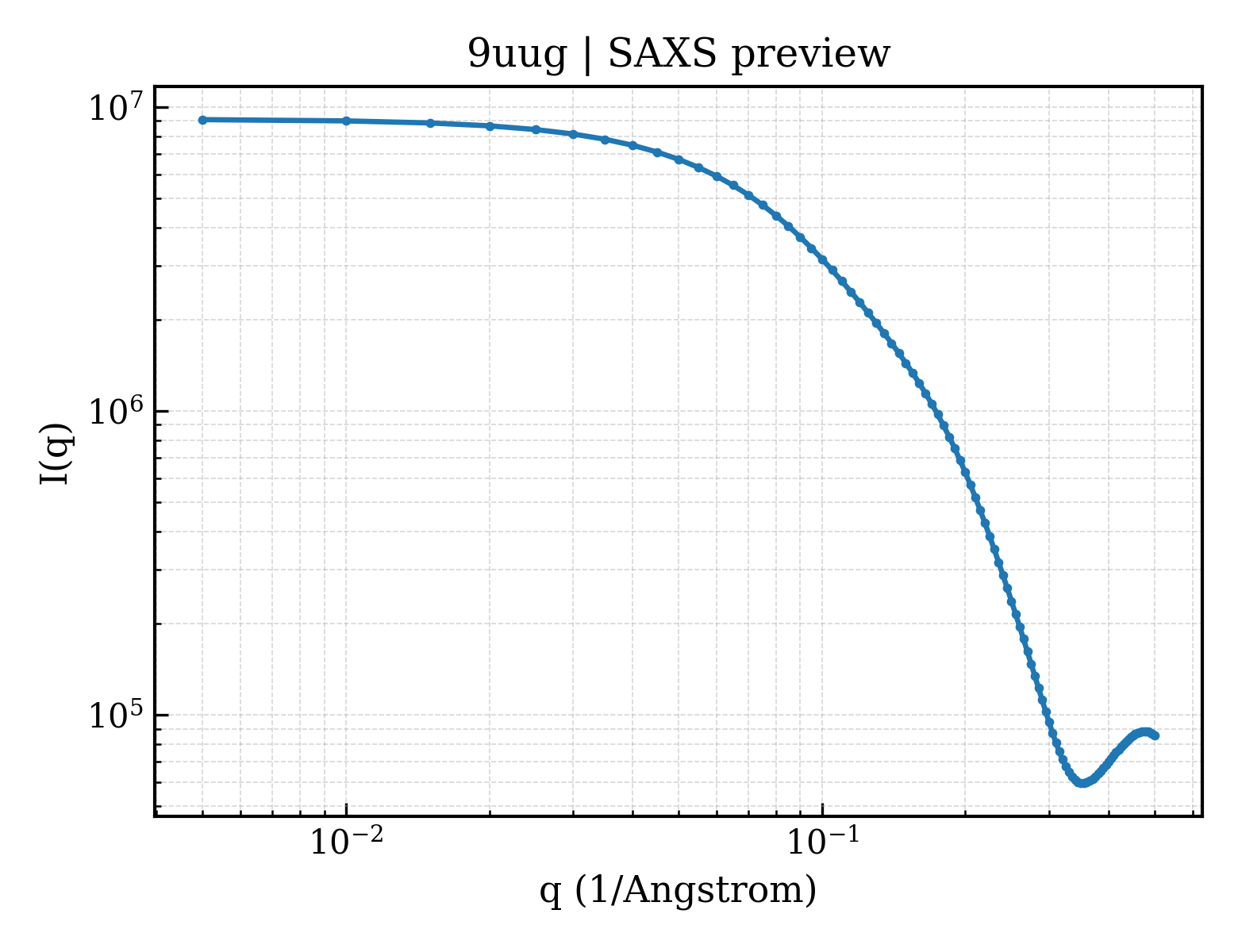

SAXS Profile

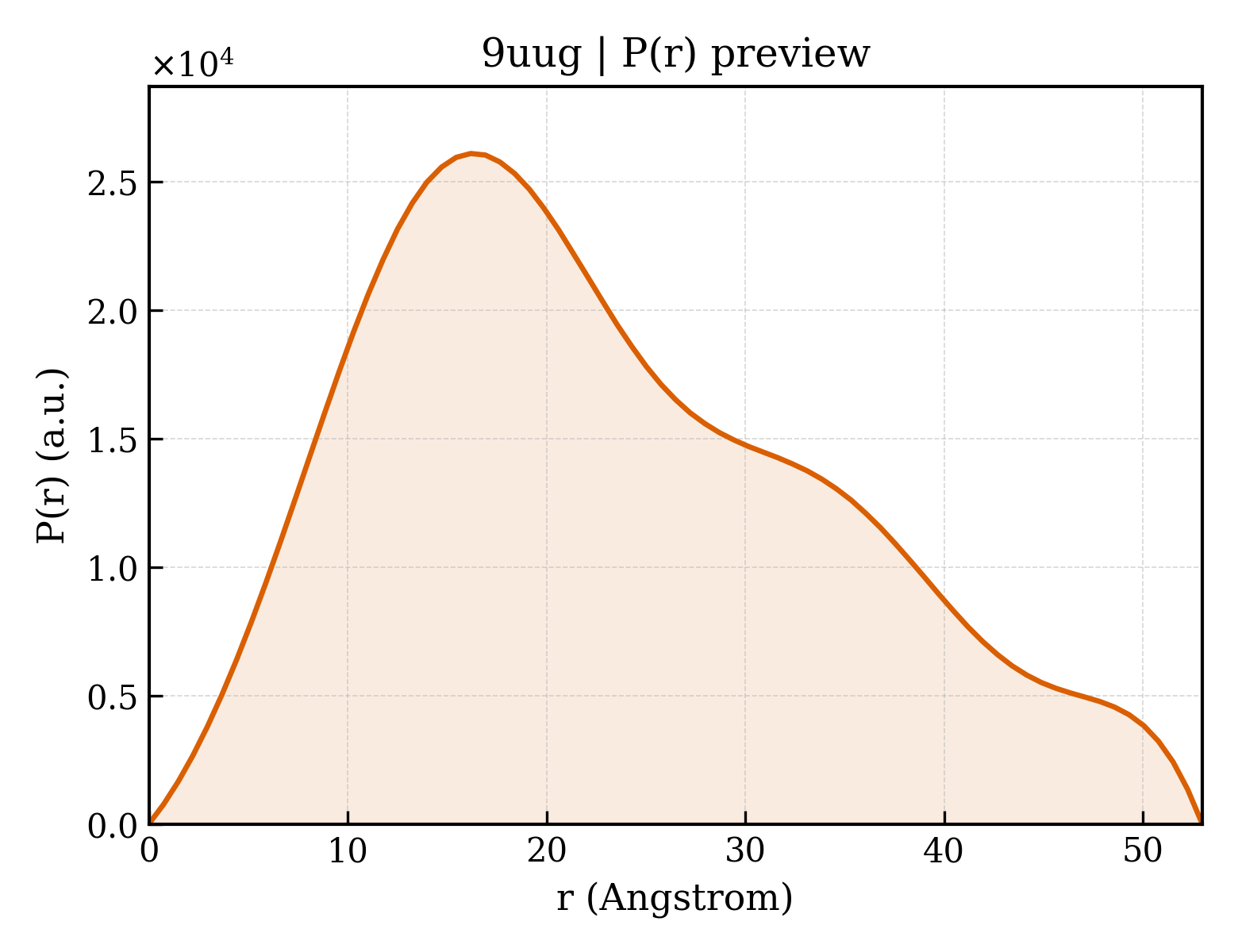

P(r) Distribution
1. Structure Basics
| entry_id | 9uug |
| deposition_date | 2025-05-06 |
| last_revision | 2026-06-10 |
| title | ;The structure of Egalitarian in complex with the K10 mRNA localization signal reveals a modular binding surface required for function ; |
| keywords | RNA, localization, Drosophila, Egalitarian, CRISPR, RNA BINDING PROTEIN; RNA BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.10 Å |
| rg_electron | 19.10 Å |
| i0 | 9111370.00 |
| molecular_weight | 13282.0 kDa |
| excluded_volume | 12410 ų |
| envelope_volume | 19045 ų |
| shell_volume | 9869 ų |
| envelope_diameter | 69.7 Å |
| shell_rg | 22.45 Å |
| envelope_rg | 19.22 Å |
| shape_rg | 19.04 Å |
| total_rg | 19.53 Å |
| total_atoms | 874 |
| n_residues | 41 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.0 Å |
| rg_real | 18.11 Å |
| rg_real_error | 0.12 Å |
| i0_real | 8.7460e+06 |
| i0_real_error | 7.8890e+04 |
| rg_reciprocal | 19.38 Å |
| i0_reciprocal | 9111000.0000 |
| total_estimate | 0.6569 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 16.2 Å |
| skewness | 0.472 |
| kurtosis | -0.543 |
| angular_range | — – 0.4150 Å−1 |
| current_alpha | 3.3030 |
| highest_alpha | 694100.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.909; Stabil: 0.990; Sysdev: 0.000; Positv: 1.000; Valcen: 0.844; Smooth: 0.000 |
