9uva

Structures of multiple states of the nicotinamide nucleotide transhydrogenase from Escherichia coli

Method: ELECTRON MICROSCOPY D_max: 120.3 Å Quality: GOOD

SAXS Profile

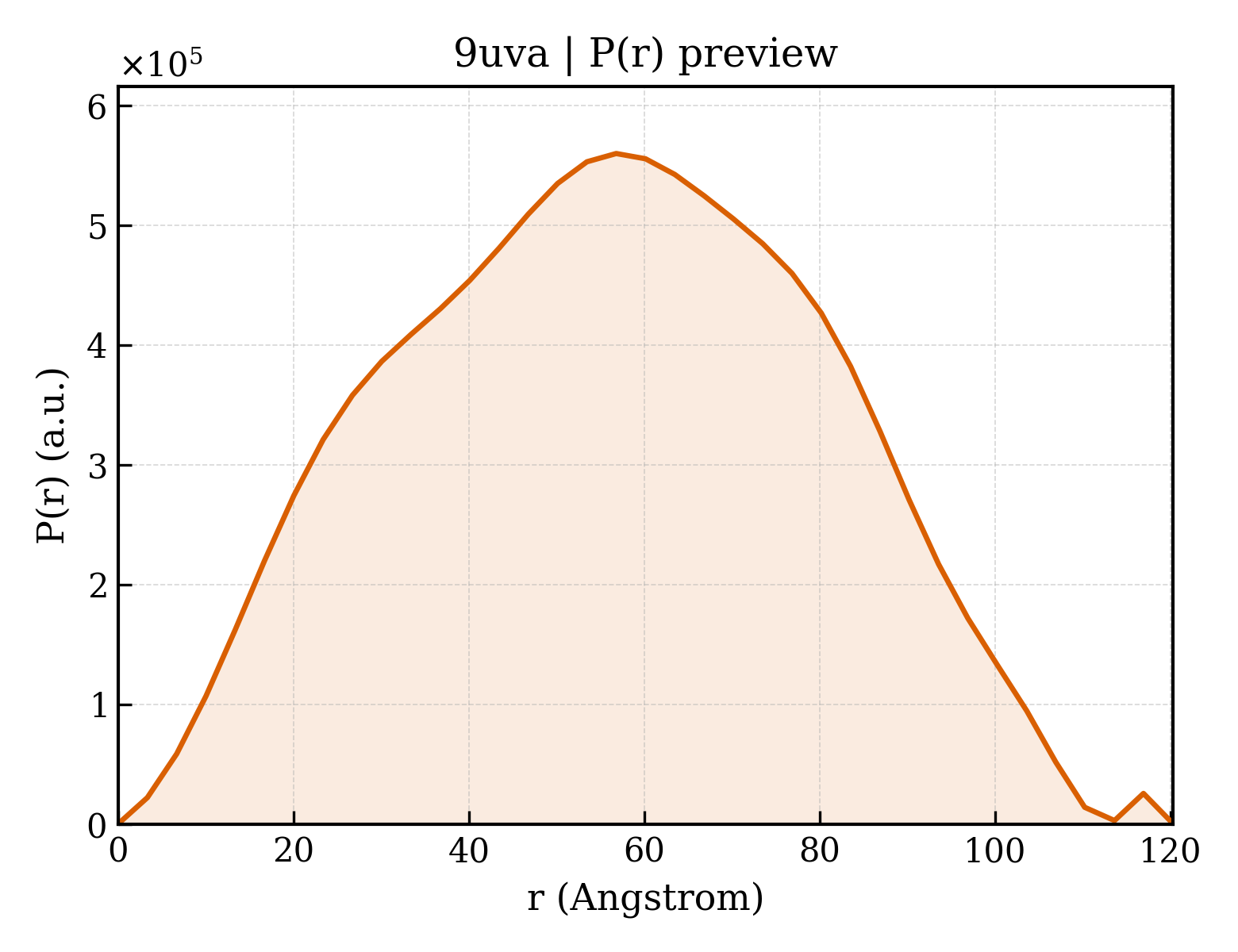

P(r) Distribution

▼

1. Structure Basics

entry_id	9uva
deposition_date	2025-05-09
title	Structures of multiple states of the nicotinamide nucleotide transhydrogenase from Escherichia coli
keywords	;Nicotinamide nucleotide transhydrogenase, Mitochondrial inner membrane, E. coli transhydrogenase, Hydride transfer, Proton motive force, NAD+, NADH, NADP+, NADPH, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	43.30 Å
rg_electron	42.76 Å
i0	463125000.00
molecular_weight	187390.0 kDa
excluded_volume	238940 Å³
envelope_volume	334100 Å³
shell_volume	63095 Å³
envelope_diameter	131.1 Å
shell_rg	50.82 Å
envelope_rg	41.10 Å
shape_rg	42.78 Å
total_rg	43.08 Å
total_atoms	13177
n_residues	1763
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	120.3 Å
rg_real	43.09 Å
rg_real_error	0.84 Å
i0_real	4.6310e+08
i0_real_error	7.5950e+06
rg_reciprocal	43.30 Å
i0_reciprocal	463200000.0000
total_estimate	0.8461
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	56.8 Å
skewness	0.010
kurtosis	-0.723
angular_range	— – 0.1800 Å⁻¹
current_alpha	0.0000
highest_alpha	24340000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.998; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.003

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	NAD(P) transhydrogenase subunit beta
formula_weight	48762.7 kDa
ec_number	7.1.1.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,A
atom_count	13177

MSGGLVTAAYIVAAILFIFSLAGLSKHETSRQGNNFGIAGMAIALIATIFGPDTGNVGWILLAMVIGGAIGIRLAKKVEMTEMPELVAILHSFVGLAAVLVGFNSYLHHDAGMAPILVNIHLTEVFLGIFIGAVTFTGSVVAFGKLCGKISSKPLMLPNRHKMNLAALVVSFLLLIVFVRTDSVGLQVLALLIMTAIALVFGWHLVASIGGADMPVVVSMLNSYSGWAAAAAGFMLSNDLLIVTGALVGSSGAILSYIMCKAMNRSFISVIAGGFGTDGSSTGDDQEVGEHREITAEETAELLKNSHSVIITPGYGMAVAQAQYPVAEITEKLRARGINVRFGIHPVAGRLPGHMNVLLAEAKVPYDIVLEMDEINDDFADTDTVLVIGANDTVNPAAQDDPKSPIAGMPVLEVWKAQNVIVFKRSMNTGYAGVQNPLFFKENTHMLFGDAKASVDAILKAL

Source

organism	Escherichia coli (strain K12)
ncbi_taxonomy_id	83333
host_organism	Escherichia coli

Entity 2 polymer

description	NAD(P) transhydrogenase subunit alpha
formula_weight	10742.8 kDa
ec_number	7.1.1.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,D

ILFGWMASVAPKEFLGHFTVFALACVVGYYVVWNVSHALHTPLMSVTNAISGIIVVGALLQIGQGGWVSFLSFIAVLIASINIFGGFTVTQRMLKMFKN

Source

organism	Escherichia coli (strain K12)
ncbi_taxonomy_id	83333
host_organism	Escherichia coli

Entity 3 polymer

description	NAD(P) transhydrogenase subunit alpha
formula_weight	40183.9 kDa
ec_number	7.1.1.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,F

HHGRIGIPRERLTNETRVAATPKTVEQLLKLGFTVAVESGAGQLASFDDKAFVQAGAEIVEGNSVWQSEIILKVNAPLDDEIALLNPGTTLVSFIWPAQNPELMQKLAERNVTVMAMDSVPRISRAQSLDALSSMANIAGYRAIVEAAHEFGRFFTGQITAAGKVPPAKVMVIGAGVAGLAAIGAANSLGAIVRAFDTRPEVKEQVQSMGAEFLELDFKEEAGSGDGYAKVMSDAFIKAEMELFAAQAKEVDIIVTTALIPGKPAPKLITREMVDSMKAGSVIVDLAAQNGGNCEYTVPGEIFTTENGVKVIGYTDLPGRLPTQSSQLYGTNLVNLLKLLCKEKDGNITVDFDDVVIRGVTVIRAGEITWPAPPIQV

Source

organism	Escherichia coli (strain K12)
ncbi_taxonomy_id	83333
host_organism	Escherichia coli

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.73 Å
resolution_method	—
num_particles	55221

fit	/app/data/saxs_computation/uv/9uva/9uva.fit
pddf	/app/data/pr_computation/uv/9uva/9uva.pr.out
profile	/app/data/saxs_computation/uv/9uva/9uva.dat
