SAXSdb — 9uxc

▼

1. Structure Basics

entry_id	9uxc
deposition_date	2025-05-13
title	The ADP-bound structure of BCL7B-containing ARP module of the human SWI/SNF complex
keywords	chromatin remodeling, SWI/SNF, nuclear actin, GENE REGULATION; GENE REGULATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.29 Å
rg_electron	28.30 Å
i0	136288000.00
molecular_weight	91267.0 kDa
excluded_volume	113770 Å³
envelope_volume	139630 Å³
shell_volume	40049 Å³
envelope_diameter	103.1 Å
shell_rg	36.51 Å
envelope_rg	28.51 Å
shape_rg	28.31 Å
total_rg	29.03 Å
total_atoms	6424
n_residues	808
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	96.8 Å
rg_real	29.19 Å
rg_real_error	0.61 Å
i0_real	1.3630e+08
i0_real_error	2.0320e+06
rg_reciprocal	29.23 Å
i0_reciprocal	136300000.0000
total_estimate	0.8880
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	35.8 Å
skewness	0.241
kurtosis	-0.366
angular_range	— – 0.2700 Å⁻¹
current_alpha	0.0000
highest_alpha	46040000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.855; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.979

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Transcription activator BRG1
formula_weight	11774.2 kDa
ec_number	3.6.4.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6424

MSLREARITEKLEKQQKIEQERKRRQKHQEYLNSILQHAKDFKEYHRSVTGKIQKLTKAVATYHANTEREQKKWSHPQFEKGGGSGGGSGGGSWSHPQFEK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Mammalia

Entity 2 polymer

description	Actin, cytoplasmic 1, N-terminally processed
formula_weight	41853.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MADDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Mammalia

Entity 3 polymer

description	Actin-like protein 6A
formula_weight	47580.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MASGGVYGGDEVGALVFDIGSYTVRAGYAGEDCPKVDFPTAIGMVVERDDGSTLMEIDGDKGKQGGPTYYIDTNALRVPRENMEAISPLKNGMVEDWDSFQAILDHTYKMHVKSEASLHPVLMSEAPWNTRAKREKLTELMFEHYNIPAFFLCKTAVLTAFANGRSTGLILDSGATHTTAIPVHDGYVLQQGIVKSPLAGDFITMQCRELFQEMNIELVPPYMIASKEAVREGSPANWKRKEKLPQVTRSWHNYMCNCVIQDFQASVLQVSDSTYDEQVAAQMPTVHYEFPNGYNCDFGAERLKIPEGLFDPSNVKGLSGNTMLGVSHVVTTSVGMCDIDIRPGLYGSVIVAGGNTLIQSFTDRLNRELSQKTPPSMRLKLIANNTTVERRFSSWIGGSILASLGTFQQMWISKQEYEEGGKQCVERKCP

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Mammalia

Entity 4 polymer

description	B-cell CLL/lymphoma 7 protein family member B
formula_weight	22291.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MASGRSVRAETRSRAKDDIKKVMAAIEKVRKWEKKWVTVGDTSLRIFKWVPVTDSKEKEKSKSNSSAAREPNGFPSDASANSSLLLEFQDENSNQSSVSDVYQLKVDSSTNSSPSPQQSESLSPAHTSDFRTDDSQPPTLGQEILEEPSLPSSEVADEPPTLTKEEPVPLETQVVEEEEDSGAPPLKRFCVDQPTVPQTASES

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Mammalia

Entity 5 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	2

Entity 6 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.74 Å
resolution_method	—
num_particles	239509

fit	/app/data/saxs_computation/ux/9uxc/9uxc.fit
pddf	/app/data/pr_computation/ux/9uxc/9uxc.pr.out
profile	/app/data/saxs_computation/ux/9uxc/9uxc.dat

The ADP-bound structure of BCL7B-containing ARP module of the human SWI/SNF complex

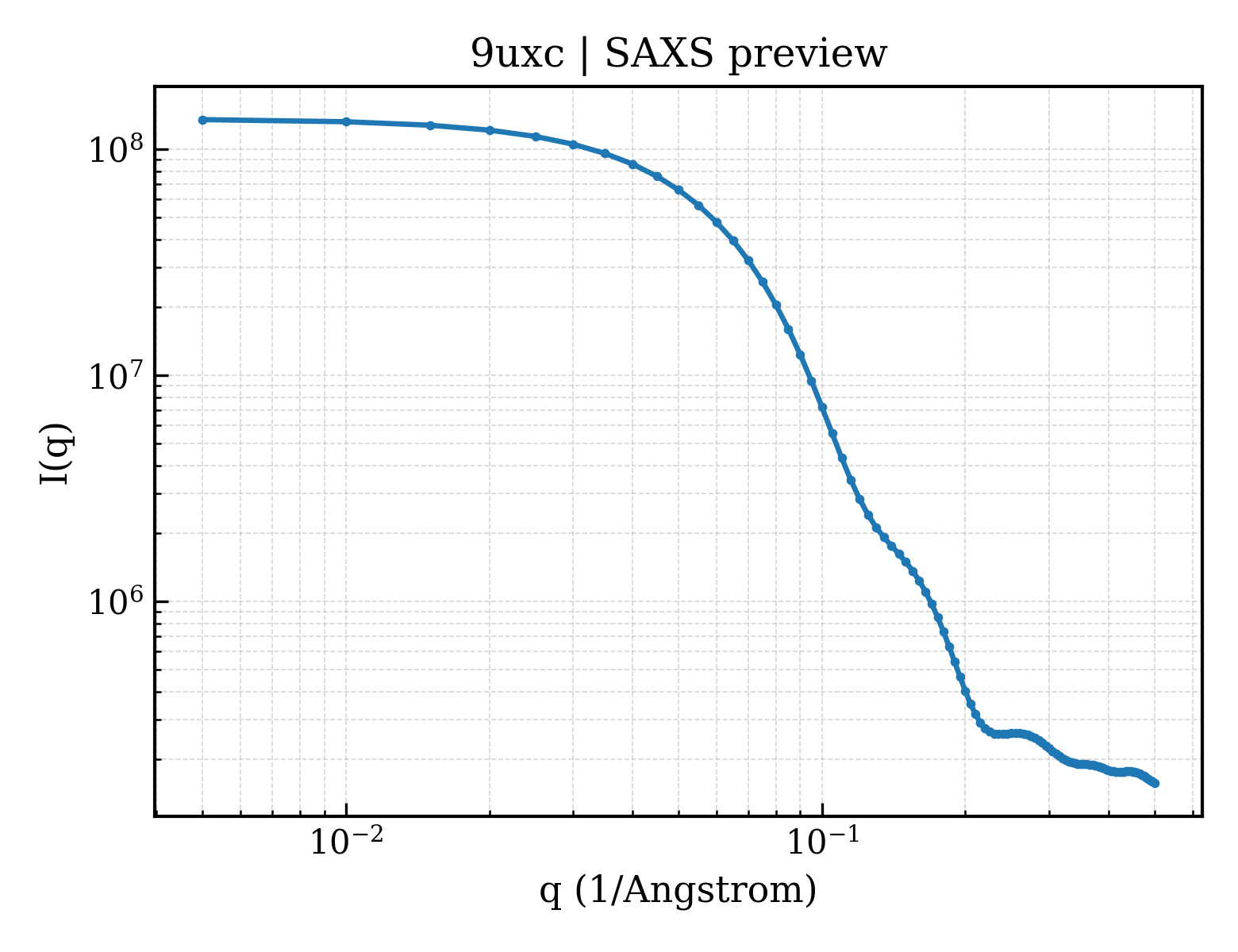

SAXS Profile

P(r) Distribution
