9v2v

Cryo-EM structure of the histone deacetylase complex Rpd3L in complex with mono-nucleosome

Method: ELECTRON MICROSCOPY D_max: 217.0 Å Quality: GOOD

SAXS Profile

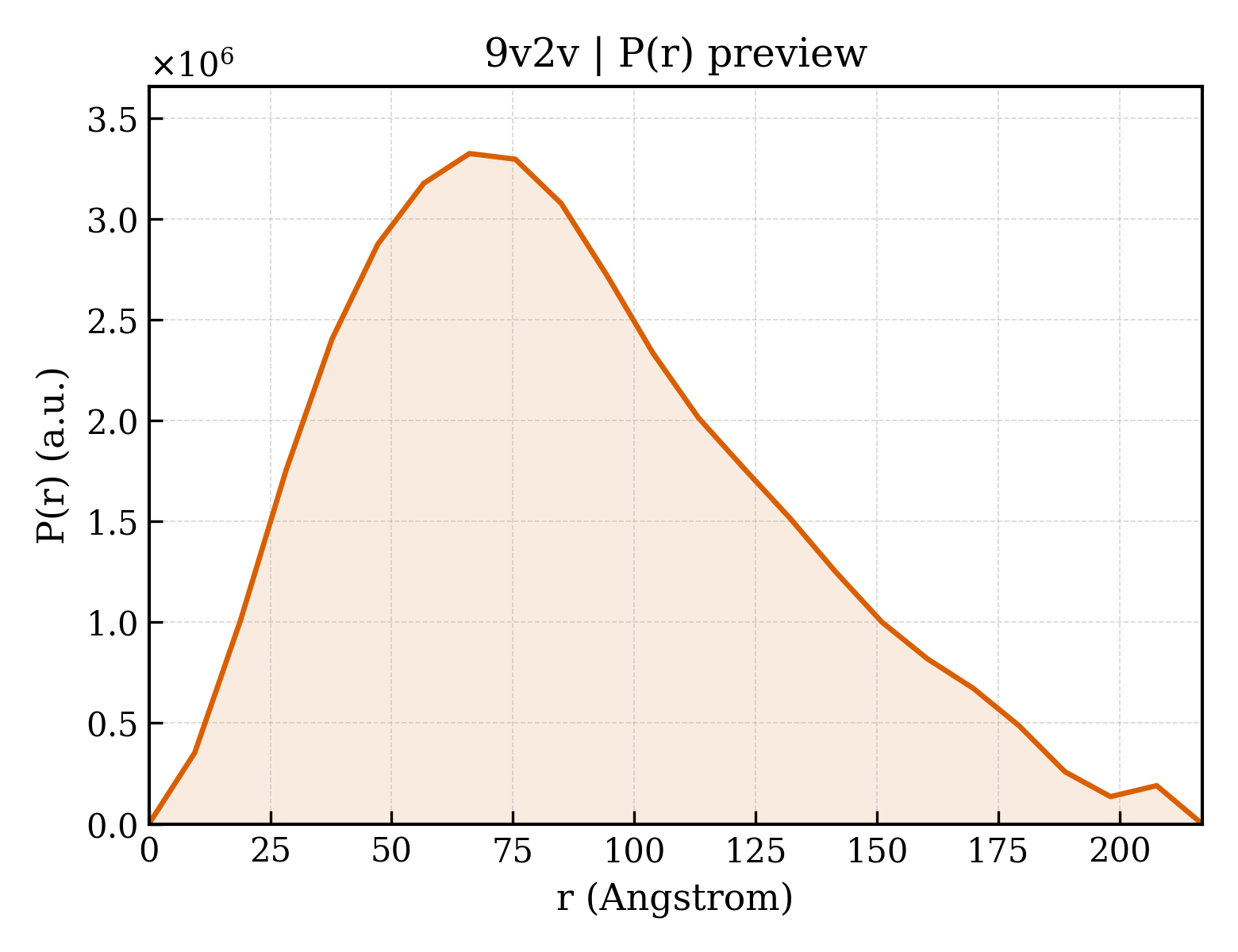

P(r) Distribution

▼

1. Structure Basics

entry_id	9v2v
deposition_date	2025-05-21
title	Cryo-EM structure of the histone deacetylase complex Rpd3L in complex with mono-nucleosome
keywords	;Histone deacetylase complex, Histone modification, Rpd3L, Cryo-EM, mono-nucleosome, GENE REGULATION/DNA, GENE REGULATION-DNA complex ;; GENE REGULATION/DNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	67.27 Å
rg_electron	67.11 Å
i0	4320480000.00
molecular_weight	491830.0 kDa
excluded_volume	589520 Å³
envelope_volume	942530 Å³
shell_volume	119820 Å³
envelope_diameter	238.9 Å
shell_rg	64.05 Å
envelope_rg	66.22 Å
shape_rg	67.05 Å
total_rg	67.25 Å
total_atoms	34241
n_residues	3721
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	217.0 Å
rg_real	67.51 Å
rg_real_error	2.05 Å
i0_real	4.3190e+09
i0_real_error	9.1600e+07
rg_reciprocal	66.21 Å
i0_reciprocal	4310000000.0000
total_estimate	0.8268
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	66.0 Å
skewness	0.527
kurtosis	-0.271
angular_range	— – 0.1150 Å⁻¹
current_alpha	0.0004
highest_alpha	198700000.0000
n_real_points	24
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.887; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.100

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (16)

Entity 1 polymer

description	Transcriptional regulatory protein SIN3
formula_weight	80758.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	34241

LNEEVTFFEKAKRYIGNKHLYTEFLKILNLYSQDILDLDDLVEKVDFYLGSNKELFTWFKNFVGYQEKTKCIENIVHEKHRLDLDLCEAFGPSYKRLPKSDTFMPCSGRDDMCWEVLNDEWVGHPVWASEDSGFIAHRKNQYEETLFKIEEERHEYDFYIESNLRTIQCLETIVNKIENMTENEKANFKLPPGLGHTSMTIYKKVIRKVYDKERGFEIIDALHEHPAVTAPVVLKRLKQKDEEWRRAQREWNKVWRELEQKVFFKSLDHLGLTFKQADKKLLTTKQLISEISSIKVDQTNKKIHWLTPKPKSQLDFDFPDKNIFYDILCLADTFITHTTAYSNPDKERLKDLLKYFISLFFSISFEKIEESLYSHKQNVSESSGSDDGSSIASRKRPYQQEMSLLDILHRSRYQKLKRSNDEDGKVPQLSEPPEEEPNTIEEEELIDEEAKNPWLTGNLVEEANSQGIIQNRSIFNLFANTNIYIFFRHWTTIYERLLEIKQMNERVTKEINTRSTVTFAKDLDLLSSQLSEMGLDFVGEDAYKQVLRLSRRLINGDLEHQWFEESLRQAYNNKAFKLYTIDKVTQSLVKHAHTLMTDAKTAEIMALFVKDRNASTTSAKDQIIYRLQVRSHMSNTENMFRIEFDKRTLHVSIQYIALDDLTLKEPKADEDKWKYYVTSYALP

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 2 polymer

description	Histone deacetylase RPD3
formula_weight	43524.3 kDa
ec_number	3.5.1.98
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,D

DPITVKPSDKRRVAYFYDADVGNYAYGAGHPMKPHRIRMAHSLIMNYGLYKKMEIYRAKPATKQEMCQFHTDEYIDFLSRVTPDNLEMFKRESVKFNVGDDCPVFDGLYEYCSISGGGSMEGAARLNRGKCDVAVNYAGGLHHAKKSEASGFCYLNDIVLGIIELLRYHPRVLYIDIDVHHGDGVEEAFYTTDRVMTCSFHKYGEFFPGTGELRDIGVGAGKNYAVNVPLRDGIDDATYRSVFEPVIKKIMEWYQPSAVVLQCGGDSLSGDRLGCFNLSMEGHANCVNYVKSFGIPMMVVGGGGYTMRNVARTWCFETGLLNNVVLDKDLPYNEYYEYYGPDYKLSVRPSNMFNVNTPEYLDKVMTNIFANLENTKYAPSVQLNH

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 3 polymer

description	Transcriptional regulatory protein DEP1
formula_weight	14553.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

EQRMTALKEITDIEYKFAQLRQKLYDNQLVRLQTELQMCLEGSHPELQVYYSKIAAIRDYKLHRAYQRQKYELSCINTETIATRTFIHQDFHKKVTDLRARLLNRTTQTWYDINKERRD

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 4 polymer

description	Transcriptional regulatory protein SDS3
formula_weight	35851.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

KDKRRFNIESKVNKIYQNFYSERDNQYKDRLTALQTDLTSLHQGDNGQYARQVRDLEEERDLELVRLRLFEEYRVSRSGIEFQEDIEKAKAEHEKLIKLCKERLYSSIEQKIKKLQEERLLMDVANVHSYAMNYSRPQYQKNTRSHTVSGWDSSSNEYGRDTANESATDTGAGNDRRTLRRRNASKDTRGNNNNQDESDFQTGNGSGSNGHGSRQGSQFPHFNNLTYKSGMNSDSDFLQGINEGTDLYAFLFGEKNPKDNANGNEKKKNRGAQRYSTKTAPPLQSLKPDEVTEDISLIRELTGQPPAPFRL

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 5 polymer

description	Transcriptional regulatory protein SAP30
formula_weight	14480.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

RLTAAQQQYIKNLIETHITDNHPDLRPKSHPMDFEEYTDAFLRRYKDHFQLDVPDNLTLQGYLLGSKLGAKTYSYKRNTQGQHDKRIHKRDLANVVRRHFDEHSIKETDCIPQFIYKVKNQ

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 6 polymer

description	Transcriptional regulatory protein RXT3
formula_weight	23933.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

LPNVSSQSVLAFTEKHYPNKLKNLGTLYYNRFKEGSFDEDSTSYSDRHSFPYNLYDNTLPPPFLPAIGIQNINNIATLKITYEDIQASFNNIESPRKRNNEIWGCDIYSDDSDPILVLRHCGFKIGAPSGGSFHKLRRTPVNVTNQDNVTGNLPLLEGTPFDLEVELLFLPTLQKYPSVKRFDITSREWGSEATVIHDGLSYGIYSIVIKQ

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 7 polymer

description	Transcriptional regulatory protein PHO23
formula_weight	12360.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

LNDITDVLEEFPLATSRYLTLLHEIDAKCVHSMPNLNERIDKFLKKDFNKDHQTQVRLLNNINKIYEELMPSLEEKMHVSSIMLDNLDRLTSRLELAYEVAIKNT

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 8 polymer

description	Transcriptional regulatory protein RXT2
formula_weight	24683.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	J

SKLVNVKEILTPILSLGDIINHKTISRTFSSPILKNLALQIILMIEKEQMSVVRYSQFLEVFLGDHPEPIYESNLNLPSYNHNLTLPEDRGASDEDDINNKNNINEVNSNSLSTEAGHINNGMEEFGEEDPFFALPRLEQSNALLSLLPSSSGSASISTLTAAEQQQLNEEIESARQLSQIALQRNKEFIRNLQKIRKSVIKANRIRGRILNWSREYL

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 9 polymer

description	Histone deacetylase complex subunit CTI6
formula_weight	28742.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

TFMAREEKQYQRMLEKALKESRRTSHQEDPESYENDADIYQGDTDNHNGTTRLQTDVMLTEGKPDSVTNDDMKESLRPSKEQSMEKTNDVEKEASQEKESSTGSAQDTEKTDEPILPLTSISSSEDDSRKASSRGSKRVSKPARKGNRTRRSNTSSDTNQNRRSADIGTDKPVKPRLPPQRTSLNEMRRRVSAILEFISRTQWELSEDQSDREEFVRFVENQHFVEKVDTIYNGYNESLSMMDDLTREL

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Trichoplusia ni

Entity 10 polymer

description	Histone H2A
formula_weight	11722.7 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	O,S

RAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLP

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 11 polymer

description	Histone H2B
formula_weight	10407.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	P,T

KTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTS

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 12 polymer

description	Histone H3
formula_weight	11560.5 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	Q,U

KPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLCAIHAKRVTIMPKDIQLARRIRGER

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 13 polymer

description	Histone H4
formula_weight	9066.6 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	R,V

LRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGF

Source

organism	Xenopus laevis
common_name	African clawed frog
ncbi_taxonomy_id	8355
host_organism	Escherichia coli

Entity 14 polymer

description	DNA (155-MER)
formula_weight	48115.7 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	X

TCTAGAACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGGG

Source

organism	synthetic construct
ncbi_taxonomy_id	32630
host_organism	Escherichia coli

Entity 15 polymer

description	DNA (155-MER)
formula_weight	47577.3 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	Y

CCCTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTTCTAGA

Source

organism	synthetic construct
ncbi_taxonomy_id	32630
host_organism	Escherichia coli

Entity 16 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

resolution	3.00 Å
resolution_method	—
num_particles	451544

fit	/app/data/saxs_computation/v2/9v2v/9v2v.fit
pddf	/app/data/pr_computation/v2/9v2v/9v2v.pr.out
profile	/app/data/saxs_computation/v2/9v2v/9v2v.dat
