9v9h

Cryo-EM structure of the cPRC1-di-nucleosome (tight) complex

Method: ELECTRON MICROSCOPY D_max: 201.2 Å Quality: GOOD

SAXS Profile

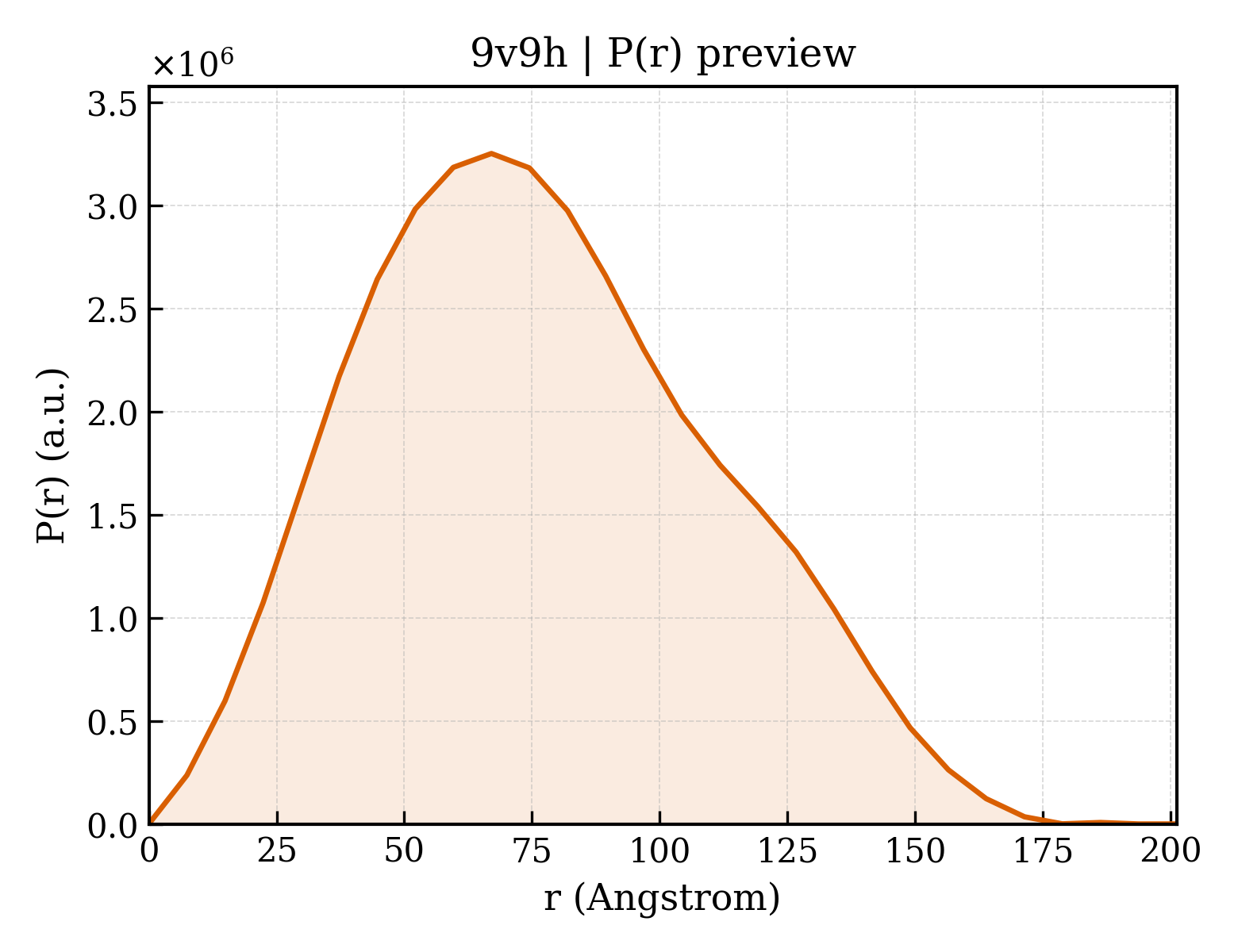

P(r) Distribution

▼

1. Structure Basics

entry_id	9v9h
deposition_date	2025-05-30
title	Cryo-EM structure of the cPRC1-di-nucleosome (tight) complex
keywords	nucleosome modification, transcriptional regulation, GENE REGULATION; GENE REGULATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	59.11 Å
rg_electron	58.28 Å
i0	3569390000.00
molecular_weight	385730.0 kDa
excluded_volume	434990 Å³
envelope_volume	771120 Å³
shell_volume	109540 Å³
envelope_diameter	205.4 Å
shell_rg	61.88 Å
envelope_rg	56.28 Å
shape_rg	58.21 Å
total_rg	58.54 Å
total_atoms	48263
n_residues	2446
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	201.2 Å
rg_real	59.08 Å
rg_real_error	1.95 Å
i0_real	3.5690e+09
i0_real_error	7.2430e+07
rg_reciprocal	59.11 Å
i0_reciprocal	3569000000.0000
total_estimate	0.8748
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	67.0 Å
skewness	0.299
kurtosis	-0.520
angular_range	— – 0.1350 Å⁻¹
current_alpha	0.0000
highest_alpha	306600000.0000
n_real_points	28
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.834; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.867

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (9)

Entity 1 polymer

description	Histone H3.1
formula_weight	15437.2 kDa
src_method	nat
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,E,K,M
atom_count	48263

MARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEACEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Entity 2 polymer

description	Histone H4
formula_weight	11394.4 kDa
src_method	nat
entity_count	4

Polymer

type	polypeptide(L)
strand_id	B,F,Q,R

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Entity 3 polymer

description	Histone H2A type 1-H
formula_weight	13935.3 kDa
src_method	nat
entity_count	4

Polymer

type	polypeptide(L)
strand_id	C,G,L,O

MSGRGKQGGKARAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGKVTIAQGGVLPNIQAVLLPKKTESHHKAK

Entity 4 polymer

description	Histone H2B type 1-C/E/F/G/I
formula_weight	13937.2 kDa
src_method	nat
entity_count	4

Polymer

type	polypeptide(L)
strand_id	D,H,N,P

MPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSVYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSSK

Entity 5 polymer

description	DNA (276-MER)
formula_weight	85179.1 kDa
src_method	nat
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	I

TATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCGA

Entity 6 polymer

description	DNA (276-MER)
formula_weight	85290.2 kDa
src_method	nat
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	J

TCGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATA

Entity 7 polymer

description	Polycomb complex protein BMI-1
formula_weight	37006.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	S,U

MHRTTRIKITELNPHLMCVLCGGYFIDATTIIECLHSFCKTCIVRYLETSKYCPICDVQVHKTRPLLNIRSDKTLQDIVYKLVPGLFKNEMKRRRDFYAAHPSADAANGSNEDRGEVADEDKRIITDDEIISLSIEFFDQNRLDRKVNKDKEKSKEEVNDKRYLRCPAAMTVMHLRKFLRSKMDIPNTFQIDVMYEEEPLKDYYTLMDIAYIYTWRRNGPLPLKYRVRPTCKRMKISHQRDGLTNAGELESDSGSDKANSPAGGIPSTSSCLPSPSTPVQSPHPQFPHISSTMNGTSNSPSGNHQSSFANRPRKSSVNGSSATSSG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 8 polymer

description	E3 ubiquitin-protein ligase RING2
formula_weight	37706.4 kDa
ec_number	2.3.2.27
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	T,V

MSQAVQTNGTQPLSKTWELSLYELQRTPQEAITDGLEIVVSPRSLHSELMCPICLDMLKNTMTTKECLHRFCADCIITALRSGNKECPTCRKKLVSKRSLRPDPNFDALISKIYPSRDEYEAHQERVLARINKHNNQQALSHSIEEGLKIQAMNRLQRGKKQQIENGSGAEDNGDSSHCSNASTHSNQEAGPSNKRTKTSDDSGLELDNNNAAMAIDPVMDGASEIELVFRPHPTLMEKDDSAQTRYIKTSGNATVDHLSKYLAVRLALEELRSKGESNQMNLDTASEKQYTIYIATASGQFTVLNGSFSLELVSEKYWKVNKPMELYYAPTKEHK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 9 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	8

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	4.50 Å
resolution_method	—
num_particles	97701

fit	/app/data/saxs_computation/v9/9v9h/9v9h.fit
pddf	/app/data/pr_computation/v9/9v9h/9v9h.pr.out
profile	/app/data/saxs_computation/v9/9v9h/9v9h.dat
