SAXSdb — 9vu6

▼

1. Structure Basics

entry_id	9vu6
deposition_date	2025-07-12
last_revision	2025-11-05
title	Cryo-EM structure of unmethylated DNA-bound Tetrahymena DNA methyltransferase complex MTA1c (MTA9-B)
keywords	;DNA methyltransferase, DNA N6-methyladenine modification, protein-DNA complex, chromatin regulation, gene regulation, DNA BINDING PROTEIN/DNA, DNA BINDING PROTEIN-DNA complex ;; DNA BINDING PROTEIN/DNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.74 Å
rg_electron	32.28 Å
i0	149133000.00
molecular_weight	89547.0 kDa
excluded_volume	108730 Å³
envelope_volume	149820 Å³
shell_volume	39332 Å³
envelope_diameter	110.9 Å
shell_rg	38.48 Å
envelope_rg	32.30 Å
shape_rg	32.26 Å
total_rg	32.81 Å
total_atoms	6248
n_residues	691
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

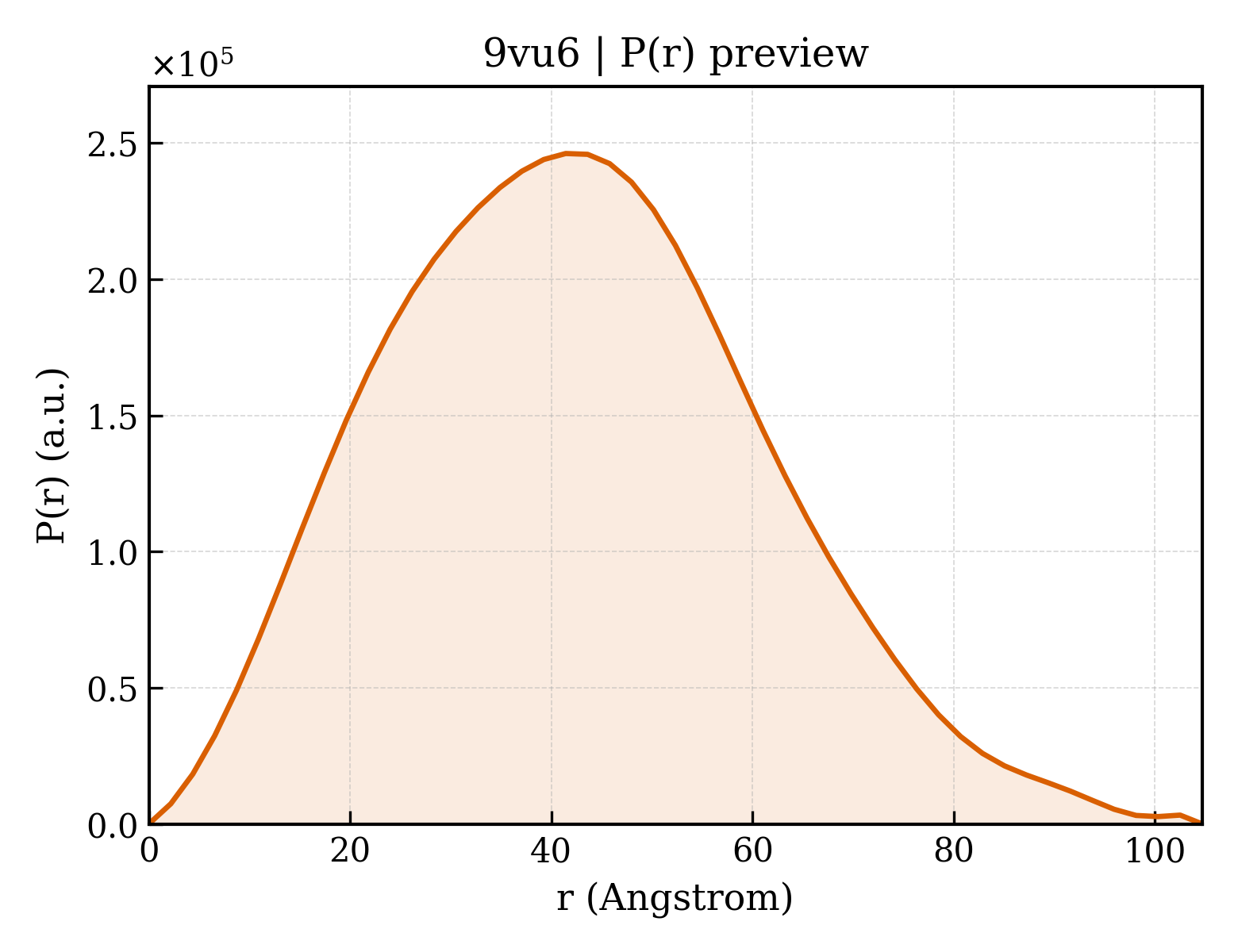

3. P(r) Analysis (GNOM)

dmax	104.7 Å
rg_real	32.68 Å
rg_real_error	0.68 Å
i0_real	1.4910e+08
i0_real_error	2.4230e+06
rg_reciprocal	32.71 Å
i0_reciprocal	149100000.0000
total_estimate	0.8910
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	41.4 Å
skewness	0.291
kurtosis	-0.278
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0000
highest_alpha	15520000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.823

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	mRNA m(6)A methyltransferase
formula_weight	43368.9 kDa
ec_number	2.1.1.348
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6248

GPEFKLMSKAVNKKGLRPRKSDSILDHIKNKLDQEFLEDNENGEQSDEDYDQKSLNKAKKPYKKRQTQNGSELVISQQKTKAKASANNKKSAKNSQKLDEEEKIVEEEDLSPQKNGAVSEDDQQQEASTQEDDYLDRLPKSKKGLQGLLQDIEKRILHYKQLFFKEQNEIANGKRSMVPDNSIPICSDVTKLNFQALIDAQMRHAGKMFDVIMMDPPWQLSSSQPSRGVAIAYDSLSDEKIQNMPIQSLQQDGFIFVWAINAKYRVTIKMIENWGYKLVDEITWVKKTVNGKIAKGHGFYLQHAKESCLIGVKGDVDNGRFKKNIASDVIFSERRGQSQKPEEIYQYINQLCPNGNYLEIFARRNNLHDNWVSIGNEL

Source

organism	Tetrahymena thermophila SB210
ncbi_taxonomy_id	312017
host_organism	Escherichia coli

Entity 2 polymer

description	Methyltransferase MT, putative
formula_weight	41270.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

GPGRPMSQETLAACQSLDKFAHPKKVSPVQKSQIIEEPPLQKKIKPTEPGEDQLSLLLKWRSSYIPPQKPTNEDEYKKIICKDISSEKLEQHAGDVSALFINIKWKLSEGQSGKSIEDLKKLAISDKLINNGIIFIWSEKEILSQIVDVLEAKGFNYIENFMINQLSADKALEMQRKNQNQQSKEKKITDFFKRLTPQKNIWSDITPEQCIEQEKFPPNNYVQDIFVNSEYSFFRKSKKILLMLRKFNKDAQLELRHQRTSDIFFDIFEQNKPNDVSKKGMEFVYKMIETLLPKANYSEENKGAFKMMELYADDKSQPRKGWISVYEQEWSHPQFEKGGGSGGGSGGGSWSHPQFEK

Source

organism	Tetrahymena thermophila SB210
ncbi_taxonomy_id	312017
host_organism	Escherichia coli

Entity 3 polymer

description	Myb-like DNA-binding domain protein
formula_weight	41937.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

GPGRPSLKKGKFQHNQSKSLWNYTLSPGWREEEVKILKSALQLFGIGKWKKIMESGCLPGKSIGQIYMQTQRLLGQQSLGDFMGLQIDLEAVFNQNMKKQDVLRKNNCIINTGDNPTKEERKRRIEQNRKIYGLSAKQIAEIKLPKVKKHAPQYMTLEDIENEKFTNLEILTHLYNLKAEIVRRLAEQGETIAQPSIIKSLNNLNHNLEQNQNSNSSTETKVTLEQSGKKKYKVLAIEETELQNGPIATNSQKKSINGKRKNNRKINSDSEGNEEDISLEDIDSQESEINSEEIVEDDEEDEQIEEPSKIKKRKKNPEQESEEDDIEEDQEEDELVVNEEEIFEDDDDDEDNQDSSEDDDDDED

Source

organism	Tetrahymena thermophila SB210
ncbi_taxonomy_id	312017
host_organism	Escherichia coli

Entity 4 polymer

description	Transmembrane protein, putative
formula_weight	17043.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

GPEFMKKNGKSQNQPLDFTQYAKNMRKDLSNQDICLEDGALNHSYFLTKKGQYWTPLNQKALQRGIELFGVGNWKEINYDEFSGKANIVELELRTCMILGINDITEYYGKKISEEEQEEIKKSNIAKGKKENKLKDNIYQKLQQMQ

Source

organism	Tetrahymena thermophila SB210
ncbi_taxonomy_id	312017
host_organism	Escherichia coli

Entity 5 polymer

description	DNA (27-MER)
formula_weight	8426.5 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	E

AGTTAAAGTTAAGATGTTAAGAAAGTT

Entity 6 polymer

description	DNA (27-MER)
formula_weight	8159.3 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	F

AACTTTCTTAACATCTTAACTTTAACT

Entity 7 non-polymer

description	S-ADENOSYLMETHIONINE
formula_weight	398.4 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.29 Å
resolution_method	—
num_particles	137561

fit	/app/data/saxs_computation/vu/9vu6/9vu6.fit
pddf	/app/data/pr_computation/vu/9vu6/9vu6.pr.out
profile	/app/data/saxs_computation/vu/9vu6/9vu6.dat
