SAXSdb — 9vum

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltose/maltodextrin-binding periplasmic protein,RNA-directed RNA polymerase L

Henipavirus nipahense

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	ZINC ION × 2 2-methyl-~{N}-[4-[(2~{S})-2-(2-morpholin-4-ylethyl)piperidin-1-yl]sulfonylphenyl]-5-(trifluoromethyl)pyrazole-3-carboxamide × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MALE_ECOLI
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain L； PDBConstruct 47–410； UniProt 29–392 Author chain A； PDBConstruct 15–378； UniProt 29–392 Author chain B； PDBConstruct 15–378； UniProt 29–392 Author chain C； PDBConstruct 15–378； UniProt 29–392 Author chain D； PDBConstruct 15–378； UniProt 29–392

Maltose/maltodextrin-binding periplasmic protein,RNA-directed RNA polymerase L

Henipavirus nipahense

UniProt Q997F0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Maltose/maltodextrin-binding periplasmic protein,Phosphoprotein × 4 （P0AEX9,Q9IK91） ZINC ION × 2 2-methyl-~{N}-[4-[(2~{S})-2-(2-morpholin-4-ylethyl)piperidin-1-yl]sulfonylphenyl]-5-(trifluoromethyl)pyrazole-3-carboxamide × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	L_NIPAV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 430–1894； UniProt 1–1465

Maltose/maltodextrin-binding periplasmic protein,Phosphoprotein

Henipavirus nipahense

UniProt Q9IK91

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Maltose/maltodextrin-binding periplasmic protein,RNA-directed RNA polymerase L × 1 （P0AEX9,Q997F0） ZINC ION × 2 2-methyl-~{N}-[4-[(2~{S})-2-(2-morpholin-4-ylethyl)piperidin-1-yl]sulfonylphenyl]-5-(trifluoromethyl)pyrazole-3-carboxamide × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHOSP_NIPAV
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 399–638； UniProt 470–709 Author chain B； PDBConstruct 399–638； UniProt 470–709 Author chain C； PDBConstruct 399–638； UniProt 470–709 Author chain D； PDBConstruct 399–638； UniProt 470–709

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9vum
Deposition date deposition_date	2025-07-13
Structure title title	Cryo-EM structure of the Nipah virus RNA-dependent RNA polymerase complex bound to allosteric inhibitor ERDRP-0519
Keywords keywords	RNA-dependent RNA polymerase complex bound to allosteric inhibitor ERDRP-0519, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9vum__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9vum__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

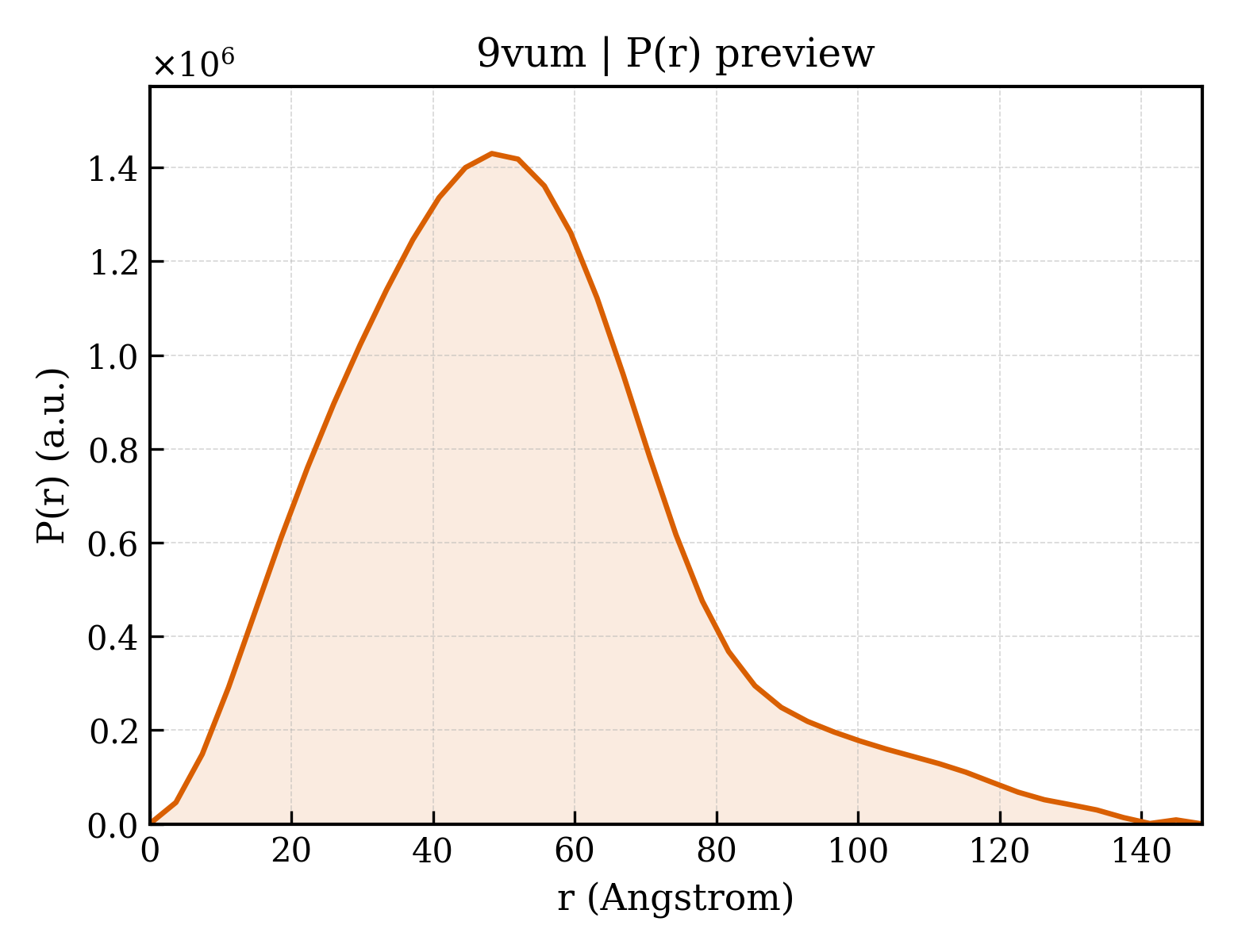

9vum__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.90 Å
Rg (electron density)	39.89 Å
Total Rg	40.33 Å
Atom count	12866
Residues	1599
Excluded volume	230620 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9vum__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Maltose/maltodextrin-binding periplasmic protein,RNA-directed RNA polymerase L
Molecular weight formula_weight	215827.8 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	12867

MGSGWSHPQFEKGGGSGGGSGGSAWSHPQFEKGSASHHHHHHGTKTEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTGTDYDIPTTLEVLFQGPGSMADELSISDIIYPECHLDSPIVSGKLISAIEYAQLRHNQPSDDKRLSENIRLNLHGKRKSLYILRQSKQGDYIRNNIKNLKEFMHIAYPECNNILFSITSQGMTSKLDNIMKKSFKAYNIISKKVIGMLQNITRNLITQDRRDEIINIHECRRLGDLGKNMSQSKWYECFLFWFTIKTEMRAVIKNSQKPKFRSDSCIIHMRDKSTEIILNPNLICIFKSDKTGKKCYYLTPEMVLMYCDVLEGRMMMETTVKSDIKYQPLISRSNALWGLIDPLFPVMGNRIYNIVSMIEPLVLALLQLKDEARILRGAFLHHCIKEMHQELSECGFTDQKIRSMFIDDLLSILNIDNIHLLAEFFSFFRTFGHPILEAKVAAEKVREHMLADKVLEYAPIMKAHAIFCGTIINGYRDRHGGAWPPLYLPAHASKHIIRLKNSGESLTIDDCVKNWESFCGIQFDCFMELKLDSDLSMYMKDKALSPIKDEWDSVYPREVLSYTPPKSTEPRRLVDVFVNDENFDPYNMLEYVLSGAYLEDEQFNVSYSLKEKETKQAGRLFAKMTYKMRACQVIAEALIASGVGKYFKENGMVKDEHELLKTLFQLSISSVPRGNSQGNDPQSINNIERDFQYFKGVTTNVKDKKNNSFNKVKSALNNPCQADGVHHNMSPNTRNRYKCSNTSKSFLDYHTEFNPHNHYKSDNTEAAVLSRYEDNTGTKFDTVSAFLTTDLKKFCLNWRYESMAIFAERLDEIYGLPGFFNWMHKRLERSVIYVADPNCPPNIDKHMELEKTPEDDIFIHYPKGGIEGYSQKTWTIATIPFLFLSAYETNTRIAAIVQGDNESIAITQKVHPNLPYKVKKEICAKQAQLYFERLRMNLRALGHNLKATETIISTHLFIYSKKIHYDGAVLSQALKSMSRCCFWSETLVDETRSACSNISTTIAKAIENGLSRNVGYCINILKVIQQLLISTEFSINETLTLDVTSPISNNLDWLITAALIPAPIGGFNYLNLSRIFVRNIGDPVTASLADLKRMIDHSIMTESVLQKVMNQEPGDASFLDWASDPYSGNLPDSQSITKTIKNITARTILRNSPNPMLKGLFHDKSFDEDLELASFLMDRRVILPRAAHEILDNSLTGAREEIAGLLDTTKGLIRSGLRKSGLQPKLVSRLSHHDYNQFLILNKLLSNRRQNDLISSNTCSVDLARALRSHMWRELALGRVIYGLEVPDALEAMVGRYITGSLECQICEQGNTMYGWFFVPRDSQLDQVDREHSSIRVPYVGSSTDERSDIKLGNVKRPTKALRSAIRIATVYTWAYGDNEECWYEAWYLASQRVNIDLDVLKAITPVSTSNNLSHRLRDKSTQFKFAGSVLNRVSRYVNISNDNLDFRIEGEKVDTNLIYQQAMLLGLSVLEGKFRLRLETDDYNGIYHLHVKDNCCVKEVADVGQVDAELPIPEYTEVDNNHLIYDPDPVSESRDYKDDDDK

Source Source

Source organism organism	Henipavirus nipahense
NCBI taxonomy ID ncbi_taxonomy_id	3052225
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Maltose/maltodextrin-binding periplasmic protein,Phosphoprotein
Molecular weight formula_weight	70995.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D

MGSSHHHHHHGTKTEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTGTDYDIPTTLEVLFQGPLGSNDSLDDKYIMPSDDFSNTFFPHDTDRLNYHADHLGDYDLETLCEESVLMGVINSIKLINLDMRLNHIEEQVKEIPKIINKLESIDRVLAKTNTALSTIEGHLVSMMIMIPGKGKGERKGKNNPELKPVIGRDILEQQSLFSFDNVKNFRDGSLTNEPYGAAVQLREDLILPELNFEETNASQFVPMADDSSRDVIKTLIRTHIKDRELRSELIGYLNKAENDEEIQEIANTVNDIIDGNI

Source Source

Source organism organism	Henipavirus nipahense
NCBI taxonomy ID ncbi_taxonomy_id	3052225
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	2-methyl-~{N}-[4-[(2~{S})-2-(2-morpholin-4-ylethyl)piperidin-1-yl]sulfonylphenyl]-5-(trifluoromethyl)pyrazole-3-carboxamide
Molecular weight formula_weight	529.6 kDa
Source method src_method	nat
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.840 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.84 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	158764
