9xzl

Cryo-EM structure of F-box helicase 1 (FBH1) bound to an SCF ubiquitin ligase complex and a 3-way DNA fork (body structure)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cullin-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 1	F-box DNA helicase 1 × 1 （Q8NFZ0） S-phase kinase-associated protein 1 × 1 （P63208） DNA (45-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MAGNESIUM ION × 1 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CUL1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–776； UniProt 1–776

F-box DNA helicase 1

Homo sapiens

UniProt Q8NFZ0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 1	Cullin-1 × 1 （Q13616） S-phase kinase-associated protein 1 × 1 （P63208） DNA (45-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MAGNESIUM ION × 1 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FBH1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 4–972； UniProt 75–1043

S-phase kinase-associated protein 1

Homo sapiens

UniProt P63208

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 1	Cullin-1 × 1 （Q13616） F-box DNA helicase 1 × 1 （Q8NFZ0） DNA (45-MER) × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MAGNESIUM ION × 1 ZINC ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SKP1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain S； PDBConstruct 1–163； UniProt 1–163

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9xzl
Deposition date deposition_date	2025-08-27
Structure title title	Cryo-EM structure of F-box helicase 1 (FBH1) bound to an SCF ubiquitin ligase complex and a 3-way DNA fork (body structure)
Keywords keywords	Helicase, Translocase, Fork remodeler, Fork reversal, Replication fork, DNA binding, ISOMERASE-DNA complex; ISOMERASE/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9xzl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9xzl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

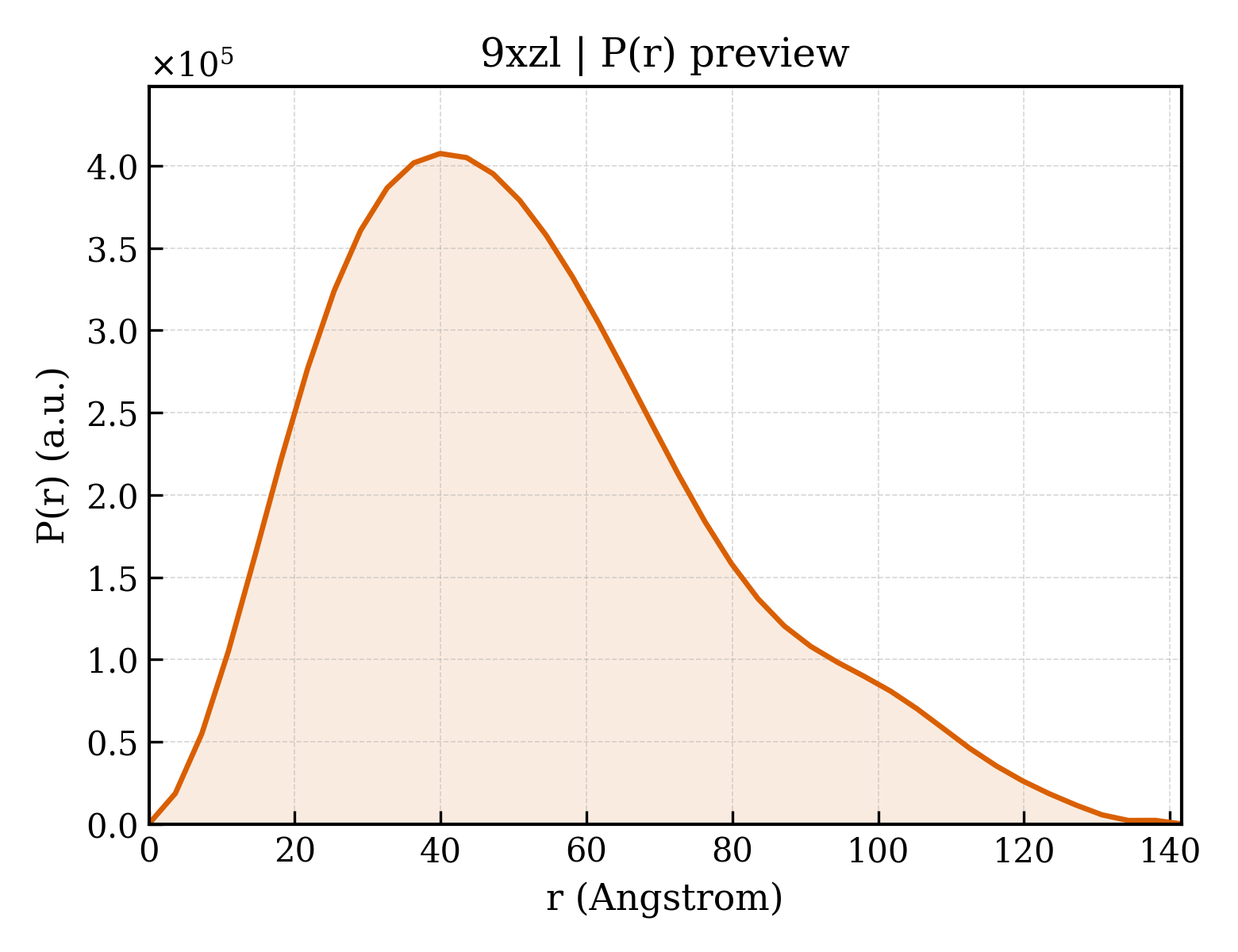

9xzl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	40.35 Å
Rg (electron density)	40.42 Å
Total Rg	40.51 Å
Atom count	20158
Residues	1238
Excluded volume	180220 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9xzl__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Cullin-1
Molecular weight formula_weight	89800.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	20158

MSSTRSQNPHGLKQIGLDQIWDDLRAGIQQVYTRQSMAKSRYMELYTHVYNYCTSVHQSNQARGAGVPPSKSKKGQTPGGAQFVGLELYKRLKEFLKNYLTNLLKDGEDLMDESVLKFYTQQWEDYRFSSKVLNGICAYLNRHWVRRECDEGRKGIYEIYSLALVTWRDCLFRPLNKQVTNAVLKLIEKERNGETINTRLISGVVQSYVELGLNEDDAFAKGPTLTVYKESFESQFLADTERFYTRESTEFLQQNPVTEYMKKAEARLLEEQRRVQVYLHESTQDELARKCEQVLIEKHLEIFHTEFQNLLDADKNEDLGRMYNLVSRIQDGLGELKKLLETHIHNQGLAAIEKCGEAALNDPKMYVQTVLDVHKKYNALVMSAFNNDAGFVAALDKACGRFINNNAVTKMAQSSSKSPELLARYCDSLLKKSSKNPEEAELEDTLNQVMVVFKYIEDKDVFQKFYAKMLAKRLVHQNSASDDAEASMISKLKQACGFEYTSKLQRMFQDIGVSKDLNEQFKKHLTNSEPLDLDFSIQVLSSGSWPFQQSCTFALPSELERSYQRFTAFYASRHSGRKLTWLYQLSKGELVTNCFKNRYTLQASTFQMAILLQYNTEDAYTVQQLTDSTQIKMDILAQVLQILLKSKLLVLEDENANVDEVELKPDTLIKLYLGYKNKKLRVNINVPMETEQKQEQETTHKNIEEDRKLLIQAAIVRIMKMRKVLKHQQLLGEVLTQLSSRFKPRVPVIKKCIDILIEKEYLERVDGEKDTYSYLA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	F-box DNA helicase 1
Molecular weight formula_weight	109518.7 kDa
EC 编号 ec_number	5.6.2.4
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

SNAMAKSNSVGQDSCQDSEGDMIFPAESSCALPQEGSAGPGSPGSAPPSRKRSWSSEEESNQATGTSRWDGVSKKAPRHHLSVPCTRPREARQEAEDSTSRLSAESGETDQDAGDVGPDPIPDSYYGLLGTLPCQEALSHICSLPSEVLRHVFAFLPVEDLYWNLSLVCHLWREIISDPLFIPWKKLYHRYLMNEEQAVSKVDGILSNCGIEKESDLCVLNLIRYTATTKCSPSVDPERVLWSLRDHPLLPEAEACVRQHLPDLYAAAGGVNIWALVAAVVLLSSSVNDIQRLLFCLRRPSSTVTMPDVTETLYCIAVLLYAMREKGINISNRIHYNIFYCLYLQENSCTQATKVKEEPSVWPGKKTIQLTHEQQLILNHKMEPLQVVKIMAFAGTGKTSTLVKYAEKWSQSRFLYVTFNKSIAKQAERVFPSNVICKTFHSMAYGHIGRKYQSKKKLNLFKLTPFMVNSVLAEGKGGFIRAKLVCKTLENFFASADEELTIDHVPIWCKNSQGQRVMVEQSEKLNGVLEASRLWDNMRKLGECTEEAHQMTHDGYLKLWQLSKPSLASFDAIFVDEAQDCTPAIMNIVLSQPCGKIFVGDPHQQIYTFRGAVNALFTVPHTHVFYLTQSFRFGVEIAYVGATILDVCKRVRKKTLVGGNHQSGIRGDAKGQVALLSRTNANVFDEAVRVTEGEFPSRIHLIGGIKSFGLDRIIDIWILLQPEEERRKQNLVIKDKFIRRWVHKEGFSGFKRYVTAAEDKELEAKIAVVEKYNIRIPELVQRIEKCHIEDLDFAEYILGTVHKAKGLEFDTVHVLDDFVKVPCARHNLPQLPHFRVESFSEDEWNLLYVAVTRAKKRLIMTKSLENILTLAGEYFLQAELTSNVLKTGVVRCCVGQCNNAIPVDTVLTMKKLPITYSNRKENKGGYLCHSCAEQRIGPLAFLTASPEQVRAMERTVENIVLPRHEALLFLVF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	S-phase kinase-associated protein 1
Molecular weight formula_weight	18680.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MPSIKLQSSDGEIFEVDVEIAKQSVTIKTMLEDLGMDDEGDDDPVPLPNVNAAILKKVIQWCTHHKDDPPPPEDDENKEKRTDDIPVWDQEFLKVDQGTLFELILAANYLDIKGLLDVTCKTVANMIKGKTPEEIRKTFNIKNDFTEEEEAQVRKENQWCEEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	DNA (45-MER)
Molecular weight formula_weight	13921.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	X

GACTGCGAAGGTAGCGACAGATCCCCTGACGAACTGAGTCCTGAG

Entity 5 Entity 5 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	181442

Cryo-EM structure of F-box helicase 1 (FBH1) bound to an SCF ubiquitin ligase complex and a 3-way DNA fork (body structure)
