9yc9

HSV replication fork complex bound to pritelivir

Method: ELECTRON MICROSCOPY D_max: 218.9 Å Quality: GOOD

SAXS Profile

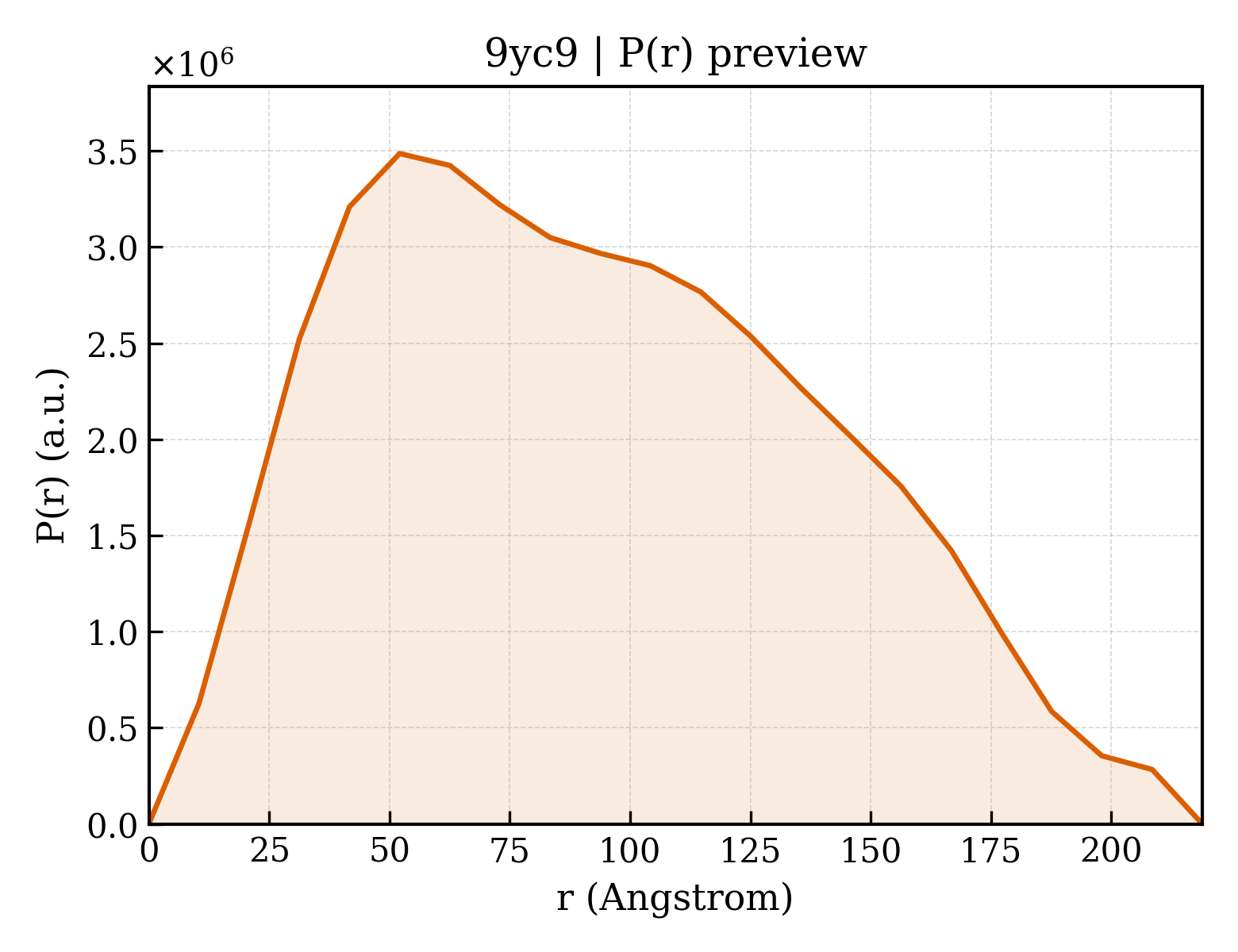

P(r) Distribution

▼

1. Structure Basics

entry_id	9yc9
deposition_date	2025-09-18
title	HSV replication fork complex bound to pritelivir
keywords	HSV, replisome, replication, VIRAL PROTEIN; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	72.96 Å
rg_electron	73.19 Å
i0	5497790000.00
molecular_weight	406780.0 kDa
excluded_volume	389010 Å³
envelope_volume	912850 Å³
shell_volume	106160 Å³
envelope_diameter	251.2 Å
shell_rg	68.27 Å
envelope_rg	72.19 Å
shape_rg	73.21 Å
total_rg	73.11 Å
total_atoms	30712
n_residues	3809
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	218.9 Å
rg_real	73.12 Å
rg_real_error	1.55 Å
i0_real	5.4940e+09
i0_real_error	1.1900e+08
rg_reciprocal	71.66 Å
i0_reciprocal	5480000000.0000
total_estimate	0.8335
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	52.1 Å
skewness	0.324
kurtosis	-0.745
angular_range	— – 0.1050 Å⁻¹
current_alpha	0.0043
highest_alpha	117400000.0000
n_real_points	22
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (10)

Entity 1 polymer

description	DNA (25-MER)
formula_weight	7593.9 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	D
atom_count	30757

TTTTTTTTTTTTTTTTTTTTTTTGA

Source

organism	Human alphaherpesvirus 1 strain R-15
ncbi_taxonomy_id	36345
host_organism	Homo sapiens

Entity 2 polymer

description	DNA (25-MER)
formula_weight	7740.0 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	P

GAATTCGAGCTCGGTACCCGGGGAT

Source

organism	Human alphaherpesvirus 1 strain R-15
ncbi_taxonomy_id	36345
host_organism	Homo sapiens

Entity 3 polymer

description	DNA (33-MER)
formula_weight	10063.5 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	T

TTCTTTTGATCCCCGGGTACCGAGCTCGAATTC

Source

organism	Human alphaherpesvirus 1 strain R-15
ncbi_taxonomy_id	36345
host_organism	Homo sapiens

Entity 4 polymer

description	UL52
formula_weight	114558.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MGQEDGNRGERRAAGTPVEVTALYATDGCVITSSIALLTNSLLGAEPVYIFSYDAYTHDGRADGPTEQDRFEESRALYQASGGLNGDSFRVTFCLLGTEVGGTHQARGRTRPMFVCRFERADDVAALQDALAHGTPLQPDHIAATLDAEATFALHANMILALTVAINNASPRTGRDAAAAQYDQGASLRSLVGRTSLGQRGLTTLYVHHEVRVLAAYRRAYYGSAQSPFWFLSKFGPDEKSLVLTTRYYLLQAQRLGGAGATYDLQAIKDICATYAIPHAPRPDTVSAASLTSFAAITRFCCTSQYARGAAAAGFPLYVERRIAADVRETSALEKFITHDRSCLRVSDREFITYIYLAHFECFSPPRLATHLRAVTTHDPNPAASTEQPSPLGREAVEQFFCHVRAQLNIGEYVKHNVTPRETVLDGDTAKAYLRARTYAPGALTPAPAYCGAVDSATKMMGRLADAEKLLVPRGWPAFAPASPGEDTAGGTPPPQTCGIVKRLLRLAATEQQGPTPPAIAALIRNAAVQTPLPVYRISMVPTGQAFAALAWDDWARITRDARLAEAVVSAEAAAHPDHGALGRRLTDRIRAQGPVMPPGGLDAGGQMYVNRNEIFNGALAITNIILDLDIALKEPVPFRRLHEALGHFRRGALAAVQLLFPAARVDPDAYPCYFFKSACRPGPASVGSGSGLGNDDDGDWFPCYDDAGDEEWAEDPGAMDTSHDPPDDEVAYFDLCHEVGPTAEPRETDSPVCSCTDKIGLRVCMPVPAPYVVHGSLTMRGVARVIQQAVLLDRDFVEAIGSYVKNFLLIDTGVYAHGHSLRLPYFAKIAPDGPACGRLLPVFVIPPACKDVPAFVAAHADPRRFHFHAPPTYLASPREIRVLHSLGGDYVSFFERKASRNALEHFGRRETLTEVLGRYNVQPDAGGTVEGFASELLGRIVACIETHFPEHAGEYQAVSVRRAVSKDDWVLLQLVPVRGTLQQSLSCLRFKHGRASRATARTFVALSVGANNRLCVSLCQQCFAAKCDSNRLHTLFTIDAGTPCSPSVPCSTSQPSS

Source

organism	Human alphaherpesvirus 1 strain R-15
ncbi_taxonomy_id	36345
host_organism	Homo sapiens

Entity 5 polymer

description	UL5
formula_weight	98823.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MAAAGGERQLDGQKPGPPHLQQPGDRPAVPGRAEAFLNFTSMHGVQPILKRIRELSQQQLDGAQVPHLQWFRDVAALESPAGLPLREFPFAVYLITGNAGSGKSTCVQTINEVLDCVVTGATRIAAQNMYAKLSGAFLSRPINTIFHEFGFRGNHVQAQLGQYPYTLTSNPASLEDLQRRDLTYYWEVILDLTKRALAASGGEELRNEFRALAALERTLGLAEGALTRLAPATHGALPAFTRSNVIVIDEAGLLGRHLLTAVVYCWWMINALYHTPQYAARLRPVLVCVGSPTQTASLESTFEHQKLRCSVRQSENVLTYLICNRTLREYARLSYSWAIFINNKRCVEHEFGNLMKVLEYGLPITEEHMQFVDRFVVPENYITNPANLPGWTRLFSSHKEVSAYMAKLHAYLKVTREGEFVVFTLPVLTFVSVKEFDEYRRLTHQPGLTIEKWLTANASRITNYSQSQDQDAGHMRCEVHSKQQLVVARNDVTYVLNSQIAVTARLRKLVFGFSGTFRAFEAVLRDDSFVKTQGETSVEFAYRFLSRLIFSGLISFYNFLQRPGLDATQRTLAYARMGELTAEILSLRPKSSGVPTQASVMADAGAPGERAFDFKQLGPRDGGPDDFPDDDLDVIFAGLDEQQLDVFYCHYTPGEPETTAAVHTQFALLKRAFLGRFRILQELFGEAFEVAPFSTYVDNVIFRGCEMLTGSPRGGLMSVALQTDNYTLMGYTYARVFAFADELRRRHATANVAELLEEAPLPYVVLRDQHGFMSVVNTNISEFVESIDSTELAMAINADYGISSKLAMTITRSQGLSLDKVAICFTPGNLRLNSAYVAMSRTTSSEFLRMNLNPLRERHERDDVISEHILSALRDPNVVIVY

Source

organism	Human alphaherpesvirus 1 strain R-15
ncbi_taxonomy_id	36345
host_organism	Homo sapiens

Entity 6 polymer

description	UL30
formula_weight	136726.9 kDa
ec_number	2.7.7.7
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MFSGGGGPLSPGGKSAARAASGFFAPAGPRGAGRGPPPCLRQNFYNPYLAPVGTQQKPTGPTQRHTYYSECDEFRFIAPRVLDEDAPPEKRAGVHDGHLKRAPKVYCGGDERDVLRVGSGGFWPRRSRLWGGVDHAPAGFNPTVTVFHVYDILENVEHAYGMRAAQFHARFMDAITPTGTVITLLGLTPEGHRVAVHVYGTRQYFYMNKEEVDRHLQCRAPRDLCERMAAALRESPGASFRGISADHFEAEVVERTDVYYYETRPALFYRVYVRSGRVLSYLCDNFCPAIKKYEGGVDATTRFILDNPGFVTFGWYRLKPGRNNTLAQPRAPMAFGTSSDVEFNCTADNLAIEGGMSDLPAYKLMCFDIECKAGGEDELAFPVAGHPEDLVIQISCLLYDLSTTALEHVLLFSLGSCDLPESHLNELAARGLPTPVVLEFDSEFEMLLAFMTLVKQYGPEFVTGYNIINFDWPFLLAKLTDIYKVPLDGYGRMNGRGVFRVWDIGQSHFQKRSKIKVNGMVNIDMYGIITDKIKLSSYKLNAVAEAVLKDKKKDLSYRDIPAYYATGPAQRGVIGEYCIQDSLLVGQLFFKFLPHLELSAVARLAGINITRTIYDGQQIRVFTCLLRLADQKGFILPDTQGRFRGAGGEAPKRPAAAREDEERPEEEGEDEDEREEGGGEREPEGARETAGRHVGYQGARVLDPTSGFHVNPVVVFDFASLYPSIIQAHNLCFSTLSLRADAVAHLEAGKDYLEIEVGGRRLFFVKAHVRESLLSILLRDWLAMRKQIRSRIPQSSPEEAVLLDKQQAAIKVVCNSVYGFTGVQHGLLPCLHVAATVTTIGREMLLATREYVHARWAAFEQLLADFPEAADMRAPGPYSMRIIYGDTDSIFVLCRGLTAAGLTAMGDKMASHISRALFLPPIKLECEKTFTKLLLIAKKKYIGVIYGGKMLIKGVDLVRKNNCAFINRTSRALVDLLFYDDTVSGAAAALAERPAEEWLARPLPEGLQAFGAVLVDAHRRITDPERDIQDFVLTAELSRHPRAYTNKRLAHLTVYYKLMARRAQVPSIKDRIPYVIVAQTREVEETVARLAALRELDAAAPGDEPAPPAALPSPAKRPRETPSHADPPGGASKPRKLLVSELAEDPAYAIAHGVALNTDYYFSHLLGAACVTFKALFGNNAKITESLLKRFIPEVWHPPDDVAARLRAAGFGAVGAGATAEETRRMLHRAFDTLA

Source

organism	Human alphaherpesvirus 1 strain R-15
ncbi_taxonomy_id	36345
host_organism	Homo sapiens

Entity 7 polymer

description	UL8
formula_weight	80005.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MDTADIVWVEESVSAITLYAVWLPPRAREYFHALVYFVCRNAAGEGRARFAEVSVTATELRDFYGSADVSVQAVVAAARAATTPAASPLEPLENPTLWRALYACVLAALERQTGPVALFAPLRIGSDPRTGLVVKVERASWGPPAAPRAALLVAEANIDIDPMALAARVAEHPDARLAWARLAAIRDTPQCASAASLTVNITTGTALFAREYQTLAFPPIKKEGAFGDLVEVCEVGLRPRGHPQRVTARVLLPRDYDYFVSAGEKFSAPALVALFRQWHTTVHAAPGALAPVFAFLGPEFEVRGGPVPYFAVLGFPGWPTFTVPATAESARDLVRGAAAAYAALLGAWPAVGARVVLPPRAWPGVASAAAGCLLPAVREAVARWHPATKIIQLLDPPAAVGPVWTARFCFPGLRAQLLAALADLGGSGLADPHGRTGLARLDALVVAAPSEPWAGAVLERLVPDTCNACPALRQLLGGVMAAVCLQIEETASSVKFAVCGGDGGAFWGVFNVDPQDADAASGVIEDARRAIETAVGAVLRANAVRLRHPLCLALEGVYTHAVAWSQAGVWFWNSRDNTDHLGGFPLRGPAYTTAAGVVRDTLRRVLGLTTACVPEEDALTARGLMEDACDRLILDAFNKRLDAEYWSVRVSPFEASDPLPPTAFRGGALLDAEHYWRRVVRVCPGGGESVGVPVDLYPRPLVLPPVDCAHHLREILREIELVFTGVLAGVWGEGGKFVYPFDDKMSFLFA

Source

organism	Human alphaherpesvirus 1 strain R-15
ncbi_taxonomy_id	36345
host_organism	Homo sapiens

Entity 8 polymer

description	UL42
formula_weight	51208.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

MTDSPGGVAPASPVEDASDASLGQPEEGAPCQVVLQGAELNGILQAFAPLRTSLLDSLLVMGDRGILIHNTIFGEQVFLPLEHSQFSRYRWRGPTAAFLSLVDQKRSLLSVFRANQYPDLRRVELAITGQAPFRTLVQRIWTTTSDGEAVELASETLMKRELTSFVVLVPQGTPDVQLRLTRPQLTKVLNATGADSATPTTFELGVNGKFSVFTTSTCVTFAAREEGVSSSTSTQVQILSNALTKAGQAAANAKTVYGENTHRTFSVVVDDCSMRAVLRRLQVGGGTLKFFLTTPVPSLCVTATGPNAVSAVFLLKPQKICLDWLGHSQGSPSAGSSASRASGSEPTDSQDSASDAVSHGDPEDLDGAARAGEAGALHACPMPSSTTRVTPTTKRGRSGGEDARADTALKKPKTGSPTAPPPADPVPLDTEDDSDAADGTAARPAAPDARSGSRYACYFRDLPTGEASPGAFSAFRGGPQTPYGFGFP

Source

organism	Human alphaherpesvirus 1 strain R-15
ncbi_taxonomy_id	36345
host_organism	Homo sapiens

Entity 9 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 10 non-polymer

description	Pritelivir
formula_weight	402.5 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

resolution	3.80 Å
resolution_method	—
num_particles	60000

fit	/app/data/saxs_computation/yc/9yc9/9yc9.fit
pddf	/app/data/pr_computation/yc/9yc9/9yc9.pr.out
profile	/app/data/saxs_computation/yc/9yc9/9yc9.dat
