1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphoinositide 3-kinase regulatory subunit 4

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Phosphatidylinositol 3-kinase catalytic subunit type 3 × 1 （Q8NEB9） UV radiation resistance-associated gene protein × 1 （Q9P2Y5） Beclin-1,Run domain Beclin-1-interacting and cysteine-rich domain-containing protein chimera × 2 （Q14457,Q92622） GUANOSINE-5'-TRIPHOSPHATE × 1 ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0JP11_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 37–1394； UniProt 1–1358

Phosphatidylinositol 3-kinase catalytic subunit type 3

Homo sapiens

UniProt Q8NEB9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Phosphoinositide 3-kinase regulatory subunit 4 × 1 （A0JP11） UV radiation resistance-associated gene protein × 1 （Q9P2Y5） Beclin-1,Run domain Beclin-1-interacting and cysteine-rich domain-containing protein chimera × 2 （Q14457,Q92622） GUANOSINE-5'-TRIPHOSPHATE × 1 ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PK3C3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–887； UniProt 1–887

UV radiation resistance-associated gene protein

Homo sapiens

UniProt Q9P2Y5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Phosphoinositide 3-kinase regulatory subunit 4 × 1 （A0JP11） Phosphatidylinositol 3-kinase catalytic subunit type 3 × 1 （Q8NEB9） Beclin-1,Run domain Beclin-1-interacting and cysteine-rich domain-containing protein chimera × 2 （Q14457,Q92622） GUANOSINE-5'-TRIPHOSPHATE × 1 ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UVRAG_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–699； UniProt 1–699

Beclin-1,Run domain Beclin-1-interacting and cysteine-rich domain-containing protein chimera

Homo sapiens

UniProt Q14457

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Phosphoinositide 3-kinase regulatory subunit 4 × 1 （A0JP11） Phosphatidylinositol 3-kinase catalytic subunit type 3 × 1 （Q8NEB9） UV radiation resistance-associated gene protein × 1 （Q9P2Y5） GUANOSINE-5'-TRIPHOSPHATE × 1 ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BECN1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–450； UniProt 1–450 Author chain E； PDBConstruct 1–450； UniProt 1–450

Beclin-1,Run domain Beclin-1-interacting and cysteine-rich domain-containing protein chimera

Homo sapiens

UniProt Q92622

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Phosphoinositide 3-kinase regulatory subunit 4 × 1 （A0JP11） Phosphatidylinositol 3-kinase catalytic subunit type 3 × 1 （Q8NEB9） UV radiation resistance-associated gene protein × 1 （Q9P2Y5） GUANOSINE-5'-TRIPHOSPHATE × 1 ZINC ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RUBIC_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 463–663； UniProt 472–672 Author chain E； PDBConstruct 463–663； UniProt 472–672

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9zpd
Deposition date deposition_date	2025-12-16
Structure title title	Cryo-EM structure of human PI3KC3-C2 in complex with Rubicon Middle Region of C terminus
Keywords keywords	;Lipid kinase, endocytic sorting, cytokinesis, autophagosome maturation, lysosome recycling, LC3-associated phagocytosis, SIGNALING PROTEIN ;; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9zpd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9zpd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

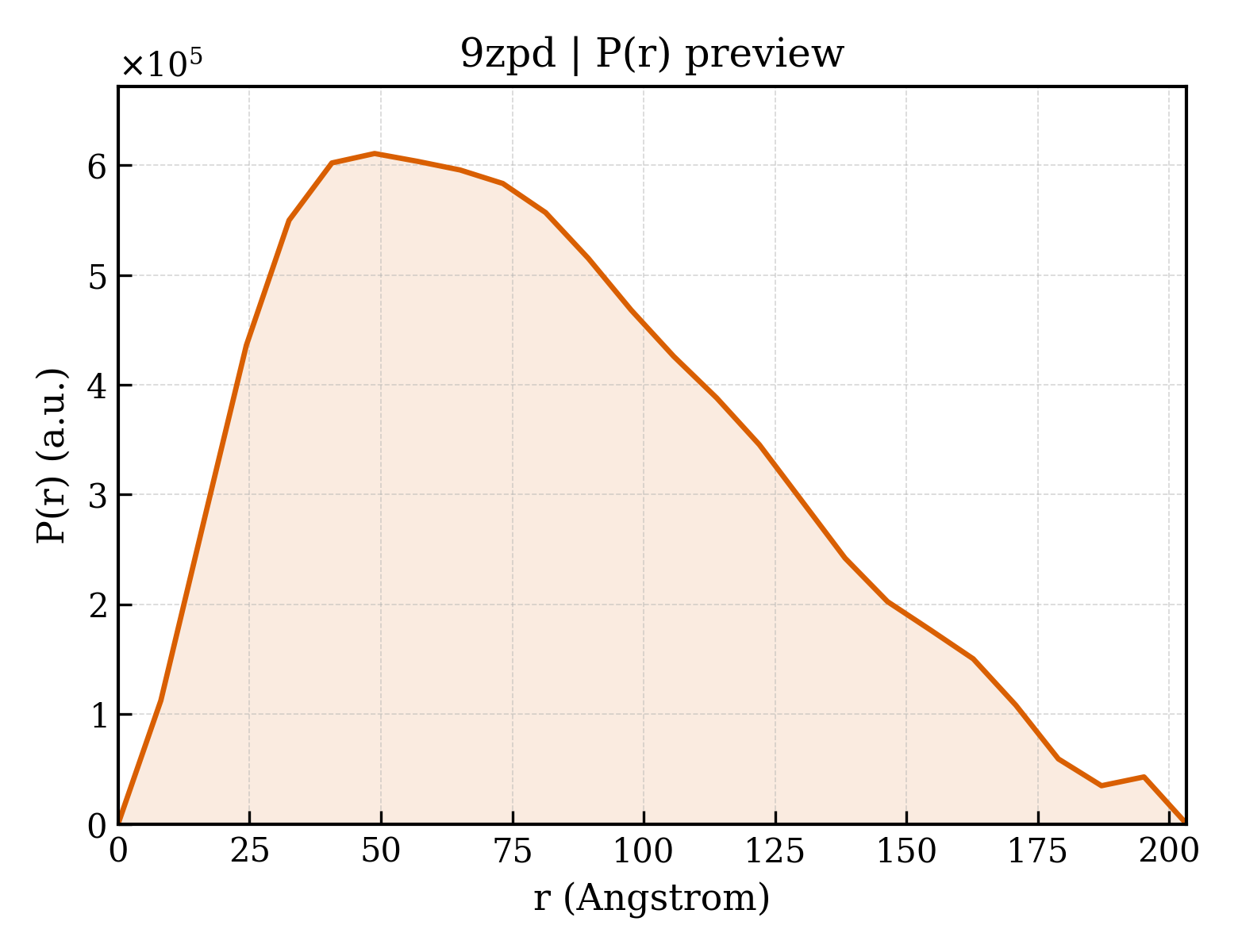

9zpd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	63.03 Å
Rg (electron density)	64.08 Å
Total Rg	63.79 Å
Atom count	17403
Residues	2149
Excluded volume	310840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9zpd__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Phosphoinositide 3-kinase regulatory subunit 4
Molecular weight formula_weight	162838.1 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	17403

MFMPSSFSYSSWATCWLLCCLIILAKNSSIDGIEATMGNQLAGIAPSQILSVESYFSDIHDFEYDKSLGSTRFFKVARAKHREGLVVVKVFAIQDPTLPLTSYKQELEELKIRLNSAQNCLPFQKASEKASEKAAMLFRQYVRDNLYDRISTRPFLNNIEKRWIAFQILTAVDQAHKSGVRHGDIKTENVMVTSWNWVLLTDFASFKPTYLPEDNPADFNYFFDTSRRRTCYIAPERFVDGGMFATELEYMRDPSTPLVDLNSNQRRRGELKRAMDIFSAGCVIAELFTEGVPLFDLSQLLAYRNGHFFPEQVLNKIEDHSIRELVTQMIHREPDKRLEAEDYLKQQRGNAFPEIFYTFLQPYMAQFAKETFLSADERILVIRKDLGNIIHNLCGHDLPEKAEGEPKENGLVILVSVITSCLQTLKYCDSKLAALELILHLAPRLSVEILLDRITPYLLHFSNDSVPRVRAEALRTLTKVLALVKEVPRNDINIYPEYILPGIAHLAQDDATIVRLAYAENIALLAETALRFLELVQLKNLNMENDPNNEEIDEVTHPNGNYDTELQALHEMVQQKVVTLLSDPENIVKQTLMENGITRLCVFFGRQKANDVLLSHMITFLNDKNDWHLRGAFFDSIVGVAAYVGWQSSSILKPLLQQGLSDAEEFVIVKALYALTCMCQLGLLQKPHVYEFASDIAPFLCHPNLWIRYGAVGFITVVARQISTADVYCKLMPYLDPYITQPIIQIERKLVLLSVLKEPVSRSIFDYALRSKDITSLFRHLHMRQKKRNGSLPDCPPPEDPAIAQLLKKLLSQGMTEEEEDKLLALKDFMMKSNKAKANIVDQSHLHDSSQKGVIDLAALGITGRQVDLVKTKQEPDDKRARKHVKQDSNVNEEWKSMFGSLDPPNMPQALPKGSDQEVIQTGKPPRSESSAGICVPLSTSSQVPEVTTVQNKKPVIPVLSSTILPSTYQIRITTCKTELQQLIQQKREQCNAERIAKQMMENAEWESKPPPPGWRPKGLLVAHLHEHKSAVNRIRVSDEHSLFATCSNDGTVKIWNSQKMEGKTTTTRSILTYSRIGGRVKTLTFCQGSHYLAIASDNGAVQLLGIEASKLPKSPKIHPLQSRILDQKEDGCVVDMHHFNSGAQSVLAYATVNGSLVGWDLRSSSNAWTLKHDLKSGLITSFAVDIHQCWLCIGTSSGTMACWDMRFQLPISSHCHPSRARIRRLSMHPLYQSWVIAAVQGNNEVSMWDMETGDRRFTLWASSAPPLSELQPSPHSVHGIYCSPADGNPILLTAGSDMKIRFWDLAYPERSYVVAGSTSSPSVSYYRKIIEGTEVVQEIQNKQKVGPSDDTPRRGPESLPVGHHDIITDVATFQTTQGFIVTASRDGIVKVWKGTENLYFQSGMAAWSHPQFEKGGGARGGSGGGSWSHPQFEKGFDYKDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Phosphatidylinositol 3-kinase catalytic subunit type 3
Molecular weight formula_weight	101680.3 kDa
EC 编号 ec_number	2.7.1.137
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGEAEKFHYIYSCDLDINVQLKIGSLEGKREQKSYKAVLEDPMLKFSGLYQETCSDLYVTCQVFAEGKPLALPVRTSYKAFSTRWNWNEWLKLPVKYPDLPRNAQVALTIWDVYGPGKAVPVGGTTVSLFGKYGMFRQGMHDLKVWPNVEADGSEPTKTPGRTSSTLSEDQMSRLAKLTKAHRQGHMVKVDWLDRLTFREIEMINESEKRSSNFMYLMVEFRCVKCDDKEYGIVYYEKDGDESSPILTSFELVKVPDPQMSMENLVESKHHKLARSLRSGPSDHDLKPNAATRDQLNIIVSYPPTKQLTYEEQDLVWKFRYYLTNQEKALTKFLKCVNWDLPQEAKQALELLGKWKPMDVEDSLELLSSHYTNPTVRRYAVARLRQADDEDLLMYLLQLVQALKYENFDDIKNGLEPTKKDSQSSVSENVSNSGINSAEIDSSQIITSPLPSVSSPPPASKTKEVPDGENLEQDLCTFLISRACKNSTLANYLYWYVIVECEDQDTQQRDPKTHEMYLNVMRRFSQALLKGDKSVRVMRSLLAAQQTFVDRLVHLMKAVQRESGNRKKKNERLQALLGDNEKMNLSDVELIPLPLEPQVKIRGIIPETATLFKSALMPAQLFFKTEDGGKYPVIFKHGDDLRQDQLILQIISLMDKLLRKENLDLKLTPYKVLATSTKHGFMQFIQSVPVAEVLDTEGSIQNFFRKYAPSENGPNGISAEVMDTYVKSCAGYCVITYILGVGDRHLDNLLLTKTGKLFHIDFGYILGRDPKPLPPPMKLNKEMVEGMGGTQSEQYQEFRKQCYTAFLHLRRYSNLILNLFSLMVDANIPDIALEPDKTVKKVQDKFRLDLSDEEAVHYMQSLIDESVHALFAAVVEQIHKFAQYWRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	UV radiation resistance-associated gene protein
Molecular weight formula_weight	78258.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSASASVGGPVPQPPPGPAAALPPGSAARALHVELPSQQRRLRHLRNIAARNIVNRNGHQLLDTYFTLHLCSTEKIYKEFYRSEVIKNSLNPTWRSLDFGIMPDRLDTSVSCFVVKIWGGKENIYQLLIEWKVCLDGLKYLGQQIHARNQNEIIFGLNDGYYGAPFEHKGYSNAQKTILLQVDQNCVRNSYDVFSLLRLHRAQCAIKQTQVTVQKIGKEIEEKLRLTSTSNELKKKSECLQLKILVLQNELERQKKALGREVALLHKQQIALQDKGSAFSAEHLKLQLQKESLNELRKECTAKRELFLKTNAQLTIRCRQLLSELSYIYPIDLNEHKDYFVCGVKLPNSEDFQAKDDGSIAVALGYTAHLVSMISFFLQVPLRYPIIHKGSRSTIKDNINDKLTEKEREFPLYPKGGEKLQFDYGVYLLNKNIAQLRYQHGLGTPDLRQTLPNLKNFMEHGLMVRCDRHHTSSAIPVPKRQSSIFGGADVGFSGGIPSPDKGHRKRASSENERLQYKTPPPSYNSALAQPVTTVPSMGETERKITSLSSSLDTSLDFSKENKKKGEDLVGSLNGGHANVHPSQEQGEALSGHRATVNGTLLPSEQAGSASVQLPGEFHPVSEAELCCTVEQAEEIIGLEATGFASGDQLEAFNCIPVDSAVAVECDEQVLGEFEEFSRRIYALNENVSSFRRPRRSSDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Beclin-1,Run domain Beclin-1-interacting and cysteine-rich domain-containing protein chimera
Molecular weight formula_weight	75300.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

MEGSKTSNNSTMQVSFVCQRCSQPLKLDTSFKILDRVTIQELTAPLLTTAQAKPGETQEEETNSGEEPFIETPRQDGVSRRFIPPARMMSTESANSFTLIGEASDGGTMENLSRRLKVTGDLFDIMSGQTDVDHPLCEECTDTLLDQLDTQLNVTENECQNYKRCLEILEQMNEDDSEQLQMELKELALEEERLIQELEDVEKNRKIVAENLEKVQAEAERLDQEEAQYQREYSEFKRQQLELDDELKSVENQMRYAQTQLDKLKKTNVFNATFHIWHSGQFGTINNFRLGRLPSVPVEWNEINAAWGQTVLLLHALANKMGLKFQRYRLVPYGNHSYLESLTDKSKELPLYCSGGLRFFWDNKFDHAMVAFLDCVQQFKEEVEKGETRFCLPYRMDVEKGKIEDTGGSGGSYSIKTQFNSEEQWTKALKFMLTNLKWGLAWVSSQFYNKGGSGGSGGSGGSQSLISYLSEQDFGSCADLEKENAHFSISESLIAAIELMKCNMMSQCLEEEEVEEEDSDREIQELKQKIRLRRQQIRTKNLLPMYQEAEHGSFRVTSSSSQFSSRDSAQLSDSGSADEVDEFEIQDADIRRNTASSSKSFVSSQSFSHCFLHSTSAEAVAMGLLKQFEGMQLPAASELEWLVPEHDAPQKLLPIPDSLPISP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.38 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	175726

Cryo-EM structure of human PI3KC3-C2 in complex with Rubicon Middle Region of C terminus
