10bu

Adenovirus hexon displaying BAP insertion in the HVR5 region

Method: ELECTRON MICROSCOPY D_max: 144.2 Å Quality: GOOD

SAXS Profile

P(r) Distribution

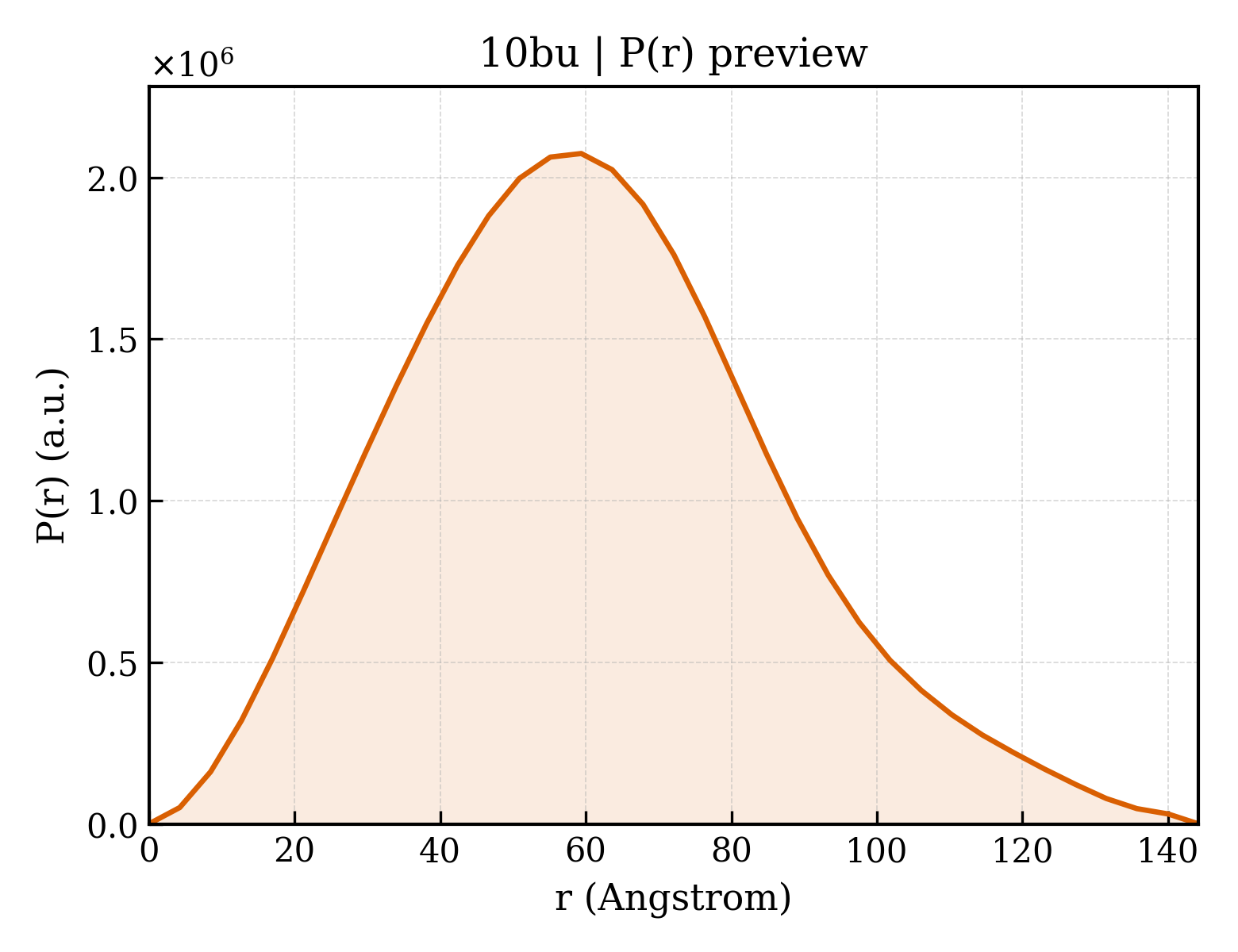

P(r) distribution for 10bu

▼

1. Structure Basics

entry_id	10bu
deposition_date	2026-01-10
title	Adenovirus hexon displaying BAP insertion in the HVR5 region
keywords	;Viral vectors, capsid engineering, zwitterionic peptides, adenoviruses, immune stealth, blood factors, neutralizing antibodies, cryo-EM, VIRUS, VIRAL PROTEIN ;; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	46.51 Å
rg_electron	46.01 Å
i0	1641920000.00
molecular_weight	332510.0 kDa
excluded_volume	413850 Å³
envelope_volume	595390 Å³
shell_volume	102690 Å³
envelope_diameter	153.8 Å
shell_rg	53.76 Å
envelope_rg	46.05 Å
shape_rg	45.95 Å
total_rg	46.52 Å
total_atoms	23438
n_residues	2967
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	144.2 Å
rg_real	46.39 Å
rg_real_error	0.77 Å
i0_real	1.6420e+09
i0_real_error	2.4740e+07
rg_reciprocal	46.51 Å
i0_reciprocal	1642000000.0000
total_estimate	0.8475
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	59.4 Å
skewness	0.350
kurtosis	-0.146
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	324400000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.884; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.395

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
