10fy
[112SE] Two turn tensegrity triangle with 1,1 and 2 bp sticky ends

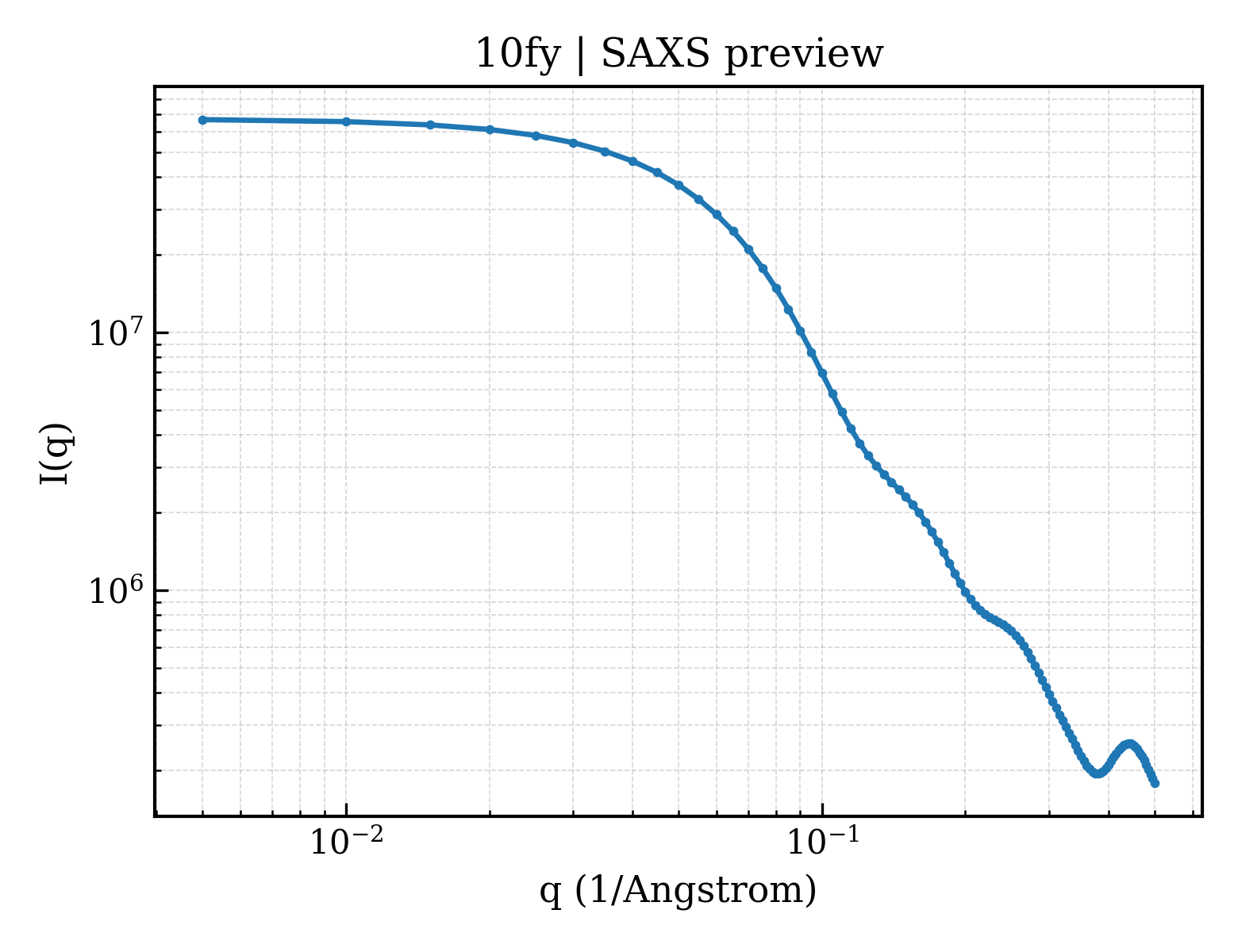

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 10fy |
| deposition_date | 2026-01-18 |
| last_revision | 2026-03-25 |
| title | [112SE] Two turn tensegrity triangle with 1,1 and 2 bp sticky ends |
| keywords | Tensegrity triangle, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.54 Å |
| rg_electron | 26.17 Å |
| i0 | 67154400.00 |
| molecular_weight | 38611.0 kDa |
| excluded_volume | 37335 ų |
| envelope_volume | 64055 ų |
| shell_volume | 21760 ų |
| envelope_diameter | 87.2 Å |
| shell_rg | 31.16 Å |
| envelope_rg | 25.82 Å |
| shape_rg | 26.13 Å |
| total_rg | 26.62 Å |
| total_atoms | 2562 |
| n_residues | 126 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 83.9 Å |
| rg_real | 26.45 Å |
| rg_real_error | 0.57 Å |
| i0_real | 6.7150e+07 |
| i0_real_error | 1.0270e+06 |
| rg_reciprocal | 26.48 Å |
| i0_reciprocal | 67160000.0000 |
| total_estimate | 0.9138 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 30.8 Å |
| skewness | 0.131 |
| kurtosis | -0.641 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1696000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.963; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.991 |
