[17,17,7-7N_3T] Isosceles tensegrity triangle with 17, 17 and 7 base pairs between junctions, three turn edges

entry_id	10hf
deposition_date	2026-01-19
last_revision	2026-03-25
title	[17,17,7-7N_3T] Isosceles tensegrity triangle with 17, 17 and 7 base pairs between junctions, three turn edges
keywords	Tensegrity triangle, DNA; DNA
method	X-RAY DIFFRACTION

rg_guinier	36.39 Å
rg_electron	36.45 Å
i0	139470000.00
molecular_weight	57206.0 kDa
excluded_volume	55310 ų
envelope_volume	106950 ų
shell_volume	26492 ų
envelope_diameter	124.9 Å
shell_rg	38.90 Å
envelope_rg	35.85 Å
shape_rg	36.43 Å
total_rg	36.60 Å
total_atoms	3792
n_residues	186
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	114.8 Å
rg_real	36.49 Å
rg_real_error	1.00 Å
i0_real	1.3950e+08
i0_real_error	2.1870e+06
rg_reciprocal	36.43 Å
i0_reciprocal	139500000.0000
total_estimate	0.6489
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	37.4 Å
skewness	0.245
kurtosis	-0.695
angular_range	— – 0.2150 Å−1
current_alpha	0.0000
highest_alpha	2899000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.978; Stabil: 0.999; Sysdev: 0.048; Positv: 1.000; Valcen: 0.908; Smooth: 0.448

Unit Cell

length_a	91.665 Å
length_b	99.533 Å
length_c	100.317 Å
angle_alpha	83.09 °
angle_beta	62.81 °
angle_gamma	66.03 °
z_pdb	1

Symmetry

space_group	P 1
int_tables_number	1
crystal_system	triclinic

Refinement

resolution	7.240 Å
resolution_low	44.470 Å
r_factor	0.1427
r_work	0.1416
r_free	0.1619

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/0h/10hf/pr_distribution.json
• pr_output /app/data/pr_computation/0h/10hf/10hf.pr.out

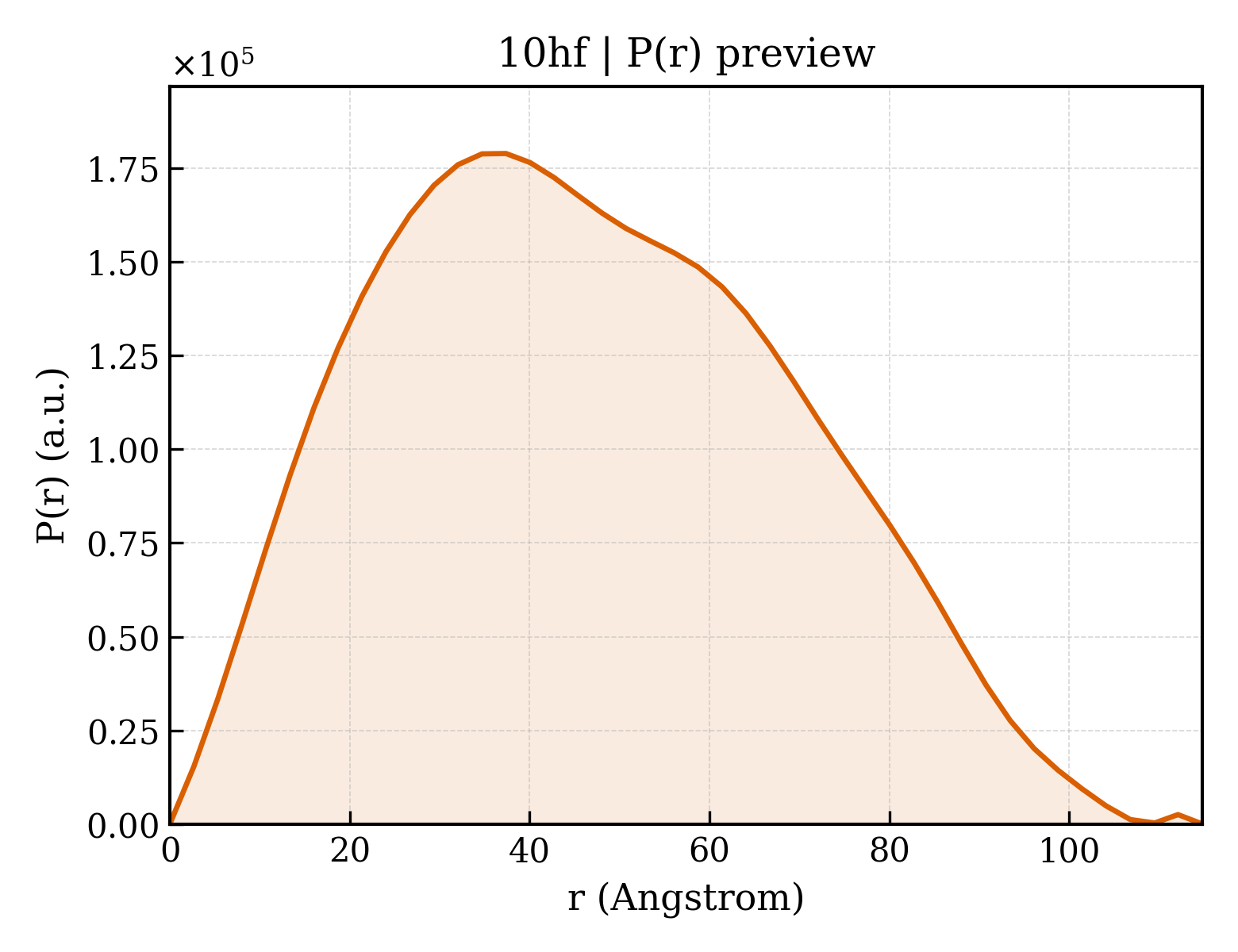

• pr_plot /app/data/visualization/pr_computation/0h/10hf/10hf_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/0h/10hf/10hf.dat
• saxs_fit /app/data/saxs_computation/0h/10hf/10hf.fit
• saxs_log /app/data/saxs_computation/0h/10hf/10hf.log

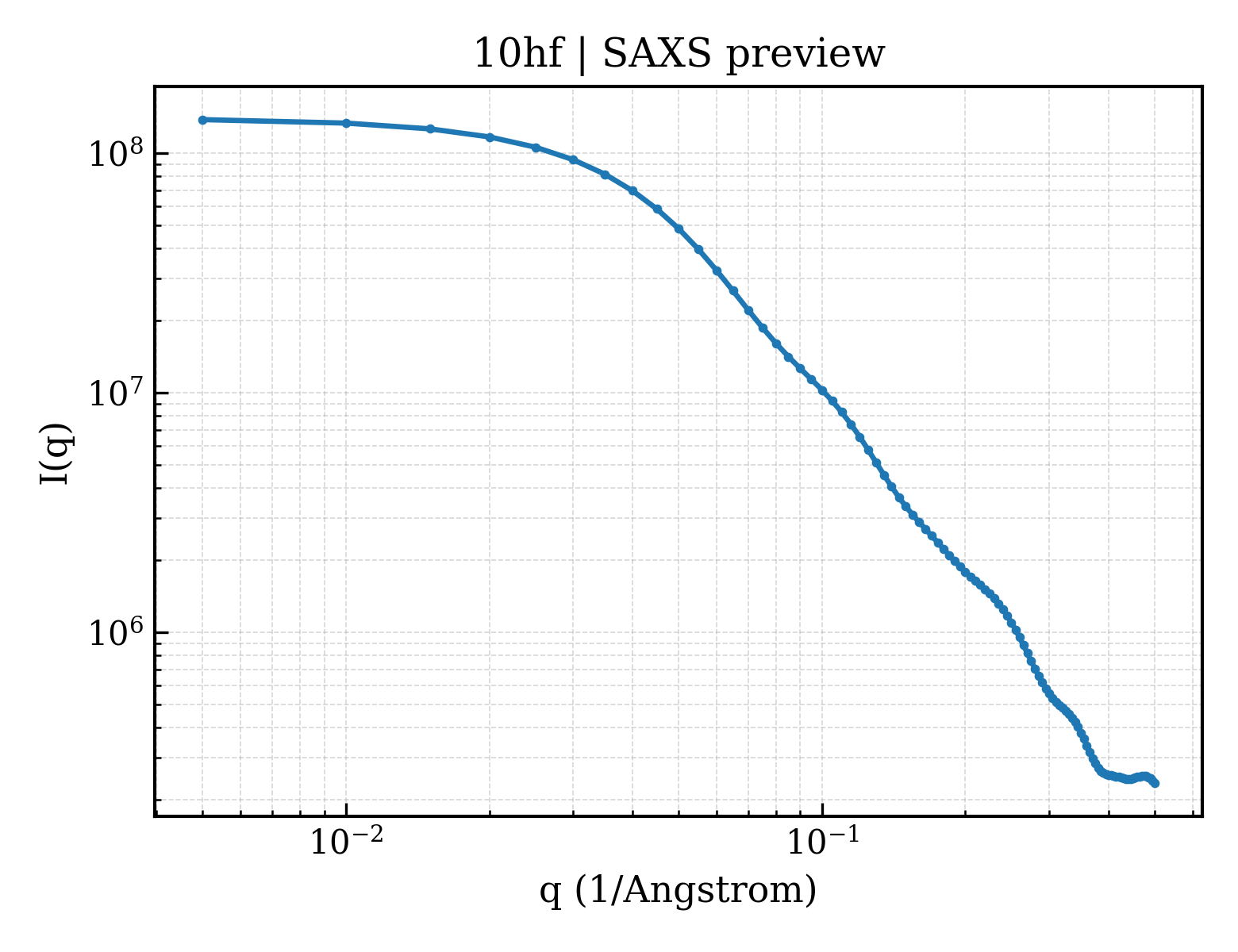

• saxs_plot /app/data/visualization/saxs_computation/0h/10hf/10hf_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/0h/10hf/10hf.fit
pddf	/app/data/pr_computation/0h/10hf/10hf.pr.out
profile	/app/data/saxs_computation/0h/10hf/10hf.dat
