1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine-aspartate repeat-containing protein D

Staphylococcus aureus subsp. aureus JH1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 244–561	Fragment：A2-A3 domains	EDO 1,2-ETHANEDIOL × 3 CA CALCIUM ION × 5 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；296 K；0.2 M calcium chloride and 20% (w/v) PEG 3350	Resolution 1.92 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 10PA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
10PS Crystal structure of SdrD A2-A3-B1-B2 domains from Staphylococcus aureus JH1 Deposited 2026-01-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 244–798（555 aa） Fragment：A2-A3-B1-B2 domains	Not recorded	CA CALCIUM ION × 9 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 7 ACT ACETATE ION × 1 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；0.1 M Tris-HCl and 20% (w/v) PEG 2000 MME	Resolution 2.00 Å R-free 0.235
8VDK Crystal Structure of LPXTG-motif Cell Wall Anchor Domain Protein MSCRAMM_SdrD from Staphylococcus aureus Deposited 2023-12-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 244–687（444 aa）	Not recorded	GOL GLYCEROL × 3 EDO 1,2-ETHANEDIOL × 8 CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；0.16 M magnesium chloride, 0.08 TrisHCl pH8.5, 24 %(w/v) PEG4000, 20 % (v/v) glycerol	Resolution 1.80 Å R-free 0.211

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SDRD_STAAM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–321； UniProt 244–561

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	10pa
Deposition date deposition_date	2026-01-30
最后修订 last_revision	2026-02-11
Structure title title	Crystal structure of SdrD A2-A3 domains from Staphylococcus aureus JH1
Keywords keywords	;SdrD, MSCRAMM, LPXTG-motif, Structural Genomics, PSI-Biology, Center for Structural Biology of Infectious Diseases, CSBID, CELL ADHESION ;; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.02 Å
Radius of gyration Rg (electron density) rg_electron	23.23 Å
Forward intensity I(0) i0	22061900.00
Molecular weight molecular_weight	35316.0 kDa
Excluded volume excluded_volume	43974 Å³
Envelope volume envelope_volume	54331 Å³
Hydration-shell volume shell_volume	20579 Å³
Envelope diameter envelope_diameter	82.0 Å
Shell Rg shell_rg	28.67 Å
Envelope Rg envelope_rg	23.22 Å
Shape Rg shape_rg	23.21 Å
Total Rg total_rg	24.01 Å
Total atoms total_atoms	2476
Residues n_residues	317
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

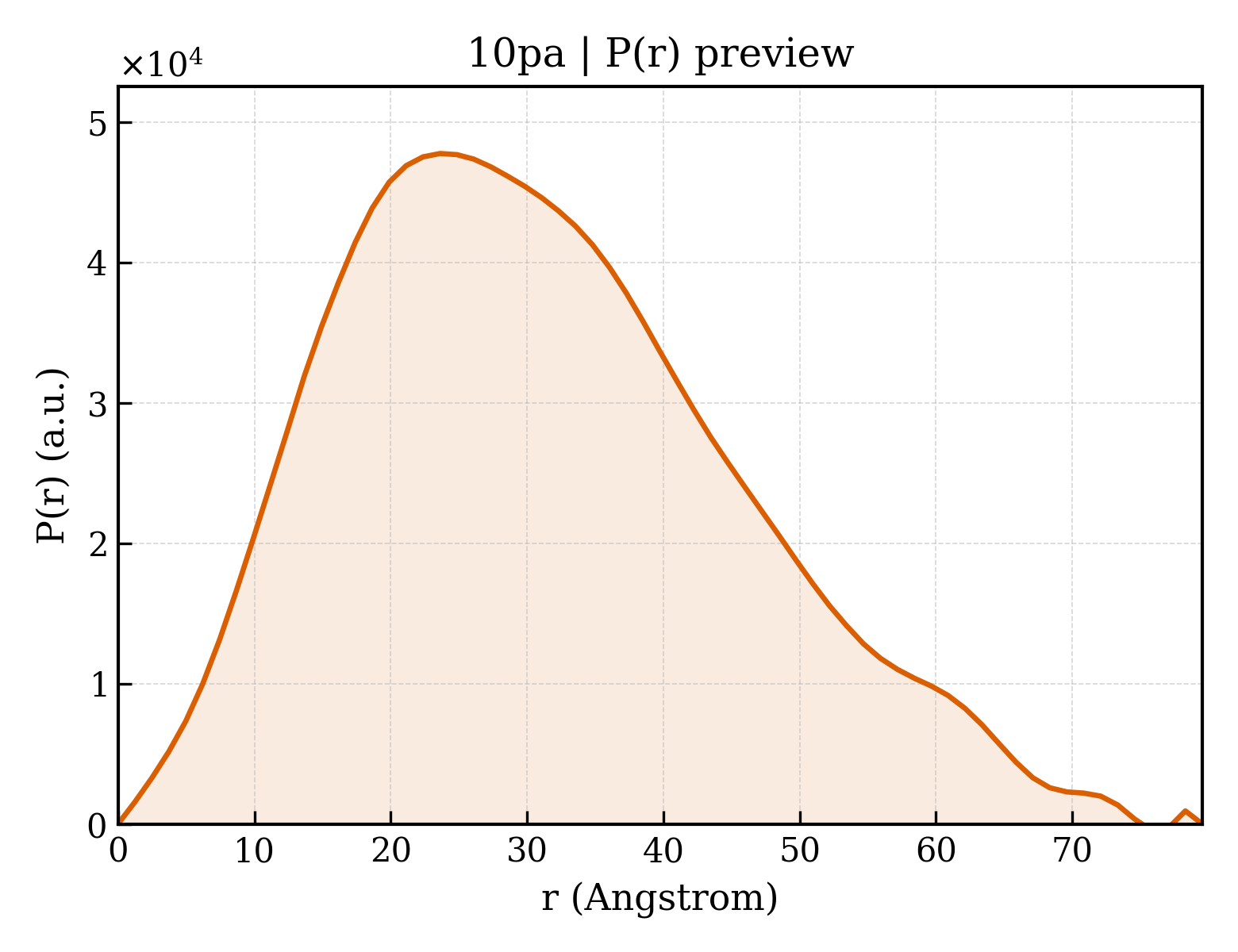

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	79.5 Å
Rg (real space) rg_real	24.13 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	2.2060e+07
I(0) uncertainty (real space) i0_real_error	3.4740e+05
Rg (reciprocal space) rg_reciprocal	24.11 Å
I(0) (reciprocal space) i0_reciprocal	22060000.0000
Solution quality estimate total_estimate	0.6180
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.6 Å
Skewness Skewness skewness	0.456
Kurtosis Kurtosis kurtosis	-0.292
Angular range angular_range	— – 0.3300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4895000.0000
Real-space data points n_real_points	65
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.844; Stabil: 0.994; Sysdev: 0.203; Positv: 1.000; Valcen: 0.903; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Serine-aspartate repeat-containing protein D
Molecular weight formula_weight	35394.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2574

SNASKNVNDLITSNTTLTVVDADNSKTIVPAQDYLSLKSQITVDDKVKSGDYFTIKYSDTVQVYGLNPEDIKNIGDIKDPNNGETIATAKHDTANNLITYTFTDYVDRFNSVKMGINYSIYMDADTIPVDKKDVPFSVTIGNQITTTTADITYPAYKEADNNSIGSAFTETVSHVGNVEDPGYYNQVVYVNPMDKDLKGAKLKVEAYHPKYPTNIGQINQNVTNIKIYRVPEGYTLNKGYDVNTNDLVDVTDEFKNKMTYGSNQSVNLDFGDITSAYVVMVNTKFQYTNSESPTLVQMATLSSTGNKSVSTGNALGFTNNQ

来源 Source

来源生物 organism	Staphylococcus aureus subsp. aureus JH1
NCBI Class编号 ncbi_taxonomy_id	359787
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	98

▶

8. Citations (1)

▶

Unit-cell length a length_a	70.523 Å
Unit-cell length b length_b	73.148 Å
Unit-cell length c length_c	198.705 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	orthorhombic

Resolution resolution	1.920 Å
Low-resolution limit resolution_low	36.570 Å
R factor r_factor	0.2139
R_work r_work	0.2121
R_free r_free	0.2449
