10zu

MPNN-fixbb designed RNA molecule

Method: ELECTRON MICROSCOPY Dmax: 65.6 Å Quality: EXCELLENT

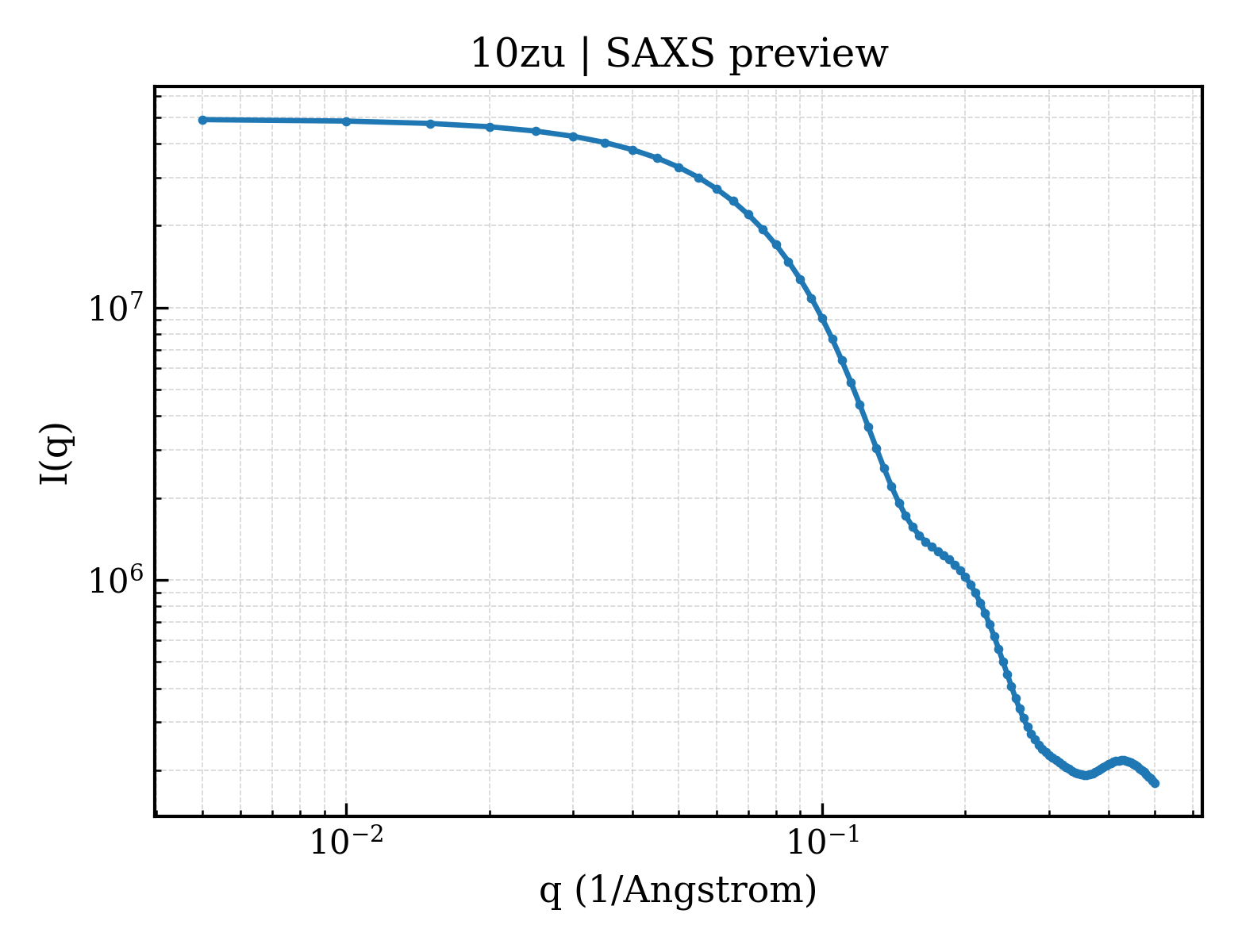

SAXS Profile

SAXS profile for 10zu

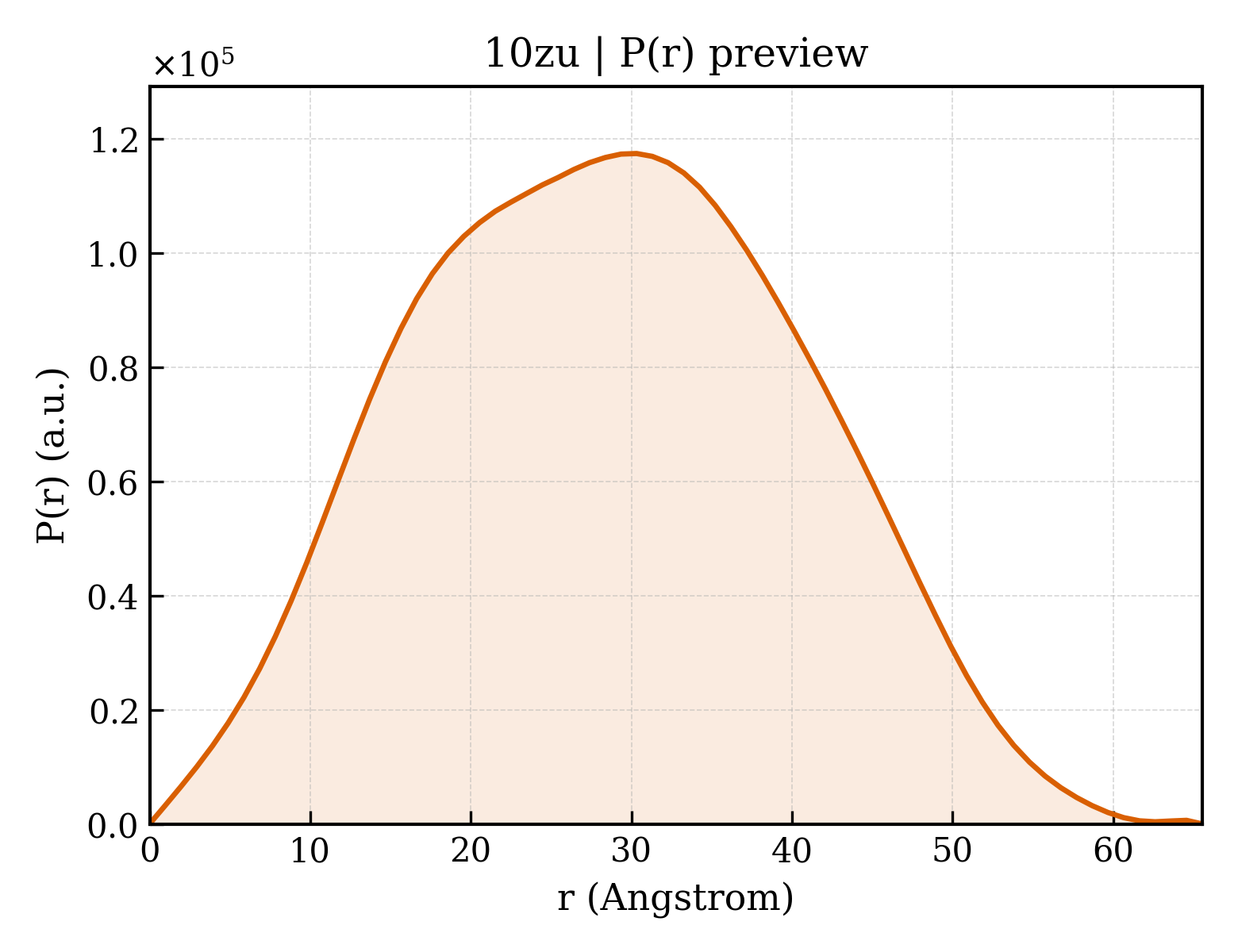

P(r) Distribution

P(r) distribution for 10zu
▼

1. Structure Basics

entry_id10zu
deposition_date2026-02-13
titleMPNN-fixbb designed RNA molecule
keywordssynthetic, pseudoknot, kissing multiloops, RNA; RNA
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier22.03 Å
rg_electron21.55 Å
i049170900.00
molecular_weight31312.0 kDa
excluded_volume29094 ų
envelope_volume46442 ų
shell_volume19014 ų
envelope_diameter66.1 Å
shell_rg26.86 Å
envelope_rg21.11 Å
shape_rg21.48 Å
total_rg22.07 Å
total_atoms2066
n_residues96
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax65.6 Å
rg_real21.89 Å
rg_real_error0.31 Å
i0_real4.9170e+07
i0_real_error6.3670e+05
rg_reciprocal21.92 Å
i0_reciprocal49170000.0000
total_estimate0.9172
solution_quality EXCELLENT a EXCELLENT solution
n_peaks2
r_peak_primary30.3 Å
skewness0.079
kurtosis-0.623
angular_range— – 0.3600 Å−1
current_alpha0.0000
highest_alpha2939000.0000
n_real_points68
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.978; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.986
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
