115d
ORDERED WATER STRUCTURE IN AN A-DNA OCTAMER AT 1.7 ANGSTROMS RESOLUTION
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 115d |
| deposition_date | 1993-02-12 |
| title | ORDERED WATER STRUCTURE IN AN A-DNA OCTAMER AT 1.7 ANGSTROMS RESOLUTION |
| keywords | A-DNA, DOUBLE HELIX, MODIFIED, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.71 Å |
| rg_electron | 10.19 Å |
| i0 | 1532270.00 |
| molecular_weight | 5091.0 kDa |
| excluded_volume | 4698 ų |
| envelope_volume | 6054 ų |
| shell_volume | 5583 ų |
| envelope_diameter | 35.7 Å |
| shell_rg | 14.58 Å |
| envelope_rg | 10.38 Å |
| shape_rg | 10.19 Å |
| total_rg | 10.99 Å |
| total_atoms | 322 |
| n_residues | 12 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

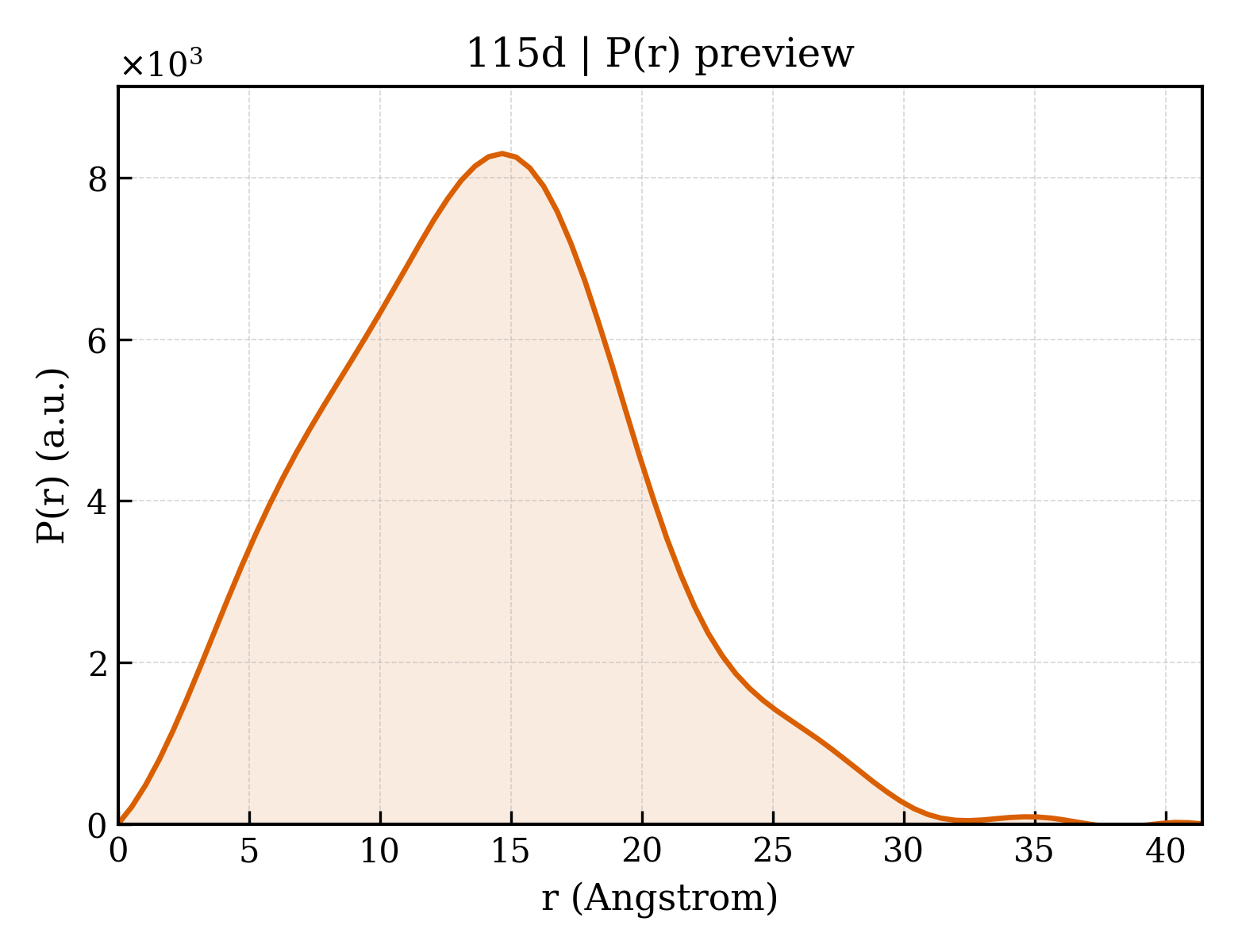

3. P(r) Analysis (GNOM)
| dmax | 41.4 Å |
| rg_real | 10.68 Å |
| rg_real_error | 0.41 Å |
| i0_real | 1.5320e+06 |
| i0_real_error | 1.6570e+04 |
| rg_reciprocal | 10.68 Å |
| i0_reciprocal | 1532000.0000 |
| total_estimate | 0.7085 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 14.7 Å |
| skewness | 0.247 |
| kurtosis | -0.140 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 48790.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.451; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.859; Smooth: 0.000 |
