11bj
Crystal structure of trabectedin-DNA complex

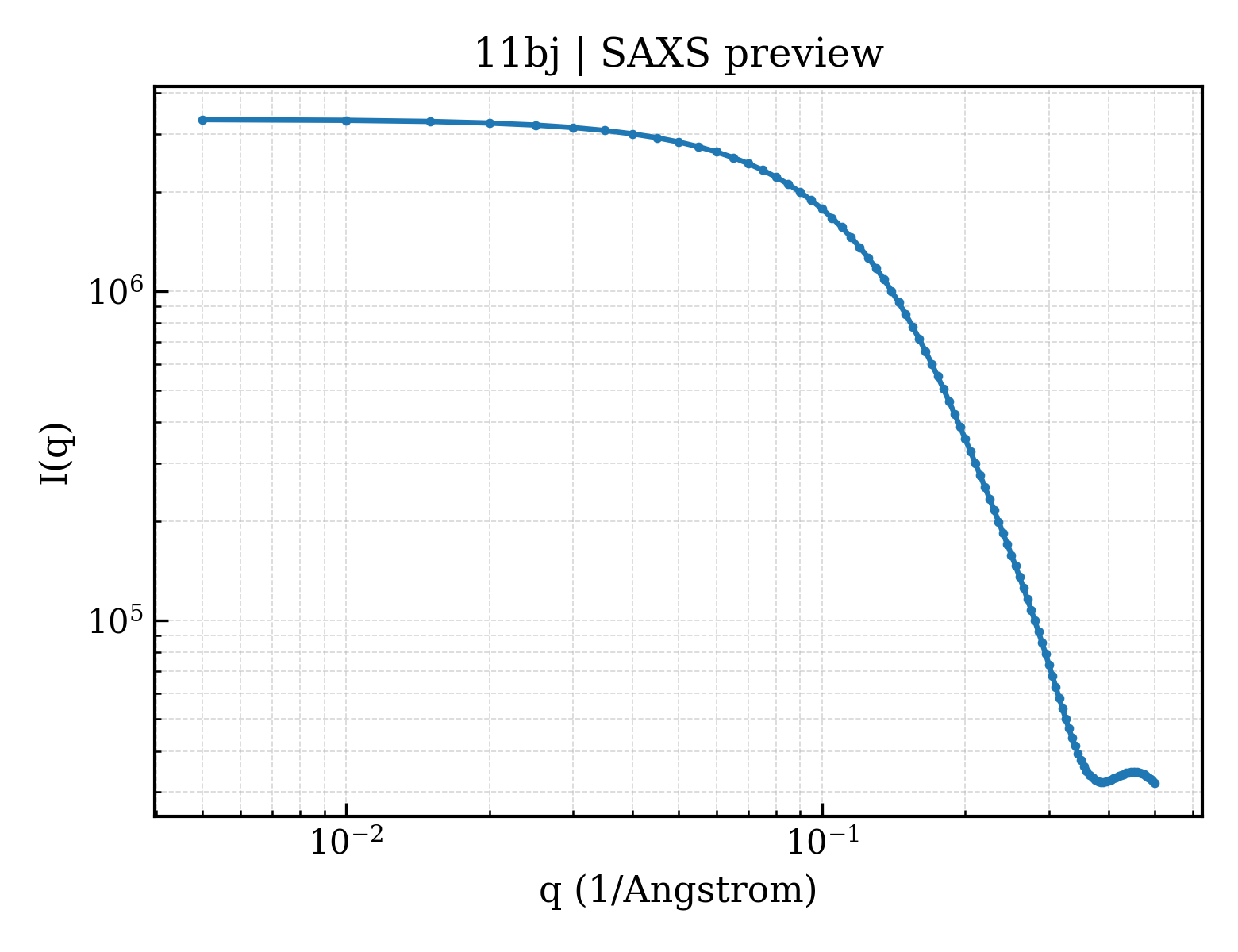

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 11bj |
| deposition_date | 2026-02-16 |
| title | Crystal structure of trabectedin-DNA complex |
| keywords | DNA, Anticancer, Drug, TC-NER, XPG inhibitor, DNA repair; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.75 Å |
| rg_electron | 13.18 Å |
| i0 | 3318760.00 |
| molecular_weight | 8864.0 kDa |
| excluded_volume | 9123 ų |
| envelope_volume | 11386 ų |
| shell_volume | 8008 ų |
| envelope_diameter | 44.7 Å |
| shell_rg | 17.54 Å |
| envelope_rg | 13.27 Å |
| shape_rg | 13.05 Å |
| total_rg | 14.08 Å |
| total_atoms | 594 |
| n_residues | 24 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.9 Å |
| rg_real | 13.78 Å |
| rg_real_error | 0.33 Å |
| i0_real | 3.3190e+06 |
| i0_real_error | 3.9360e+04 |
| rg_reciprocal | 13.78 Å |
| i0_reciprocal | 3319000.0000 |
| total_estimate | 0.8813 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.1 Å |
| skewness | 0.368 |
| kurtosis | -0.376 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 265000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.856; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.928; Smooth: 0.957 |
