SAXSdb — 11mn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

66 kDa protein

Escherichia phage N4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain A； UniProt 1–359 Chain B； UniProt 1–359 Chain C； UniProt 1–359 Chain D； UniProt 1–359 Chain E； UniProt 1–359 Chain F； UniProt 1–359 Chain G； UniProt 1–359 Chain H； UniProt 1–359 Chain I； UniProt 1–359 Chain J； UniProt 1–359	Not recorded	No other associated polymer	ELECTRON MICROSCOPY mmCIF provides none of the parsed experimental conditions	Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	Q859Q0_BPN4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–359； UniProt 1–359 Author chain B； PDBConstruct 1–359； UniProt 1–359 Author chain C； PDBConstruct 1–359； UniProt 1–359 Author chain D； PDBConstruct 1–359； UniProt 1–359 Author chain E； PDBConstruct 1–359； UniProt 1–359 Author chain F； PDBConstruct 1–359； UniProt 1–359 Author chain G； PDBConstruct 1–359； UniProt 1–359 Author chain H； PDBConstruct 1–359； UniProt 1–359 Author chain I； PDBConstruct 1–359； UniProt 1–359 Author chain J； PDBConstruct 1–359； UniProt 1–359

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	11mn
Deposition date deposition_date	2026-03-05
Structure title title	N4 Periplasmic Tunnel Fragment
Keywords keywords	Bacteriophage, Ejection Protein, Membrane Channel, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	48.00 Å
Radius of gyration Rg (electron density) rg_electron	48.13 Å
Forward intensity I(0) i0	842573000.00
Molecular weight molecular_weight	221230.0 kDa
Excluded volume excluded_volume	269970 Å³
Envelope volume envelope_volume	421940 Å³
Hydration-shell volume shell_volume	77643 Å³
Envelope diameter envelope_diameter	148.9 Å
Shell Rg shell_rg	48.51 Å
Envelope Rg envelope_rg	45.83 Å
Shape Rg shape_rg	48.15 Å
Total Rg total_rg	48.08 Å
Total atoms total_atoms	15490
Residues n_residues	2040
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	139.2 Å
Rg (real space) rg_real	48.06 Å
Rg uncertainty (real space) rg_real_error	1.07 Å
I(0) (real space) i0_real	8.4260e+08
I(0) uncertainty (real space) i0_real_error	1.6010e+07
Rg (reciprocal space) rg_reciprocal	48.00 Å
I(0) (reciprocal space) i0_reciprocal	842500000.0000
Solution quality estimate total_estimate	0.8162
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	54.8 Å
Skewness Skewness skewness	0.379
Kurtosis Kurtosis kurtosis	-0.408
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	56390000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.869; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	77357

Description description	66 kDa protein
Molecular weight formula_weight	38738.8 kDa
Source method src_method	man
Copy count entity_count	10

N4 Periplasmic Tunnel Fragment

1. Protein Identity and Related Structures Protein Identity & Related Structures

66 kDa protein

State in the Current Structure

Other States of the Same Protein in the Database

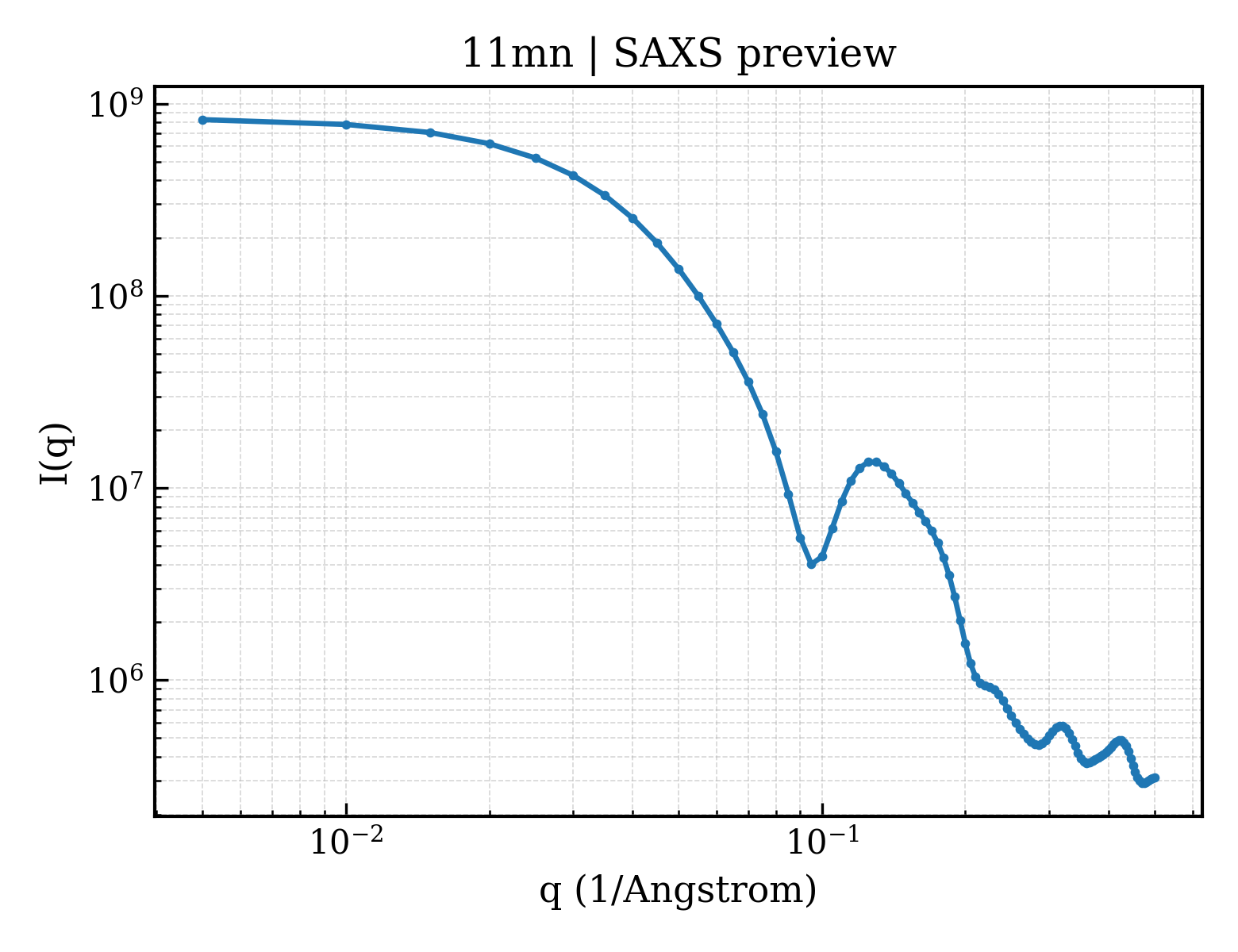

SAXS scattering curve SAXS Profile

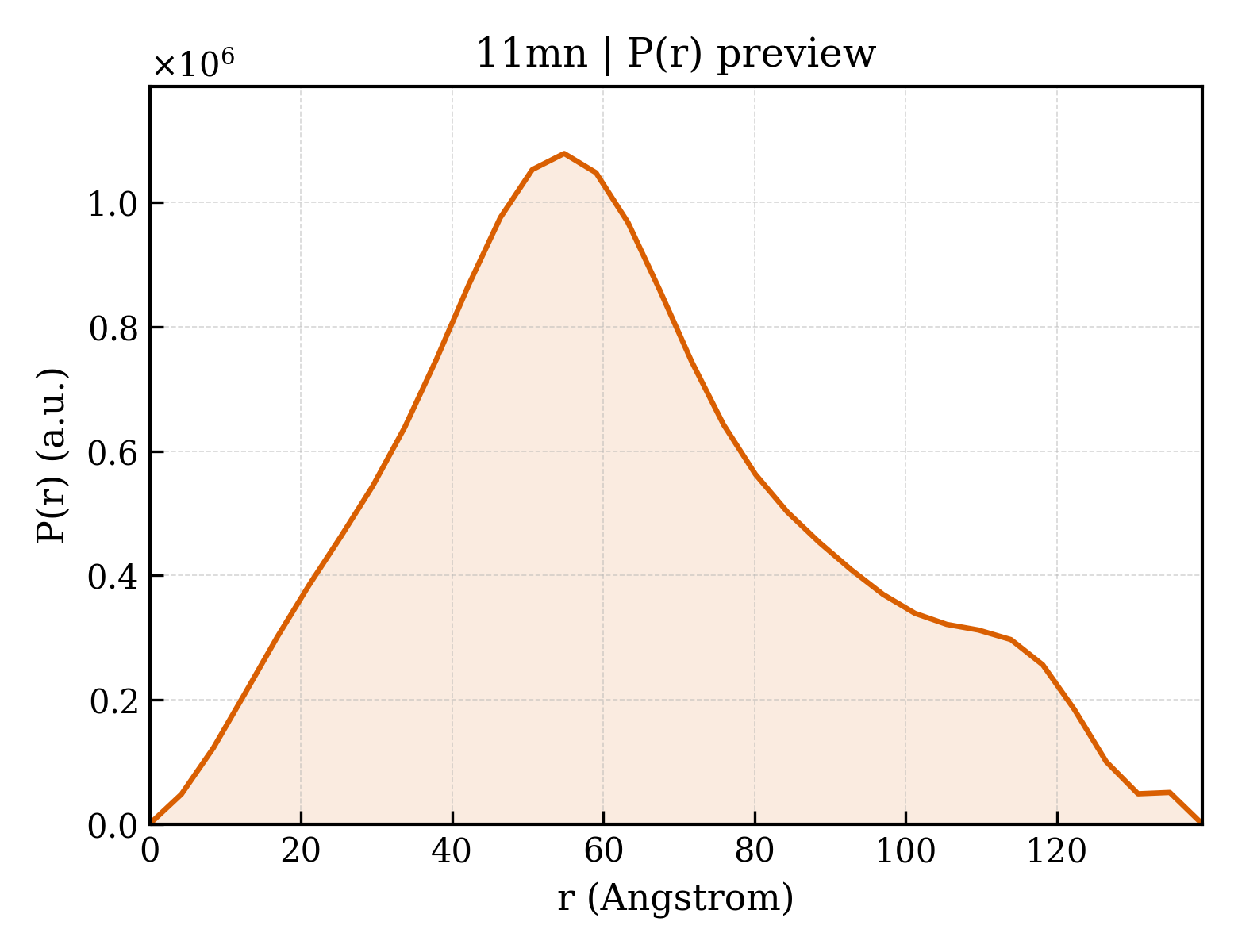

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J
Atom count atom_count	15490

来源生物 organism	Escherichia phage N4
NCBI Class编号 ncbi_taxonomy_id	2886925
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/1m/11mn/11mn.fit
pddf	/app/data/pr_computation/1m/11mn/11mn.pr.out
profile	/app/data/saxs_computation/1m/11mn/11mn.dat
