133d
THE CRYSTAL STRUCTURE OF N4-METHYLCYTOSINE.GUANOSIN BASE-PAIRS IN THE SYNTHETIC HEXANUCLEOTIDE D(CGCGM(4)CG)

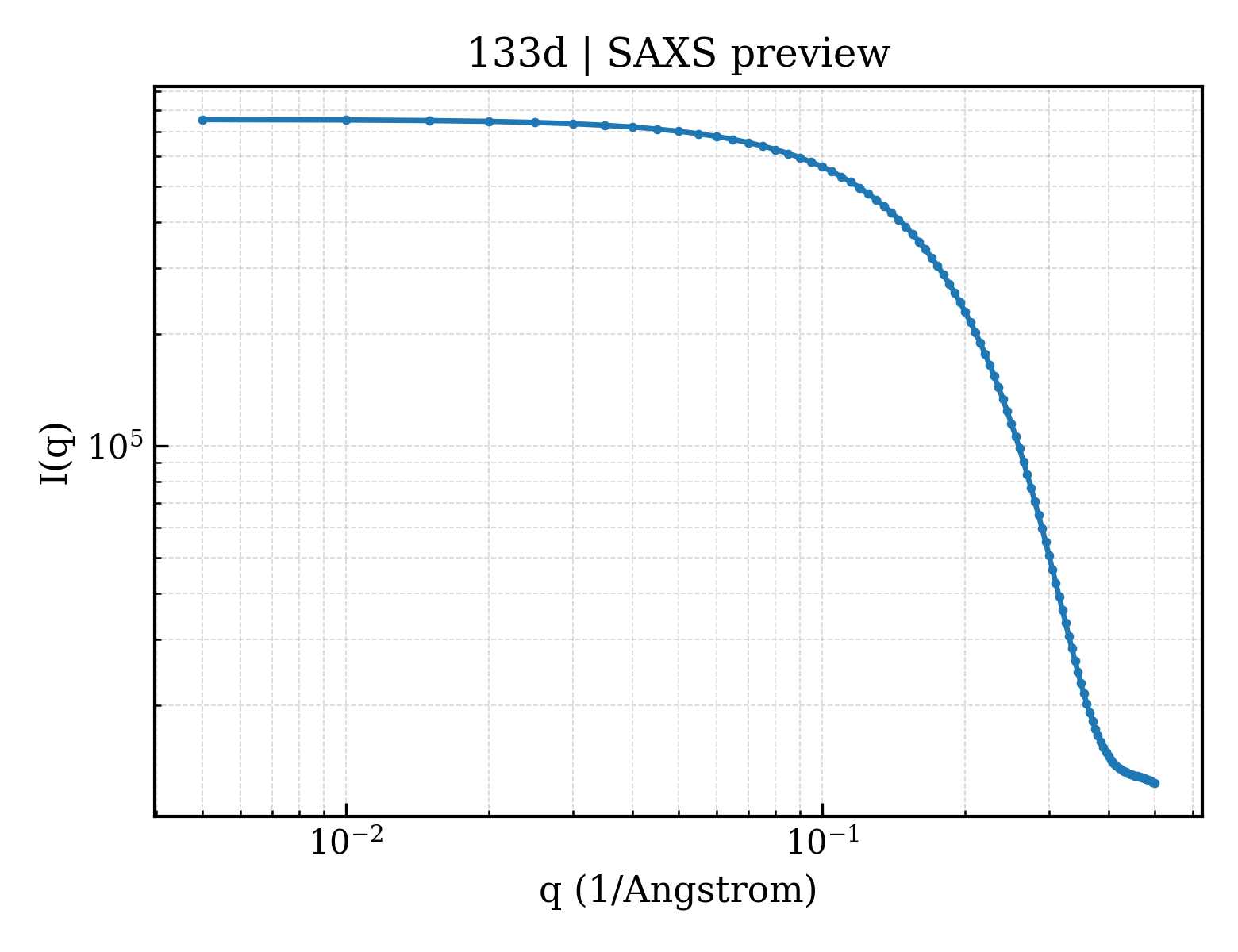

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 133d |
| deposition_date | 1993-07-29 |
| title | THE CRYSTAL STRUCTURE OF N4-METHYLCYTOSINE.GUANOSIN BASE-PAIRS IN THE SYNTHETIC HEXANUCLEOTIDE D(CGCGM(4)CG) |
| keywords | Z-DNA, DOUBLE HELIX, MODIFIED, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.37 Å |
| rg_electron | 8.61 Å |
| i0 | 755395.00 |
| molecular_weight | 3623.0 kDa |
| excluded_volume | 3521 ų |
| envelope_volume | 4219 ų |
| shell_volume | 4720 ų |
| envelope_diameter | 28.2 Å |
| shell_rg | 12.87 Å |
| envelope_rg | 8.80 Å |
| shape_rg | 8.57 Å |
| total_rg | 9.59 Å |
| total_atoms | 242 |
| n_residues | 10 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.4 Å |
| rg_real | 9.33 Å |
| rg_real_error | 0.25 Å |
| i0_real | 7.5540e+05 |
| i0_real_error | 8.0020e+03 |
| rg_reciprocal | 9.33 Å |
| i0_reciprocal | 755400.0000 |
| total_estimate | 0.8846 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.9 Å |
| skewness | 0.210 |
| kurtosis | -0.274 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 45920.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.836; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.993 |
